Wildcat Lake (WCL) Preliminary Specs

Intel Wildcat Lake (WCL) is upcoming mobile SoC replacing ADL-N. WCL consists of 2 tiles: compute tile and PCD tile. It is true single die consists of CPU, GPU and NPU that is fabbed by 18-A process. Last time I checked, PCD tile is fabbed by TSMC N6 process. They are connected through UCIe, not D2D; a first from Intel. Expecting launching in Q2/Computex 2026. In case people don't remember AlderLake-N, I have created a table below to compare the detail specs of ADL-N and WCL. Just for fun, I am throwing LNL and upcoming Mediatek D9500 SoC.

Intel Alder Lake - NIntel Wildcat LakeIntel Lunar LakeMediatek D9500
Launch DateQ1-2023Q2-2026 ?Q3-2024Q3-2025
ModelIntel N300?Core Ultra 7 268VDimensity 9500 5G
Dies2221
NodeIntel 7 + ?Intel 18-A + TSMC N6TSMC N3B + N6TSMC N3P
CPU8 E-cores2 P-core + 4 LP E-cores4 P-core + 4 LP E-coresC1 1+3+4
Threads8688
Max Clock3.8 GHz?5 GHz
L3 Cache6 MB?12 MB
TDP7 WFanless ?17 WFanless
Memory64-bit LPDDR5-480064-bit LPDDR5-6800 ?128-bit LPDDR5X-853364-bit LPDDR5X-10667
Size16 GB?32 GB24 GB ?
Bandwidth~ 55 GB/s136 GB/s85.6 GB/s
GPUUHD GraphicsArc 140VG1 Ultra
EU / Xe32 EU2 Xe8 Xe12
Max Clock1.25 GHz2 GHz
NPUNA18 TOPS48 TOPS100 TOPS ?









As Hot Chips 34 starting this week, Intel will unveil technical information of upcoming Meteor Lake (MTL) and Arrow Lake (ARL), new generation platform after Raptor Lake. Both MTL and ARL represent new direction which Intel will move to multiple chiplets and combine as one SoC platform.

MTL also represents new compute tile that based on Intel 4 process which is based on EUV lithography, a first from Intel. Intel expects to ship MTL mobile SoC in 2023.

ARL will come after MTL so Intel should be shipping it in 2024, that is what Intel roadmap is telling us. ARL compute tile will be manufactured by Intel 20A process, a first from Intel to use GAA transistors called RibbonFET.





Attachments

  • PantherLake.png
    283.5 KB · Views: 24,029
  • LNL.png
    881.8 KB · Views: 25,523
  • INTEL-CORE-100-ULTRA-METEOR-LAKE-OFFCIAL-SLIDE-2.jpg
    181.4 KB · Views: 72,431
  • Clockspeed.png
    611.8 KB · Views: 72,319
Last edited:
  • Like
Reactions: LaudaSur, jorden6655, john404 and 15 others
A

Abwx

Lifer
Apr 2, 2011
11,885
4,873
136
Hitman928 said:

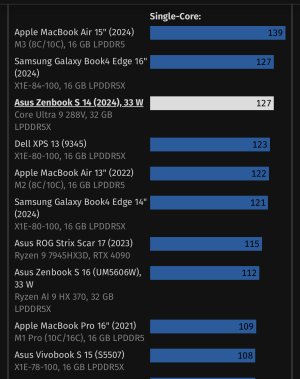

I’ve only seen 1 288v sample tested so far and it scored 125.
Click to expand...

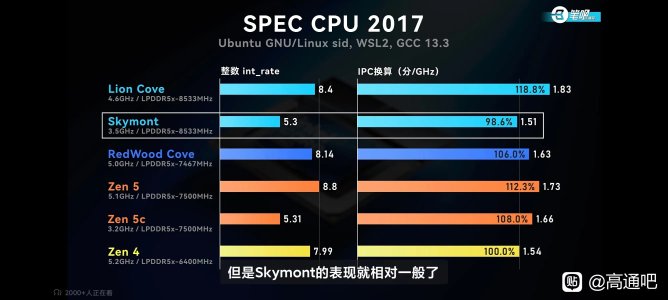

There s a 288V tested at Computerbase, it score 127, what would Intel do without Maxon s "updated" benchs, because in CB R15/20/23 it s not as good, and is slightly slower per clock vs the 370 in 7 Zip ST, wich is in line with Spec_int scores.

www.computerbase.de

Intel Core Ultra 9 288V „Lunar Lake“ im Test

Es ist so weit: Nach einem Jahr Salamischeibenmarketing ist Intel Lunar Lake ab sofort verfügbar. Core Ultra 200V überzeugt im Test.
www.computerbase.de www.computerbase.de

  • Like
Reactions: Josh128
poke01

poke01

Diamond Member
Mar 8, 2022
4,242
5,578
106
gdansk said:
But Pat, where is my fanless x86 laptop?
Click to expand...
It’s good but not anywhere near fanless good.

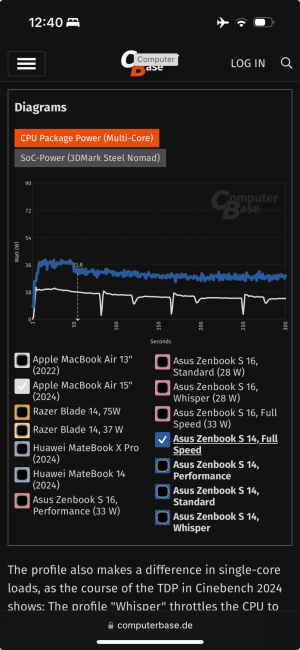

This is likely why, an all core load consumes about 30 watts with peaks of 36 watts. Of course Lunar Lake can be configured with 9 watts but then it would be slower than M2.

H

Hitman928

Diamond Member
Apr 15, 2012
6,695
12,370
136
poke01 said:
It’s good but not anywhere near fanless good.

This is likely why, an all core load consumes about 30 watts with peaks of 36 watts. Of course Lunar Lake can be configured with 9 watts but then it would be slower than M2.
View attachment 108149
Click to expand...

I think this might be where LNL is actually a hard sell for Intel. It seems that OEMs are wanting to push it into ‘U’ class territory power consumption to get higher performance and put a nice OLED screen on it, but then they kinda defeats the purpose of the chip. Hope I’m wrong though.

M

Magio

Member
May 13, 2024
173
206
76
From these early reviews, Lunar Lake seems like the best x86 platforms for thin and lights by a good distance. But looking at performance across different power modes it's a bit infuriating these early designs even made their "full speed" modes 28/30W because it really doesn't seem to have a major impact on performance going from there to the low/mid 20s while it makes a big thermal and noise difference in designs that thin.

Of course there's the option of using only the lower power modes but it makes me wonder why Intel or AMD would even bother continuing to optimize low power performance when OEMs are going to stubbornly redline those chips outside their efficiency window anyway... If Asus/Lenovo are going to make them run at 30W anyway, they might as well have 16 threads and not 8.

J

jdubs03

Golden Member
Oct 1, 2013
1,282
902
136
Hitman928 said:
I think this might be where LNL is actually a hard sell for Intel. It seems that OEMs are wanting to push it into ‘U’ class territory power consumption to get higher performance and put a nice OLED screen on it, but then they kinda defeats the purpose of the chip. Hope I’m wrong though.
Click to expand...
This is why I’m a bit annoyed and perplexed as to why they chose ARL-U to just be a MTL refresh. If they had chosen Lion Cove and Skymont, they wouldn’t have a gap in their product line with a different architecture between the V and H classes. Pretty much looks like the 288V is the only thing that could try to compete in the higher power “U” segment.

Ideally, they would have something to compete like for like against the HX 370/375.

StinkyPinky

StinkyPinky

Diamond Member
Jul 6, 2002
6,973
1,276
126

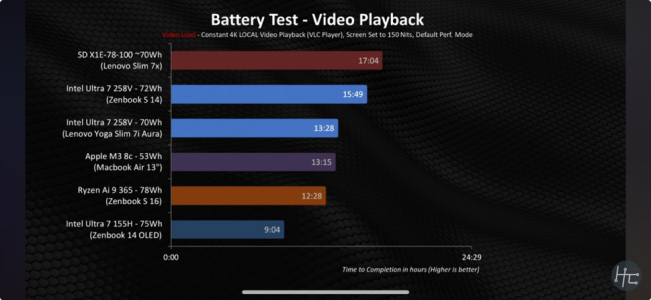

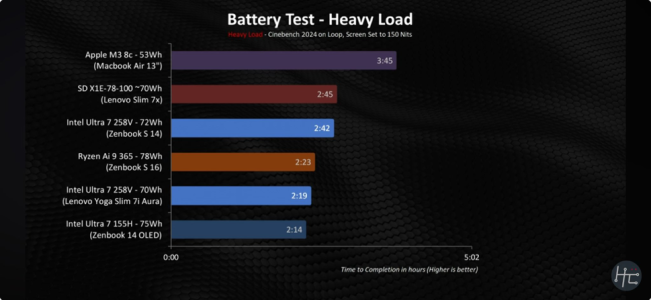

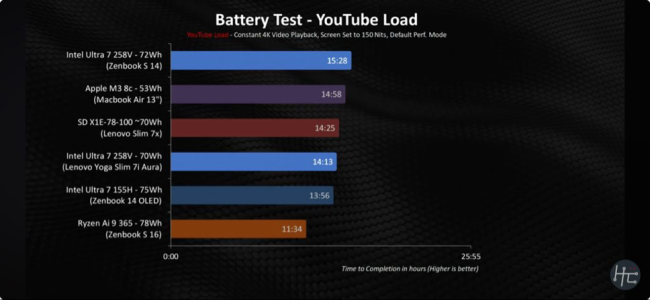

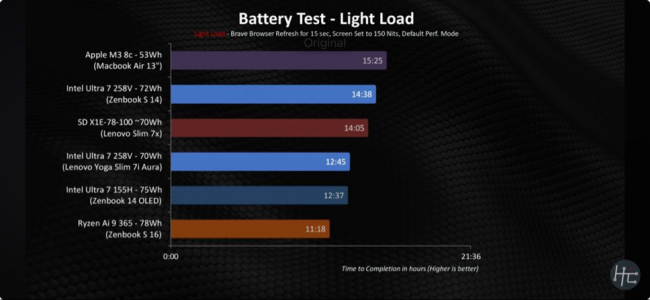

These battery life tests with different displays and different display sizes etc just seem pointless. A 16" laptop with a brighter display drains quicker than a 14"? Who is surprised by that?

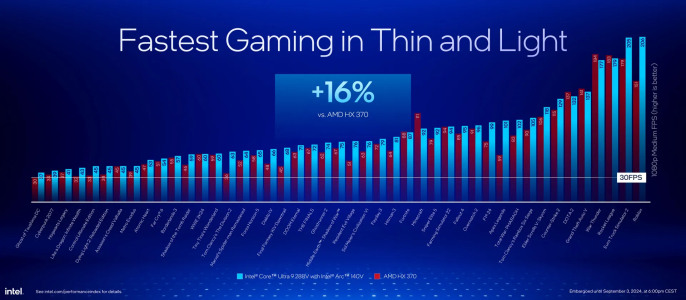

That said, I do like the GPU gains. Although once again, how many people are really gaming on thin and light laptops? Seems a very niche type of demand.

  • Like
Reactions: Tlh97, Executor_ and ikjadoon
C

controlflow

Member
Feb 17, 2015
195
339
136
Magio said:
From these early reviews, Lunar Lake seems like the best x86 platforms for thin and lights by a good distance. But looking at performance across different power modes it's a bit infuriating these early designs even made their "full speed" modes 28/30W because it really doesn't seem to have a major impact on performance going from there to the low/mid 20s while it makes a big thermal and noise difference in designs that thin.

Of course there's the option of using only the lower power modes but it makes me wonder why Intel or AMD would even bother continuing to optimize low power performance when OEMs are going to stubbornly redline those chips outside their efficiency window anyway... If Asus/Lenovo are going to make them run at 30W anyway, they might as well have 16 threads and not 8.
Click to expand...
Hitman928 said:
I think this might be where LNL is actually a hard sell for Intel. It seems that OEMs are wanting to push it into ‘U’ class territory power consumption to get higher performance and put a nice OLED screen on it, but then they kinda defeats the purpose of the chip. Hope I’m wrong though.
Click to expand...

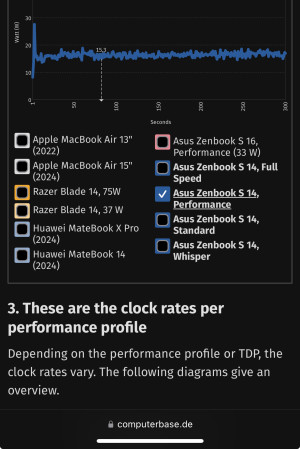

At least in the case of Asus, with the Zenbook 14 they actually set the default out of box power mode to just 19 watts at steady state. You only get the 28W+ behavior in performance mode.

Lenovo seems to want to push power a little more but I think it makes no sense given there is already not much performance gain above 20W.
