Question *STABLE* NVMe - USB Adapter?

Page 51 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
C

cyberjedi

Junior Member
I'm looking to buy a *RELIABLE* NVME-USB external adapter, that doesn't disconnect randomly, can keep up the close to 1GB/s speed.
So far all adapter's reviews contain frighteningly high % of reports of malfunction, random disconnects, sub-par speeds, falling to even under USB 2.0 speeds, etc.
There are 3 main chipsets in the market: JMicron JMS583, Asmedia ASM2362, and Realtek RTL9210 (no product has surfaced with the latter yet, so no REAL reviews, experiences yet UPDATE: it is on the market already).
Also ASUS has a new product, ROG Strix Arion, but there isn't enough feedback about it yet, and I mean real life feedback not just being able to run a few benchmarks, but real stress test to see if the device (adapter) can keep it up, without disconnecting or slowing down hard.
I would really appreciate any feedback from those who have GOOD experiences during stress-tests, like tons of random 4k writes with a stable speed, cloning 100's of GB-s at a stable high speed close to 1GB/s.
I know SSD's very well, so please stick to the point and don't start to educate me on how their speed falls after some writes, etc. I'm aware and this is NOT the point.
You can help if you can point me to a STABLE and RELIABLE NVMe-USB-C adapter that WORKS as expected.
Thank you in advance!

Last edited:
JMicron JMS583 has a compatibility problem with KIOXIA BG4
which causes data corruption

You can read about it here
goughlui.com

PSA: Validate Your Storage! JMicron JMS583 + KIOXIA BG4 Series SSD Issue?

After recently purchasing a refurbished Dell Latitude 5420 and upgrading its internals, it liberated a 256GB KIOXIA BG4-series SSD (KBG40ZNS256G) 2230-size M.2 NVMe SSD that’s somewhat worn b…
goughlui.com goughlui.com

I also verified it on two BG4's and two different JMS583's

Shonky said:
JMicron JMS583 has a compatibility problem with KIOXIA BG4
which causes data corruption

You can read about it here
goughlui.com

PSA: Validate Your Storage! JMicron JMS583 + KIOXIA BG4 Series SSD Issue?

After recently purchasing a refurbished Dell Latitude 5420 and upgrading its internals, it liberated a 256GB KIOXIA BG4-series SSD (KBG40ZNS256G) 2230-size M.2 NVMe SSD that’s somewhat worn b…
goughlui.com goughlui.com

I also verified it on two BG4's and two different JMS583's
Click to expand...

Thanks Shonky. Should we assume you also successfully tested these same drives with a different bridge chip (not Jmicron) ??

More details of your investigation would be nice.

Thanks.

I just verified goughlui's finding with the JMS583 as i have 4 x BG4's to test
goughlui confirmed that RTL9210B is fine with BG4's and posted screenshots in the link i posted
so didnt feel the need to verify that

JMicron need to post a firmware fix for KIOXIA BG4's with the JMS583

Shonky said:
I just verified goughlui's finding with the JMS583 as i have 4 x BG4's to test
goughlui confirmed that RTL9210B is fine with BG4's and posted screenshots in the link i posted
so didnt feel the need to verify that

JMicron need to post a firmware fix for KIOXIA BG4's with the JMS583
Click to expand...
Thanks. I hope a fix comes soon.

Is it generally better to get a M.2 SSD instead of SATA now because of HMB and dramless models for large capacity cheaper SSDs for storage purposes?

Also are cheap ugreen/orico m.2 usb enclosures decent? Don't know the difference in the models.

Amazon.com: UGREEN M.2 NVMe SSD Enclosure 10Gbps USB 3.2 Gen 2 (10 Gbps) to NVME M-Key/(B+M) Key Solid State Drive External Enclosure Support UASP Trim for 2230/2242 /2260/2280 NVME SSDs : Electronics

Amazon.com: UGREEN M.2 NVMe SSD Enclosure 10Gbps USB 3.2 Gen 2 (10 Gbps) to NVME M-Key/(B+M) Key Solid State Drive External Enclosure Support UASP Trim for 2230/2242 /2260/2280 NVME SSDs : Electronics
www.amazon.com

Last edited:
bononos said:
Is it generally better to get a M.2 SSD instead of SATA now because of HMB and dramless models for large capacity cheaper SSDs for storage purposes?
Motherboards now have 3 or 4 M.2 slots nowadays so I'll be switching to M.2's.
Also are cheap ugreen/orico m.2 usb enclosures decent? Don't know the difference in the models.

Amazon.com: UGREEN M.2 NVMe SSD Enclosure 10Gbps USB 3.2 Gen 2 (10 Gbps) to NVME M-Key/(B+M) Key Solid State Drive External Enclosure Support UASP Trim for 2230/2242 /2260/2280 NVME SSDs : Electronics

Amazon.com: UGREEN M.2 NVMe SSD Enclosure 10Gbps USB 3.2 Gen 2 (10 Gbps) to NVME M-Key/(B+M) Key Solid State Drive External Enclosure Support UASP Trim for 2230/2242 /2260/2280 NVME SSDs : Electronics
www.amazon.com
Click to expand...
Is there a question buried in there somewhere, or did you just want to post what you've decided?

Sata is slower than nvme. Everyone knows this.

Ugreen and orico both make decent enclosures. If you want specific info, you'll have to be more specific on the exact ugreen or orico device.

Jimminy said:
Is there a question buried in there somewhere, or did you just want to post what you've decided?

Sata is slower than nvme. Everyone knows this.

Ugreen and orico both make decent enclosures. If you want specific info, you'll have to be more specific on the exact ugreen or orico device.
Click to expand...
There were 2 questions. I haven't been keeping up with the news so I wanted to ask even if "everyone knows this".
I provided links to 3 devices.

Shonky said:
I just verified goughlui's finding with the JMS583 as i have 4 x BG4's to test
goughlui confirmed that RTL9210B is fine with BG4's and posted screenshots in the link i posted
so didnt feel the need to verify that

JMicron need to post a firmware fix for KIOXIA BG4's with the JMS583
Click to expand...
Is this error reproducible on other Kioxia SSDs?

kiparen said:
Is this error reproducible on other Kioxia SSDs?
Click to expand...

Try it
I have BG5's and BG6's but cant be bothered testing
as i dont want to go buy more RTL9210's to replace the JMS583's if there turns out to be problems

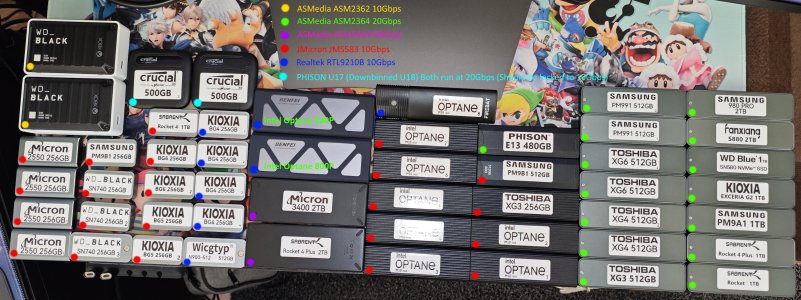

i doubt it though the controller is built into the nand on the BG4's BG5 is external BG6 is a SMI2268XT

I have too many JMS583's to go testing too indepth..


Last edited:
Shonky said:
Try it
I have BG5's and BG6's but cant be bothered testing
as i dont want to go buy more RTL9210's to replace the JMS583's if there turns out to be problems
i doubt it though the controller is built into the nand on the BG4's BG5 is external BG6 is a SMI2268XT

I have too many JMS583's to go testing too indepth..
Click to expand...
Wow. I'm specifically interested in the xg6, which I have, but haven't bought a enclosure for yet.

XG3,XG4,XG6 are fine in all enclosures its the dramless models that get problems in certain Enclosures
For example WD SN740 gets IO resets on pc reboot on one chipset cant remember if it was ASM2364 or RTL9210B
i think it was aleviated with a firmware update on the SN740's at some point cant remember
Samsung PM9B1 gets an io error on reboot also on one of them cant remember which
BG4 you know about with JMS583

I found out at my own expense (corrupted data) that these enclosures are too risky to use. I got the UGREEN 10Gbit and I really thought I could work on it (video editing so more random reads than big files transfers) and I lost a lot of data and time with it.
After 50 pages do you have a list of reliable enclosures or it's simply not possible?
I mean did you come to a conclusion?

Last edited:
Jimminy said:
I've had several RTL9210 for a few years now. They work just fine. With any type of enclosure, the first thing to check is the cable, even if it's brand new. A significant number are bad, right out of the box.

By far, cable problems have been the most common failure with the dozen or two enclosures I have here.
Click to expand...
I have UGREEN 10Gbit with RTL9210 and it only cause issues: missing folders at reboot, corrupted data and random disconnect. So not even that...

-sandro- said:
I have UGREEN 10Gbit with RTL9210 and it only cause issues: missing folders at reboot, corrupted data and random disconnect. So not even that...
Click to expand...
I don't have any ugreen with RTL9210, only orico. They've worked great, but maybe I've just been lucky or haven't tried them with a problematic ssd.

Ugreen has a good reputation though.
I wonder if the USB port hardware has some incompatibility. Probably not, just a thought.

There are so many factors, both in hardware and software; It makes it difficult to track down problems.

Shonky said:
Try it
I have BG5's and BG6's but cant be bothered testing
as i dont want to go buy more RTL9210's to replace the JMS583's if there turns out to be problems
i doubt it though the controller is built into the nand on the BG4's BG5 is external BG6 is a SMI2268XT

I have too many JMS583's to go testing too indepth..

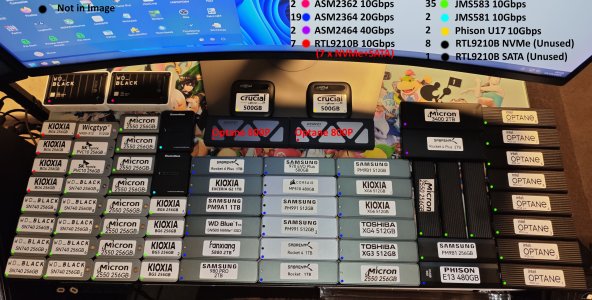

View attachment 130352
Click to expand...
That is quite a collection!

I have the Asus Arion(?) enclosure and it's worked solidly with Samsung 990 Evo Plus and Crucial P3+ drives so far.

It uses the ASM2362 chip if teh googlez are to be believed.

Jimminy said:
I don't have any ugreen with RTL9210, only orico. They've worked great, but maybe I've just been lucky or haven't tried them with a problematic ssd.

Ugreen has a good reputation though.
I wonder if the USB port hardware has some incompatibility. Probably not, just a thought.

There are so many factors, both in hardware and software; It makes it difficult to track down problems.
Click to expand...
Which exact Orico model?

If I were to try another cable is there a way to test if the connection is reliable? Some kind of stress test with error reports. Unfortunately with the UGREEN provided cable it all seems random so I need to be sure before assuming the cable was the issue.

I haven't checked this topic in like 4 years. Which chipset should I be looking for in an enclosure? Or, which should be avoided? Or does it even matter these days?

doesnt really matter apart from a few bugs with specific drives
they all have a bug or two just go for the best speed to price point

20 Gbps ASM2364 is a solid choice and my goto for best speed per $
