Speculation: Ryzen 4000 series/Zen 3

Page 214 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
lobz said:
Yeah I know the feeling... I'm actually really curious how this pans out with regards to SMT, because this rearchitecting looks like it balanced a lot of weaknesses out. I mean AMD didn't lack in MT perf at all, so I'm not sure anyone should be bothered by the not very impactful MT gains. But all the underlying little things will provide a lot to chew through in the coming months 🙂
Click to expand...
Yeah, when we get deep dives on Zen3 and reviews of Ryzen 5XXX, things will get interesting. Plus Navi21 stuff - oh my.

While I certainly don’t expect Van Gogh to have 128 MB of IfCache, if they target it at a 1080p frame buffer, they can get good mileage out of 32MB. If they include ray tracing, maybe 48MB for the scratch data. That may be a large due, but it’s not unmanageable.

LightningZ71 said:
While I certainly don’t expect Van Gogh to have 128 MB of IfCache, if they target it at a 1080p frame buffer, they can get good mileage out of 32MB. If they include ray tracing, maybe 48MB for the scratch data. That may be a large due, but it’s not unmanageable.
Click to expand...
It would be even better if this could be shared with the CPU (even as an L4?) as it would benefit tasks that don't use GPU as well.

LightningZ71 said:
While I certainly don’t expect Van Gogh to have 128 MB of IfCache, if they target it at a 1080p frame buffer, they can get good mileage out of 32MB. If they include ray tracing, maybe 48MB for the scratch data. That may be a large due, but it’s not unmanageable.
Click to expand...
That sounds like as good a job as any for some MRAM goodness finally - lots of bits at far lower mm2 footprint than SRAM.

soresu said:
That sounds like as good a job as any for some MRAM goodness finally - lots of bits at far lower mm2 footprint than SRAM.
Click to expand...
MRAM in existing nodes still have endurance/latency issues.

The best embedded RAM in the future is most likely going to be NRAM; low latency and >10^13 endurance. With actual ideal SRAM<->eDRAM performance given <7nm. Lower mm^2 with an easier 3D-crosspoint means more NRAM in a given mm^3 cube/rectangle prism. Only need 8 layers of Gb-class NRAM to get a gigabyte LLC.

Last edited:
LightningZ71 said:
The transition to N5P should allow an 8 Zen 3 core, 16MB CCX, with the equivalent to 8CU of RDNA2 and 32MB to exist in roughly the same die size as existing Renoir. That should be plenty for a mobile chip.
Click to expand...
If infinity cache allows ~ 3X effective bandwidth, then why not 16-20 CU?

Die size? If you're targeting 1080p, you likely don't need more than 10CU of RDNA2 for playable frame rates. Clocked up over the 6xxx parts by 10% should give the needed Tflops for it. The trick is having the full frame buffer in cache and also enough for the RT scratch space. No matter what, it's going to be RAM bandwidth limited without it.

LightningZ71 said:
Die size? If you're targeting 1080p, you likely don't need more than 10CU of RDNA2 for playable frame rates. Clocked up over the 6xxx parts by 10% should give the needed Tflops for it. The trick is having the full frame buffer in cache and also enough for the RT scratch space. No matter what, it's going to be RAM bandwidth limited without it.
Click to expand...

Ray Tracing isn't happening on "free" iGPUs for 4-5 years at least. There just isn't enough performance for it. You have tons of better things to up the quality before you need RT, such as setting all options high, and minimum of 1080p resolution, or having everything playable at 60 fps or more.

Maybe if integrated means something like Kaby-G, where it uses tons of power and was just as expensive as dGPU parts sure.

On iGPUs, they can simply up the cache size of the CPU LLC and just share it like they do on Intel chips. Sharing the 8MB cache on Sandy Bridge resulted in 10-15% improvement. Tigerlake has 12MB L3 it shares between the CPU and the GPU.

AMD talked about roughly 1/3rds of the 54% perf/watt improvement coming from the L3 cache. That's actually not too far from the LLC sharing gains Sandy Bridge got.

Antey said:
N5P should be a step forward but it seems that N5 is not as great as it was expected.
Click to expand...

Not surprised. It's slightly more than a half node by historical definitions. I'd call it 0.6 node.

Density gain sounds great but perf/watt is the main issue.

Last edited:
itsmydamnation said:
no one posted this ?

https://twitter.com/x/status/1321442583348916224

latency looks alright
Click to expand...

Wow, L3 bandwidth got cut in half, i guess that explains lack of MT scaling in benchmarks. Not exactly unexpected due to move from 2 to 1 L3 domain and end result is that 8C can access ~same L3 BW as Intel Skylake 8-10C ring.

Memory latency looks like it was tightened by some 10ns tho, great news for peak performance, looking forward to get my claws on this gem.

Antey said:
N5P should be a step forward but it seems that N5 is not as great as it was expected.
Click to expand...
Unlike, 7nm where it was unknown.

N5 -> N5P -> N4 are all RTO'able. While, for a brief time it was not known for N7P(July 2019)/N6(April 2019) which was RTO/RTO-capable leaving only N7+ which is NTO.

A design of N5 can coast... better density, perf, watt, yield, cost over 7nm.
Better overall parametric for N5P.
Better cost and parametric for N4.

Server ARM HVM is Q2'21 for Alchips/Marvel/etc Custom ASICs. Plenty are >64-core and there are non-Nvidia/AMD/Intel GPUs coming out as well on the N5-family.

On time to leading edge:
N5 => 2020 / N7 => 2018
N5P => 2021 / N7P => 2019
N4 => 2022 / N7e => 2020

Last edited:
JoeRambo said:
Wow, L3 bandwidth got cut in half, i guess that explains lack of MT scaling in benchmarks. Not exactly unexpected due to move from 2 to 1 L3 domain and end result is that 8C can access ~same L3 BW as Intel Skylake 8-10C ring.

Memory latency looks like it was tightened by some 10ns tho, great news for peak performance, looking forward to get my claws on this gem.
Click to expand...
probably a worthwhile trade off. how many workloads are > 512kb < 16mb and use ~2gb/s of bandwidth, probably not many 🙂

itsmydamnation said:
probably a worthwhile trade off. how many workloads are > 512kb < 16mb and use ~2gb/s of bandwidth, probably not many 🙂
Click to expand...

Probably varies by workload. Darling child of ZEN architecture - Cinebench sure does not care about it. Most of the games do not either.
Only workloads represented in MT suites in GB5, Spec will not scale as good as expected from ST gains. I guess that is what we were seeing already, just common explanation was that memory was suboptimal etc.

I would suggest that having the iGPU share the L3 of the ccx in an APU wouldn’t be ideal. Maybe having a combined L4 might help, but it would need to be larger than the L3 to be a significant gain. If AMD wants a full 32MB in the APU ccx, that’s going to require the L4 to be quite large to be useful.

DisEnchantment said:
Is it because of the process or the design?
Click to expand...
Probably both, the process doesn't improve power usage sufficiently and may have a worse frequency/power curve, while the design clearly is not optimized for that node. AMD warned before that getting high frequencies is harder on smaller nodes. N7 seems to handle it well, N5 may take more time to reach a similar level.

itsmydamnation said:
no one posted this ?

https://twitter.com/x/status/1321442583348916224

latency looks alright
Click to expand...
Hm, looking around for similar CPU/RAM frequencies memory read is essentially the same as Zen 2, latency down ~5ns. L1 and L2 cache bandwidths are hugely improved, look like nearly 3 times that of Zen 2 which points to Zen 3 cores having its Load/Store redesigned to match (and surpass?) what Intel was offering all along. L3 cache bandwidth seems that of a single chiplet Zen 2 chip, but improved between ~6% (read) and ~26% (write).

moinmoin said:
L1 and L2 cache bandwidths are hugely improved, look like nearly 3 times that of Zen 2 which points to Zen 3 cores having its Load/Store redesigned to match (and surpass?) what Intel was offering all along. L3 cache bandwidth seems that of a single chiplet Zen 2 chip, but improved between ~6% (read) and ~26% (write).
Click to expand...

Not according to that screenshot. The throughput is exactly the same as Ryzen 3000 series and also Skylake.

Icelake is higher, and the highest is Skylake-SP.

IntelUser2000 said:
Not according to that screenshot. The throughput is exactly the same as Ryzen 3000 series and also Skylake.

Icelake is higher, and the highest is Skylake-SP.
Click to expand...

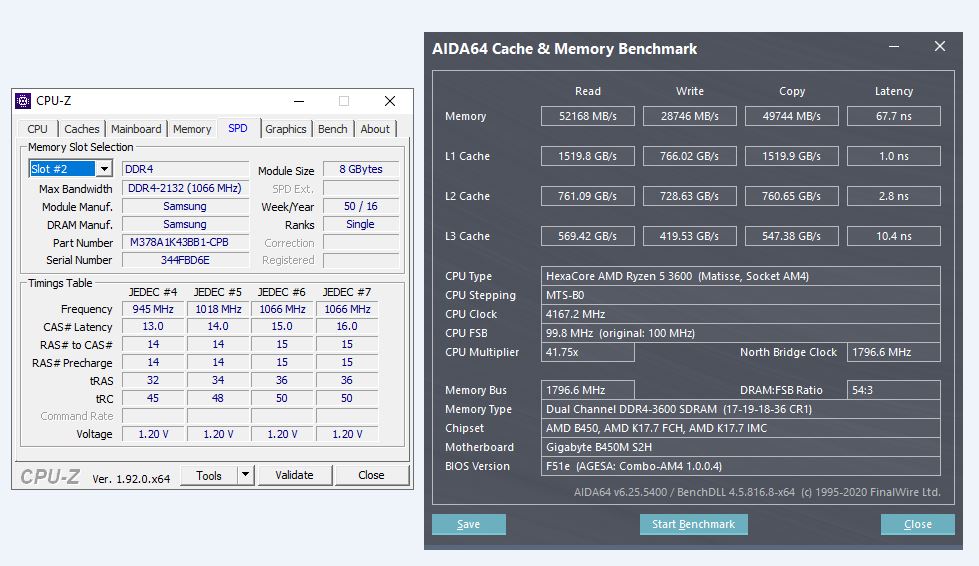

Maybe we are looking at different screeshots. I was comparing the tweeted screenshot mainly with this one shared on TPU's forums, matching memory clock (though better subtimings):
generic-jpg.161567
