uzzi38

Golden Member
Oct 16, 2019
1,220
2,250
96
No, there's a bigger problem preventing TGL-H from coming to desktop. It's definitely not yields nor is it supply.

And no it's not clocks nor anything wrong architecturally preventing the die from being used on desktop. If Intel wanted they could totally have TGL-S, they are actively choosing not to.


SAAA

Senior member
May 14, 2014
471
80
91
No, there's a bigger problem preventing TGL-H from coming to desktop. It's definitely not yields nor is it supply.

And no it's not clocks nor anything wrong architecturally preventing the die from being used on desktop. If Intel wanted they could totally have TGL-S, they are actively choosing not to.
Reason being? They want Alderlake to make a bigger splash? Need the capacity for servers now?
Not that I particularly disagree, considered an 8 core TGL with only 32EU is probably not that bigger than quad cores they are selling now, even in relatively cheap laptops, so indeed it isn't clocks or yield.


uzzi38

Golden Member
Oct 16, 2019
1,220
2,250
96
One of these contradicts the other.
Nah, not really. It's a problem that doesn't affect TGL-H if the chip existed in a vacuum with Intel doing nothing else for the rest of the year. TGL-H is just later than most people expect. So late that it's just not worth bringing to desktop at all, because ADL-S will be a thing not-too-long-after.

At this point I'm just sincerely hoping that this is the last delay to 10nm products we hear of, but unfortunately I'm not certain of it.


jpiniero

Diamond Member
Oct 1, 2010
8,494
1,485
126
TGL-H is just later than most people expect.
Which is presumably because of the yields.

Reason being? They want Alderlake to make a bigger splash? Need the capacity for servers now?
Not that I particularly disagree, considered an 8 core TGL with only 32EU is probably not that bigger than quad cores they are selling now, even in relatively cheap laptops, so indeed it isn't clocks or yield.
The EUs don't take up too much space. Now what does is the IPU and the Thunderbolt; Intel's removed that on H in the past. But if both are there you are looking at a decent increase in size.


uzzi38

Golden Member
Oct 16, 2019
1,220
2,250
96
Which is presumably because of the yields.
Won't pretend I for sure know the reason why, but the yields argument doesn't make sense. TGL-H would be a very similar die to TGL-U in size and clocks in early 2021 probably won't be a big enough issue either. I mean, 4.8GHz is doable now after all.


SAAA

Senior member
May 14, 2014
471
80
91
Which is presumably because of the yields.



The EUs don't take up too much space. Now what does is the IPU and the Thunderbolt; Intel's removed that on H in the past. But if both are there you are looking at a decent increase in size.
The EUs might not be large, but why bother reducing them to a third then?

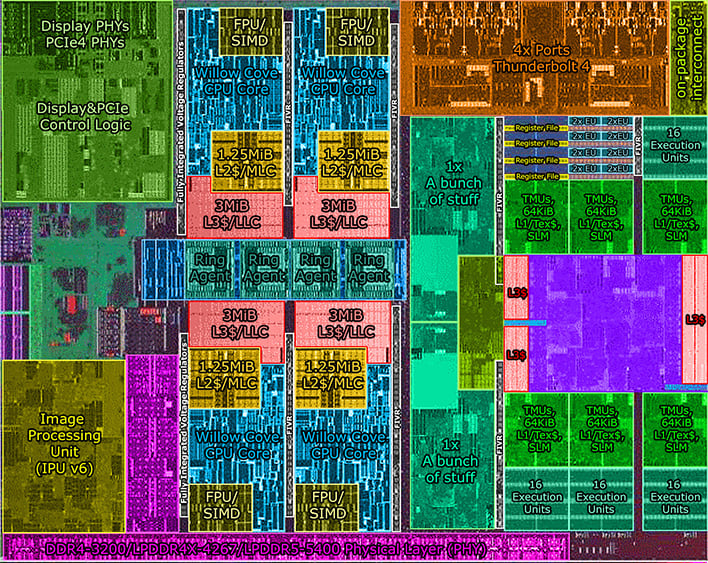

Intel Tiger Lake Die

I see enough space for two more cores using that cache/EU area and moving things around a bit, then the whole dice might get ~15% larger adding another column for two more cores. So 8 cores and 32EUs + full IPU and thunderbolt in a 165 mm^2 die rather than 144 mm^2.
Doesn't sound that hard to yield if they are planning hundreds of mobile systems with millions of chips on the first one.

Sidenote, someone is looking into cores themselves for comparison:


Immagine


Shows that Intel cores are somewhat larger with comparable IPC, caches too. Hopefully helps with 5+ GHz clocks, but they have to strive for denser designs. That 7nm has to work or they'll need TSMC for a while/permanently.


IntelUser2000

Elite Member
Oct 14, 2003
7,249
1,839
136
Is there a reason for BGA devices to have more pins than the LGA variants? 6700K / 1151 and the 6820HK / 1440 etc
Integrated PCH?
Can't be just the PCH. The Y-chips have more balls than U-chips. Something to do with power delivery. Since the mobile chips have to reach really low standby power and even lower C-states, the extra connections might help in doing that.

Did they ever port the SF features for Rocketlake too? The power draw wouldn't be significantly higher, right? Cfv^2 = watts?
Nope. SF features are for 10nm. They could do that for 14nm, but that means investing in a node that's designed to be obsolete soon.

Combination of excessive power use and even die size due to the larger/wider core is why they have only 8 cores. It's supposed to use 200-250W just like the 10900K, despite having 2 less cores.

. . . that might be true, but I see no reason why Intel would even think about Sunny Cove on 10SF (or 10SFE).
They could have Tigerlake-S, but I suspect even on 10nm SF it can't reach the crazy 5.3GHz+ frequencies they are aiming for, since 14nm cores have reached that due to endless refinement. If the best case frequency they can pump out is 5GHz, then the improved uarch will be significantly countered by the loss in frequency.

A 5 vs 5.3GHz its a 6% difference. 5.4GHz is 8%. That's already half of gains due to architecture lost.

The EUs might not be large, but why bother reducing them to a third then?

Shows that Intel cores are somewhat larger with comparable IPC, caches too. Hopefully helps with 5+ GHz clocks, but they have to strive for denser designs. That 7nm has to work or they'll need TSMC for a while/permanently.
You can actually see from the shot that to cut area taken by the Xe iGPU to half, you need to cut 64EUs away. The performance won't go down to a third, since fixed function units and bandwidth stay the same. If equal, the 96EU version is going to be 2-2.5x faster, but desktops aren't thermally limited so we might end up with a figure close to half the performance.

Their Tremont cores are extremely dense. It took 4x Goldmont cores to equal single Skylake. It takes 5x Tremont cores for a single Sunny Cove core. The size of the core in Tremont is only slightly larger than the 512KB L2 cache in Zen 3.

I suspect this is part of the reason they are planning hybrid, as the existence of the two nicely bridges the differences.

The only issue is that servers are left hanging. They might just need a dedicated third core that's based on the Core uarch but focuses on 4GHz frequencies for higher densities.

Last edited:
  • Like
Reactions: lightmanek

Exist50

Member
Aug 18, 2016
139
186
116
Can't be just the PCH. The Y-chips have more balls than U-chips. Something to do with power delivery. Since the mobile chips have to reach really low standby power and even lower C-states, the extra connections might help in doing that.
IIRC, the bump pitch is significantly smaller for the Y series chips. Probably translates to much lower current limits per bump -> more bumps needed for adequate power delivery. Y has less IO pinout than U, so power delivery is the only sane explanation.

They could have Tigerlake-S, but I suspect even on 10nm SF it can't reach the crazy 5.3GHz+ frequencies they are aiming for, since 14nm cores have reached that due to endless refinement. If the best case frequency they can pump out is 5GHz, then the improved uarch will be significantly countered by the loss in frequency.
5.3GHz is probably possible. 4.8 is what they can achieve within U series power limitations. Think it could probably get up to 5GHz with a bit more power. Then ULT vs XLT is another 5% or so.

The only issue is that servers are left hanging. They might just need a dedicated third core that's based on the Core uarch but focuses on 4GHz frequencies for higher densities.
At the rate that Atom's scaling relative to Core, a middling architecture derived from the latter doesn't make much sense.


IntelUser2000

Elite Member
Oct 14, 2003
7,249
1,839
136
IIRC, the bump pitch is significantly smaller for the Y series chips.
Good point.

5.3GHz is probably possible. 4.8 is what they can achieve within U series power limitations. Think it could probably get up to 5GHz with a bit more power. Then ULT vs XLT is another 5% or so.
Personally I'm betting it'll be 100-200MHz less, because they bothered to release a backport. Any clock speed regressions are going to show compared to Cometlake.

Because its strange that a much smaller die size and lower TDP seems like an easy decision to use Tigerlake-H as the base. Instead, just for the -S its going to end up with a backport.

@SAAA I took another look at the Tigerlake die and if they cut the GPU to 32EUs, and the Thunderbolt portion to 2x, the same chip will end up being 115mm2. With 8 cores, it'll be 156mm2. That's not even taking out the IPU. They might be able to get it under 150mm2(It won't be a straight reduction as it still needs to fit within the rectangular shape.

An alternative is a "Cypress Cove" in 10nm. Basically, Icelake but using the 10nm SF process.

At the rate that Atom's scaling relative to Core, a middling architecture derived from the latter doesn't make much sense.
I'm hoping Golden Cove does better in performance and/or core size. The leaks/rumors don't inspire any confidence though.


Hulk

Platinum Member
Oct 9, 1999
2,660
91
91
Look how is that going in real life, or Intel 6/12 vs AMD 6/12 CPU king of today Desktop market.

Intel CPU is cheeper, but hm 99% people buy only R5 3600.





R5 3600, 103 000 sold

i5 two versions, 800 sold


"Rocket Lake 8/16 CPU estimated sales", Intel 2 vs AMD 8/16 CPU 20 units no doubt.
Ouch! Yes, can't really argue with those numbers except to say if Intel want to sell parts they are going to have to continue to drop prices until they find the market. And then have to hope they can still turn a profit at the strike price. As I wrote above, the parts have to be "somewhat competitive" performance-wise and I'll add very competitive from a pricing point-of-view.


Exist50

Member
Aug 18, 2016
139
186
116
Because its strange that a much smaller die size and lower TDP seems like an easy decision to use Tigerlake-H as the base. Instead, just for the -S its going to end up with a backport.
Do keep in mind that Rocket Lake is dirt cheap to produce. Even if there are no 10nm volume concerns, Rocket Lake might still be the more economic choice for the desktop.

@SAAA I took another look at the Tigerlake die and if they cut the GPU to 32EUs, and the Thunderbolt portion to 2x, the same chip will end up being 115mm2. With 8 cores, it'll be 156mm2. That's not even taking out the IPU. They might be able to get it under 150mm2(It won't be a straight reduction as it still needs to fit within the rectangular shape.
I won't give a number, but some more things to consider in your calculations.
+ more PCIe, - some media support/performance.

I'm hoping Golden Cove does better in performance and/or core size. The leaks/rumors don't inspire any confidence though.
Performance, yes. Core size.......


IntelUser2000

Elite Member
Oct 14, 2003
7,249
1,839
136
Do keep in mind that Rocket Lake is dirt cheap to produce. Even if there are no 10nm volume concerns, Rocket Lake might still be the more economic choice for the desktop.
I get the economics part. I cannot see how it justifies as a product. You can see from the leaked information from Sharkbay the 8 core Rocketlake having same IccMax as the 10 core Cometlake parts. Overall I think a slightly lower clocked Tigerlake-S would have ended up being better. 5GHz Willow Cove is still faster in ST than 5.3GHz Skylake. Look how much the Zen 3 got! Architecture is more important than clocks for games.

My belief is that its a combo of not being able to get Tigerlake-S out by early Q1, and seeing how bad it is looking from outside, one can imagine how chaotic it is inside. Similar to not having any 6 core Tigerlake-U parts.

I won't give a number, but some more things to consider in your calculations.
+ more PCIe, - some media support/performance.
You can do all that with few mm2 differences. They already have empty space in their products, due to the way it is designed(easy proliferation). Media changes will be minimal when you think in terms of size.

Performance, yes. Core size.......
What I mean by that is if the performance gains are big enough the Core size can be justified. Scalar gains in CPUs are nonlinear. Sunny Cove had to grow significantly, and way above the 15-20% gain. It was 38% if I'm not mistaken? If say Golden Cove is 20% faster with 15% larger core, then they are on the right track. Or if its 30% larger but is 35% faster.

Last edited:

Exist50

Member
Aug 18, 2016
139
186
116
What I mean by that is if the performance gains are big enough the Core size can be justified. Scalar gains in CPUs are nonlinear. Sunny Cove had to grow significantly, and way above the 15-20% gain. It was 38% if I'm not mistaken? If say Golden Cove is 20% faster with 15% larger core, then they are on the right track. Or if its 30% larger but is 35% faster.
I get what you meant. I'm just implying not to get your hopes up for even a linear performance/area ratio. Though personally I think power is a much bigger issue with Core right now than area.


RTX

Junior Member
Nov 5, 2020
12
2
11
10710U was Q3 2019 and the 10980HK / 10900K are Q2 2020 so it could be them intentionally releasing them later to sell old parts?


IntelUser2000

Elite Member
Oct 14, 2003
7,249
1,839
136
I get what you meant. I'm just implying not to get your hopes up for even a linear performance/area ratio. Though personally I think power is a much bigger issue with Core right now than area.
What you are saying is the Atom cores will soon grow to a point where the extra die/power use won't be worth the extra performance gained with Core.

I can agree with this, however,

I'm suggesting an alternative, where if Core is significantly behind, why can't it be improved? Is it that hopeless just in terms of design, nevermind process?


Asterox

Senior member
May 15, 2012
415
556
136
Ouch! Yes, can't really argue with those numbers except to say if Intel want to sell parts they are going to have to continue to drop prices until they find the market. And then have to hope they can still turn a profit at the strike price. As I wrote above, the parts have to be "somewhat competitive" performance-wise and I'll add very competitive from a pricing point-of-view.
R5 3600 is best seling CPU on Mindfactory, or today global best seling Desktop CPU.

What is Intel best seling CPU on Mindfactory? Old i7 6700K sold about 46 000 units.No other new or newer Intel CPU has sold more units.:grimacing:Second best seling Intel CPU, this is i7 8700K or no longer available.




Exist50

Member
Aug 18, 2016
139
186
116
What you are saying is the Atom cores will soon grow to a point where the extra die/power use won't be worth the extra performance gained with Core.

I can agree with this, however,

I'm suggesting an alternative, where if Core is significantly behind, why can't it be improved? Is it that hopeless just in terms of design, nevermind process?

Oh, Core can be improved and needs to for it to have any future. I'm just saying that the redesign it needs isn't happening with Golden Cove. Nor Redwood Cove, for that matter.

  • Like
Reactions: Tlh97 and uzzi38

Spartak

Senior member
Jul 4, 2015
340
259
136
I saw the Moore's Law is Dead episode of the Redwood Cove leak/rumor but the Alder Lake SKU's dont make sense to me.
Personally I'm thinking in each segments (i9/i7/i5/i3) there will be a distinction between k and non-k not just in clocks and overclocking but in secondary cores to further bifurcate the product line-up.

So the product line-up could look like this:
i9K 8HT+8 (24T) 5.5 GHz*
i9 8HT+6 (22T) 5.4 Ghz
i7K 8HT+4 (20T) 5.3 Ghz
i7 8HT+2 (18T) 5.2 Ghz
i5K 6HT+4 (16T) 5.1 Ghz
i5 6HT(12T) 5.0 Ghz
[i3K 5HT (10T) 4.9 GHz]* *
i3 4HT (8T) 4.8 GHz
PT 4ST (4T) 4.6 Ghz

* 5.5 GHz is based on the yearly cadence of the last 3/4 years where they bumped the max. speed with 0.1 GHz each year. Obviously if it turns out lower everything will be bumped down accordingly.
**i3K doesn't exist anymore with Comet Lake but I think it would be a great value product for low-budget enthusiasts/gamers. 5 core is unusual but would be a good filler in what otherwise would be a pretty big gap between i5 and i3.


Thala

Golden Member
Nov 12, 2014
1,127
440
136
What I mean by that is if the performance gains are big enough the Core size can be justified. Scalar gains in CPUs are nonlinear. Sunny Cove had to grow significantly, and way above the 15-20% gain. It was 38% if I'm not mistaken? If say Golden Cove is 20% faster with 15% larger core, then they are on the right track. Or if its 30% larger but is 35% faster.
Not sure where you got your optimism from. If there would be a low hanging fruit, which over-proportionally increases performance with respect to area, it would have long being taken. Thing is, in the bigger picture it gets increasingly expensive to increase (single core) performance.


LightningZ71

Senior member
Mar 10, 2017
571
511
106
I saw the Moore's Law is Dead episode of the Redwood Cove leak/rumor but the Alder Lake SKU's dont make sense to me.
Personally I'm thinking in each segments (i9/i7/i5/i3) there will be a distinction between k and non-k not just in clocks and overclocking but in secondary cores to further bifurcate the product line-up.

So the product line-up could look like this:
i9K 8HT+8 (24T) 5.5 GHz*
i9 8HT+6 (22T) 5.4 Ghz
i7K 8HT+4 (20T) 5.3 Ghz
i7 8HT+2 (18T) 5.2 Ghz
i5K 6HT+4 (16T) 5.1 Ghz
i5 6HT(12T) 5.0 Ghz
[i3K 5HT (10T) 4.9 GHz]* *
i3 4HT (8T) 4.8 GHz
PT 4ST (4T) 4.6 Ghz

* 5.5 GHz is based on the yearly cadence of the last 3/4 years where they bumped the max. speed with 0.1 GHz each year. Obviously if it turns out lower everything will be bumped down accordingly.
**i3K doesn't exist anymore with Comet Lake but I think it would be a great value product for low-budget enthusiasts/gamers. 5 core is unusual but would be a good filler in what otherwise would be a pretty big gap between i5 and i3.
Yo idea breaks a fundamental that has existed with the I series for many years, all processors of the same i# level have the same number of threads. The differentiator is how fast they run them, if they having working iGPUs, and power rating.


DrMrLordX

Lifer
Apr 27, 2000
16,641
5,644
136
Yo idea breaks a fundamental that has existed with the I series for many years, all processors of the same i# level have the same number of threads. The differentiator is how fast they run them, if they having working iGPUs, and power rating.
Eh? i7-8700k was 12t while i7-9700k was 8t . . . and the i7-10700k is 16t.


Spartak

Senior member
Jul 4, 2015
340
259
136
Yo idea breaks a fundamental that has existed with the I series for many years, all processors of the same i# level have the same number of threads. The differentiator is how fast they run them, if they having working iGPUs, and power rating.
Any way you slice it this will not be the case with Alder Lake given the many different configurations tested and the rumored SKU's. So the question is rather, how to make sense of 4 tiers when there are so many different core and thread counts.

Comet Lake, whatever you might think of it, had the cleanest tiered ever (not counting the lower power versions):
10C/20T = i9
8c / 16T = i7
6c / 12T = i5
4c / 8T = i3

TBH I'd have preferred they went this route with alder lake as well.


ondma

Golden Member
Mar 18, 2018
1,715
539
106
I saw the Moore's Law is Dead episode of the Redwood Cove leak/rumor but the Alder Lake SKU's dont make sense to me.
Personally I'm thinking in each segments (i9/i7/i5/i3) there will be a distinction between k and non-k not just in clocks and overclocking but in secondary cores to further bifurcate the product line-up.

So the product line-up could look like this:
i9K 8HT+8 (24T) 5.5 GHz*
i9 8HT+6 (22T) 5.4 Ghz
i7K 8HT+4 (20T) 5.3 Ghz
i7 8HT+2 (18T) 5.2 Ghz
i5K 6HT+4 (16T) 5.1 Ghz
i5 6HT(12T) 5.0 Ghz
[i3K 5HT (10T) 4.9 GHz]* *
i3 4HT (8T) 4.8 GHz
PT 4ST (4T) 4.6 Ghz

* 5.5 GHz is based on the yearly cadence of the last 3/4 years where they bumped the max. speed with 0.1 GHz each year. Obviously if it turns out lower everything will be bumped down accordingly.
**i3K doesn't exist anymore with Comet Lake but I think it would be a great value product for low-budget enthusiasts/gamers. 5 core is unusual but would be a good filler in what otherwise would be a pretty big gap between i5 and i3.
AL will be based on 10 nm, so I will be happy of they can get 5.0.
Edit: Just an aside, for desktop, I just dont get the Big/Little concept. Maybe it will allow them to save money with smaller dies, but it seems they are just ceding the multithreaded lead to AMD indefinitely.


mikk

Platinum Member
May 15, 2012
2,958
770
136
You are saying it will be based on 10nm, to be exact it will be (most likely) based on 10ESF, I don't think the max clock speed is a problem. Intels big cores are too power hungry unless they are clocked really low, on 10nm at least. They cannot add the same amount of big cores as AMD. Also Willow Cove is quite a lot bigger than Zen3 and Golden Cove likely will be even bigger than Willow Cove, this is another issue with a limited 10nm capacity and subpar yields. There are a few reasons for Intel to go for the big+little route.

  • Like
Reactions: Tlh97 and uzzi38
