Topweasel

Diamond Member
Oct 19, 2000
4,708
328
136
#26
The next big question I have is how much cache does that IO die have? To host all that IO, it needs a large circumference. So a lot would fit, even at 14nm.
Hell it could 1x or 2x Zen 1 die size and it still might be a major space saver. A Normal Zen die is 190mm. Just the space saving (2x) you have it at 95mm. Take out all that IO stuff maybe you can get it down to 65mm.


Despoiler

Golden Member
Nov 10, 2007
1,817
62
136
#27
Did I hear him say MI60 can do workloads down to 1bit precision?

ROCm 2.0 and it's upstreamed. That is huge!


NTMBK

Diamond Member
Nov 14, 2011
8,213
171
126
#28
Wow, AMD un-integrated the northbridge.


Despoiler

Golden Member
Nov 10, 2007
1,817
62
136
#30
MI60

7.4 TFLOPS FP64
14.7 TFLOPS FP32
118 TOPS INT4

Shipping this quarter


BigDaveX

Senior member
Jun 12, 2014
321
35
101
#31
Good numbers on MI60's theoretical compute power, but then Vega was already ahead of Pascal on that metric, and was generally slower in games. Got a feeling it's still gonna be a case of gamers going nVidia and miners going AMD.

Much more impressive on the CPU side; this is feeling a lot more like the company that spent most of the first half of the 2000s curb-stomping Intel.

Jun 4, 2004
12,554
603
146
#32
MI60

7.4 TFLOPS FP64
14.7 TFLOPS FP32
118 TOPS INT4
Water cooled Vega 64 had 12.5B transistors and did 13.7TFLOPS @510mm2

So 5.6% more transistors and 7.3% more theoretical performance with 35% smaller die.

Not bad.

Nov 6, 2014
114
10
101
#34
Water cooled Vega 64 had 12.5B transistors and did 13.7TFLOPS @510mm2

So 5.6% more transistors and 7.3% more theoretical performance with 35% smaller die.

Not bad.
Doesn't look impressive at first, but it probably consumes less than 50% of power compared to Vega 64 LC.

May 15, 2012
141
16
116
#35
A wide(r) core, finally :)
And as i see, the most important Zen 2/8 Core per CCX for AM4 socket is now confirmed.

"Faster, Smaller, Lower Power Transistors (2x Density, 0.5x Power, 1.25x Performance at same performance/power)
Multiple Products in Development
Deep Partnership with TSMC and Design Automation Vendors
AMD has made significant changes to their CPU architecture which help deliver twice the throughput of their first generation Zen architecture. The major points include an entirely redesigned execution pipeline, major floating point advances with doubled the floating point to 256-bit and double bandwidth for load/store units. One of the key upgrades for Zen 2 is the doubling of the core density which means we are now looking at 2x the core count for each core complex (CCX) which will now be risen to 8 per CCX compared to 4 per CCX.

Improved Execution Pipeline
Doubled Floating Point (256-bit) and Load/Store (Doubled Bandwidth)
Doubled Core Density
Half the Energy Per Operation
Improved Branch Prediction
Better Instruction Pre-Fetching
Re-Optimized Instruction Cache
Larger Op Cache
Increased Dispatch / Retire Bandwidth
Maintaining High Throughput for All Modes"


ub4ty

Senior member
Jun 21, 2017
749
321
96
#37
K, so obvious question is obvious....
Infinity fabric link CPU<->GPU...

How exactly are they going to physically pull this off? Mobo level? cable? What of the generic PCIE interface? Augmented? Some type of nearby connection? Something over PCIE 4.0?

What is the physical connection going to look like here?

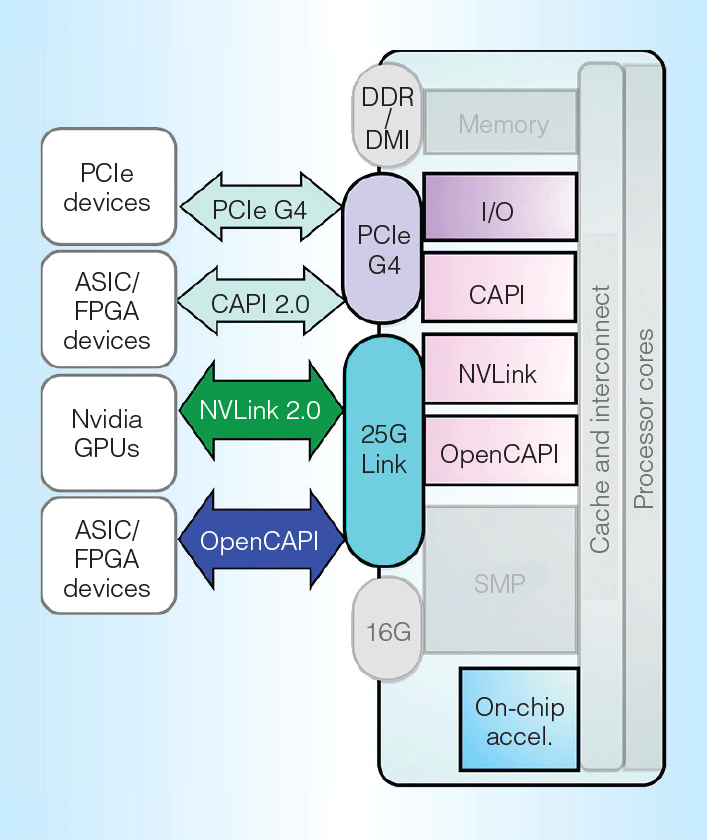

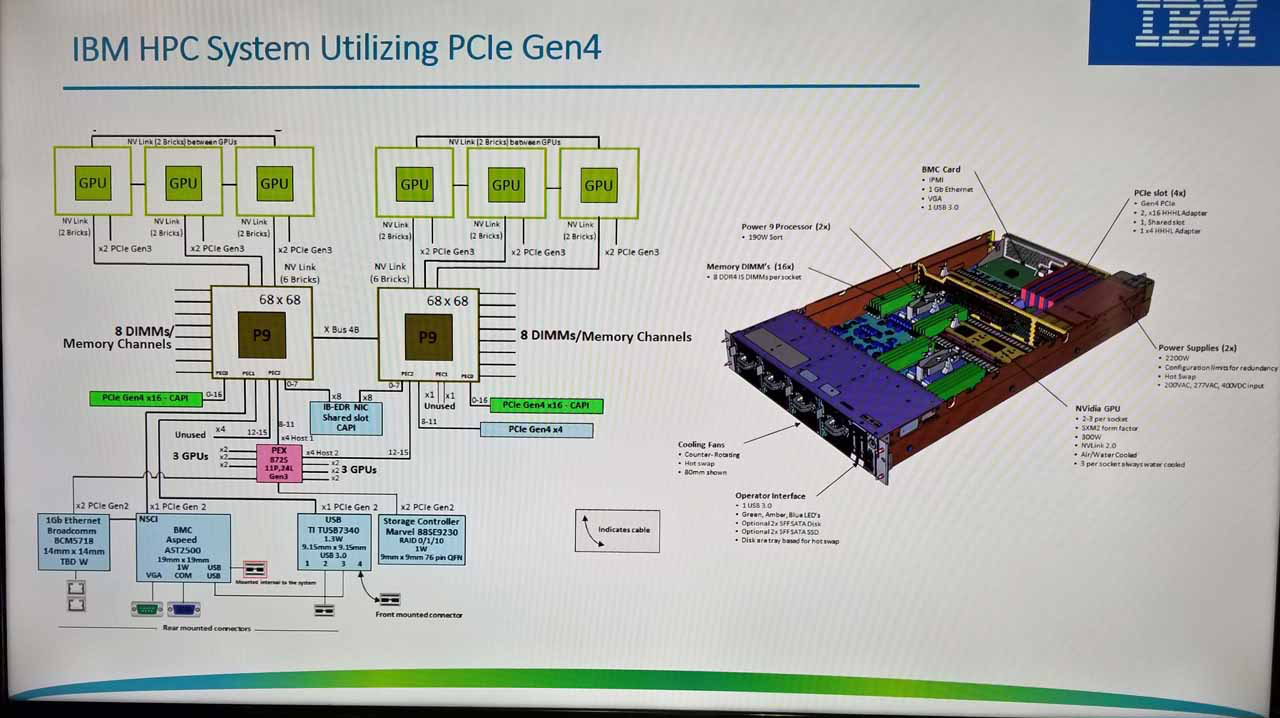

For reference, what I'm looking to see from AMD (Nvidia's NVlink tech) :




Have they detailed this yet? Is this going to flow down to consumer zen2 or be cut out and delayed? Seems all the mobos would have incompatibility as this is board level?

Mar 11, 2004
17,896
423
126
#38
Good numbers on MI60's theoretical compute power, but then Vega was already ahead of Pascal on that metric, and was generally slower in games. Got a feeling it's still gonna be a case of gamers going nVidia and miners going AMD.

Much more impressive on the CPU side; this is feeling a lot more like the company that spent most of the first half of the 2000s curb-stomping Intel.
Vega 20 is not a gamer card so no need to even speculate that people might buy more Nvidia cards for gaming than Vega 20s. Navi is mainstream class, and hopefully should offer at least GTX1080 performance for say $300. If it can push above that they could even probably sell it in the $300-400 range until Nvidia gets 7nm GPUs out (or if Nvidia cuts prices on RTX, putting the 2070 ~$400). AMD won't have a new large gamer GPU til likely 2020 with Navi (forget if its 10 or 20 that's supposed to be the larger one). There was some talk about mGPU, but not sure that will help gaming.


ub4ty

Senior member
Jun 21, 2017
749
321
96
#39
Vega 20 is not a gamer card so no need to even speculate that people might buy more Nvidia cards for gaming than Vega 20s. Navi is mainstream class, and hopefully should offer at least GTX1080 performance for say $300. If it can push above that they could even probably sell it in the $300-400 range until Nvidia gets 7nm GPUs out (or if Nvidia cuts prices on RTX, putting the 2070 ~$400). AMD won't have a new large gamer GPU til likely 2020 with Navi (forget if its 10 or 20 that's supposed to be the larger one). There was some talk about mGPU, but not sure that will help gaming.
Seems they're leaving a lot on the table if that's the case given that Zen2 is PCIE 4.0 and all of the other goodies : infinity fabric CPU/GPU? Is this a point in which AMD will start to focus moreso on profits and segmentation where the pro CPUs/GPUs start to have clear features distinguished from consumer line? What's this event spell for consumer line? We have 8 cores per CCX now... Will consumer side see a doubling too or just a shrink? Any potential for exotic add-ons to the chiplet like HBM? GPU complex? What will AMD do w/ all of the newly available space on consumer Zen2? What does consumer Zen2 look like?


Saylick

Senior member
Sep 10, 2012
574
16
91
#40
And as i see, the most important Zen 2/8 Core per CCX for AM4 socket is now confirmed.

"Faster, Smaller, Lower Power Transistors (2x Density, 0.5x Power, 1.25x Performance at same performance/power)
Multiple Products in Development
Deep Partnership with TSMC and Design Automation Vendors
AMD has made significant changes to their CPU architecture which help deliver twice the throughput of their first generation Zen architecture. The major points include an entirely redesigned execution pipeline, major floating point advances with doubled the floating point to 256-bit and double bandwidth for load/store units. One of the key upgrades for Zen 2 is the doubling of the core density which means we are now looking at 2x the core count for each core complex (CCX) which will now be risen to 8 per CCX compared to 4 per CCX.

Improved Execution Pipeline
Doubled Floating Point (256-bit) and Load/Store (Doubled Bandwidth)
Doubled Core Density
Half the Energy Per Operation
Improved Branch Prediction
Better Instruction Pre-Fetching
Re-Optimized Instruction Cache
Larger Op Cache
Increased Dispatch / Retire Bandwidth
Maintaining High Throughput for All Modes"
I'm still not sure how WCCFTech came up with 8-core CCX from "doubled core density". It could just mean 8 chiplets x 8 cores/chiplet for 64C for EPYC 2, OR it could mean 4 chiplets x 16 cores/chiplet... The number of cores/CCX is still not confirmed. Core density can be measured at the CCX level, at the chiplet level, or even at the package level.


tamz_msc

Platinum Member
Jan 5, 2017
2,197
137
106
#43
K, so obvious question is obvious....
Infinity fabric link CPU<->GPU...

How exactly are they going to physically pull this off? Mobo level? cable? What of the generic PCIE interface? Augmented? Some type of nearby connection? Something over PCIE 4.0?

What is the physical connection going to look like here?

For reference, what I'm looking to see from AMD (Nvidia's NVlink tech) :




Have they detailed this yet? Is this going to flow down to consumer zen2 or be cut out and delayed? Seems all the mobos would have incompatibility as this is board level?
It would seem that the IF-GPU link is similar in principle to NV-link, though details regarding NV-link is scarce.


tamz_msc

Platinum Member
Jan 5, 2017
2,197
137
106
#44
I'm still not sure how WCCFTech came up with 8-core CCX from "doubled core density". It could just mean 8 chiplets x 8 cores/chiplet for 64C for EPYC 2, OR it could mean 4 chiplets x 16 cores/chiplet... The number of cores/CCX is still not confirmed. Core density can be measured at the CCX level, at the chiplet level, or even at the package level.
This picture likely points to 8 8-core chiplets due to the eight IF links surrounding the I/O die.



NostaSeronx

Platinum Member
Sep 18, 2011
2,280
86
126
#45
Infinity Fabric operates through virtual-physical linkage of Infinity Fabric InterSocket.

PCIE 4.0 or IF or both, etc.


HurleyBird

Golden Member
Apr 22, 2003
1,783
105
126
#46
Yeah, 8 core CCX seems like an assumption. My guess is that whatever is inside each chiplet doesn't look like the traditional CCX layout and that the L3 is unified between all eight cores, since that seems like obvious low hanging fruit, but there are a number of topologies that could enable that.


Saylick

Senior member
Sep 10, 2012
574
16
91
#47
This picture likely points to 8 8-core chiplets due to the eight IF links surrounding the I/O die.
/snip
8x8 makes perfect sense to me because:
1) 4C CCX keeps things simple with respect to the number of interconnects between cores, and reduces the development cost from Zen 1
2) 2-CCX or 8C desktop parts will still be the norm for most consumers. If AMD went with a 8C CCX approach, it'd be overkill for consumers.
3) Threadripper can still use a MCM approach with up to 32 cores (4 dies w/ 8 cores each).

Basically, only EPYC 2 would use a chiplet approach. All other Zen 2 products remain similar to Zen 1 but with improved IF, IPC, clocks, power efficiency, etc.


ub4ty

Senior member
Jun 21, 2017
749
321
96
#49
Infinity Fabric operates through virtual-physical linkage of Infinity Fabric InterSocket.

PCIE 4.0 or IF or both, etc.
So, the mode is switchable in hardware?
Issue is... PCIE 4.0 is still a physical interface.
So, IF local on CPU complex over Phy is not the same as the external variant that would have to probably be encap'd over PCIE 4.0...

My main inquiry is about the physical interface when Infinity fabric is exposed off chip.

May 15, 2012
141
16
116
#50
I'm still not sure how WCCFTech came up with 8-core CCX from "doubled core density". It could just mean 8 chiplets x 8 cores/chiplet for 64C for EPYC 2, OR it could mean 4 chiplets x 16 cores/chiplet... The number of cores/CCX is still not confirmed. Core density can be measured at the CCX level, at the chiplet level, or even at the package level.
Threadriper 2990WX has four CCX or each CCX has 8 Cores, as also Rome/Epyc 2 same thing 8 Core CCX as we see.

WCCFTech is not that drunk, "they must now this facts" so what is missing or only Desktop Ryzen 2/Zen 2.
