Question Zen 6 Speculation Thread

[itsmydamnation]

If they are not morons, they would say yes for the gratitude AMD would receive from existing customers, making them even more loyal.

no one will care. your fabric limited. if you really want stupid expensive memory use it to run lower latency/ timings not bandwidth.



[StefanR5R]

your fabric limited.

My understanding was that @igor_kavinski had processor upgrades in existing boards in mind.



[MS_AT]

had processor upgrades in existing boards in mind.

That requires new iOD imo for many reasons that were already stated in this thread. What I am afraid does not make much sense for them if Zen5 is supposed to move to be the lower cost platform next to Zen6. Especially if somebody will buy CUDIMM memory, he will probably also go for Zen6.



[StefanR5R]

@MS_AT, yep, this part of the discussion was about upgrades to Zen 6 based desktop CPUs in existing AM5 boards.



[OneEng2]

Apart from the fact that APU_Fusion was obviously joking:
If it's done by sacrificing IPC like Netburst and Bulldozer did, then sure, but that's not what AMD will be doing.

Increasing clocks runs exponentially into higher thermals past a certain point (and super linearly before that even). Especially in a MT cpu design, thermal density and power consumption are more the limiting factor than the pipeline stalling out due to sync issues.

That's harder to get right than clockspeed increases, though.

Yes, it certainly is.... and it isn't without trade-offs.

Not in every workload, and even there it usually loses against the 9800X3D.

I believe that the reason it performs poorly compared to 9800X3D is mostly due to the overall latency difference .... greatly reduced in X3D by keeping much of the information in L3 which is much lower latency than main memory.

It's a neat trick, but as I was saying, it isn't impossible to believe NVL will improve by much more than people are giving voice to at this time simply by big improvements in that God Awful latent ring bus.

Zen4->5 was on a barely improved node, with a ~30% fatter core due to full-rate AXV512/512bit FP pipes and 50% more INT ALUs.
It was a very server-focused design, so hitting 6+ GHz was secondary, as server CPUs don't clock in that range anyway.
With Zen6 on the other hand, the only server-focused aspect is the design of the 32c dense CCD, otherwise it seems to be more about clocks and core count.

... and it will be server focused again for Zen 6. Nothing has changed in that respect. AMD makes the best margins in DC. It makes sense for them to focus on that market.

I suspect the clocks have much more (everything) to do with the greatly improved process node (N4P->N2) than any minor tweaks we will see in architecture between Z5 and Z6.



[adroc_thurston]

Increasing clocks runs exponentially into higher thermals past a certain point (and super linearly before that even

Theyre not jacking up the voltage because they can't.
Already at Vmax.



[LightningZ71]

Nova Lake L3 and off die latency should improve if for no other reason than the reduced number of ring compute stops and a very likely increase in d2d comms frequency.



[OneEng2]

Theyre not jacking up the voltage because they can't.
Already at Vmax.

Even without changing voltage, raising frequency when already at or near the frequency ability of a node, is much more than linear.

Linear heat production occurs only at low powers. In the middle it isn't quite a square of the frequency, but it's still a power of 1.3 to 1.5.

Once you get toward the top of the ability of the process, its pretty much a power of 2.

My point being, frequency scaling as a method of increasing ST performance is a terrible strategy if that is what your architectural strategy is betting on.



[OneEng2]

Nova Lake L3 and off die latency should improve if for no other reason than the reduced number of ring compute stops and a very likely increase in d2d comms frequency.

Completely agree.



[Thibsie]

Even without changing voltage, raising frequency when already at or near the frequency ability of a node, is much more than linear.

Linear heat production occurs only at low powers. In the middle it isn't quite a square of the frequency, but it's still a power of 1.3 to 1.5.

Once you get toward the top of the ability of the process, its pretty much a power of 2.

My point being, frequency scaling as a method of increasing ST performance is a terrible strategy if that is what your architectural strategy is betting on.

For a given architecture.



[OneEng2]

For a given architecture.

Not sure about that. I think that the power the transistor library uses at a given frequency is independent of the CPU design and relies on the library and process node.

Now, depending on the library used on a process for a give transistor, you can make a design that can clock higher by giving up space and or power .... but I think that the general rule of engineering still applies. "You don't get something for nothing".



[Hitman928]

Not sure about that. I think that the power the transistor library uses at a given frequency is independent of the CPU design and relies on the library and process node.

Now, depending on the library used on a process for a give transistor, you can make a design that can clock higher by giving up space and or power .... but I think that the general rule of engineering still applies. "You don't get something for nothing".

One easy way to see that CPU design affects power is that different architectures use different numbers of transistors and power is directly related to the number of transistors in your design (static portion of total power unless power gated) and the number of transistors switching at any given time (dynamic portion of total power).



[Joe NYC]

x86 Advisory group agrees on new instruction extension standards:
- AVX10
- ACE/AMX

I am wondering what could be the earliest AMD CPU to have AMX. Probably not Zen 6. Likely Zen 7.

Edit, it says "from laptop to datacenter"

https://www.amd.com/en/blogs/2025/amd-and-intel-celebrate-first-anniversary-of-x86-ecosys.html



[Josh128]

Not sure about that. I think that the power the transistor library uses at a given frequency is independent of the CPU design and relies on the library and process node.

Now, depending on the library used on a process for a give transistor, you can make a design that can clock higher by giving up space and or power .... but I think that the general rule of engineering still applies. "You don't get something for nothing".

Not just space and power, but current leakage as well. Transistors that never fully shut off can open and close(ish) faster.



[Josh128]

My point being, frequency scaling as a method of increasing ST performance is a terrible strategy if that is what your architectural strategy is betting on.

Stop dogging Intel bruh, I thought you were rooting for them.



[Markfw]

Stop dogging Intel bruh, I thought you were rooting for them.

Dude, this is an AMD thread duhhhhhh



[poke01]

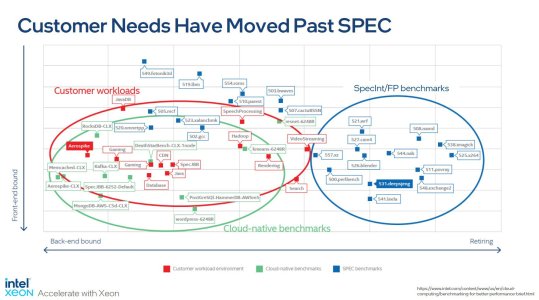

Is SPEC irrelevant now? Does AMD agree?



[regen1]

View attachment 132003

Is SPEC irrelevant now? Does AMD agree?

Well SPEC 2017 has a lot of outdated tests, some tests ranging back to two decades even which kinda needs to be updated for modern day relevance.

There should be a new SPEC version coming in some time. AFAIK AMD, Intel and others already to some level of internal tests on that(SPEC CPU V8).

All that being said SPEC CPU 2017 and many parts of it are still somewhat or lot better than what recent Geekbench versions are doing(SME boosting ST that largely? is it even that relevant so soon in everyday applications) for providing overall score.

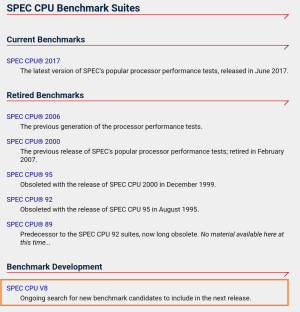

SPEC CPU cadence:



SPEC CPU V8 has some very interesting new things coming.
