Question Slow Ethernet speed

sshorab

Junior Member
Jul 28, 2022
4
0
6
My Router ethernet speed is really slow, when I use FAST.com to measure the speed it hovers around 500 kbps or less. But weirdly the upload speed is 40 Mbps. Furthermore when I connect to the Wi-Fi the internet speed is normal as usual. What could be the cause for the slow speed on my ethernet?


Router D-link DIR-600M
Hardware version:C1
Firmware version: 3.08


Attachments

Tech Junky

Golden Member
Jan 27, 2022
1,391
444
96
So, let's start with the fact this is running N and not even AC let alone AX at this point it's probably time to replace it with something more recent as DLINK doesn't even have a page for it on their site any longer.

fast.com isn't the end all be all of speed testing though and probably the least informative option out there. Look for something that does HTML5 like speakeasy.net

So, your UL is a million times faster than your DL. I ran into this recently with my server with a AX210 WIFI card running Linux and it baffled me but, I found a workaround to disable the AX brought the DL speed up from 6mps to 866mbps which is the top end for AC. Without it disabled though the UL speed was gig+

What machine / os / wifi card / etc. makes a difference. When you bypass the DLINK are your speeds what you expect? If they're still slow then it's probably with the ISP or the PC you're using.


Give them a shot for testing and bypass the DL and also test while plugged in to see if there's a difference.


VirtualLarry

No Lifer
Aug 25, 2001
54,093
8,296
126
Your ethernet cable likely needs to be replaced.

I'll also second that that router sounds old and in need of replacement as well. Shouldn't be running anything older than "AC" / wifi 5, unless you have special requirements ("legacy" hardware need access).


sshorab

Junior Member
Jul 28, 2022
4
0
6
Thank you all for the kind info's.

My ethernet cable is pretty new, I've purchased it recently. I've tried all measures there is, most likely my router is pretty old and in need of replacement. The LAN ports are all acting the same way regardless of what I try. Probably the LAN ports are faulty or something.

Thanks again all.


Tech Junky

Golden Member
Jan 27, 2022
1,391
444
96
So, the cable & router have been swapped which leaves the NIC. If the NIC isn't gigabit then that explains the 100mbps link but, if it is gigabit then there's some issue with it whether physical or driver.


mikeymikec

Lifer
May 19, 2011
15,563
5,755
136
In Device Manager, advanced settings for the NIC, try forcing the link speed. I'd start with 10 full and work up.

I've seen an issue occasionally with certain NICs and "gigabit capable" routers whereby if the NIC links automatically at 1gbps then the actual throughput is rubbish. Force it to 100 full and it works exactly as it should.

  • Like
Reactions: mxnerd

JackMDS

Elite Member
Super Moderator
Oct 25, 1999
29,324
339
126

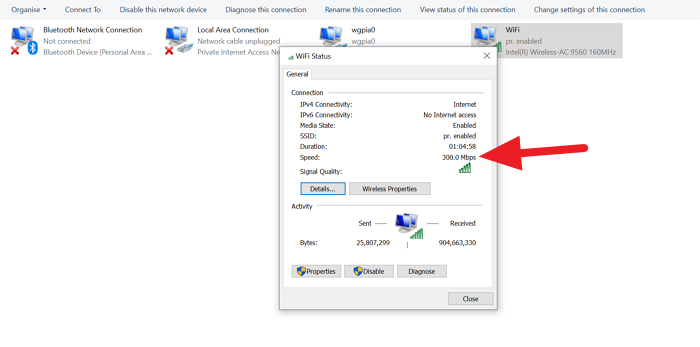

If you look at mxnerd post #6 it indicate 1GB connection.

Tech J boast with 5G connection.

This speed sare not the real speed of the flow in the Network, they are the teoretical capacity of the Network card.

Your card indicate (post #9) 100Mb/sec. I.e., 10 times slower than MX and 50 time then Tech.

So. configure correctly the Network's cards (wire and wireless) on your computer and make sure that it say there at least 1GB.


In my systems I always uncheck the QoS and the IPv6. But that might depends specifically on some of your needs (if any).


:cool:



mxnerd

Diamond Member
Jul 6, 2007
6,520
1,004
126
@Tech Junky

I can get 10G in virtual environment. :D

==

Well, I don't really need super fast ethernet speed for home environment,

at least for the moment. All I do is configurations.


Last edited:

HutchinsonJC

Senior member
Apr 15, 2007
459
195
126
I saw something like this once with a UPS's supposed ethernet protection. I bypassed it and then suddenly the server had expected speeds. Both cables on both sides of the UPS's supposed protection were tested individually to be fine; I assumed it was the UPS itself.
