NV 12VHPWR issues revisited

Page 7 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
Toggle sidebar Toggle sidebar
A

amenx

Diamond Member
Dec 17, 2004
4,542
2,884
136
Would be funny if future GPUs end up with 24-pin motherboard connectors. Those things never get loose. Aside from spreading the resistance to many more pins. :D

  • Haha
Reactions: igor_kavinski
L

Leeea

Diamond Member
Apr 3, 2020
3,799
5,566
136
I just noticed their are a number of automatic fire extinguisher products on amazon.

I wonder when they will start getting integrated into PC cases?

  • Haha
Reactions: igor_kavinski
A

amenx

Diamond Member
Dec 17, 2004
4,542
2,884
136
Some of the testers went to extremes trying to get the connector to melt but just couldnt. It appears to be a rare occurrence (relative to GPUs sold) which is sensationalized beyond the numbers reported. The testers views vary as to what could be the cause though.

www.pcworld.com

Melting GeForce RTX 4090 power cables: A timeline of events

Nvidia's GeForce RTX 4090 launch has been marred by reports of melting connectors. Here's everything you need to know about what is going on.
www.pcworld.com www.pcworld.com

  • Like
Reactions: Leeea
Heartbreaker

Heartbreaker

Diamond Member
Apr 3, 2006
5,205
6,826
136
amenx said:
Some of the testers went to extremes trying to get the connector to melt but just couldnt. It appears to be a rare occurrence (relative to GPUs sold) which is sensationalized beyond the numbers reported. The testers views vary as to what could be the cause though.

www.pcworld.com

Melting GeForce RTX 4090 power cables: A timeline of events

Nvidia's GeForce RTX 4090 launch has been marred by reports of melting connectors. Here's everything you need to know about what is going on.
www.pcworld.com www.pcworld.com
Click to expand...

It really appears that GN nailed it. You need to have it very loose in the socket, and pulled to one side. This also corresponds with nearly all the images of melted connectors where you could see witness mark show the were well out of socket when melting occurred.

BFG10K

BFG10K

Lifer
Aug 14, 2000
22,709
3,004
126
Heartbreaker said:
You need to have it very loose in the socket, and pulled to one side.
Click to expand...
Utter nonsense. The cablemod adapters were firmly seated, as witnessed when the plastic fused together. We have objective evidence of this from someone that actually knows what they're talking about.

Likewise, instances of burned connectors on the PSU side were neither "lose or pulled to one side".

Last edited:
BFG10K

BFG10K

Lifer
Aug 14, 2000
22,709
3,004
126
amenx said:
It appears to be a rare occurrence (relative to GPUs sold) which is sensationalized beyond the numbers reported.
Click to expand...
Nah, it really isn't. Can you tell us another other tech product in recent history that had 6 instances of melting over the course of just 5 days?

And that's just the last time I randomly checked it. In reality there's a regular stream of this occurring.

Three new ones from the last 24 hours:

Code:
https://www.reddit.com/r/cablemod/comments/14vtgqc/this_time_its_me_melted_180_adapter/
https://www.reddit.com/r/cablemod/comments/14w5g7j/4090_burned_power_cable/
https://www.reddit.com/r/cablemod/comments/14w2ob2/another_melted_adapter/

Last edited:
A

amenx

Diamond Member
Dec 17, 2004
4,542
2,884
136
BFG10K said:
Nah, it really isn't. Can you tell us another other tech product in recent history that had 6 instances of melting over the course of just 5 days?

And that's just the last time I randomly checked it. In reality there's a regular stream of this occurring.

Three new ones from the last 24 hours:

Code:
https://www.reddit.com/r/cablemod/comments/14vtgqc/this_time_its_me_melted_180_adapter/
https://www.reddit.com/r/cablemod/comments/14w5g7j/4090_burned_power_cable/
https://www.reddit.com/r/cablemod/comments/14w2ob2/another_melted_adapter/
Click to expand...

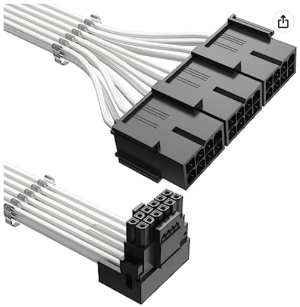

Interesting. The recent spike in adapter failures all seem to be Cable mod related. Which happens to be the only adapter that features 2 x 16-pin connecting points (M/F), thus doubling its resistance points and fail potential. If any weak connecting point on either side, it will draw more power, heat and of course melt. As demonstrated by the guy in comments saying his failed adapter was where the PSU cable joins to it (see below):

https://www.reddit.com/r/cablemod/comments/14s6jub

P.S. this does not mean that I think the 12vPHR connector is not a poor design, it is and needs to change to prevent any such occurrences no matter how small in number from occurring. And to ensure no manufacturing variances come into play that may cause any potential failures.

Last edited:
BFG10K

BFG10K

Lifer
Aug 14, 2000
22,709
3,004
126
So it turns out the 4090 was also silently changed.

www.techpowerup.com

NVIDIA Now Ships GeForce RTX 4090 Founders Edition with Updated Power Connector

A few weeks ago, we reported that NVIDIA is already shipping its GeForce RTX 4070 Founders Edition cards with an improved 12VHPWR connector called 12V-2x6. However, today we learn that NVIDIA is also now shipping GeForce RTX 4090 Founders Edition with an improved 12V-2x6 connector. Thanks to the...
www.techpowerup.com www.techpowerup.com

NV isn't spending money on this for fun or because they like us. Hmm, what other reason could it be? o_O

  • Haha
  • Like
Reactions: Tlh97, KompuKare, Leeea and 1 other person
I

igor_kavinski

Lifer
Jul 27, 2020
28,173
19,203
146
BFG10K said:
So it turns out the 4090 was also silently changed.
Click to expand...
Yes because they prefer to avoid a recall and let their customers deal with the consequences of their mistakes. I bet they don't even test that exhaustively anymore.

"We have rich monkeys doing that for us all around the world!"

  • Like
Reactions: Leeea
Aapje

Aapje

Golden Member
Mar 21, 2022
1,530
2,106
106
  • Like
Reactions: Leeea
M

MrTeal

Diamond Member
Dec 7, 2003
3,919
2,708
136
Aapje said:
No, I expect them to change those as well. It's a simple change as well. They just have to put the new connectors in the machine that solders on the components.
Click to expand...
It's a bit more than that. They'd need to respin the PCB to put a thermistor right by the connector and modify the BIOS, so it's a reasonably large change.

Aapje

Aapje

Golden Member
Mar 21, 2022
1,530
2,106
106
MrTeal said:
It's a bit more than that. They'd need to respin the PCB to put a thermistor right by the connector and modify the BIOS, so it's a reasonably large change.
Click to expand...
They don't have to do that at all to solder a connector on there with shorter sense pins and potentially other changes that are internal to the connector itself.

I think that the chance is very small that they will do a redesign of the PCB. They didn't do one either for the 3090 when double density VRAM became available and they had a chance to fix the excessive memory temps due to VRAM being on both sides of the card.

  • Like
Reactions: Leeea
M

MrTeal

Diamond Member
Dec 7, 2003
3,919
2,708
136
Aapje said:
They don't have to do that at all to solder a connector on there with shorter sense pins and potentially other changes that are internal to the connector itself.

I think that the chance is very small that they will do a redesign of the PCB. They didn't do one either for the 3090 when double density VRAM became available and they had a chance to fix the excessive memory temps due to VRAM being on both sides of the card.
Click to expand...
Oh, yeah replacing the connector is pretty simple. Sorry I misunderstood you, the post and article you replied to was about using an external temperature sensor by the connector and software to shut down programs/the PC if temps get too hot.

  • Like
Reactions: Leeea
M

Mopetar

Diamond Member
Jan 31, 2011
8,505
7,760
136
Leeea said:
I just noticed their are a number of automatic fire extinguisher products on amazon.

I wonder when they will start getting integrated into PC cases?
Click to expand...

Not gonna lie, but I'd buy a case that has its own built-in halon system.

  • Like
Reactions: Leeea
BFG10K

BFG10K

Lifer
Aug 14, 2000
22,709
3,004
126
I checked Tom's hardware and NV still haven't got back to them.

To quote the missing DLSS thread: why is NV dodging a straightforward question and not being forthcoming? o_O

We know NV changed the plugs, but still not a peep out of them. Meanwhile AMD confirmed their defective connector on reference 7600 cards.

  • Like
Reactions: Tlh97, KompuKare and igor_kavinski
BFG10K

BFG10K

Lifer
Aug 14, 2000
22,709
3,004
126

In the comments section NorthridgeFix says they'll use the new connectors for repairs once they get their hands on them.

  • Like
Reactions: Leeea
