Wildcat Lake (WCL) Preliminary Specs

Intel Wildcat Lake (WCL) is upcoming mobile SoC replacing ADL-N. WCL consists of 2 tiles: compute tile and PCD tile. It is true single die consists of CPU, GPU and NPU that is fabbed by 18-A process. Last time I checked, PCD tile is fabbed by TSMC N6 process. They are connected through UCIe, not D2D; a first from Intel. Expecting launching in Q2/Computex 2026. In case people don't remember AlderLake-N, I have created a table below to compare the detail specs of ADL-N and WCL. Just for fun, I am throwing LNL and upcoming Mediatek D9500 SoC.

Intel Alder Lake - NIntel Wildcat LakeIntel Lunar LakeMediatek D9500
Launch DateQ1-2023Q2-2026 ?Q3-2024Q3-2025
ModelIntel N300?Core Ultra 7 268VDimensity 9500 5G
Dies2221
NodeIntel 7 + ?Intel 18-A + TSMC N6TSMC N3B + N6TSMC N3P
CPU8 E-cores2 P-core + 4 LP E-cores4 P-core + 4 LP E-coresC1 1+3+4
Threads8688
Max Clock3.8 GHz?5 GHz
L3 Cache6 MB?12 MB
TDP7 WFanless ?17 WFanless
Memory64-bit LPDDR5-480064-bit LPDDR5-6800 ?128-bit LPDDR5X-853364-bit LPDDR5X-10667
Size16 GB?32 GB24 GB ?
Bandwidth~ 55 GB/s136 GB/s85.6 GB/s
GPUUHD GraphicsArc 140VG1 Ultra
EU / Xe32 EU2 Xe8 Xe12
Max Clock1.25 GHz2 GHz
NPUNA18 TOPS48 TOPS100 TOPS ?









As Hot Chips 34 starting this week, Intel will unveil technical information of upcoming Meteor Lake (MTL) and Arrow Lake (ARL), new generation platform after Raptor Lake. Both MTL and ARL represent new direction which Intel will move to multiple chiplets and combine as one SoC platform.

MTL also represents new compute tile that based on Intel 4 process which is based on EUV lithography, a first from Intel. Intel expects to ship MTL mobile SoC in 2023.

ARL will come after MTL so Intel should be shipping it in 2024, that is what Intel roadmap is telling us. ARL compute tile will be manufactured by Intel 20A process, a first from Intel to use GAA transistors called RibbonFET.





Attachments

  • PantherLake.png
    283.5 KB · Views: 24,031
  • LNL.png
    881.8 KB · Views: 25,525
  • INTEL-CORE-100-ULTRA-METEOR-LAKE-OFFCIAL-SLIDE-2.jpg
    181.4 KB · Views: 72,433
  • Clockspeed.png
    611.8 KB · Views: 72,319
Last edited:

RTX

Member
Nov 5, 2020
182
131
116
N2P and A16 arrive within the same time frame according to TSMC.
"The roadmap you see here is pretty much the same, actually it is the same technology roadmap that I think you saw during the [technology] symposium six months ago," said Dan Kochpatcharin, Head of Design Infrastructure Management at TSMC. "[…] We have N2, N2P, which is coming [to] productions next year and the year after. And then [they are] followed by A16."
Sounds like A16 arrives after N2P.


Hitman928

Diamond Member
Apr 15, 2012
6,695
12,370
136
"The roadmap you see here is pretty much the same, actually it is the same technology roadmap that I think you saw during the [technology] symposium six months ago," said Dan Kochpatcharin, Head of Design Infrastructure Management at TSMC. "[…] We have N2, N2P, which is coming [to] productions next year and the year after. And then [they are] followed by A16."
Sounds like A16 arrives after N2P.

Keep reading. . .

I asked TSMC's heads of the PR department to clarify. Indeed, all of these process technologies are slated to be ready for high volume manufacturing (HVM) in late 2026.


Doug S

Diamond Member
Feb 8, 2020
3,588
6,348
136
N2P and A16 are released at the same time, or at least close enough in time that TSMC's roadmap shows them hitting mass production in H2 2026. All evidence is that A16 is identical to N2P except for the addition of BSPDN. That's just a minor variation on TSMC's original stated plans which had them release N2, then six months later follow it up with a version of N2 that added BSPDN.

I'm still operating under the belief that TSMC is working to get "back on schedule" for Apple's needs, like they were until their N3 problems caused them to go off the rails a bit.


Panino Manino

Golden Member
Jan 28, 2017
1,144
1,383
136
Bringing this video here for now particular reason, other than it talks about Intel and that I don't remember even seeing this channel being mentioned here.



Hulk

Diamond Member
Oct 9, 1999
5,142
3,740
136
The US government will bail out Intel if need be. It's simple. A guaranteed supply of wafers is requied for defense and other mission critical applications. At the end of the day it doesn't matter if these chips are produced on an old node. As we all know, NASA was using 20 year old nodes to mitigate the effects of radiation exposure to space bound CPU's and most of them are still operational.

  • Like
Reactions: OneEng2

Hulk

Diamond Member
Oct 9, 1999
5,142
3,740
136
Okay, but is a leading-edge foundry producing consumer or even enterprise products necessary to fulfill that purpose?
I don't know and that is a good question. What other US based and owned foundries are available and what how do they compare to Intel in terms of process technology and capacity?


511

Diamond Member
Jul 12, 2024
4,587
4,214
106
I don't know and that is a good question. What other US based and owned foundries are available and what how do they compare to Intel in terms of process technology and capacity?
Answer is simple No one besides Intel not even in the US in the entire West no one outside Intel can do advanced logic and Micron for Memory


maddie

Diamond Member
Jul 18, 2010
5,156
5,545
136
Answer is simple No one besides Intel not even in the US in the entire West no one outside Intel can do advanced logic and Micron for Memory
Does GloFlo not exist? They aren't on the cutting edge but quite adequate for defense. Things like background radioactivity, increased in (God forbid) an ultimate war, plus electromagnetic pulse effects have to be assumed. Smaller nodes are more susceptible.

  • Like
Reactions: Thunder 57

511

Diamond Member
Jul 12, 2024
4,587
4,214
106
Does GloFlo not exist? They aren't on the cutting edge but quite adequate for defense. Things like background radioactivity, increased in (God forbid) an ultimate war, plus electromagnetic pulse effects have to be assumed. Smaller nodes are more susceptible.
We need analog as well and we have TI for that Global Foundries can't even make anything below 14nm which is sufficient for most unless you require custom silicon on advanced logic do you have any other option for that also Intel has Intel 16 as well 🙂 they already signed Mediatek as a customer for that and it is based on tried and tested the exalted "14nm" do you think any process is as mature as Intel 14nm ?

If you are bringing EM Pulse/ radioactivity you to have design and fab considering it regardless of node features process are designed with this in mind

Jul 27, 2020
28,162
19,187
146

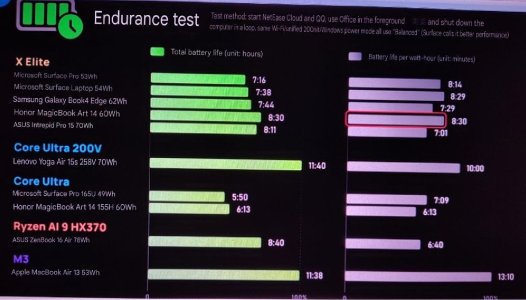

Resharing Google Lens translation of a slide posted by Flametail:


I think 258V could've won this test in battery life per watt hour too if two of the Lion Cove cores had been replaced by Skymont ones.


DrMrLordX

Lifer
Apr 27, 2000
22,925
12,995
136
I don't know and that is a good question. What other US based and owned foundries are available and what how do they compare to Intel in terms of process technology and capacity?

Does GloFlo not exist?

GlobalFoundries does exist, and they do work with the DoD:



Meteor Late

Senior member
Dec 15, 2023
308
328
96
Until they increase the IPC of E cores by another 20% to 30%, there’s no replacing the P cores.


Totally! Intel should get rid of Skymonts asap.

I mean, Geekerwan showed how Skymont is much less efficient than Lion Cove at the upper end of the curve at the same performance. Same trend shown by Oryon M vs Oryon P.
So it's not as easy as just increasing another 30% IPC for E cores and replacing P cores. Battery life will be worse unless you worsen the user experience a lot when on battery by heavily downclocking max clock speed even in lightly threaded workloads.
What I could see, though, is reducing the number of P cores, at least on Laptops, 2 could suffice tbh if E cores are really good.


LightningZ71

Platinum Member
Mar 10, 2017
2,524
3,217
136
The 2+8 ADL p and u chips do just fine in most general use cases. 2 P cores is plenty for web browsing and light usage. It's not amazing, but, having used them for work, it's not hampering me in any way.

  • Like
Reactions: SiliconFly

coercitiv

Diamond Member
Jan 24, 2014
7,359
17,445
136
I mean, Geekerwan showed how Skymont is much less efficient than Lion Cove at the upper end of the curve at the same performance. Same trend shown by Oryon M vs Oryon P.
So it's not as easy as just increasing another 30% IPC for E cores and replacing P cores.
Falling behind at high perf levels is normal, as currently they are built with a different performance target in mind (both core layout and cache structure are aimed at PPA). You can think of this as the reverse of what happened to Zen and Zen C, when optimized for PPA the Zen core loses efficiency at high clocks (and clocks lower too). So in theory, if you wanted to make a P core out of Skymont, you would optimize the layout to ensure better voltage scaling at 4-5Ghz and give it access to proper L2/L3. The core would be bigger, use a bit more power at lower perf levels, but would scale much better at high clocks.
