Tigerick

Senior member
Apr 1, 2022
686
576
106



As Hot Chips 34 starting this week, Intel will unveil technical information of upcoming Meteor Lake (MTL) and Arrow Lake (ARL), new generation platform after Raptor Lake. Both MTL and ARL represent new direction which Intel will move to multiple chiplets and combine as one SoC platform.

MTL also represents new compute tile that based on Intel 4 process which is based on EUV lithography, a first from Intel. Intel expects to ship MTL mobile SoC in 2023.

ARL will come after MTL so Intel should be shipping it in 2024, that is what Intel roadmap is telling us. ARL compute tile will be manufactured by Intel 20A process, a first from Intel to use GAA transistors called RibbonFET.



Comparison of upcoming Intel's U-series CPU: Core Ultra 100U, Lunar Lake and Panther Lake

ModelCode-NameDateTDPNodeTilesMain TileCPULP E-CoreLLCGPUXe-cores
Core Ultra 100UMeteor LakeQ4 202315 - 57 WIntel 4 + N5 + N64tCPU2P + 8E212 MBIntel Graphics4
?Lunar LakeQ4 202417 - 30 WN3B + N62CPU + GPU & IMC4P + 4E08 MBArc8
?Panther LakeQ1 2026 ??Intel 18A + N3E3CPU + MC4P + 8E4?Arc12



Comparison of die size of Each Tile of Meteor Lake, Arrow Lake, Lunar Lake and Panther Lake

Meteor LakeArrow Lake (20A)Arrow Lake (N3B)Arrow Lake Refresh (N3B)Lunar LakePanther Lake
PlatformMobile H/U OnlyDesktop OnlyDesktop & Mobile H&HXDesktop OnlyMobile U OnlyMobile H
Process NodeIntel 4Intel 20ATSMC N3BTSMC N3BTSMC N3BIntel 18A
DateQ4 2023Q1 2025 ?Desktop-Q4-2024
H&HX-Q1-2025
Q4 2025 ?Q4 2024Q1 2026 ?
Full Die6P + 8P6P + 8E ?8P + 16E8P + 32E4P + 4E4P + 8E
LLC24 MB24 MB ?36 MB ??8 MB?
tCPU66.48
tGPU44.45
SoC96.77
IOE44.45
Total252.15



Intel Core Ultra 100 - Meteor Lake


As mentioned by Tomshardware, TSMC will manufacture the I/O, SoC, and GPU tiles. That means Intel will manufacture only the CPU and Foveros tiles. (Notably, Intel calls the I/O tile an 'I/O Expander,' hence the IOE moniker.)



Attachments

  • PantherLake.png
    283.5 KB · Views: 23,984
  • LNL.png
    881.8 KB · Views: 25,456
Last edited:

Abwx

Lifer
Apr 2, 2011
11,181
3,893
136
It's 165H compared to 1185G7 in SYSmark 30 Overall score.
🤣

That s basically a meager progress, a 1185G7 would gain 40% better perf/Watt at same perf if extended to 8 cores, and at 1.2x the perf it would still be 1.2x more efficient, all while using the same old 10nm process that is well below the last process iteration used in RPL.

  • Like
Reactions: spursindonesia

coercitiv

Diamond Member
Jan 24, 2014
6,430
12,965
136
It was actually Ryan Shrout (I don't think he's at Intel anymore), but indeed he did.
Ryan Shrout is no longer with Intel, so folks should not take his opinion as official PR speak.

The comparison with 1185G7 is weird. The 47% figure has little meaning when compared with the upcoming competition. However, from their PoV it may make sense to compare with 1185G7, it's their last premium quad core. LNL with 4+4 and removed SMT is closer to a 4P/8T CPU than any of their recent hybrid configs.

Like I said though, it feels weird to see a product that is supposed to fight for the efficiency crown being touted for TOPS and beating an old skinny guy. Meanwhile Qualcomm is showing Geekbench numbers on variable power graphs. Big mismatch in the show of confidence from the two companies, even if it's just the optics for now.


dullard

Elite Member
May 21, 2001
25,231
3,647
126
Why go 3 year? Why not compare to a Pentium and show us 5000% increase!
Intel has been doing 3 year comparisons for many years now (A quick search and I found them using 3 year old computer comparisons since at least the year 2009). 3 years because that is when companies and some people tend to think about replacing their computers. That is, how does a new computer compare to the current computer in use.

There is no magic number of years. But 3 years is what Intel has been using in marketing for quite some time.

Last edited:

Tigerick

Senior member
Apr 1, 2022
686
576
106
LNL MX EV QS B-0 4.9GHz - Xino

Peak 1T Turbo I assume. Also, probably only achievable with on a higher TDP SKU.

Edit:

LNL iGPU - 60 TOPs
LNL NPU - 45 TOPs

LNL > 100 TOPs.

Bodes well for some gaming on the shiny new BMG iGPU while using XeSS XMX path😁
B-0 stepping with QS Validation should mean almost reaching PRQ status: 4.9GHz is quite high for ultra-mobile CPU, can't wait for GB6 1T benchmark...:cool:


mikk

Diamond Member
May 15, 2012
4,176
2,211
136
Not if it's a Meteor Lake like launch in December. 4.9 Ghz is surprisingly high, I expected fmax something between 4-4.5 Ghz. Take note @SpudLobby

N3B can't be that bad, it's not a bad sign for ARL-S too. Maybe they can reach 5 Ghz with the production models.


Ghostsonplanets

Senior member
Mar 1, 2024
568
962
96
Not if it's a Meteor Lake like launch in December. 4.9 Ghz is surprisingly high, I expected fmax something between 4-4.5 Ghz. Take note @SpudLobby

N3B can't be that bad, it's not a bad sign for ARL-S too. Maybe they can reach 5 Ghz with the production models.
LNL is meant to release alongside a/some designs in August. At max September (Innovation Days). If LNL is delayed (Which would be a big fumble because it's a higher priority project for Intel), Intel will be in a really bad position because OEMs will be pissed (LNL 3x design wins over MTL) and both Strix and Snap X Elite will have beaten them on TTM and get the lions share of the AI PC push that MS will unsleash.

  • Like
Reactions: spursindonesia

SpudLobby

Senior member
May 18, 2022
963
660
106
Not if it's a Meteor Lake like launch in December. 4.9 Ghz is surprisingly high, I expected fmax something between 4-4.5 Ghz. Take note @SpudLobby

N3B can't be that bad, it's not a bad sign for ARL-S too. Maybe they can reach 5 Ghz with the production models.

Yes this is higher than I expected. I expected 3.9GHz for the top part not because of N3B limitations, but Intel being sane and deliberate with power. Oh well lol


SpudLobby

Senior member
May 18, 2022
963
660
106
Yes it is. That high the transistors would have to be leaky. Then how are they keeping it power efficient?

They’re…. not. Like, directionally way more than it would be on Intel 4 with crappier tiling and a terrible memory hierarchy, yeah — but realistically this just means ST will be higher than it probably should be (platform power wise) given the target is at most 30W.

Just watch lol. N3B is still a fine node and LNL a solid improvement, but just watch.


Ghostsonplanets

Senior member
Mar 1, 2024
568
962
96
Yes it is. That high the transistors would have to be leaky. Then how are they keeping it power efficient? Crazy amount of power gating? Very low voltage? I'm intrigued!
Maybe one of the P cores follow the Super P Core scheduling behavior of MTL, as in one of the P cores can boost up to 4.9 GHz in absolute ST bound workload.

Except that MTL basically deactived the 2 Super P cores while on battery. LNL won't have this luxury.

The only thing we can infer is that 4.9GHz refer to peak 1T Turbo.
They showed a working LNL laptop at an event in 2023 I think? They would have to be bumbling fools to delay something that's been ready for so long.
Wasn't a laptop but a working board with LNL. But yes, they need LNL ready to hit the shelves in ~3 - 4 months.


Hulk

Diamond Member
Oct 9, 1999
4,380
2,260
136
How much compute is behind ChatGPT or CoPilot? I ask because I'm curious as to how these on-board NPU's will compare performance-wise?

I'll be a HUGE fan of on-board AI when one of my applications freezes or causes a restart or whatever and my on-board AI analyses the system, diagnoses the problem, tells me exactly what happened and then solves it so it doesn't happen again. Now that would be something.

When will AI be optimizing graphics drivers or other software? I haven't seen any revolutionary changes in my software outside of Topaz AI.


Abwx

Lifer
Apr 2, 2011
11,181
3,893
136
How much compute is behind ChatGPT or CoPilot? I ask because I'm curious as to how these on-board NPU's will compare performance-wise?
Thousands of CPUs and GPUs along with gigantic RAM quantities, this consume MWs, as a comparison the power comsumption of a functionnal human brain is about 20W, that s telling about the huge inefficencies of those AIs.


DavidC1

Senior member
Dec 29, 2023
426
614
96
LNL is meant to release alongside a/some designs in August. At max September (Innovation Days). If LNL is delayed (Which would be a big fumble because it's a higher priority project for Intel), Intel will be in a really bad position because OEMs will be pissed (LNL 3x design wins over MTL) and both Strix and Snap X Elite will have beaten them on TTM and get the lions share of the AI PC push that MS will unsleash.
It said Lunarlake release is partially dependent on when Xe2 will be ready.
Yes it is. That high the transistors would have to be leaky. Then how are they keeping it power efficient? Crazy amount of power gating? Very low voltage? I'm intrigued!
Raptorlake is at 6GHz now. AMD can reach 5GHz on their mobile parts too. It may not be efficient by any means at that frequency, but battery life is pretty much all about idle power and how fast/how well the chip can reach that idle state.

That's how Apple with their big fat chip architecture achieves great battery life. Web browsing and other bursty workloads mostly do not care about TDP.
Thousands of CPUs and GPUs along with gigantic RAM quantities, this consume MWs, as a comparison the power comsumption of a functionnal human brain is about 20W, that s telling about the huge inefficencies of those AIs.
That's cause "AI" isn't real intelligence by any means. It took until now to do it because we didn't have transistor budget, memory and drive capacity to do so. With the world swamped on endless data plus these companies practically ignoring any copyright infringement for that matter, now it is possible.

  • Like
Reactions: Thibsie

maddie

Diamond Member
Jul 18, 2010
4,787
4,771
136
That's cause "AI" isn't real intelligence by any means. It took until now to do it because we didn't have transistor budget, memory and drive capacity to do so. With the world swamped on endless data plus these companies practically ignoring any copyright infringement for that matter, now it is possible.
Anyone waiting for AI generated content to be used as the majority of training data for new models? A feedback loop of colossal problems.


Hulk

Diamond Member
Oct 9, 1999
4,380
2,260
136
It said Lunarlake release is partially dependent on when Xe2 will be ready.

Raptorlake is at 6GHz now. AMD can reach 5GHz on their mobile parts too. It may not be efficient by any means at that frequency, but battery life is pretty much all about idle power and how fast/how well the chip can reach that idle state.

That's how Apple with their big fat chip architecture achieves great battery life. Web browsing and other bursty workloads mostly do not care about TDP.

That's cause "AI" isn't real intelligence by any means. It took until now to do it because we didn't have transistor budget, memory and drive capacity to do so. With the world swamped on endless data plus these companies practically ignoring any copyright infringement for that matter, now it is possible.

Do we really know what "real" intelligence is? If it acts smart and can do smart things then what's the difference between real intelligence and AI?

The thing that freaks me out about this is the fact that the "software" isn't traditional code, meaning that if you look at it you have no idea what it is doing. It's obviously very crude compared to an organic brain but it is making up for that complex structure with massive transistor budget and commensurate compute. I liken it so solving a math problem using an incremental search rather than one of the more efficient techniques such as Newton-Raphson.


Ghostsonplanets

Senior member
Mar 1, 2024
568
962
96
No profanity in Tech.
[Retracted]: Would be really funny if Intel is already using the compute tile fabbed on Intel 3 on current MTL designs.

It said Lunarlake release is partially dependent on when Xe2 will be ready.
Xe LPG² BMG IP is ready and has been since a long time. The enablement patches for it also have been out way before Battlemage dGPU for quite a long time. LNL TTM isn't dependent on discrete BMG TTM.

Last edited by a moderator:

Ghostsonplanets

Senior member
Mar 1, 2024
568
962
96

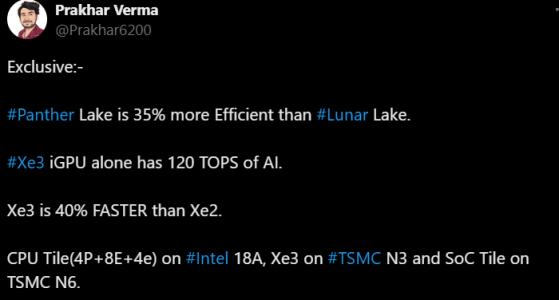

View attachment 96751

Interesting leaks from unknown user
It's fake. Huge Intel fanboy that doesn't know anything and he's usually all the time around tech twitter trying to get leaks.

Anyway, you can spot on that it's fake due to him claiming CPU tile and SoC tile are separated tiles fabricated on different nodes. While, from what we know, CPU and SoC tile are merged on PTL. The CPU core configuration is also straight out of MLID videos.
