Tigerick

Senior member
Apr 1, 2022
476
409
96


As Hot Chips 34 starting this week, Intel will unveil technical information of upcoming Meteor Lake (MTL) and Arrow Lake (ARL), new generation platform after Raptor Lake. Both MTL and ARL represent new direction which Intel will move to multiple chiplets and combine as one SoC platform.

MTL also represents new compute tile that based on Intel 4 process which is based on EUV lithography, a first from Intel. Intel expects to ship MTL mobile SoC in 2023.

ARL will come after MTL so Intel should be shipping it in 2024, that is what Intel roadmap is telling us. ARL compute tile will be manufactured by Intel 20A process, a first from Intel to use GAA transistors called RibbonFET.



Comparison of upcoming Intel's U-series CPU: Core Ultra 100U, Lunar Lake and Panther Lake

ModelCode-NameDateTDPNodeTilesMain TileCPULP E-CoreLLCGPUXe-cores
Core Ultra 100UMeteor LakeQ4 202315 - 57 WIntel 4 + N5 + N64tCPU2P + 8E212 MBIntel Graphics4
?Lunar LakeQ4 202417 - 30 WN3B + N62CPU + GPU & IMC4P + 4E08 MBArc8
?Panther LakeQ1 2026 ??Intel 18A + N3E2CPU + IOD + MC4P + 8E4?Arc12



Comparison of die size of Each Tile of Meteor Lake, Arrow Lake, Lunar Lake and Panther Lake

Meteor LakeArrow Lake (20A)Arrow Lake (N3B)Arrow Lake Refresh (N3B)Lunar LakePanther Lake
PlatformMobile H/U OnlyDesktop OnlyDesktop & Mobile H&HXDesktop OnlyMobile U OnlyMobile H
Process NodeIntel 4Intel 20ATSMC N3BTSMC N3BTSMC N3BIntel 18A
DateQ4 2023Q1 2025 ?Desktop-Q4-2024
H&HX-Q1-2025
Q4 2025 ?Q4 2024Q1 2026 ?
Full Die6P + 8P6P + 8E ?8P + 16E8P + 32E4P + 4E4P + 8E
LLC24 MB24 MB ?36 MB ??8 MB?
tCPU66.48
tGPU44.45
SoC96.77
IOE44.45
Total252.15



Intel Core Ultra 100 - Meteor Lake


As mentioned by Tomshardware, TSMC will manufacture the I/O, SoC, and GPU tiles. That means Intel will manufacture only the CPU and Foveros tiles. (Notably, Intel calls the I/O tile an 'I/O Expander,' hence the IOE moniker.)


Last edited:

Thibsie

Senior member
Apr 25, 2017
681
728
136
Bye bye offline privacy. :D
Well this functionality is, in fact, sought after.
Either you do it with the CPU, the NPU/GPU are files are uploaded so a server can do it faster but... privacy bye-bye.

I can totally see why it is useful to have the photo software get you every photo of, let's say, daughter number 1 without having to do the job yourself.
Seems a valid use case to me.


gdansk

Golden Member
Feb 8, 2011
1,900
2,206
136
Well this functionality is, in fact, sought after.
Either you do it with the CPU, the NPU/GPU are files are uploaded so a server can do it faster but... privacy bye-bye.

I can totally see why it is useful to have the photo software get you every photo of, let's say, daughter number 1 without having to do the job yourself.
Seems a valid use case to me.
It is a useful feature and one that most customers would want to run on their machine instead of in the cloud whether they realize it or not. Who wants Google/Apple sending pictures of their kids to their servers if there is a good local alternative?

But it isn't clear to me if customers would prefer that processing to be fast or power efficient. I'd lean toward the latter and in that case total peak TOPs doesn't seem too relevant.

  • Like
Reactions: Tlh97 and Thibsie

eek2121

Platinum Member
Aug 2, 2005
2,860
3,833
136
Yeah the TOPS is the bad news.

I was expecting MTL to have 45+ TOPS NPU.

I am surprised it's not the case.
Not a single CPU released (or releasing this year) has an NPU that does 20 TOPs, let alone 40+
Bye bye offline privacy. :D
If Windows 12 is as bad/worse as 11, my privacy will be intact because I will finally move to linux.


SiliconFly

Senior member
Mar 10, 2023
747
385
96
I think i may have figured out why Intel marketing came out with the snake oil stuff out of the blue! MTL launch is just a few days away and AMD has the tendency to crash Intel's party by saying stuff like Intel's cores are monolithic and old and their chiplets are the best. Or stuff like, Intel's nodes are bad and their nodes are superior, etc. Same goes with the cores like Zen architecture is better than Intel core, etc, etc.

And as far as MTL is concerned, everything in it is new, except for the CPU tile which has RWC which is just a rehash of RPC which in turn is a rehash of GLC. Afaik, this is Intel's achilles heel. And probably the singular issue with MTL. And they know AMD will somehow bring it up to rain on the MTL parade. So, it appears they chose a preemptive strike. A carefully orchestrated attack on AMD to ensure they doesn't get too cozy taking potshots this time.


Saylick

Diamond Member
Sep 10, 2012
3,035
6,059
136

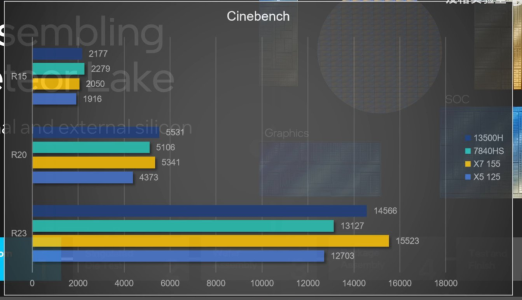

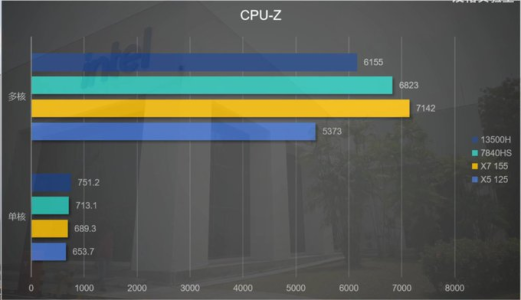

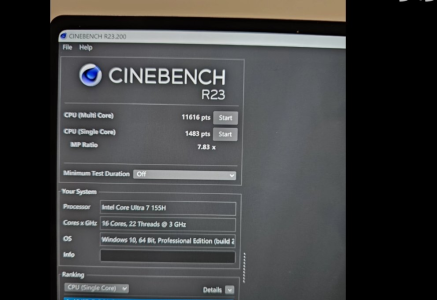

HXL on Twitter posted some benches from bilibili on MTL. Not sure how legit, not sure what laptops were compared, what kind of battery size, etc.

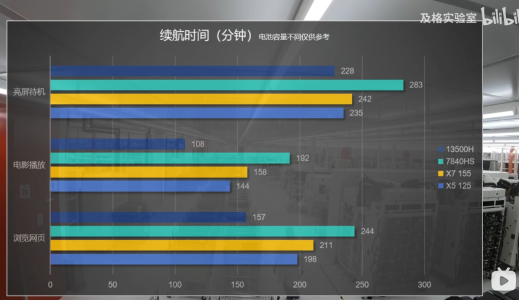

Battery Life (Minutes):


Hitman928

Diamond Member
Apr 15, 2012
5,070
7,448
136
HXL on Twitter posted some benches from bilibili on MTL. Not sure how legit, not sure what laptops were compared, what kind of battery size, etc.


View attachment 90049
View attachment 90050
Battery Life (Minutes):
View attachment 90051

Their 13500h results seem to be in line with notebookcheck's results but their 7840hs results are really low (outside of geekbench5 multi for some reason). If their Intel results are true, it's pretty disappointing. Battery life is improved but performance is significantly worse tier to tier (unless the 125 is supposed to be lower than the 13500H?). Without knowing what the exact PL setting and such were, it's hard to really say though.


Hitman928

Diamond Member
Apr 15, 2012
5,070
7,448
136
The 7840HS is configurable from 35 W to 54 W. Without knowing the power level of the tests, it is hard to really say if the results are good or bad.

The results shown are significantly lower than the lowest of notebookcheck's results. I mean, it's possible that their configuration is hard locked at a lower power than any of notebookcheck's tested configurations, but that seems unlikely, especially given the large difference and the inexplicable geekbench5 result which matches notebookcheck's top result. If it was a hard power limit, there's no way that could happen. Only thing I can think of is if maybe they tested the Ryzen on battery power for most of the tests except GB5 multi. That's the only thing that I can think of that would make the results make sense (but obviously still invalid). No real idea what's going on, but their Ryzen results make me question if their MTL numbers are legit either.


TESKATLIPOKA

Platinum Member
May 1, 2020
2,312
2,797
106
Without actual power these results are meaningless.

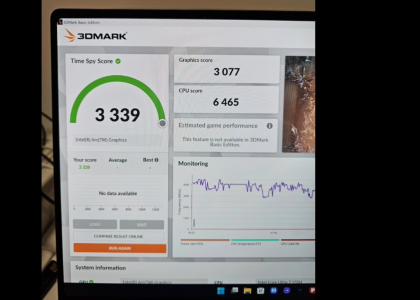

At least IGP looks decent. 3077 in Graphic score is not bad at all and higher than PHX. The question is how It performs in actual games.


Abwx

Lifer
Apr 2, 2011
10,822
3,284
136
From NBC tests it look like the 7840HS is set at about 35W, the 7840U score about 12000@30W.

Also notice the evolution from R15 to R23, no need to improve your CPU IPC, "improve" the bench instead, that work much better, same from GB5 to GB6...

Edit : The difference between 125 and 155 in battery life is not significant, in the first test it s 3%, so within error margins.

Last edited:

dullard

Elite Member
May 21, 2001
24,866
3,188
126
Some numbers are off. 125H should have better battery life than the 155H.
Look up "Race to idle". If both turbo to the same power level, but the 155H gets done sooner, then it will sit idle for longer. The 125H will have to stay in high power turbo mode for longer, using more energy. Thus, the 155H should have a longer battery life.

  • Like
Reactions: Tlh97 and cebri1

Hitman928

Diamond Member
Apr 15, 2012
5,070
7,448
136
Look up "Race to idle". If both turbo to the same power level, but the 155H gets done sooner, then it will sit idle for longer. The 125H will have to stay in high power turbo mode for longer, using more energy. Thus, the 155H should have a longer battery life.

Most battery life tests aren’t run this way. They will do some combination of constant web loading tests, video loop tests, pdf/ebook tests, long idle, and constant load tests. Race to idle doesn’t affect any of these.

Very few do a total energy used type test where race to idle can have a large effect but usually they put them under efficiency sections.
