I think it's worth mentioning Samsung with their aggressive process node path, and they are implementing EUV at 7nm. AMD's agreement with GlobalFoundries runs out in 2020, and GlobalFoundries did license Samsung's 14nm LPP design.
https://www.androidauthority.com/4nm-processing-node-812959/

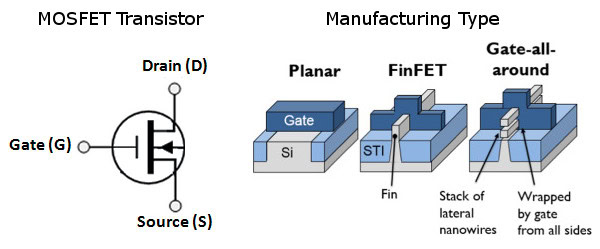

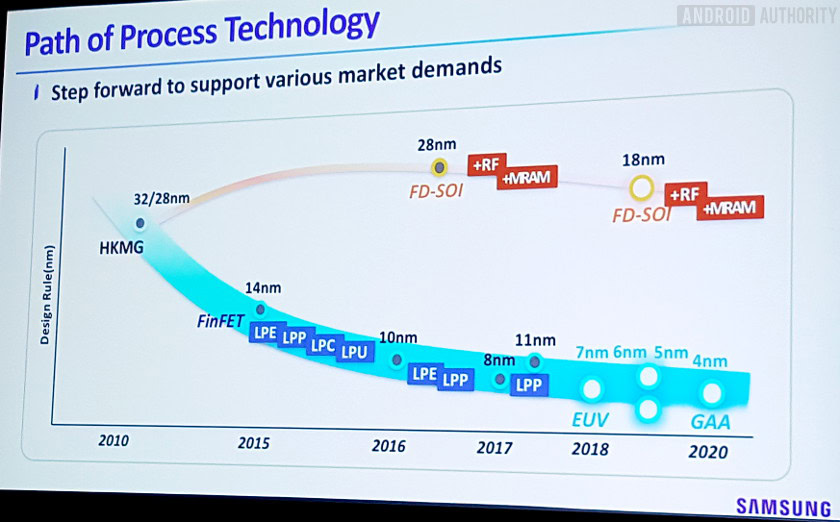

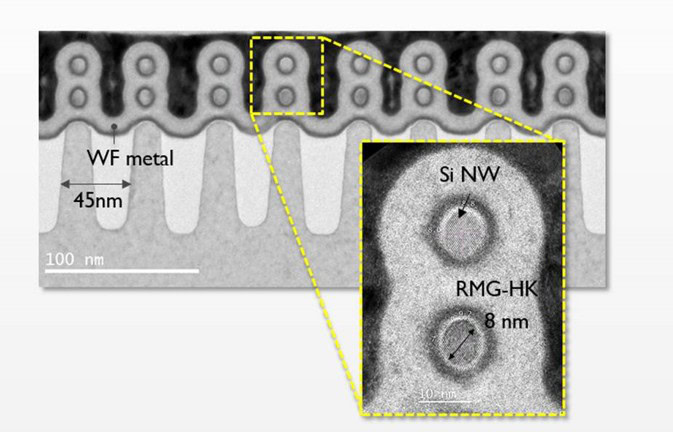

Samsung and GlobalFoundries, in partnership with IBM, unveiled the world’s first 5nm silicon chip based on EUV technology and GAAFETs earlier in the year. In Samsung’s recent roadmap, the company is expecting to debut GAA technology by the time it reaches 4nm, replacing FinFET which will likely be exhausted after 5nm, even with new materials. The downside of GAAFETs is that the nanowiring is more difficult to manufacture than traditional FinFETs, and the process will therefore be much more expensive.



https://www.androidauthority.com/4nm-processing-node-812959/
