Question Handbrake 1.3.3 - Benchmark your System - COMPLETE Overhaul of the test

[Hulk]

A little background...
Handbrake is a ubiquitous encoding application and happens to be one that makes good use of multicore/thread CPU's when encoding x265. x265 is a widely used and efficient compression scheme that requires significant compute to encode. While hardware encoders are faster, at the same bitrates, CPU (software) encode produces better video quality. Of course this assumes the use of lower bitrates as quality for both hardware and software encodes will be indistinguishable at higher bitrates. But the point of the video encode is to get good quality at low bitrates so we are therefore testing software encode.

fps/GHz/core is a representation of how efficient a given CPU core is at encoding the test file using the x265 format. The number is arrived at by multiplying the number of physical cores by the average frequency they are running at and then dividing by the fps from the Handbrake test. It tells us for a given core how many fps can this core encode the test if it was running at 1GHz. We could consider this an "IPC" of sorts for this test but strictly speaking this would be closer to the word "throughput." And as you know many around here are indeed strict with terminology so I will avoid the word IPC at it denotes Instructions Per Cycle and that is not actually what we are measuring.

Some people will go "all out" and try and run their system as close to the limit as possible and others (like me) just run at stock. All of the data is valuable and informative as long as it is collected from each person in the same manner and there for comparable.

I went through all of the results and created a new table. In respecting everyone's time who participated in the old data I am keeping that data on the 2nd page of this post.

Here's the test file: https://4kmedia.org/lg-new-york-hdr-uhd-4k-demo/


1. Use the following version of Handbrake with the built-in h.265 mkv 2160p60 preset
HandBrake-1.3.3-x86_64-Win_GUI.exe
Don't forget to turn on logging in Handbrake so you can retrieve your time. Tools>Preferences>Advanced>Logging
Once this current version is replaced you'll be able to access this version from the following link.
HandBrake: Nightly Builds
Nightly builds of HandBrake
handbrake.fr

2. Report your encoding time, average CPU frequency, and Package Power. If you have a hybrid CPU you can turn off the E's in the BIOS. For E testing turn off all P's except one in the BIOS, clock it down to 800MHz, and then shut it down with Process Lasso. Or just report your score with 1 P at 800MHz and let me know you did that so I can subtract out that P core's (minor) contribution to the encode.

Here's how to report your average clock and package power so we are all doing it the same way.
Handbrake does some housekeeping right after you start encode and when the progress bar gets to 100%.
This could result in lower than actual average clock.
After you start the encode, wait a few seconds until you see the green Handbrake bar appear, then reset the HWinfo counter.
At the end don't wait to grab the screen shot at 100%, just do it sometime after about 95%.

3. CPU Model, and RAM specs



[Det0x]

What memory are you running ? I have 7200 running 1:1 but I can't run this now. cl 34 I think.

New gskill 8000 EXPO royal

F5-8000J3848H16GX2-TR5NG - Overview - G.SKILL International Enterprise Co., Ltd.

Trident Z5 Royal Neo is the luxury-class of extreme overclock performance DDR5 memory designed for AMD AM5 platforms, featuring a crown jewel design with a crystalline light bar for a magnificent display of customizable RGB lighting and electroplated aluminum heatspreaders with a mirrored finish...

www.gskill.com



[Markfw]

New gskill 8000 EXPO royal

F5-8000J3848H16GX2-TR5NG - Overview - G.SKILL International Enterprise Co., Ltd.

Trident Z5 Royal Neo is the luxury-class of extreme overclock performance DDR5 memory designed for AMD AM5 platforms, featuring a crown jewel design with a crystalline light bar for a magnificent display of customizable RGB lighting and electroplated aluminum heatspreaders with a mirrored finish...

www.gskill.com

What I have is EXP only, but it was on the preselect, and aftermarket tests say 1:1, so I am happy. Taichi motherboard.



[Hitman928]

Seems like there are hardly any improvment for Zen5 in handbreak
Is this benchmark bandwidth limited ?

• Direct die cooled 9950x on large custom watercooling @ 5600mhz
• 32gigs a-die @ daily 8200MT/s 32-46-40-48
• 2200mhz FCLK

encoded 1806 frames in 79.83s (22.62 fps), 11820.04 kb/s, Avg QP:29.09

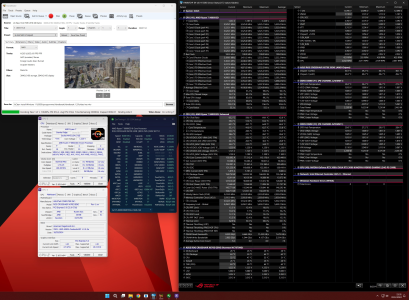

View attachment 108004

Spoiler: log

HandBrake 1.3.3 (2020061300)
OS: Microsoft Windows NT 10.0.22631.0
CPU: AMD Eng Sample: 100-000001277-60_Y
Ram: 32390 MB,
GPU Information:
NVIDIA GeForce RTX 3090 - 32.0.15.6109
Screen: 3840x2160
Temp Dir: C:\Users\Administrator\AppData\Local\Temp\
Install Dir: I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\HandBrake
Data Dir: C:\Users\Administrator\AppData\Roaming\HandBrake

-------------------------------------------


# Starting Encode ...

[11:23:10] base preset: H.265 MKV 2160p60
[23:23:10] hb_init: starting libhb thread
[23:23:10] Starting work at: Sat Sep 21 23:23:10 2024
[23:23:10] 1 job(s) to process
[23:23:10] json job:
{
"Audio": {
"AudioList": [
{
"Bitrate": 160,
"DRC": 0.0,
"Encoder": "av_aac",
"Gain": 0.0,
"Mixdown": 4,
"NormalizeMixLevel": false,
"Samplerate": 0,
"Track": 0,
"DitherMethod": 0
}
],
"CopyMask": [
"copy:aac",
"copy:ac3",
"copy:dtshd",
"copy:dts",
"copy:eac3",
"copy:flac",
"copy:mp3",
"copy:truehd"
],
"FallbackEncoder": "ac3"
},
"Destination": {
"ChapterList": [
{
"Name": "Chapter 1"
}
],
"ChapterMarkers": true,
"AlignAVStart": false,
"File": "I:\\Clean install Windows 11\\5950x\\programmer\\Handbreak\\video her\\video her.mkv",
"Mp4Options": {
"IpodAtom": false,
"Mp4Optimize": false
},
"Mux": "av_mkv"
},
"Filters": {
"FilterList": [
{
"ID": 4,
"Settings": {
"mode": "7"
}
},
{
"ID": 3,
"Settings": {
"block-height": "16",
"block-thresh": "40",
"block-width": "16",
"filter-mode": "2",
"mode": "3",
"motion-thresh": "1",
"spatial-metric": "2",
"spatial-thresh": "1"
}
},
{
"ID": 12,
"Settings": {
"crop-bottom": "0",
"crop-left": "0",
"crop-right": "0",
"crop-top": "0",
"height": "2160",
"width": "3840"
}
},
{
"ID": 6,
"Settings": {
"mode": "2",
"rate": "27000000/450000"
}
}
]
},
"PAR": {
"Num": 1,
"Den": 1
},
"Metadata": {},
"SequenceID": 0,
"Source": {
"Angle": 1,
"Range": {
"Type": "chapter",
"Start": 1,
"End": 1
},
"Title": 1,
"Path": "I:\\Clean install Windows 11\\5950x\\programmer\\Handbreak\\Handbreak 1.33\\LG New York HDR UHD 4K Demo.ts"
},
"Subtitle": {
"Search": {
"Burn": true,
"Default": false,
"Enable": true,
"Forced": true
},
"SubtitleList": []
},
"Video": {
"Encoder": "x265",
"Level": "auto",
"TwoPass": false,
"Turbo": false,
"ColorMatrixCode": 0,
"Options": "strong-intra-smoothing=0:rect=0:aq-mode=1",
"Preset": "slow",
"Profile": "main",
"Quality": 24.0,
"QSV": {
"Decode": false,
"AsyncDepth": 0
}
}
}
[23:23:10] CPU: AMD Eng Sample: 100-000001277-60_Y
[23:23:10] - logical processor count: 32
[23:23:10] Intel Quick Sync Video support: no
[23:23:10] hb_scan: path=I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts, title_index=1
udfread ERROR: ECMA 167 Volume Recognition failed
src/libbluray/disc/disc.c:323: failed opening UDF image I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts
src/libbluray/disc/disc.c:424: error opening file BDMV\index.bdmv
src/libbluray/disc/disc.c:424: error opening file BDMV\BACKUP\index.bdmv
src/libbluray/bluray.c:2585: nav_get_title_list(I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts\) failed
[23:23:10] bd: not a bd - trying as a stream/file instead
libdvdnav: Using dvdnav version 6.0.1
libdvdread: Encrypted DVD support unavailable.
libdvdreadVDOpenFileUDF:UDFFindFile /VIDEO_TS/VIDEO_TS.IFO failed
libdvdreadVDOpenFileUDF:UDFFindFile /VIDEO_TS/VIDEO_TS.BUP failed
libdvdread: Can't open file VIDEO_TS.IFO.
libdvdnav: vm: failed to read VIDEO_TS.IFO
[23:23:10] dvd: not a dvd - trying as a stream/file instead
[23:23:10] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[23:23:10] hb_ts_stream_find_pids - end of file
Input #0, mpegts, from 'I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts':
Duration: 00:01:12.15, start: 0.999989, bitrate: 52098 kb/s
Program 1
Stream #0:0[0x101]: Video: hevc (Main 10) ([36][0][0][0] / 0x0024), yuv420p10le(tv, bt2020nc/bt2020/smpte2084), 3840x2160 [SAR 1:1 DAR 16:9], 25 fps, 25 tbr, 90k tbn, 25 tbc
Stream #0:1[0x102](und): Audio: aac (LC) ([15][0][0][0] / 0x000F), 48000 Hz, stereo, fltp, 192 kb/s
[23:23:10] scan: decoding previews for title 1
[23:23:10] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[23:23:10] hb_ts_stream_find_pids - end of file
[23:23:11] scan: audio 0x1: aac, rate=48000Hz, bitrate=192000 Unknown (AAC LC) (2.0 ch) (192 kbps)
[23:23:12] scan: 10 previews, 3840x2160, 25.000 fps, autocrop = 0/0/0/0, aspect 16:9, PAR 1:1
[23:23:12] scan: supported video decoders: avcodec qsv
[23:23:12] libhb: scan thread found 1 valid title(s)
[23:23:12] Skipping subtitle scan. No suitable subtitle tracks.
[23:23:12] Starting Task: Encoding Pass
[23:23:12] Skipping crop/scale filter
[23:23:12] work: only 1 chapter, disabling chapter markers
[23:23:12] job configuration:
[23:23:12] * source
[23:23:12] + I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts
[23:23:12] + title 1, chapter(s) 1 to 1
[23:23:12] + container: mpegts
[23:23:12] + data rate: 52098 kbps
[23:23:12] * destination
[23:23:12] + I:\Clean install Windows 11\5950x\programmer\Handbreak\video her\video her.mkv
[23:23:12] + container: Matroska (libavformat)
[23:23:12] * video track
[23:23:12] + decoder: hevc
[23:23:12] + filters
[23:23:12] + Comb Detect (mode=3:spatial-metric=2:motion-thresh=1:spatial-thresh=1:filter-mode=2:block-thresh=40:block-width=16:block-height=16)
[23:23:12] + Decomb (mode=39)
[23:23:12] + Framerate Shaper (mode=2:rate=27000000/450000)
[23:23:12] + frame rate: 25.000 fps -> peak rate limited to 60.000 fps
[23:23:12] + Output geometry
[23:23:12] + storage dimensions: 3840 x 2160
[23:23:12] + pixel aspect ratio: 1 : 1
[23:23:12] + display dimensions: 3840 x 2160
[23:23:12] + encoder: H.265 (libx265)
[23:23:12] + preset: slow
[23:23:12] + options: strong-intra-smoothing=0:rect=0:aq-mode=1
[23:23:12] + profile: main
[23:23:12] + level: auto
[23:23:12] + quality: 24.00 (RF)
[23:23:12] + color profile: 9-16-9
[23:23:12] * audio track 1
[23:23:12] + decoder: Unknown (AAC LC) (2.0 ch) (192 kbps) (track 1, id 0x1)
[23:23:12] + bitrate: 192 kbps, samplerate: 48000 Hz
[23:23:12] + mixdown: Stereo
[23:23:12] + dither: none
[23:23:12] + encoder: AAC (libavcodec)
[23:23:12] + bitrate: 160 kbps, samplerate: 48000 Hz
[23:23:12] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[23:23:13] hb_ts_stream_find_pids - end of file
[23:23:13] sync: expecting 1803 video frames
x265 [info]: HEVC encoder version 3.2.1+1-b5c86a64bbbe
x265 [info]: build info [Windows][GCC 9.2.0][64 bit] 8bit+10bit+12bit
x265 [info]: using cpu capabilities: MMX2 SSE2Fast LZCNT SSSE3 SSE4.2 AVX FMA3 BMI2 AVX2
x265 [info]: Main profile, Level-5 (Main tier)
x265 [info]: Thread pool created using 32 threads
x265 [info]: Slices : 1
x265 [info]: frame threads / pool features : 6 / wpp(34 rows)
x265 [info]: Coding QT: max CU size, min CU size : 64 / 8
x265 [info]: Residual QT: max TU size, max depth : 32 / 1 inter / 1 intra
x265 [info]: ME / range / subpel / merge : star / 57 / 3 / 3
x265 [info]: Keyframe min / max / scenecut / bias: 25 / 250 / 40 / 5.00
x265 [info]: Lookahead / bframes / badapt : 25 / 4 / 2
x265 [info]: b-pyramid / weightp / weightb : 1 / 1 / 0
x265 [info]: References / ref-limit cu / depth : 4 / on / on
x265 [info]: AQ: mode / str / qg-size / cu-tree : 1 / 1.0 / 32 / 1
x265 [info]: Rate Control / qCompress : CRF-24.0 / 0.60
x265 [info]: tools: limit-modes rd=4 psy-rd=2.00 rdoq=2 psy-rdoq=1.00 rskip
x265 [info]: tools: signhide tmvp lslices=4 deblock sao
[23:23:13] sync: first pts video is 0
[23:23:13] sync: "Chapter 1" (1) at frame 1 time 0
[23:23:13] sync: first pts audio 0x1 is 0
[23:24:28] reader: done. 1 scr changes
[23:24:32] work: average encoding speed for job is 22.995642 fps
[23:24:32] comb detect: heavy 1091 | light 277 | uncombed 438 | total 1806
[23:24:32] decomb: deinterlaced 1091 | blended 277 | unfiltered 438 | total 1806
[23:24:32] vfr: 1806 frames output, 0 dropped and 0 duped for CFR/PFR
[23:24:32] vfr: lost time: 0 (0 frames)
[23:24:32] vfr: gained time: 0 (0 frames) (0 not accounted for)
[23:24:32] aac-decoder done: 3384 frames, 0 decoder errors
[23:24:32] hevc-decoder done: 1806 frames, 0 decoder errors
[23:24:32] sync: got 1806 frames, 1803 expected
[23:24:32] sync: framerate min 25.000 fps, max 25.000 fps, avg 25.000 fps
x265 [info]: frame I: 20, Avg QP:22.74 kb/s: 84168.04
x265 [info]: frame P: 426, Avg QP:24.64 kb/s: 29918.47
x265 [info]: frame B: 1360, Avg QP:30.58 kb/s: 5087.03
x265 [info]: Weighted P-Frames: Y:15.7% UV:11.0%
x265 [info]: consecutive B-frames: 9.6% 1.8% 7.6% 35.9% 45.1%
encoded 1806 frames in 79.83s (22.62 fps), 11820.04 kb/s, Avg QP:29.09
[23:24:32] mux: track 0, 1806 frames, 106742176 bytes, 11814.30 kbps, fifo 512
[23:24:32] mux: track 1, 3385 frames, 1365514 bytes, 151.14 kbps, fifo 1024
[23:24:32] Finished work at: Sat Sep 21 23:24:32 2024
[23:24:32] libhb: work result = 0

# Encode Completed ...

That’s about 15% higher than your fps in the table on page one. Did you have a higher score than that with the 7950x?



[Det0x]

That’s about 15% higher than your fps in the table on page one. Did you have a higher score than that with the 7950x?

Was just hoping for more*, but since limited by the same 2200mhz FCLK bandwidth limitation i guess 12% is okai
22.62/20.21 = ~12%

* in other render benchmarks Zen5 is a beast compared to Zen4



[Hulk]

Results table updated. It's been 2 years. I had to think a minute where I had the spreadsheet located!



[jdubs03]

I’m honestly surprised the 9950X efficiency/clock speed is pretty much the same as the 7950X. Would’ve thought there’d be some advance there.



[Hitman928]

Was just hoping for more*, but since limited by the same 2200mhz FCLK bandwidth limitation i guess 12% is okai
22.62/20.21 = ~12%

* in other render benchmarks Zen5 is a beast compared to Zen4

@Hulk , looks like @Det0x 's 7950x table entry needs to be updated as well.

Handbrake is an encoder benchmark, not render benchmark, but ~12% is consistent with the average IPC uplift. Different encoder formats may show different results.



[poke01]

Handbrake is an encoder benchmark, not render benchmark, but ~12% is consistent with the average IPC uplift. Different encoder formats may show different results.

If that’s the case I’ll test M4’s h.265 encoder when the Mac’s come out, it’s encoder is nearly 2x faster than M3.



[Hulk]

@Hulk , looks like @Det0x 's 7950x table entry needs to be updated as well.

Handbrake is an encoder benchmark, not render benchmark, but ~12% is consistent with the average IPC uplift. Different encoder formats may show different results.

What needs to be edited regarding his 7950x data? I'll fix it.



[Det0x]

What needs to be edited regarding his 7950x data? I'll fix it.

This is a newer 7950X entry with 2:1 memory @ 8000MT/s compared to the older 1:1 run you have in the table

Page 6 - Question - Handbrake 1.3.3 - Benchmark your System - COMPLETE Overhaul of the test

Page 6 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

forums.anandtech.com

its a much closer apple to apple comparison vs the 9950X



[Geegeeoh]

What about with a newer version of Handbrake? Maybe better use of AVX-512?



[MarkPost]

AVX512 is disabled by default in x265 encoding. You need to add this in Video tab ---> Advanced options:

:asm=avx512

In HandBrake 1.3.3 it doesnt improve x265 encoding speed (9950X)

But I have tried with the latest version, 1.8.2, and if AVX512 is enabled, it improves encoding speed by about 10%



[GunsMadeAmericaFree]

What could cause Handbrake frames to drop to 1/4 of what it was getting previously? I have a Ryzen 5600g, and was encoding an old 1970's show. I decided to try out
AMD VCE, because I heard it was fast, using the gpu instead of the cpu. I was getting greatly increased frames per second - about 1,200 frames per second. Then I updated the AMD
Adrenaline drivers, which I had noticed were back on March 2024 drivers for my Windows 11. Today, I went to encode a different 1970's TV show, using the exact same preset, and I'm getting only about 350 frames per second. At first, I thought this was probably due to the newer graphics driver 'breaking' something, but then I went back and tried compressing the first show again - and was again getting 1,200 frames per second.

So the problem isn't the driver. Can two different TV shows from the same era, and the same format, really give such different compressing results?



[Hulk]

What could cause Handbrake frames to drop to 1/4 of what it was getting previously? I have a Ryzen 5600g, and was encoding an old 1970's show. I decided to try out
AMD VCE, because I heard it was fast, using the gpu instead of the cpu. I was getting greatly increased frames per second - about 1,200 frames per second. Then I updated the AMD
Adrenaline drivers, which I had noticed were back on March 2024 drivers for my Windows 11. Today, I went to encode a different 1970's TV show, using the exact same preset, and I'm getting only about 350 frames per second. At first, I thought this was probably due to the newer graphics driver 'breaking' something, but then I went back and tried compressing the first show again - and was again getting 1,200 frames per second.

So the problem isn't the driver. Can two different TV shows from the same era, and the same format, really give such different compressing results?

Are you sure the compression settings are exactly the same?
More importantly are you sure the source video is the same? Perhaps one is interlaced and the other is not. Or the frame rates are slightly different, one 29.97 and the other 30. A format change like that will make Handbrake slow down quite a bit.



[GunsMadeAmericaFree]

Are you sure the compression settings are exactly the same?
More importantly are you sure the source video is the same? Perhaps one is interlaced and the other is not. Or the frame rates are slightly different, one 29.97 and the other 30. A format change like that will make Handbrake slow down quite a bit.

Wow, I hadn't considered that small changes like that could have such an impact. I'll look at the details, and see if there were differences in the source material.

I wonder if there would be more of a difference using the gpu portion of the processor, or the cpu portion?



[Hulk]

Wow, I hadn't considered that small changes like that could have such an impact. I'll look at the details, and see if there were differences in the source material.

I wonder if there would be more of a difference using the gpu portion of the processor, or the cpu portion?

The interlacing or changing frame rates can be very compute intensive. Taking two interlaced frames and combining them and removing artifacts and or changing the frame rate by interpolating frames requires a lot of processing.



[Det0x]

Seems like there are hardly any improvment for Zen5 in handbreak
Is this benchmark bandwidth limited ?

• Direct die cooled 9950x on large custom watercooling @ 5600mhz
• 32gigs a-die @ daily 8200MT/s 32-46-40-48
• 2200mhz FCLK

encoded 1806 frames in 79.83s (22.62 fps), 11820.04 kb/s, Avg QP:29.09
View attachment 108004

Spoiler: log

HandBrake 1.3.3 (2020061300)
OS: Microsoft Windows NT 10.0.22631.0
CPU: AMD Eng Sample: 100-000001277-60_Y
Ram: 32390 MB,
GPU Information:
NVIDIA GeForce RTX 3090 - 32.0.15.6109
Screen: 3840x2160
Temp Dir: C:\Users\Administrator\AppData\Local\Temp\
Install Dir: I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\HandBrake
Data Dir: C:\Users\Administrator\AppData\Roaming\HandBrake

-------------------------------------------


# Starting Encode ...

[11:23:10] base preset: H.265 MKV 2160p60
[23:23:10] hb_init: starting libhb thread
[23:23:10] Starting work at: Sat Sep 21 23:23:10 2024
[23:23:10] 1 job(s) to process
[23:23:10] json job:
{
"Audio": {
"AudioList": [
{
"Bitrate": 160,
"DRC": 0.0,
"Encoder": "av_aac",
"Gain": 0.0,
"Mixdown": 4,
"NormalizeMixLevel": false,
"Samplerate": 0,
"Track": 0,
"DitherMethod": 0
}
],
"CopyMask": [
"copy:aac",
"copy:ac3",
"copy:dtshd",
"copy:dts",
"copy:eac3",
"copy:flac",
"copy:mp3",
"copy:truehd"
],
"FallbackEncoder": "ac3"
},
"Destination": {
"ChapterList": [
{
"Name": "Chapter 1"
}
],
"ChapterMarkers": true,
"AlignAVStart": false,
"File": "I:\\Clean install Windows 11\\5950x\\programmer\\Handbreak\\video her\\video her.mkv",
"Mp4Options": {
"IpodAtom": false,
"Mp4Optimize": false
},
"Mux": "av_mkv"
},
"Filters": {
"FilterList": [
{
"ID": 4,
"Settings": {
"mode": "7"
}
},
{
"ID": 3,
"Settings": {
"block-height": "16",
"block-thresh": "40",
"block-width": "16",
"filter-mode": "2",
"mode": "3",
"motion-thresh": "1",
"spatial-metric": "2",
"spatial-thresh": "1"
}
},
{
"ID": 12,
"Settings": {
"crop-bottom": "0",
"crop-left": "0",
"crop-right": "0",
"crop-top": "0",
"height": "2160",
"width": "3840"
}
},
{
"ID": 6,
"Settings": {
"mode": "2",
"rate": "27000000/450000"
}
}
]
},
"PAR": {
"Num": 1,
"Den": 1
},
"Metadata": {},
"SequenceID": 0,
"Source": {
"Angle": 1,
"Range": {
"Type": "chapter",
"Start": 1,
"End": 1
},
"Title": 1,
"Path": "I:\\Clean install Windows 11\\5950x\\programmer\\Handbreak\\Handbreak 1.33\\LG New York HDR UHD 4K Demo.ts"
},
"Subtitle": {
"Search": {
"Burn": true,
"Default": false,
"Enable": true,
"Forced": true
},
"SubtitleList": []
},
"Video": {
"Encoder": "x265",
"Level": "auto",
"TwoPass": false,
"Turbo": false,
"ColorMatrixCode": 0,
"Options": "strong-intra-smoothing=0:rect=0:aq-mode=1",
"Preset": "slow",
"Profile": "main",
"Quality": 24.0,
"QSV": {
"Decode": false,
"AsyncDepth": 0
}
}
}
[23:23:10] CPU: AMD Eng Sample: 100-000001277-60_Y
[23:23:10] - logical processor count: 32
[23:23:10] Intel Quick Sync Video support: no
[23:23:10] hb_scan: path=I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts, title_index=1
udfread ERROR: ECMA 167 Volume Recognition failed
src/libbluray/disc/disc.c:323: failed opening UDF image I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts
src/libbluray/disc/disc.c:424: error opening file BDMV\index.bdmv
src/libbluray/disc/disc.c:424: error opening file BDMV\BACKUP\index.bdmv
src/libbluray/bluray.c:2585: nav_get_title_list(I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts\) failed
[23:23:10] bd: not a bd - trying as a stream/file instead
libdvdnav: Using dvdnav version 6.0.1
libdvdread: Encrypted DVD support unavailable.
libdvdreadVDOpenFileUDF:UDFFindFile /VIDEO_TS/VIDEO_TS.IFO failed
libdvdreadVDOpenFileUDF:UDFFindFile /VIDEO_TS/VIDEO_TS.BUP failed
libdvdread: Can't open file VIDEO_TS.IFO.
libdvdnav: vm: failed to read VIDEO_TS.IFO
[23:23:10] dvd: not a dvd - trying as a stream/file instead
[23:23:10] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[23:23:10] hb_ts_stream_find_pids - end of file
Input #0, mpegts, from 'I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts':
Duration: 00:01:12.15, start: 0.999989, bitrate: 52098 kb/s
Program 1
Stream #0:0[0x101]: Video: hevc (Main 10) ([36][0][0][0] / 0x0024), yuv420p10le(tv, bt2020nc/bt2020/smpte2084), 3840x2160 [SAR 1:1 DAR 16:9], 25 fps, 25 tbr, 90k tbn, 25 tbc
Stream #0:1[0x102](und): Audio: aac (LC) ([15][0][0][0] / 0x000F), 48000 Hz, stereo, fltp, 192 kb/s
[23:23:10] scan: decoding previews for title 1
[23:23:10] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[23:23:10] hb_ts_stream_find_pids - end of file
[23:23:11] scan: audio 0x1: aac, rate=48000Hz, bitrate=192000 Unknown (AAC LC) (2.0 ch) (192 kbps)
[23:23:12] scan: 10 previews, 3840x2160, 25.000 fps, autocrop = 0/0/0/0, aspect 16:9, PAR 1:1
[23:23:12] scan: supported video decoders: avcodec qsv
[23:23:12] libhb: scan thread found 1 valid title(s)
[23:23:12] Skipping subtitle scan. No suitable subtitle tracks.
[23:23:12] Starting Task: Encoding Pass
[23:23:12] Skipping crop/scale filter
[23:23:12] work: only 1 chapter, disabling chapter markers
[23:23:12] job configuration:
[23:23:12] * source
[23:23:12] + I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts
[23:23:12] + title 1, chapter(s) 1 to 1
[23:23:12] + container: mpegts
[23:23:12] + data rate: 52098 kbps
[23:23:12] * destination
[23:23:12] + I:\Clean install Windows 11\5950x\programmer\Handbreak\video her\video her.mkv
[23:23:12] + container: Matroska (libavformat)
[23:23:12] * video track
[23:23:12] + decoder: hevc
[23:23:12] + filters
[23:23:12] + Comb Detect (mode=3:spatial-metric=2:motion-thresh=1:spatial-thresh=1:filter-mode=2:block-thresh=40:block-width=16:block-height=16)
[23:23:12] + Decomb (mode=39)
[23:23:12] + Framerate Shaper (mode=2:rate=27000000/450000)
[23:23:12] + frame rate: 25.000 fps -> peak rate limited to 60.000 fps
[23:23:12] + Output geometry
[23:23:12] + storage dimensions: 3840 x 2160
[23:23:12] + pixel aspect ratio: 1 : 1
[23:23:12] + display dimensions: 3840 x 2160
[23:23:12] + encoder: H.265 (libx265)
[23:23:12] + preset: slow
[23:23:12] + options: strong-intra-smoothing=0:rect=0:aq-mode=1
[23:23:12] + profile: main
[23:23:12] + level: auto
[23:23:12] + quality: 24.00 (RF)
[23:23:12] + color profile: 9-16-9
[23:23:12] * audio track 1
[23:23:12] + decoder: Unknown (AAC LC) (2.0 ch) (192 kbps) (track 1, id 0x1)
[23:23:12] + bitrate: 192 kbps, samplerate: 48000 Hz
[23:23:12] + mixdown: Stereo
[23:23:12] + dither: none
[23:23:12] + encoder: AAC (libavcodec)
[23:23:12] + bitrate: 160 kbps, samplerate: 48000 Hz
[23:23:12] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[23:23:13] hb_ts_stream_find_pids - end of file
[23:23:13] sync: expecting 1803 video frames
x265 [info]: HEVC encoder version 3.2.1+1-b5c86a64bbbe
x265 [info]: build info [Windows][GCC 9.2.0][64 bit] 8bit+10bit+12bit
x265 [info]: using cpu capabilities: MMX2 SSE2Fast LZCNT SSSE3 SSE4.2 AVX FMA3 BMI2 AVX2
x265 [info]: Main profile, Level-5 (Main tier)
x265 [info]: Thread pool created using 32 threads
x265 [info]: Slices : 1
x265 [info]: frame threads / pool features : 6 / wpp(34 rows)
x265 [info]: Coding QT: max CU size, min CU size : 64 / 8
x265 [info]: Residual QT: max TU size, max depth : 32 / 1 inter / 1 intra
x265 [info]: ME / range / subpel / merge : star / 57 / 3 / 3
x265 [info]: Keyframe min / max / scenecut / bias: 25 / 250 / 40 / 5.00
x265 [info]: Lookahead / bframes / badapt : 25 / 4 / 2
x265 [info]: b-pyramid / weightp / weightb : 1 / 1 / 0
x265 [info]: References / ref-limit cu / depth : 4 / on / on
x265 [info]: AQ: mode / str / qg-size / cu-tree : 1 / 1.0 / 32 / 1
x265 [info]: Rate Control / qCompress : CRF-24.0 / 0.60
x265 [info]: tools: limit-modes rd=4 psy-rd=2.00 rdoq=2 psy-rdoq=1.00 rskip
x265 [info]: tools: signhide tmvp lslices=4 deblock sao
[23:23:13] sync: first pts video is 0
[23:23:13] sync: "Chapter 1" (1) at frame 1 time 0
[23:23:13] sync: first pts audio 0x1 is 0
[23:24:28] reader: done. 1 scr changes
[23:24:32] work: average encoding speed for job is 22.995642 fps
[23:24:32] comb detect: heavy 1091 | light 277 | uncombed 438 | total 1806
[23:24:32] decomb: deinterlaced 1091 | blended 277 | unfiltered 438 | total 1806
[23:24:32] vfr: 1806 frames output, 0 dropped and 0 duped for CFR/PFR
[23:24:32] vfr: lost time: 0 (0 frames)
[23:24:32] vfr: gained time: 0 (0 frames) (0 not accounted for)
[23:24:32] aac-decoder done: 3384 frames, 0 decoder errors
[23:24:32] hevc-decoder done: 1806 frames, 0 decoder errors
[23:24:32] sync: got 1806 frames, 1803 expected
[23:24:32] sync: framerate min 25.000 fps, max 25.000 fps, avg 25.000 fps
x265 [info]: frame I: 20, Avg QP:22.74 kb/s: 84168.04
x265 [info]: frame P: 426, Avg QP:24.64 kb/s: 29918.47
x265 [info]: frame B: 1360, Avg QP:30.58 kb/s: 5087.03
x265 [info]: Weighted P-Frames: Y:15.7% UV:11.0%
x265 [info]: consecutive B-frames: 9.6% 1.8% 7.6% 35.9% 45.1%
encoded 1806 frames in 79.83s (22.62 fps), 11820.04 kb/s, Avg QP:29.09
[23:24:32] mux: track 0, 1806 frames, 106742176 bytes, 11814.30 kbps, fifo 512
[23:24:32] mux: track 1, 3385 frames, 1365514 bytes, 151.14 kbps, fifo 1024
[23:24:32] Finished work at: Sat Sep 21 23:24:32 2024
[23:24:32] libhb: work result = 0

# Encode Completed ...

Took my 9800X3D for a spin

Pretty much same memory setup

• 9800X3D on large custom watercooling @ 5525mhz
• 32gigs a-die @ daily 8200MT/s 32-46-40-48
• 2233mhz FCLK

encoded 1806 frames in 142.86s (12.64 fps), 11820.04 kb/s, Avg QP:29.09

Spoiler: log

HandBrake 1.3.3 (2020061300)
OS: Microsoft Windows NT 10.0.22631.0
CPU: AMD Ryzen 7 9800X3D 8-Core Processor
Ram: 32391 MB,
GPU Information:
NVIDIA GeForce RTX 3090 - 32.0.15.6109
Screen: 3840x2160
Temp Dir: C:\Users\Administrator\AppData\Local\Temp\
Install Dir: I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\HandBrake
Data Dir: C:\Users\Administrator\AppData\Roaming\HandBrake

-------------------------------------------


# Starting Encode ...

[09:29:21] base preset: H.265 MKV 2160p60
[21:29:21] hb_init: starting libhb thread
[21:29:21] Starting work at: Mon Dec 02 21:29:21 2024
[21:29:21] 1 job(s) to process
[21:29:21] json job:
{
"Audio": {
"AudioList": [
{
"Bitrate": 160,
"DRC": 0.0,
"Encoder": "av_aac",
"Gain": 0.0,
"Mixdown": 4,
"NormalizeMixLevel": false,
"Samplerate": 0,
"Track": 0,
"DitherMethod": 0
}
],
"CopyMask": [
"copy:aac",
"copy:ac3",
"copy:dtshd",
"copy:dts",
"copy:eac3",
"copy:flac",
"copy:mp3",
"copy:truehd"
],
"FallbackEncoder": "ac3"
},
"Destination": {
"ChapterList": [
{
"Name": "Chapter 1"
}
],
"ChapterMarkers": true,
"AlignAVStart": false,
"File": "I:\\Clean install Windows 11\\5950x\\programmer\\Handbreak\\Handbreak 1.33\\video her.mkv",
"Mp4Options": {
"IpodAtom": false,
"Mp4Optimize": false
},
"Mux": "av_mkv"
},
"Filters": {
"FilterList": [
{
"ID": 4,
"Settings": {
"mode": "7"
}
},
{
"ID": 3,
"Settings": {
"block-height": "16",
"block-thresh": "40",
"block-width": "16",
"filter-mode": "2",
"mode": "3",
"motion-thresh": "1",
"spatial-metric": "2",
"spatial-thresh": "1"
}
},
{
"ID": 12,
"Settings": {
"crop-bottom": "0",
"crop-left": "0",
"crop-right": "0",
"crop-top": "0",
"height": "2160",
"width": "3840"
}
},
{
"ID": 6,
"Settings": {
"mode": "2",
"rate": "27000000/450000"
}
}
]
},
"PAR": {
"Num": 1,
"Den": 1
},
"Metadata": {},
"SequenceID": 0,
"Source": {
"Angle": 1,
"Range": {
"Type": "chapter",
"Start": 1,
"End": 1
},
"Title": 1,
"Path": "I:\\Clean install Windows 11\\5950x\\programmer\\Handbreak\\Handbreak 1.33\\LG New York HDR UHD 4K Demo.ts"
},
"Subtitle": {
"Search": {
"Burn": true,
"Default": false,
"Enable": true,
"Forced": true
},
"SubtitleList": []
},
"Video": {
"Encoder": "x265",
"Level": "auto",
"TwoPass": false,
"Turbo": false,
"ColorMatrixCode": 0,
"Options": "strong-intra-smoothing=0:rect=0:aq-mode=1",
"Preset": "slow",
"Profile": "main",
"Quality": 24.0,
"QSV": {
"Decode": false,
"AsyncDepth": 0
}
}
}
[21:29:21] CPU: AMD Ryzen 7 9800X3D 8-Core Processor
[21:29:21] - logical processor count: 16
[21:29:21] Intel Quick Sync Video support: no
[21:29:21] hb_scan: path=I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts, title_index=1
udfread ERROR: ECMA 167 Volume Recognition failed
src/libbluray/disc/disc.c:323: failed opening UDF image I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts
src/libbluray/disc/disc.c:424: error opening file BDMV\index.bdmv
src/libbluray/disc/disc.c:424: error opening file BDMV\BACKUP\index.bdmv
src/libbluray/bluray.c:2585: nav_get_title_list(I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts\) failed
[21:29:21] bd: not a bd - trying as a stream/file instead
libdvdnav: Using dvdnav version 6.0.1
libdvdread: Encrypted DVD support unavailable.
libdvdreadVDOpenFileUDF:UDFFindFile /VIDEO_TS/VIDEO_TS.IFO failed
libdvdreadVDOpenFileUDF:UDFFindFile /VIDEO_TS/VIDEO_TS.BUP failed
libdvdread: Can't open file VIDEO_TS.IFO.
libdvdnav: vm: failed to read VIDEO_TS.IFO
[21:29:21] dvd: not a dvd - trying as a stream/file instead
[21:29:21] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[21:29:22] hb_ts_stream_find_pids - end of file
Input #0, mpegts, from 'I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts':
Duration: 00:01:12.15, start: 0.999989, bitrate: 52098 kb/s
Program 1
Stream #0:0[0x101]: Video: hevc (Main 10) ([36][0][0][0] / 0x0024), yuv420p10le(tv, bt2020nc/bt2020/smpte2084), 3840x2160 [SAR 1:1 DAR 16:9], 25 fps, 25 tbr, 90k tbn, 25 tbc
Stream #0:1[0x102](und): Audio: aac (LC) ([15][0][0][0] / 0x000F), 48000 Hz, stereo, fltp, 192 kb/s
[21:29:22] scan: decoding previews for title 1
[21:29:22] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[21:29:22] hb_ts_stream_find_pids - end of file
[21:29:22] scan: audio 0x1: aac, rate=48000Hz, bitrate=192000 Unknown (AAC LC) (2.0 ch) (192 kbps)
[21:29:23] scan: 10 previews, 3840x2160, 25.000 fps, autocrop = 0/0/0/0, aspect 16:9, PAR 1:1
[21:29:23] scan: supported video decoders: avcodec qsv
[21:29:24] libhb: scan thread found 1 valid title(s)
[21:29:24] Skipping subtitle scan. No suitable subtitle tracks.
[21:29:24] Starting Task: Encoding Pass
[21:29:24] Skipping crop/scale filter
[21:29:24] work: only 1 chapter, disabling chapter markers
[21:29:24] job configuration:
[21:29:24] * source
[21:29:24] + I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\LG New York HDR UHD 4K Demo.ts
[21:29:24] + title 1, chapter(s) 1 to 1
[21:29:24] + container: mpegts
[21:29:24] + data rate: 52098 kbps
[21:29:24] * destination
[21:29:24] + I:\Clean install Windows 11\5950x\programmer\Handbreak\Handbreak 1.33\video her.mkv
[21:29:24] + container: Matroska (libavformat)
[21:29:24] * video track
[21:29:24] + decoder: hevc
[21:29:24] + filters
[21:29:24] + Comb Detect (mode=3:spatial-metric=2:motion-thresh=1:spatial-thresh=1:filter-mode=2:block-thresh=40:block-width=16:block-height=16)
[21:29:24] + Decomb (mode=39)
[21:29:24] + Framerate Shaper (mode=2:rate=27000000/450000)
[21:29:24] + frame rate: 25.000 fps -> peak rate limited to 60.000 fps
[21:29:24] + Output geometry
[21:29:24] + storage dimensions: 3840 x 2160
[21:29:24] + pixel aspect ratio: 1 : 1
[21:29:24] + display dimensions: 3840 x 2160
[21:29:24] + encoder: H.265 (libx265)
[21:29:24] + preset: slow
[21:29:24] + options: strong-intra-smoothing=0:rect=0:aq-mode=1
[21:29:24] + profile: main
[21:29:24] + level: auto
[21:29:24] + quality: 24.00 (RF)
[21:29:24] + color profile: 9-16-9
[21:29:24] * audio track 1
[21:29:24] + decoder: Unknown (AAC LC) (2.0 ch) (192 kbps) (track 1, id 0x1)
[21:29:24] + bitrate: 192 kbps, samplerate: 48000 Hz
[21:29:24] + mixdown: Stereo
[21:29:24] + dither: none
[21:29:24] + encoder: AAC (libavcodec)
[21:29:24] + bitrate: 160 kbps, samplerate: 48000 Hz
[21:29:24] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[21:29:24] hb_ts_stream_find_pids - end of file
[21:29:24] sync: expecting 1803 video frames
x265 [info]: HEVC encoder version 3.2.1+1-b5c86a64bbbe
x265 [info]: build info [Windows][GCC 9.2.0][64 bit] 8bit+10bit+12bit
x265 [info]: using cpu capabilities: MMX2 SSE2Fast LZCNT SSSE3 SSE4.2 AVX FMA3 BMI2 AVX2
x265 [info]: Main profile, Level-5 (Main tier)
x265 [info]: Thread pool created using 16 threads
x265 [info]: Slices : 1
x265 [info]: frame threads / pool features : 4 / wpp(34 rows)
x265 [info]: Coding QT: max CU size, min CU size : 64 / 8
x265 [info]: Residual QT: max TU size, max depth : 32 / 1 inter / 1 intra
x265 [info]: ME / range / subpel / merge : star / 57 / 3 / 3
x265 [info]: Keyframe min / max / scenecut / bias: 25 / 250 / 40 / 5.00
x265 [info]: Lookahead / bframes / badapt : 25 / 4 / 2
x265 [info]: b-pyramid / weightp / weightb : 1 / 1 / 0
x265 [info]: References / ref-limit cu / depth : 4 / on / on
x265 [info]: AQ: mode / str / qg-size / cu-tree : 1 / 1.0 / 32 / 1
x265 [info]: Rate Control / qCompress : CRF-24.0 / 0.60
x265 [info]: tools: limit-modes rd=4 psy-rd=2.00 rdoq=2 psy-rdoq=1.00 rskip
x265 [info]: tools: signhide tmvp lslices=4 deblock sao
[21:29:24] sync: first pts video is 0
[21:29:24] sync: "Chapter 1" (1) at frame 1 time 0
[21:29:24] sync: first pts audio 0x1 is 0
[21:31:40] reader: done. 1 scr changes
[21:31:46] work: average encoding speed for job is 12.766020 fps
[21:31:47] comb detect: heavy 1091 | light 277 | uncombed 438 | total 1806
[21:31:47] decomb: deinterlaced 1091 | blended 277 | unfiltered 438 | total 1806
[21:31:47] vfr: 1806 frames output, 0 dropped and 0 duped for CFR/PFR
[21:31:47] vfr: lost time: 0 (0 frames)
[21:31:47] vfr: gained time: 0 (0 frames) (0 not accounted for)
[21:31:47] aac-decoder done: 3384 frames, 0 decoder errors
[21:31:47] hevc-decoder done: 1806 frames, 0 decoder errors
[21:31:47] sync: got 1806 frames, 1803 expected
[21:31:47] sync: framerate min 25.000 fps, max 25.000 fps, avg 25.000 fps
x265 [info]: frame I: 20, Avg QP:22.74 kb/s: 84168.04
x265 [info]: frame P: 426, Avg QP:24.64 kb/s: 29918.47
x265 [info]: frame B: 1360, Avg QP:30.58 kb/s: 5087.03
x265 [info]: Weighted P-Frames: Y:15.7% UV:11.0%
x265 [info]: consecutive B-frames: 9.6% 1.8% 7.6% 35.9% 45.1%
encoded 1806 frames in 142.86s (12.64 fps), 11820.04 kb/s, Avg QP:29.09
[21:31:47] mux: track 0, 1806 frames, 106742176 bytes, 11814.30 kbps, fifo 512
[21:31:47] mux: track 1, 3385 frames, 1365514 bytes, 151.14 kbps, fifo 1024
[21:31:47] Finished work at: Mon Dec 02 21:31:47 2024
[21:31:47] libhb: work result = 0

# Encode Completed ...



[dcowen]

The test file:
sdifox said:
et voila. we can all host the file and round robin it

LG New York HDR UHD 4K Demo.zip

drive.google.com

Link to test file is broken



[igor_kavinski]

LG: New York HDR UHD 4K Demo | 4K Media

LG New York is a promotional video, in Ultra-HD HDR, for Super UHD LG 4K Nano Cell TVs. Video Info: Resolution: 3840 x 2160 File size: 448 MB Duration: 00:01:12 Format: TS Codec: HEVC Frame rate: 25 fps

4kmedia.org



[Hulk]

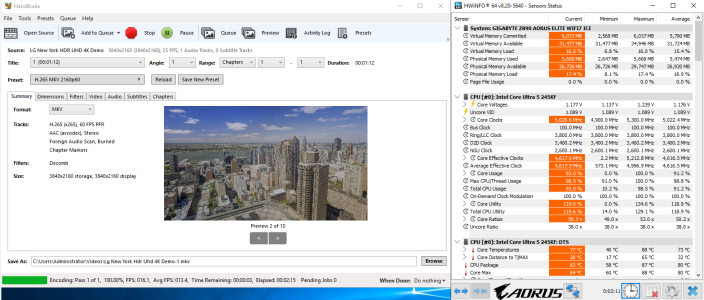

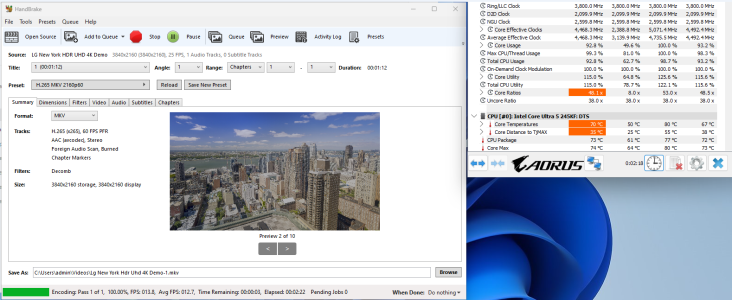

Anyone with an Arrow Lake rig care to run the bench? I'm curious.



[poke01]

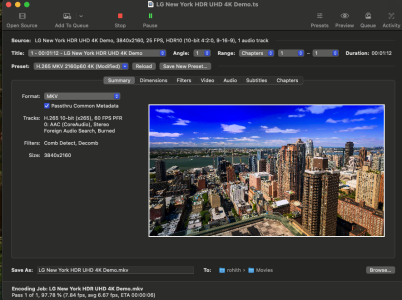

Apple M4
did both native and x86 tests.

Native was latest build - Version 1.9.0 and x86 was on 1.3.3

Spoiler: LOG - Native

HandBrake Activity Log for Session: 2025-02-02T09:26:00Z
Handbrake Version: 1.9.0 (2024120100)
LG New York HDR UHD 4K Demo.mkv
Preset: H.265 MKV 2160p60 4K (Modified)
[20:26:00] macgui: fr.handbrake.HandBrakeXPCService scanning specifically for title: 1
[20:26:00] CPU: Apple M4
[20:26:00] - logical processor count: 10
[20:26:00] hb_scan: path=/Users/user/Downloads/LG New York HDR UHD 4K Demo.ts, title_index=1
[20:26:00] thread 16b9af000 started ("scan")
udfread ERROR: ECMA 167 Volume Recognition failed
disc.c:333: failed opening UDF image /Users/user/Downloads/LG New York HDR UHD 4K Demo.ts
disc.c:437: error opening file BDMV/index.bdmv
disc.c:437: error opening file BDMV/BACKUP/index.bdmv
[20:26:00] bd: not a bd - trying as a stream/file instead
libdvdread: DVDOpenFileUDF:UDFFindFile /VIDEO_TS/VIDEO_TS.IFO failed
libdvdnav: vm: vm: failed to read VIDEO_TS.IFO
[20:26:00] dvd: not a dvd - trying as a stream/file instead
[20:26:00] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[20:26:00] hb_ts_stream_find_pids - end of file
Input #0, mpegts, from '/Users/user/Downloads/LG New York HDR UHD 4K Demo.ts':
Duration: 00:01:12.15, start: 0.999989, bitrate: 52098 kb/s
Program 1
Stream #0:0[0x101]: Video: hevc (Main 10) ([36][0][0][0] / 0x0024), yuv420p10le(tv, bt2020nc/bt2020/smpte2084), 3840x2160 [SAR 1:1 DAR 16:9], 25 fps, 25 tbr, 90k tbn
Stream #0:1[0x102](und): Audio: aac (LC) ([15][0][0][0] / 0x000F), 48000 Hz, stereo, fltp, 192 kb/s
[20:26:00] Found ffmpeg 0 chapters, container=mpegts
[20:26:00] scan: decoding previews for title 1
[20:26:00] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[20:26:00] hb_ts_stream_find_pids - end of file
[20:26:00] scan: preview 1
[20:26:01] fifo_close: trashing 0 buffer(s)
[20:26:01] scan: audio 0x1: aac, rate=48000Hz, bitrate=192000 Unknown (AAC LC, 2.0 ch, 192 kbps)
[20:26:01] scan: preview 2
[20:26:01] scan: preview 3
[20:26:01] scan: preview 4
[20:26:01] scan: preview 5
[20:26:01] scan: preview 6
[20:26:01] scan: preview 7
[20:26:01] scan: preview 8
[20:26:02] scan: preview 9
[20:26:02] scan: preview 10
[20:26:02] using bitstream PAR 1:1
[20:26:02] crop: [0] 0/0/0/0
[20:26:02] crop: [1] 0/0/0/0
[20:26:02] crop: [2] 0/0/0/0
[20:26:02] crop: [3] 0/0/0/0
[20:26:02] crop: [4] 0/0/0/0
[20:26:02] crop: [5] 0/0/0/0
[20:26:02] crop: [6] 0/0/0/0
[20:26:02] crop: [7] 0/0/0/0
[20:26:02] crop: [8] 0/0/0/0
[20:26:02] crop: [9] 0/0/0/0
[20:26:02] crop: less_than_median_frame_count: 0,
[20:26:02] scan: 10 previews, 3840x2160, 25.000 fps, autocrop = 0/0/0/0, aspect 16:9, PAR 1:1, color profile: 9-16-9, chroma location: left
[20:26:02] scan: mastering display metadata: r(0.6800,0.3200) g(0.2650,0.6900) b(0.1500 0.0600) wp(0.3127, 0.3290) min_luminance=0.050000, max_luminance=1200.000000
[20:26:02] Freed 1 buffers of size 1024
[20:26:02] Freed 1 buffers of size 262144
[20:26:02] Freed 1 buffers of size 524288
[20:26:02] Freed 1 buffers of size 1048576
[20:26:02] Freed 1 buffers of size 2097152
[20:26:02] Freed 1 buffers of size 4194304
[20:26:02] Allocated 8127488 bytes of buffers on this pass and Freed 8127488 bytes, 0 bytes leaked
[20:26:02] thread 16b9af000 exited ("scan")
[20:26:02] thread 16b9af000 joined ("scan")
[20:26:02] libhb: scan thread found 1 valid title(s)
[20:26:02] macgui: fr.handbrake.HandBrakeXPCService scan done
[20:26:02] thread 16b9af000 started ("work")
[20:26:02] macgui: fr.handbrake.HandBrakeXPCService started encoding LG New York HDR UHD 4K Demo.mkv
[20:26:02] macgui: fr.handbrake.HandBrakeXPCService with preset H.265 MKV 2160p60 4K (Modified)
[20:26:02] Starting work at: Sun Feb 2 20:26:02 2025

[20:26:02] 1 job(s) to process
[20:26:02] Adding subtitle scan pass
[20:26:02] Skipping subtitle scan. No suitable subtitle tracks.
[20:26:02] Starting Task: Encoding Pass
[20:26:02] work: skipping crop/scale filter
[20:26:02] work: only 1 chapter, disabling chapter markers
[20:26:02] job configuration:
[20:26:02] * source
[20:26:02] + /Users/user/Downloads/LG New York HDR UHD 4K Demo.ts
[20:26:02] + title 1, chapter(s) 1 to 1
[20:26:02] + container: mpegts
[20:26:02] + data rate: 52098 kbps
[20:26:02] * destination
[20:26:02] + /Users/user/Library/Containers/fr.handbrake.HandBrake/Data/Movies/LG New York HDR UHD 4K Demo.mkv
[20:26:02] + container: Matroska (libavformat)
[20:26:02] * video track
[20:26:02] + decoder: hevc 10-bit (yuv420p10le)
[20:26:02] + filters
[20:26:02] + Comb Detect (mode=3:spatial-metric=2:motion-thresh=1:spatial-thresh=1:filter-mode=2:block-thresh=40:block-width=16:block-height=16)
[20:26:02] + Decomb (mode=39)
[20:26:02] + Framerate Shaper (mode=2:rate=27000000/450000)
[20:26:02] + frame rate: 25.000 fps -> peak rate limited to 60.000 fps
[20:26:02] + Output geometry
[20:26:02] + storage dimensions: 3840 x 2160
[20:26:02] + pixel aspect ratio: 1 : 1
[20:26:02] + display dimensions: 3840 x 2160
[20:26:02] + encoder: H.265 10-bit (libx265)
[20:26:02] + preset: slow
[20:26:02] + options: strong-intra-smoothing=0:rect=0:aq-mode=1:rd=4sy-rd=0.75sy-rdoq=4.0:rdoq-level=1:rskip=2
[20:26:02] + profile: main10
[20:26:02] + level: auto
[20:26:02] + quality: 24.00 (RF)
[20:26:02] + color profile: 9-16-9
[20:26:02] + color range: tv
[20:26:02] + chroma location: left
[20:26:02] + mastering display metadata: r(0.6800,0.3200) g(0.2650,0.6900) b(0.1500 0.0600) wp(0.3127, 0.3290) min_luminance=0.050000, max_luminance=1200.000000
[20:26:02] * audio track 1
[20:26:02] + decoder: Unknown (AAC LC, 2.0 ch, 192 kbps) (track 1, id 0x1)
[20:26:02] + bitrate: 192 kbps, samplerate: 48000 Hz
[20:26:02] + mixdown: Stereo
[20:26:02] + encoder: AAC (Apple AudioToolbox)
[20:26:02] + bitrate: 160 kbps, samplerate: 48000 Hz
[20:26:02] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[20:26:02] hb_ts_stream_find_pids - end of file
[20:26:02] sync: expecting 1803 video frames
[20:26:02] thread 16bf27000 started ("Audio Synchronization")
x265 [info]: HEVC encoder version 4.1+1-1d117be
x265 [info]: build info [Mac OS X][clang 16.0.0][64 bit] 10bit
x265 [info]: using cpu capabilities: NEON Neon_DotProd Neon_I8MM
x265 [warning]: Turning on repeat-headers for HDR compatibility
x265 [info]: Main 10 profile, Level-5 (Main tier)
x265 [info]: Thread pool created using 10 threads
x265 [info]: Slices : 1
x265 [info]: frame threads / pool features : 8 / wpp(34 rows)
x265 [info]: Coding QT: max CU size, min CU size : 64 / 8
x265 [info]: Residual QT: max TU size, max depth : 32 / 1 inter / 1 intra
x265 [info]: ME / range / subpel / merge : star / 57 / 3 / 3
x265 [info]: Keyframe min / max / scenecut / bias : 25 / 250 / 40 / 5.00
x265 [info]: Lookahead / bframes / badapt : 25 / 4 / 2
x265 [info]: b-pyramid / weightp / weightb : 1 / 1 / 0
x265 [info]: References / ref-limit cu / depth : 4 / on / on
x265 [info]: AQ: mode / str / qg-size / cu-tree : 1 / 1.0 / 32 / 1
x265 [info]: Rate Control / qCompress : CRF-24.0 / 0.60
x265 [info]: tools: limit-modes rd=4 psy-rd=0.75 rdoq=1 psy-rdoq=4.00
x265 [info]: tools: rskip mode=2 rskip-edge-threshold=0.05 signhide tmvp
x265 [info]: tools: lslices=4 deblock sao
[20:26:02] Writing Metadata to output file...
[20:26:02] thread 16caa3000 started ("Muxer")
[20:26:02] thread 16cb2f000 started ("Reader")
[20:26:02] thread 16cbbb000 started ("Audio decoder (libavcodec)")
[20:26:02] thread 16cc47000 started ("Video decoder (libavcodec)")
[20:26:02] thread 16ccd3000 started ("Video Synchronization")
[20:26:02] thread 16cd5f000 started ("AAC encoder (Apple)")
[20:26:02] thread 16cdeb000 started ("H.265/HEVC encoder (libx265)")
[20:26:02] thread 16ce77000 started ("Muxer")
[20:26:02] thread 16cf03000 started ("Comb Detect")
[20:26:02] thread 16cf8f000 started ("Decomb")
[20:26:02] thread 16d01b000 started ("Framerate Shaper")
[20:26:02] ffmpeg_read starting chapter 1 at 0
[20:26:02] sync: first pts video is 0
[20:26:02] sync: "Chapter 1" (1) at frame 1 time 0
[20:26:02] sync: first pts audio 0x1 is 0
[20:26:02] thread 16d0a7000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d133000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d1bf000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d24b000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d2d7000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d363000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d3ef000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d47b000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d507000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d593000 started ("comb_detect_filter_segment")
[20:26:02] thread 16d61f000 started ("mask_filter_segment")
[20:26:02] thread 16d6ab000 started ("mask_filter_segment")
[20:26:02] thread 16d737000 started ("mask_filter_segment")
[20:26:02] thread 16d7c3000 started ("mask_filter_segment")
[20:26:02] thread 16d84f000 started ("mask_filter_segment")
[20:26:02] thread 16d8db000 started ("mask_filter_segment")
[20:26:02] thread 16d967000 started ("mask_filter_segment")
[20:26:02] thread 16d9f3000 started ("mask_filter_segment")
[20:26:02] thread 16da7f000 started ("mask_filter_segment")
[20:26:02] thread 16db0b000 started ("mask_filter_segment")
[20:26:02] thread 16db97000 started ("mask_erode_segment")
[20:26:02] thread 16dc23000 started ("mask_erode_segment")
[20:26:02] thread 16dcaf000 started ("mask_erode_segment")
[20:26:02] thread 16dd3b000 started ("mask_erode_segment")
[20:26:02] thread 16ddc7000 started ("mask_erode_segment")
[20:26:02] thread 16de53000 started ("mask_erode_segment")
[20:26:02] thread 16dedf000 started ("mask_erode_segment")
[20:26:02] thread 16df6b000 started ("mask_erode_segment")
[20:26:02] thread 16dff7000 started ("mask_erode_segment")
[20:26:02] thread 16e083000 started ("mask_erode_segment")
[20:26:02] thread 16e10f000 started ("mask_dilate_segment")
[20:26:02] thread 16e19b000 started ("mask_dilate_segment")
[20:26:02] thread 16e227000 started ("mask_dilate_segment")
[20:26:02] thread 16e2b3000 started ("mask_dilate_segment")
[20:26:02] thread 16e33f000 started ("mask_dilate_segment")
[20:26:02] thread 16e3cb000 started ("mask_dilate_segment")
[20:26:02] thread 16e457000 started ("mask_dilate_segment")
[20:26:02] thread 16e4e3000 started ("mask_dilate_segment")
[20:26:02] thread 16e56f000 started ("mask_dilate_segment")
[20:26:02] thread 16e5fb000 started ("mask_dilate_segment")
[20:26:02] thread 16e687000 started ("comb_detect_check_segment")
[20:26:02] thread 16e713000 started ("comb_detect_check_segment")
[20:26:02] thread 16e79f000 started ("comb_detect_check_segment")
[20:26:02] thread 16e82b000 started ("comb_detect_check_segment")
[20:26:02] thread 16e8b7000 started ("comb_detect_check_segment")
[20:26:02] thread 16e943000 started ("comb_detect_check_segment")
[20:26:02] thread 16e9cf000 started ("comb_detect_check_segment")
[20:26:02] thread 16ea5b000 started ("comb_detect_check_segment")
[20:26:02] thread 16eae7000 started ("comb_detect_check_segment")
[20:26:02] thread 16eb73000 started ("comb_detect_check_segment")
[20:26:03] thread 1783bb000 started ("yadif_filter_segment")
[20:26:03] thread 178447000 started ("yadif_filter_segment")
[20:26:03] thread 1784d3000 started ("yadif_filter_segment")
[20:26:03] thread 17855f000 started ("yadif_filter_segment")
[20:26:03] thread 1785eb000 started ("yadif_filter_segment")
[20:26:03] thread 178677000 started ("yadif_filter_segment")
[20:26:03] thread 178703000 started ("yadif_filter_segment")
[20:26:03] thread 17878f000 started ("yadif_filter_segment")
[20:26:03] thread 17881b000 started ("yadif_filter_segment")
[20:26:03] thread 1788a7000 started ("yadif_filter_segment")
[20:30:18] ffmpeg_read end of chapter 1 at 6494400
[20:30:18] reader: done. 1 scr changes
[20:30:18] thread 16cb2f000 exited ("Reader")
[20:30:30] thread 16ce77000 exited ("Muxer")
[20:30:30] thread 16ce77000 joined ("Muxer")
[20:30:30] work: average encoding speed for job is 6.830987 fps
[20:30:30] thread 16bf27000 exited ("Audio Synchronization")
[20:30:30] thread 16cf8f000 exited ("Decomb")
[20:30:30] thread 16cc47000 exited ("Video decoder (libavcodec)")
[20:30:30] thread 16d01b000 exited ("Framerate Shaper")
[20:30:30] thread 16cf03000 exited ("Comb Detect")
[20:30:30] thread 16cf03000 joined ("Comb Detect")
[20:30:30] comb detect: heavy 567 | light 209 | uncombed 1030 | total 1806
[20:30:30] thread 16d0a7000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d133000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d1bf000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d24b000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d2d7000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d363000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d3ef000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d47b000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d507000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d593000 exited ("comb_detect_filter_segment")
[20:30:30] thread 16d0a7000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16d133000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16d1bf000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16d24b000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16d2d7000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16d363000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16d3ef000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16d47b000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16d507000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16d593000 joined ("comb_detect_filter_segment")
[20:30:30] thread 16e713000 exited ("comb_detect_check_segment")
[20:30:30] thread 16e687000 exited ("comb_detect_check_segment")
[20:30:30] thread 16e79f000 exited ("comb_detect_check_segment")
[20:30:30] thread 16e82b000 exited ("comb_detect_check_segment")
[20:30:30] thread 16e8b7000 exited ("comb_detect_check_segment")
[20:30:30] thread 16e943000 exited ("comb_detect_check_segment")
[20:30:30] thread 16e9cf000 exited ("comb_detect_check_segment")
[20:30:30] thread 16ea5b000 exited ("comb_detect_check_segment")
[20:30:30] thread 16eae7000 exited ("comb_detect_check_segment")
[20:30:30] thread 16eb73000 exited ("comb_detect_check_segment")
[20:30:30] thread 16e687000 joined ("comb_detect_check_segment")
[20:30:30] thread 16e713000 joined ("comb_detect_check_segment")
[20:30:30] thread 16e79f000 joined ("comb_detect_check_segment")
[20:30:30] thread 16e82b000 joined ("comb_detect_check_segment")
[20:30:30] thread 16e8b7000 joined ("comb_detect_check_segment")
[20:30:30] thread 16e943000 joined ("comb_detect_check_segment")
[20:30:30] thread 16e9cf000 joined ("comb_detect_check_segment")
[20:30:30] thread 16ea5b000 joined ("comb_detect_check_segment")
[20:30:30] thread 16eae7000 joined ("comb_detect_check_segment")
[20:30:30] thread 16eb73000 joined ("comb_detect_check_segment")
[20:30:30] thread 16d61f000 exited ("mask_filter_segment")
[20:30:30] thread 16d6ab000 exited ("mask_filter_segment")
[20:30:30] thread 16d737000 exited ("mask_filter_segment")
[20:30:30] thread 16d7c3000 exited ("mask_filter_segment")
[20:30:30] thread 16d84f000 exited ("mask_filter_segment")
[20:30:30] thread 16d8db000 exited ("mask_filter_segment")
[20:30:30] thread 16d967000 exited ("mask_filter_segment")
[20:30:30] thread 16d9f3000 exited ("mask_filter_segment")
[20:30:30] thread 16da7f000 exited ("mask_filter_segment")
[20:30:30] thread 16db0b000 exited ("mask_filter_segment")
[20:30:30] thread 16d61f000 joined ("mask_filter_segment")
[20:30:30] thread 16d6ab000 joined ("mask_filter_segment")
[20:30:30] thread 16d737000 joined ("mask_filter_segment")
[20:30:30] thread 16d7c3000 joined ("mask_filter_segment")
[20:30:30] thread 16d84f000 joined ("mask_filter_segment")
[20:30:30] thread 16d8db000 joined ("mask_filter_segment")
[20:30:30] thread 16d967000 joined ("mask_filter_segment")
[20:30:30] thread 16d9f3000 joined ("mask_filter_segment")
[20:30:30] thread 16da7f000 joined ("mask_filter_segment")
[20:30:30] thread 16db0b000 joined ("mask_filter_segment")
[20:30:30] thread 16db97000 exited ("mask_erode_segment")
[20:30:30] thread 16dc23000 exited ("mask_erode_segment")
[20:30:30] thread 16dcaf000 exited ("mask_erode_segment")
[20:30:30] thread 16dd3b000 exited ("mask_erode_segment")
[20:30:30] thread 16ddc7000 exited ("mask_erode_segment")
[20:30:30] thread 16de53000 exited ("mask_erode_segment")
[20:30:30] thread 16dedf000 exited ("mask_erode_segment")
[20:30:30] thread 16df6b000 exited ("mask_erode_segment")
[20:30:30] thread 16dff7000 exited ("mask_erode_segment")
[20:30:30] thread 16e083000 exited ("mask_erode_segment")
[20:30:30] thread 16db97000 joined ("mask_erode_segment")
[20:30:30] thread 16dc23000 joined ("mask_erode_segment")
[20:30:30] thread 16dcaf000 joined ("mask_erode_segment")
[20:30:30] thread 16dd3b000 joined ("mask_erode_segment")
[20:30:30] thread 16ddc7000 joined ("mask_erode_segment")
[20:30:30] thread 16de53000 joined ("mask_erode_segment")
[20:30:30] thread 16dedf000 joined ("mask_erode_segment")
[20:30:30] thread 16df6b000 joined ("mask_erode_segment")
[20:30:30] thread 16dff7000 joined ("mask_erode_segment")
[20:30:30] thread 16e083000 joined ("mask_erode_segment")
[20:30:30] thread 16e10f000 exited ("mask_dilate_segment")
[20:30:30] thread 16e19b000 exited ("mask_dilate_segment")
[20:30:30] thread 16e227000 exited ("mask_dilate_segment")
[20:30:30] thread 16e2b3000 exited ("mask_dilate_segment")
[20:30:30] thread 16e33f000 exited ("mask_dilate_segment")
[20:30:30] thread 16e3cb000 exited ("mask_dilate_segment")
[20:30:30] thread 16e457000 exited ("mask_dilate_segment")
[20:30:30] thread 16e4e3000 exited ("mask_dilate_segment")
[20:30:30] thread 16e56f000 exited ("mask_dilate_segment")
[20:30:30] thread 16e5fb000 exited ("mask_dilate_segment")
[20:30:30] thread 16e10f000 joined ("mask_dilate_segment")
[20:30:30] thread 16e19b000 joined ("mask_dilate_segment")
[20:30:30] thread 16e227000 joined ("mask_dilate_segment")
[20:30:30] thread 16e2b3000 joined ("mask_dilate_segment")
[20:30:30] thread 16e33f000 joined ("mask_dilate_segment")
[20:30:30] thread 16e3cb000 joined ("mask_dilate_segment")
[20:30:30] thread 16e457000 joined ("mask_dilate_segment")
[20:30:30] thread 16e4e3000 joined ("mask_dilate_segment")
[20:30:30] thread 16e56f000 joined ("mask_dilate_segment")
[20:30:30] thread 16e5fb000 joined ("mask_dilate_segment")
[20:30:30] thread 16cf8f000 joined ("Decomb")
[20:30:30] decomb: deinterlaced 567 | blended 209 | unfiltered 1030 | total 1806
[20:30:30] thread 1783bb000 exited ("yadif_filter_segment")
[20:30:30] thread 178447000 exited ("yadif_filter_segment")
[20:30:30] thread 1784d3000 exited ("yadif_filter_segment")
[20:30:30] thread 17855f000 exited ("yadif_filter_segment")
[20:30:30] thread 1785eb000 exited ("yadif_filter_segment")
[20:30:30] thread 178677000 exited ("yadif_filter_segment")
[20:30:30] thread 178703000 exited ("yadif_filter_segment")
[20:30:30] thread 17878f000 exited ("yadif_filter_segment")
[20:30:30] thread 17881b000 exited ("yadif_filter_segment")
[20:30:30] thread 1788a7000 exited ("yadif_filter_segment")
[20:30:30] thread 1783bb000 joined ("yadif_filter_segment")
[20:30:30] thread 178447000 joined ("yadif_filter_segment")
[20:30:30] thread 1784d3000 joined ("yadif_filter_segment")
[20:30:30] thread 17855f000 joined ("yadif_filter_segment")
[20:30:30] thread 1785eb000 joined ("yadif_filter_segment")
[20:30:30] thread 178677000 joined ("yadif_filter_segment")
[20:30:30] thread 178703000 joined ("yadif_filter_segment")
[20:30:30] thread 17878f000 joined ("yadif_filter_segment")
[20:30:30] thread 17881b000 joined ("yadif_filter_segment")
[20:30:30] thread 1788a7000 joined ("yadif_filter_segment")
[20:30:30] thread 16d01b000 joined ("Framerate Shaper")
[20:30:30] vfr: 1806 frames output, 0 dropped and 0 duped for CFR/PFR
[20:30:30] vfr: lost time: 0 (0 frames)
[20:30:30] vfr: gained time: 0 (0 frames) (0 not accounted for)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] thread 16cb2f000 joined ("Reader")
[20:30:30] thread 16ccd3000 exited ("Video Synchronization")
[20:30:30] thread 16cd5f000 exited ("AAC encoder (Apple)")
[20:30:30] thread 16caa3000 exited ("Muxer")
[20:30:30] thread 16cdeb000 exited ("H.265/HEVC encoder (libx265)")
[20:30:30] thread 16cbbb000 exited ("Audio decoder (libavcodec)")
[20:30:30] thread 16cbbb000 joined ("Audio decoder (libavcodec)")
[20:30:30] thread 16cc47000 joined ("Video decoder (libavcodec)")
[20:30:30] thread 16ccd3000 joined ("Video Synchronization")
[20:30:30] thread 16cd5f000 joined ("AAC encoder (Apple)")
[20:30:30] thread 16cdeb000 joined ("H.265/HEVC encoder (libx265)")
[20:30:30] aac-decoder done: 3384 frames, 0 decoder errors
[20:30:30] hevc-decoder done: 1806 frames, 0 decoder errors
[20:30:30] sync: got 1806 frames, 1803 expected
[20:30:30] sync: framerate min 25.000 fps, max 25.000 fps, avg 25.000 fps
[20:30:30] thread 16bf27000 joined ("Audio Synchronization")
x265 [info]: frame I: 20, Avg QP:22.70 kb/s: 86531.75
x265 [info]: frame P: 439, Avg QP:24.62 kb/s: 27498.96
x265 [info]: frame B: 1347, Avg QP:30.78 kb/s: 4954.97
x265 [info]: Weighted P-Frames: Y:16.9% UV:14.1%

encoded 1806 frames in 267.90s (6.74 fps), 11338.33 kb/s, Avg QP:29.20
[20:30:30] mux: file size, 103876072 bytes
[20:30:30] mux: track 0, 1806 frames, 102437649 bytes, 11337.87 kbps, fifo 512
[20:30:30] mux: track 1, 3387 frames, 1396884 bytes, 154.61 kbps, fifo 1024
[20:30:30] mux: overhead, 8.00 bytes per frame
[20:30:30] thread 16caa3000 joined ("Muxer")
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] fifo_close: trashing 0 buffer(s)
[20:30:30] Freed 306 buffers of size 1024
[20:30:30] Freed 32 buffers of size 2048
[20:30:30] Freed 32 buffers of size 4096
[20:30:30] Freed 32 buffers of size 8192
[20:30:30] Freed 32 buffers of size 16384
[20:30:30] Freed 32 buffers of size 32768
[20:30:30] Freed 32 buffers of size 65536
[20:30:30] Freed 32 buffers of size 131072
[20:30:30] Freed 32 buffers of size 262144
[20:30:30] Freed 26 buffers of size 524288
[20:30:30] Freed 5 buffers of size 1048576
[20:30:30] Freed 2 buffers of size 2097152
[20:30:30] Freed 1 buffers of size 4194304
[20:30:30] Freed 3 buffers of size 8388608
[20:30:30] Freed 15 buffers of size 33554432
[20:30:30] Allocated 572770304 bytes of buffers on this pass and Freed 572770304 bytes, 0 bytes leaked
[20:30:30] Finished work at: Sun Feb 2 20:30:30 2025

[20:30:30] thread 16b9af000 exited ("work")
[20:30:30] thread 16b9af000 joined ("work")
[20:30:30] libhb: work result = 0

Spoiler: LOG - x86

HandBrake Activity Log for Session: 2025-02-02T09:48:59Z
Handbrake Version: 1.3.3 (2020061300)
LG New York HDR UHD 4K Demo x86.mkv
Preset: H.265 MKV 2160p60
[20:48:59] macgui: QueueCore scanning specifically for title: 1
[20:48:59] CPU: VirtualApple @ 2.50GHz
[20:48:59] - logical processor count: 10
[20:48:59] hb_scan: path=/Users/user/Downloads/LG New York HDR UHD 4K Demo.ts, title_index=1
[20:48:59] thread 30c8cb000 started ("scan")å
udfread ERROR: ECMA 167 Volume Recognition failed
disc.c:323: failed opening UDF image /Users/user/Downloads/LG New York HDR UHD 4K Demo.ts
disc.c:424: error opening file BDMV/index.bdmv
disc.c:424: error opening file BDMV/BACKUP/index.bdmv
bluray.c:2585: nav_get_title_list(/Users/user/Downloads/LG New York HDR UHD 4K Demo.ts/) failed
[20:48:59] bd: not a bd - trying as a stream/file instead
libdvdnav: Using dvdnav version 6.0.1
libdvdread: Encrypted DVD support unavailable.
libdvdreadVDOpenFileUDF:UDFFindFile /VIDEO_TS/VIDEO_TS.IFO failed
libdvdreadVDOpenFileUDF:UDFFindFile /VIDEO_TS/VIDEO_TS.BUP failed
libdvdread: Can't open file VIDEO_TS.IFO.
libdvdnav: vm: failed to read VIDEO_TS.IFO
[20:48:59] dvd: not a dvd - trying as a stream/file instead
[20:48:59] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[20:48:59] hb_ts_stream_find_pids - end of file
Input #0, mpegts, from '/Users/user/Downloads/LG New York HDR UHD 4K Demo.ts':
Duration: 00:01:12.15, start: 0.999989, bitrate: 52098 kb/s
Program 1
Stream #0:0[0x101]: Video: hevc (Main 10) ([36][0][0][0] / 0x0024), yuv420p10le(tv, bt2020nc/bt2020/smpte2084), 3840x2160 [SAR 1:1 DAR 16:9], 25 fps, 25 tbr, 90k tbn, 25 tbc
Stream #0:1[0x102](und): Audio: aac (LC) ([15][0][0][0] / 0x000F), 48000 Hz, stereo, fltp, 192 kb/s
[20:48:59] Found ffmpeg 0 chapters, container=mpegts
[20:48:59] scan: decoding previews for title 1
[20:48:59] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[20:49:00] hb_ts_stream_find_pids - end of file
[20:49:00] scan: preview 1
[20:49:00] fifo_close: trashing 0 buffer(s)
[20:49:00] scan: audio 0x1: aac, rate=48000Hz, bitrate=192000 Unknown (AAC LC) (2.0 ch) (192 kbps)
[20:49:00] scan: preview 2
[20:49:00] scan: preview 3
[20:49:00] scan: preview 4
[20:49:01] scan: preview 5
[20:49:01] scan: preview 6
[20:49:01] scan: preview 7
[20:49:01] scan: preview 8
[20:49:01] scan: preview 9
[20:49:01] scan: preview 10
[20:49:02] scan: 10 previews, 3840x2160, 25.000 fps, autocrop = 0/0/0/0, aspect 16:9, PAR 1:1
[20:49:02] Freed 1 buffers of size 1024
[20:49:02] Freed 1 buffers of size 262144
[20:49:02] Freed 1 buffers of size 524288
[20:49:02] Freed 1 buffers of size 1048576
[20:49:02] Freed 1 buffers of size 2097152
[20:49:02] Freed 1 buffers of size 4194304
[20:49:02] Freed 2 buffers of size 16777216
[20:49:02] Allocated 41681920 bytes of buffers on this pass and Freed 41681920 bytes, 0 bytes leaked
[20:49:02] thread 30c8cb000 exited ("scan")
[20:49:02] thread 30c8cb000 joined ("scan")
[20:49:02] libhb: scan thread found 1 valid title(s)
[20:49:02] macgui: QueueCore scan done
[20:49:02] thread 30c8cb000 started ("work")
[20:49:02] macgui: QueueCore started encoding LG New York HDR UHD 4K Demo x86.mkv
[20:49:02] macgui: QueueCore with preset H.265 MKV 2160p60
[20:49:02] Starting work at: Sun Feb 2 20:49:02 2025

[20:49:02] 1 job(s) to process
[20:49:02] Adding subtitle scan pass
[20:49:02] Skipping subtitle scan. No suitable subtitle tracks.
[20:49:02] Starting Task: Encoding Pass
[20:49:02] Skipping crop/scale filter
[20:49:02] thread 30ca5e000 started ("decomb_filter_segment")
[20:49:02] thread 30cae1000 started ("decomb_filter_segment")
[20:49:02] thread 30cb64000 started ("decomb_filter_segment")
[20:49:02] thread 30cbe7000 started ("decomb_filter_segment")
[20:49:02] thread 30cc6a000 started ("decomb_filter_segment")
[20:49:02] thread 30cced000 started ("decomb_filter_segment")
[20:49:02] thread 30cd70000 started ("decomb_filter_segment")
[20:49:02] thread 30cdf3000 started ("decomb_filter_segment")
[20:49:02] thread 30ce76000 started ("decomb_filter_segment")
[20:49:02] thread 30cef9000 started ("decomb_filter_segment")
[20:49:02] thread 30cf7c000 started ("decomb_check_segment")
[20:49:02] thread 30cfff000 started ("decomb_check_segment")
[20:49:02] thread 30d082000 started ("decomb_check_segment")
[20:49:02] thread 30d105000 started ("decomb_check_segment")
[20:49:02] thread 30d188000 started ("decomb_check_segment")
[20:49:02] thread 30d20b000 started ("decomb_check_segment")
[20:49:02] thread 30d28e000 started ("decomb_check_segment")
[20:49:02] thread 30d311000 started ("decomb_check_segment")
[20:49:02] thread 30d394000 started ("decomb_check_segment")
[20:49:02] thread 30d417000 started ("decomb_check_segment")
[20:49:02] thread 30d49a000 started ("mask_filter_segment")
[20:49:02] thread 30d51d000 started ("mask_filter_segment")
[20:49:02] thread 30d5a0000 started ("mask_filter_segment")
[20:49:02] thread 30d623000 started ("mask_filter_segment")
[20:49:02] thread 30d6a6000 started ("mask_filter_segment")
[20:49:02] thread 30d729000 started ("mask_filter_segment")
[20:49:02] thread 30d7ac000 started ("mask_filter_segment")
[20:49:02] thread 30d82f000 started ("mask_filter_segment")
[20:49:02] thread 30d8b2000 started ("mask_filter_segment")
[20:49:02] thread 30d935000 started ("mask_filter_segment")
[20:49:02] thread 30d9b8000 started ("mask_erode_segment")
[20:49:02] thread 30da3b000 started ("mask_erode_segment")
[20:49:02] thread 30dabe000 started ("mask_erode_segment")
[20:49:02] thread 30db41000 started ("mask_erode_segment")
[20:49:02] thread 30dbc4000 started ("mask_erode_segment")
[20:49:02] thread 30dc47000 started ("mask_erode_segment")
[20:49:02] thread 30dcca000 started ("mask_erode_segment")
[20:49:02] thread 30dd4d000 started ("mask_erode_segment")
[20:49:02] thread 30ddd0000 started ("mask_erode_segment")
[20:49:02] thread 30de53000 started ("mask_erode_segment")
[20:49:02] thread 30ded6000 started ("mask_dilate_segment")
[20:49:02] thread 30df59000 started ("mask_dilate_segment")
[20:49:02] thread 30dfdc000 started ("mask_dilate_segment")
[20:49:02] thread 30e05f000 started ("mask_dilate_segment")
[20:49:02] thread 30e0e2000 started ("mask_dilate_segment")
[20:49:02] thread 30e165000 started ("mask_dilate_segment")
[20:49:02] thread 30e1e8000 started ("mask_dilate_segment")
[20:49:02] thread 30e26b000 started ("mask_dilate_segment")
[20:49:02] thread 30e2ee000 started ("mask_dilate_segment")
[20:49:02] thread 30e371000 started ("mask_dilate_segment")
[20:49:02] thread 30e3f4000 started ("yadif_filter_segment")
[20:49:02] thread 30e477000 started ("yadif_filter_segment")
[20:49:02] thread 30e4fa000 started ("yadif_filter_segment")
[20:49:02] thread 30e57d000 started ("yadif_filter_segment")
[20:49:02] thread 30e600000 started ("yadif_filter_segment")
[20:49:02] thread 30e683000 started ("yadif_filter_segment")
[20:49:02] thread 30e706000 started ("yadif_filter_segment")
[20:49:02] thread 30e789000 started ("yadif_filter_segment")
[20:49:02] thread 30e80c000 started ("yadif_filter_segment")
[20:49:02] thread 30e88f000 started ("yadif_filter_segment")
[20:49:02] work: only 1 chapter, disabling chapter markers
[20:49:02] job configuration:
[20:49:02] * source
[20:49:02] + /Users/user/Downloads/LG New York HDR UHD 4K Demo.ts
[20:49:02] + title 1, chapter(s) 1 to 1
[20:49:02] + container: mpegts
[20:49:02] + data rate: 52098 kbps
[20:49:02] * destination
[20:49:02] + /Users/user/Library/Containers/fr.handbrake.HandBrake/Data/Movies/LG New York HDR UHD 4K Demo x86.mkv
[20:49:02] + container: Matroska (libavformat)
[20:49:02] * video track
[20:49:02] + decoder: hevc
[20:49:02] + filters
[20:49:02] + Comb Detect (mode=3:spatial-metric=2:motion-thresh=1:spatial-thresh=1:filter-mode=2:block-thresh=40:block-width=16:block-height=16)
[20:49:02] + Decomb (mode=39)
[20:49:02] + Framerate Shaper (mode=2:rate=27000000/450000)
[20:49:02] + frame rate: 25.000 fps -> peak rate limited to 60.000 fps
[20:49:02] + Output geometry
[20:49:02] + storage dimensions: 3840 x 2160
[20:49:02] + pixel aspect ratio: 1 : 1
[20:49:02] + display dimensions: 3840 x 2160
[20:49:02] + encoder: H.265 (libx265)
[20:49:02] + preset: slow
[20:49:02] + options: strong-intra-smoothing=0:rect=0:aq-mode=1
[20:49:02] + profile: main
[20:49:02] + level: auto
[20:49:02] + quality: 24.00 (RF)
[20:49:02] + color profile: 9-16-9
[20:49:02] * audio track 1
[20:49:02] + decoder: Unknown (AAC LC) (2.0 ch) (192 kbps) (track 1, id 0x1)
[20:49:02] + bitrate: 192 kbps, samplerate: 48000 Hz
[20:49:02] + mixdown: Stereo
[20:49:02] + dither: triangular
[20:49:02] + encoder: AAC (Apple AudioToolbox)
[20:49:02] + bitrate: 160 kbps, samplerate: 48000 Hz
[20:49:02] file is MPEG Transport Stream with 188 byte packets offset 0 bytes
[20:49:02] hb_ts_stream_find_pids - end of file
[20:49:02] sync: expecting 1803 video frames
[20:49:02] thread 30ec24000 started ("Audio Synchronization")
x265 [info]: HEVC encoder version 3.2.1+1-b5c86a64bbbe
x265 [info]: build info [Mac OS X][clang 11.0.3][64 bit] 8bit+10bit+12bit
x265 [info]: using cpu capabilities: MMX2 SSE2Fast SSSE3 SSE4.2
x265 [info]: Main profile, Level-5 (Main tier)
x265 [info]: Thread pool created using 10 threads
x265 [info]: Slices : 1
x265 [info]: frame threads / pool features : 3 / wpp(34 rows)
x265 [info]: Coding QT: max CU size, min CU size : 64 / 8
x265 [info]: Residual QT: max TU size, max depth : 32 / 1 inter / 1 intra
x265 [info]: ME / range / subpel / merge : star / 57 / 3 / 3
x265 [info]: Keyframe min / max / scenecut / bias: 25 / 250 / 40 / 5.00
x265 [info]: Lookahead / bframes / badapt : 25 / 4 / 2
x265 [info]: b-pyramid / weightp / weightb : 1 / 1 / 0
x265 [info]: References / ref-limit cu / depth : 4 / on / on
x265 [info]: AQ: mode / str / qg-size / cu-tree : 1 / 1.0 / 32 / 1
x265 [info]: Rate Control / qCompress : CRF-24.0 / 0.60
x265 [info]: tools: limit-modes rd=4 psy-rd=2.00 rdoq=2 psy-rdoq=1.00 rskip
x265 [info]: tools: signhide tmvp lslices=4 deblock sao
[20:49:03] Writing Metadata to output file...
[20:49:03] thread 30f454000 started ("Muxer")
[20:49:03] thread 30f4d7000 started ("Reader")
[20:49:03] thread 30f55a000 started ("Audio decoder (libavcodec)")
[20:49:03] thread 30f5dd000 started ("Video decoder (libavcodec)")
[20:49:03] thread 30f660000 started ("Video Synchronization")
[20:49:03] thread 30f6e3000 started ("AAC encoder (Apple)")
[20:49:03] thread 30f766000 started ("H.265/HEVC encoder (libx265)")
[20:49:03] thread 30f7e9000 started ("Muxer")
[20:49:03] thread 30f86c000 started ("Comb Detect")
[20:49:03] thread 30f8ef000 started ("Decomb")
[20:49:03] thread 30f972000 started ("Framerate Shaper")
[20:49:03] ffmpeg_read starting chapter 1 at 0
[20:49:03] sync: first pts video is 0
[20:49:03] sync: "Chapter 1" (1) at frame 1 time 0
[20:49:03] sync: first pts audio 0x1 is 0
[20:57:52] ffmpeg_read end of chapter 1 at 6494400
[20:57:56] reader: done. 1 scr changes
[20:57:56] thread 30f4d7000 exited ("Reader")
[20:58:22] thread 30f7e9000 exited ("Muxer")
[20:58:22] thread 30f7e9000 joined ("Muxer")
[20:58:22] work: average encoding speed for job is 3.279158 fps
[20:58:22] thread 30f6e3000 exited ("AAC encoder (Apple)")
[20:58:22] thread 30f454000 exited ("Muxer")
[20:58:22] thread 30ec24000 exited ("Audio Synchronization")
[20:58:22] thread 30f972000 exited ("Framerate Shaper")
[20:58:22] thread 30f5dd000 exited ("Video decoder (libavcodec)")
[20:58:22] thread 30f55a000 exited ("Audio decoder (libavcodec)")
[20:58:22] thread 30f86c000 exited ("Comb Detect")
[20:58:22] thread 30f8ef000 exited ("Decomb")
[20:58:22] thread 30f660000 exited ("Video Synchronization")
[20:58:22] thread 30f86c000 joined ("Comb Detect")
[20:58:22] comb detect: heavy 1091 | light 277 | uncombed 438 | total 1806
[20:58:22] thread 30cc6a000 exited ("decomb_filter_segment")
[20:58:22] thread 30cae1000 exited ("decomb_filter_segment")
[20:58:22] thread 30ca5e000 exited ("decomb_filter_segment")
[20:58:22] thread 30cbe7000 exited ("decomb_filter_segment")
[20:58:22] thread 30cced000 exited ("decomb_filter_segment")
[20:58:22] thread 30ce76000 exited ("decomb_filter_segment")
[20:58:22] thread 30cdf3000 exited ("decomb_filter_segment")
[20:58:22] thread 30cef9000 exited ("decomb_filter_segment")
[20:58:22] thread 30cd70000 exited ("decomb_filter_segment")
[20:58:22] thread 30cb64000 exited ("decomb_filter_segment")
[20:58:22] thread 30ca5e000 joined ("decomb_filter_segment")
[20:58:22] thread 30cae1000 joined ("decomb_filter_segment")
[20:58:22] thread 30cb64000 joined ("decomb_filter_segment")
[20:58:22] thread 30cbe7000 joined ("decomb_filter_segment")
[20:58:22] thread 30cc6a000 joined ("decomb_filter_segment")
[20:58:22] thread 30cced000 joined ("decomb_filter_segment")
[20:58:22] thread 30cd70000 joined ("decomb_filter_segment")
[20:58:22] thread 30cdf3000 joined ("decomb_filter_segment")
[20:58:22] thread 30ce76000 joined ("decomb_filter_segment")
[20:58:22] thread 30cef9000 joined ("decomb_filter_segment")
[20:58:22] thread 30d28e000 exited ("decomb_check_segment")
[20:58:22] thread 30d417000 exited ("decomb_check_segment")
[20:58:22] thread 30d394000 exited ("decomb_check_segment")
[20:58:22] thread 30d20b000 exited ("decomb_check_segment")
[20:58:22] thread 30d311000 exited ("decomb_check_segment")
[20:58:22] thread 30d105000 exited ("decomb_check_segment")
[20:58:22] thread 30cfff000 exited ("decomb_check_segment")
[20:58:22] thread 30d188000 exited ("decomb_check_segment")
[20:58:22] thread 30d082000 exited ("decomb_check_segment")
[20:58:22] thread 30cf7c000 exited ("decomb_check_segment")
[20:58:22] thread 30cf7c000 joined ("decomb_check_segment")
[20:58:22] thread 30cfff000 joined ("decomb_check_segment")
[20:58:22] thread 30d082000 joined ("decomb_check_segment")
[20:58:22] thread 30d105000 joined ("decomb_check_segment")
[20:58:22] thread 30d188000 joined ("decomb_check_segment")
[20:58:22] thread 30d20b000 joined ("decomb_check_segment")
[20:58:22] thread 30d28e000 joined ("decomb_check_segment")
[20:58:22] thread 30d311000 joined ("decomb_check_segment")
[20:58:22] thread 30d394000 joined ("decomb_check_segment")
[20:58:22] thread 30d417000 joined ("decomb_check_segment")
[20:58:22] thread 30d935000 exited ("mask_filter_segment")
[20:58:22] thread 30d49a000 exited ("mask_filter_segment")
[20:58:22] thread 30d51d000 exited ("mask_filter_segment")
[20:58:22] thread 30d8b2000 exited ("mask_filter_segment")
[20:58:22] thread 30d49a000 joined ("mask_filter_segment")
[20:58:22] thread 30d6a6000 exited ("mask_filter_segment")
[20:58:22] thread 30d729000 exited ("mask_filter_segment")
[20:58:22] thread 30d51d000 joined ("mask_filter_segment")
[20:58:22] thread 30d82f000 exited ("mask_filter_segment")
[20:58:22] thread 30d5a0000 exited ("mask_filter_segment")
[20:58:22] thread 30d7ac000 exited ("mask_filter_segment")
[20:58:22] thread 30d623000 exited ("mask_filter_segment")
[20:58:22] thread 30d5a0000 joined ("mask_filter_segment")
[20:58:22] thread 30d623000 joined ("mask_filter_segment")
[20:58:22] thread 30d6a6000 joined ("mask_filter_segment")
[20:58:22] thread 30d729000 joined ("mask_filter_segment")
[20:58:22] thread 30d7ac000 joined ("mask_filter_segment")
[20:58:22] thread 30d82f000 joined ("mask_filter_segment")
[20:58:22] thread 30d8b2000 joined ("mask_filter_segment")
[20:58:22] thread 30d935000 joined ("mask_filter_segment")
[20:58:22] thread 30ddd0000 exited ("mask_erode_segment")
[20:58:22] thread 30dabe000 exited ("mask_erode_segment")
[20:58:22] thread 30db41000 exited ("mask_erode_segment")
[20:58:22] thread 30dc47000 exited ("mask_erode_segment")
[20:58:22] thread 30dcca000 exited ("mask_erode_segment")
[20:58:22] thread 30de53000 exited ("mask_erode_segment")
[20:58:22] thread 30d9b8000 exited ("mask_erode_segment")
[20:58:22] thread 30da3b000 exited ("mask_erode_segment")
[20:58:22] thread 30d9b8000 joined ("mask_erode_segment")
[20:58:22] thread 30dd4d000 exited ("mask_erode_segment")
[20:58:22] thread 30dbc4000 exited ("mask_erode_segment")
[20:58:22] thread 30da3b000 joined ("mask_erode_segment")
[20:58:22] thread 30dabe000 joined ("mask_erode_segment")
[20:58:22] thread 30db41000 joined ("mask_erode_segment")
[20:58:22] thread 30dbc4000 joined ("mask_erode_segment")
[20:58:22] thread 30dc47000 joined ("mask_erode_segment")
[20:58:22] thread 30dcca000 joined ("mask_erode_segment")
[20:58:22] thread 30dd4d000 joined ("mask_erode_segment")
[20:58:22] thread 30ddd0000 joined ("mask_erode_segment")
[20:58:22] thread 30de53000 joined ("mask_erode_segment")
[20:58:22] thread 30df59000 exited ("mask_dilate_segment")
[20:58:22] thread 30e165000 exited ("mask_dilate_segment")
[20:58:22] thread 30e0e2000 exited ("mask_dilate_segment")
[20:58:22] thread 30e371000 exited ("mask_dilate_segment")
[20:58:22] thread 30e26b000 exited ("mask_dilate_segment")
[20:58:22] thread 30e1e8000 exited ("mask_dilate_segment")
[20:58:22] thread 30dfdc000 exited ("mask_dilate_segment")
[20:58:22] thread 30ded6000 exited ("mask_dilate_segment")
[20:58:22] thread 30ded6000 joined ("mask_dilate_segment")
[20:58:22] thread 30e05f000 exited ("mask_dilate_segment")
[20:58:22] thread 30df59000 joined ("mask_dilate_segment")
[20:58:22] thread 30e2ee000 exited ("mask_dilate_segment")
[20:58:22] thread 30dfdc000 joined ("mask_dilate_segment")
[20:58:22] thread 30e05f000 joined ("mask_dilate_segment")
[20:58:22] thread 30e0e2000 joined ("mask_dilate_segment")
[20:58:22] thread 30e165000 joined ("mask_dilate_segment")
[20:58:22] thread 30e1e8000 joined ("mask_dilate_segment")
[20:58:22] thread 30e26b000 joined ("mask_dilate_segment")
[20:58:22] thread 30e2ee000 joined ("mask_dilate_segment")
[20:58:22] thread 30e371000 joined ("mask_dilate_segment")
[20:58:22] thread 30f8ef000 joined ("Decomb")
[20:58:22] decomb: deinterlaced 1091 | blended 277 | unfiltered 438 | total 1806
[20:58:22] thread 30e789000 exited ("yadif_filter_segment")
[20:58:22] thread 30e3f4000 exited ("yadif_filter_segment")
[20:58:22] thread 30e683000 exited ("yadif_filter_segment")
[20:58:22] thread 30e4fa000 exited ("yadif_filter_segment")
[20:58:22] thread 30e57d000 exited ("yadif_filter_segment")
[20:58:22] thread 30e600000 exited ("yadif_filter_segment")
[20:58:22] thread 30e80c000 exited ("yadif_filter_segment")
[20:58:22] thread 30e3f4000 joined ("yadif_filter_segment")
[20:58:22] thread 30e88f000 exited ("yadif_filter_segment")
[20:58:22] thread 30e477000 exited ("yadif_filter_segment")
[20:58:22] thread 30e706000 exited ("yadif_filter_segment")
[20:58:22] thread 30e477000 joined ("yadif_filter_segment")
[20:58:22] thread 30e4fa000 joined ("yadif_filter_segment")
[20:58:22] thread 30e57d000 joined ("yadif_filter_segment")
[20:58:22] thread 30e600000 joined ("yadif_filter_segment")
[20:58:22] thread 30e683000 joined ("yadif_filter_segment")
[20:58:22] thread 30e706000 joined ("yadif_filter_segment")
[20:58:22] thread 30e789000 joined ("yadif_filter_segment")
[20:58:22] thread 30e80c000 joined ("yadif_filter_segment")
[20:58:22] thread 30e88f000 joined ("yadif_filter_segment")
[20:58:22] thread 30f972000 joined ("Framerate Shaper")
[20:58:22] vfr: 1806 frames output, 0 dropped and 0 duped for CFR/PFR
[20:58:22] vfr: lost time: 0 (0 frames)
[20:58:22] vfr: gained time: 0 (0 frames) (0 not accounted for)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] thread 30f4d7000 joined ("Reader")
[20:58:22] thread 30f55a000 joined ("Audio decoder (libavcodec)")
[20:58:22] thread 30f5dd000 joined ("Video decoder (libavcodec)")
[20:58:22] thread 30f660000 joined ("Video Synchronization")
[20:58:22] thread 30f6e3000 joined ("AAC encoder (Apple)")
[20:58:22] thread 30f766000 exited ("H.265/HEVC encoder (libx265)")
[20:58:22] thread 30f766000 joined ("H.265/HEVC encoder (libx265)")
[20:58:22] aac-decoder done: 3384 frames, 0 decoder errors
[20:58:22] hevc-decoder done: 1806 frames, 0 decoder errors
[20:58:22] sync: got 1806 frames, 1803 expected
[20:58:22] sync: framerate min 25.000 fps, max 25.000 fps, avg 25.000 fps
[20:58:22] thread 30ec24000 joined ("Audio Synchronization")
x265 [info]: frame I: 20, Avg QP:22.74 kb/s: 84174.90
x265 [info]: frame P: 426, Avg QP:24.62 kb/s: 29925.22
x265 [info]: frame B: 1360, Avg QP:30.58 kb/s: 5086.61
x265 [info]: Weighted P-Frames: Y:15.7% UV:11.0%
x265 [info]: consecutive B-frames: 9.6% 1.8% 7.6% 35.9% 45.1%

encoded 1806 frames in 559.21s (3.23 fps), 11821.39 kb/s, Avg QP:29.08
[20:58:22] mux: file size, 108192321 bytes
[20:58:22] mux: track 0, 1806 frames, 106754376 bytes, 11815.65 kbps, fifo 512
[20:58:22] mux: track 1, 3387 frames, 1396900 bytes, 154.61 kbps, fifo 1024
[20:58:22] mux: overhead, 7.90 bytes per frame
[20:58:22] thread 30f454000 joined ("Muxer")
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] fifo_close: trashing 0 buffer(s)
[20:58:22] Freed 222 buffers of size 1024
[20:58:22] Freed 32 buffers of size 2048
[20:58:22] Freed 24 buffers of size 4096
[20:58:22] Freed 32 buffers of size 8192
[20:58:22] Freed 32 buffers of size 16384
[20:58:22] Freed 32 buffers of size 32768
[20:58:22] Freed 32 buffers of size 65536
[20:58:22] Freed 32 buffers of size 131072
[20:58:22] Freed 32 buffers of size 262144
[20:58:22] Freed 26 buffers of size 524288
[20:58:22] Freed 5 buffers of size 1048576
[20:58:22] Freed 2 buffers of size 2097152
[20:58:22] Freed 1 buffers of size 4194304
[20:58:22] Freed 32 buffers of size 16777216
[20:58:22] Allocated 581040128 bytes of buffers on this pass and Freed 581040128 bytes, 0 bytes leaked
[20:58:22] Finished work at: Sun Feb 2 20:58:22 2025

[20:58:22] thread 30c8cb000 exited ("work")
[20:58:22] thread 30c8cb000 joined ("work")
[20:58:22] libhb: work result = 0



[Nothingness]

Apple M4
did both native and x86 tests.

FWIW this shows that no AVX (only SSE2) was used by Rosetta2 and this likely is a bad case to compare Rossetta2 vs native speed. I know that wasn't the point but I thought it was worth mentioning 😀



[igor_kavinski]

245KF on Win11 (P53 E49 8200 MT/s 38-48-48-85):



Win Server 2019: P53 E49 8200 MT/s 38-48-48-85 NGU 33 D2D 34:



For the 2nd result, 136.34s (13.25 fps).

Hope you will update the graph!



[Hulk]

Results updated and I revised the reporting data.

If anyone want to report their average frequency during the encode we can see the core "throughput" efficiency expressed as the GHz the core needs to render at 1fps.

If you have a hybrid CPU and want to try and isolate P and/or E cores, run the test with P's only, for example, and report the encoding time and average P core frequency.

Since the E's can't be totally shut off you can leave one on at 800MHz, it won't be contributing much to the encode and if I have the P core "throughput" number I can subtract out its minor contribution to the encode.



[poke01]

Results updated and I revised the reporting data.

If anyone want to report their average frequency during the encode we can see the core "throughput" efficiency expressed as the GHz the core needs to render at 1fps.

If you have a hybrid CPU and want to try and isolate P and/or E cores, run the test with P's only, for example, and report the encoding time and average P core frequency.

Since the E's can't be totally shut off you can leave one on at 800MHz, it won't be contributing much to the encode and if I have the P core "throughput" number I can subtract out its minor contribution to the encode.

Thanks Hulk. Although you listed my results as M1 it should be M4.
