All MSI "gamer" cards are reference design. The only non reference cards are the Lightning, Power and Hawk. I'm not sure if they even make power / hawk anymore though. So basically the Lightning will be non reference, the gamer is reference.
Fastx
Senior member
- Dec 18, 2008
- 780
- 0
- 0
Z two guys from different forums both have the AIB MSI 290 Gaming TF IV cards and both use GPU Z 7.5. One guys card shows the VRM temps in 7.5 and the other guys card does not show VRM temps.
I was curious why one card shows the VRM temps in GPU z and the other card does not?
The only thing I can think of at this point is one card has the sensors and the other card doesn't?
This one shows VRM temps.
http://forums.overclockers.co.uk/showpost.php?p=25656705&postcount=90
This one does not show VRM temps and he does have it scrolled all the way down.
http://www.overclock.net/t/1453703/...9-290x-gaming-4g-video-cards/50#post_21567216
staryoshi
Member
- Jul 10, 2010
- 25
- 0
- 66
There are a few subtle differences between the reference R9 290 series and MSI Gaming R9 290, but the overall design does mimic the reference board for the most part. (Highlighted below)
There are a few subtle differences between the reference R9 290 series and MSI Gaming R9 290, but the overall design does mimic the reference board for the most part. (Highlighted below)
Its worse than reference, they went full el-cheapo mode.
Its about time AMD has a greenlight program similar to NV because this launch is retarded.. from AIBs who decided to put heatpipe coolers on Hawaii when 2 pipes have no contact, its operating crippled out of the box, now to skimping out on a reference design.
They must know full well their Radeon products are going to be put to the torture test by a lot of users, mining 24/7, there's no room for skimping.
There are a few subtle differences between the reference R9 290 series and MSI Gaming R9 290, but the overall design does mimic the reference board for the most part. (Highlighted below)
Huh. That's still a reference PCB with a different cap brand right? Correct me if i'm wrong. I don't see any custom design elements on that PCB at all, just a few electronic components using a different brand really.
It certainly isn't what one has in mind when they're trying to buy a custom PCB card. Like I said though - that's what the Lightning series is for.
staryoshi
Member
- Jul 10, 2010
- 25
- 0
- 66
They did use inductors with lesser amperage tolerance - we'll see whether or not it matters, though. The new TwinFrozr heatsink looks very capable. I have one on order from Amazon (to review :3) The backplate and pcb heatsink/bracket are useful for AiO water cooling, too (AC hybrid, NZXT G10).
staryoshi
Member
- Jul 10, 2010
- 25
- 0
- 66
Huh. That's still a reference PCB with a different cap brand right? Correct me if i'm wrong. I don't see any custom design elements on that PCB at all, just a few electronic components using a different brand really.
It certainly isn't what one has in mind when they're trying to buy a custom PCB card. Like I said though - that's what the Lightning series is for.
And like I said, it mimics the reference design for the most part. It is not a reference board, though, as it uses non-reference components. It should be compatible with anything the reference board is compatible with, of course.
Just arguing over minor details
Last edited:
- Jun 10, 2004
- 14,332
- 4,926
- 136
MSI Gaming 290s, slot 1 and slot 3, mining @ 1007/1250. This card is very quiet (even at 100% fan) but is woefully inadequate for high load applications like mining as anything but the bottom card/using risers. I'm not going to even try overclocking and will in fact be lowering the core clock on slot 1 due to the cooler being terrible.
At least VRM temps show and they aren't terribad...
How hot does the core get? 82C vrm is very respectable for mining loads.. that would mean gaming load it wouldn't even GAF.
- Jun 10, 2004
- 14,332
- 4,926
- 136
Top card > 92C, 95C/76C VRMs
Bottom card 75C-81C, 82C/67C VRMs
Top card exhibits throttling at stock clocks to avoid overheating.
Conclusion: MSI Gaming 290 is decent for gaming at stock clocks and is quiet, but it is definitely NOT as good as a Sapphire Tri-X which is still the current king of 290 non-reference and has a much better cooler.
Last edited:
As a single card it looks to perform very well, mining at around 81C core and 82C VRM is excellent by any standard. And its quiet. I see mining load as being around gaming OC load.
So it could work very well for mining setups with a PCIE riser, to give them airflow between cards.
So it could work very well for mining setups with a PCIE riser, to give them airflow between cards.

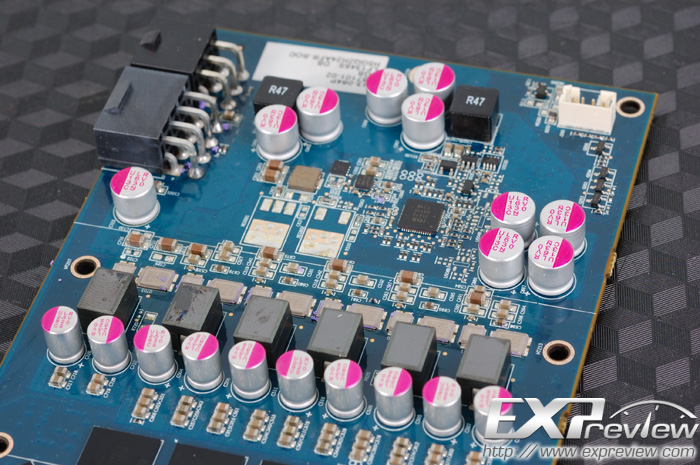

Ok, all the talk about the inductors got me curious.
So the inductors on Reference Hawaii are:
On Right Side of Board:
5x FP1007R3-R15-R
1x FP1007R3-R23-R
http://www1.cooperbussmann.com/pdf/79793630-1b1e-49f8-a6d0-ea9b2be9f2e4.pdf
On Left Side of Board:
1x FP1505R1-R15-R
http://elcodis.com/parts/1271161/FP1505R1-R15-R.html
Sapphire Tri-X is this:
Gigabyte Windforce is this:
Gigabyte Windforce 780 for comparison:
Gigabyte Windforce 780/Ti GHz for comparison:
ASUS DCU2 is this:
EVGA 780/Ti Classified for comparison:
MSI 780 Lightning for comparison:
So the inductors on Reference Hawaii are:
On Right Side of Board:
5x FP1007R3-R15-R
1x FP1007R3-R23-R
http://www1.cooperbussmann.com/pdf/79793630-1b1e-49f8-a6d0-ea9b2be9f2e4.pdf
On Left Side of Board:
1x FP1505R1-R15-R
http://elcodis.com/parts/1271161/FP1505R1-R15-R.html
Sapphire Tri-X is this:
Gigabyte Windforce is this:
Gigabyte Windforce 780 for comparison:
Gigabyte Windforce 780/Ti GHz for comparison:
ASUS DCU2 is this:
EVGA 780/Ti Classified for comparison:
MSI 780 Lightning for comparison:
Last edited:
Possible that they are using different voltage controllers. Manufacturers often have to change components due to availability. We've seen it with Samsung memory being used in the early cards and then seeing Hynix or Elpida used later, again due to availability. Not sure whether this is the case here or not, but definitely possible though.
blastingcap
Diamond Member
- Sep 16, 2010
- 6,654
- 5
- 76
Wait what? Has this been confirmed? Are we talking about the MSI Gaming 290 4G that just came out? I noticed the VRM thing too... weird. I don't suppose they have different models for different regions, since OCUK is Europe and presumably the OCN guy was USA?
Edit to add: someone figured out that if you tamper with the dpi settings in Windows, it messes up GPU-Z to the point where you can't see VRM temps anymore. So there are apparently NOT 2 versions of the MSI R9 290, just one, and you need to not have your DPI set to over 100% to see VRM temps.
Last edited:

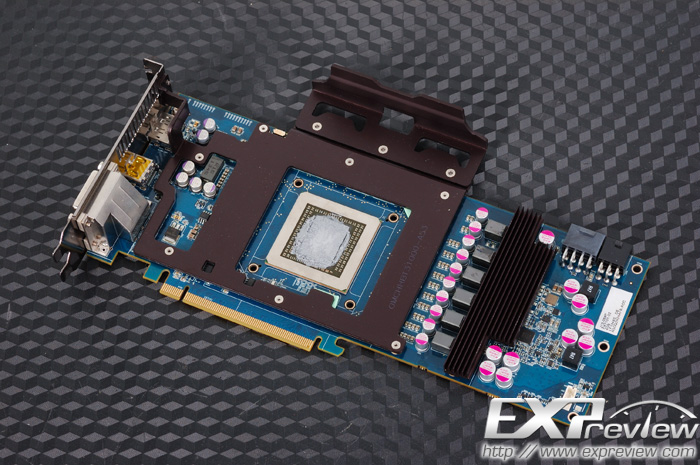

Looks like one of the last playerz - HIS is brandishing pretty much reference design

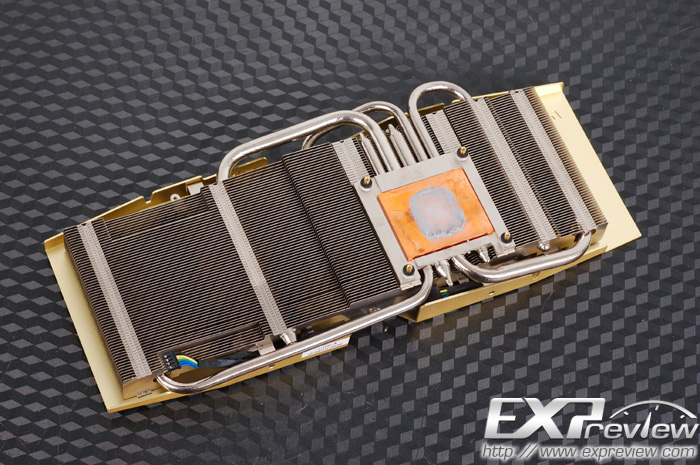

Hynix vidmem chips
Decent fin stack array and five heatpipe solution
Gold Cube
Hynix vidmem chips
Decent fin stack array and five heatpipe solution
Gold Cube
Last edited:
Nope, it's got only two fans.
But seems they keep those volcanic temps in check
I got confused with the PCS design.
2 fans only and those temps!
Very nice!
Now we need to see some VRM temps.
Looking at the review, it looks like the card went to a little less than 50% fan in 3DMark Firestrike.
Going by that it seems it's got the same 55% fan speed cap by default as reference.
I'm not optimistic on the VRMs though, DCUII didn't do too well and it has both a bigger sink and more VRMs to presumably not heat up as much to begin with.
It's possible that it's got the 47% fan speed cap and just has a stupidly low temp limit like the gigabyte that is cranking the fans so high in the furmark test though.
Going by that it seems it's got the same 55% fan speed cap by default as reference.
I'm not optimistic on the VRMs though, DCUII didn't do too well and it has both a bigger sink and more VRMs to presumably not heat up as much to begin with.
It's possible that it's got the 47% fan speed cap and just has a stupidly low temp limit like the gigabyte that is cranking the fans so high in the furmark test though.
Last edited:
Wow...dude did you really have to link images that were that big in size? You almost destroyed my shitty laptop.
That Laggy Guy
Junior Member
- Jan 16, 2014
- 1
- 0
- 0
Hey guys,
In case anyone's interested in the DC2OC 290X, Amazon has it listed for just $10 more than the MSRP. Doesn't ship for 3-4 weeks, but I'd say saving over $100 (Newegg priced it at $699.99 right out the gate) makes it worth the wait. And here's the 290, also just $10 over MSRP.
In case anyone's interested in the DC2OC 290X, Amazon has it listed for just $10 more than the MSRP. Doesn't ship for 3-4 weeks, but I'd say saving over $100 (Newegg priced it at $699.99 right out the gate) makes it worth the wait. And here's the 290, also just $10 over MSRP.
Last edited:
First asus r9 290 review here:
http://www.guru3d.com/articles_pages/asus_radeon_r9_290_directcuii_oc_review,1.html
First impression: seems to fare better then the bigger brother. Only did a 2 minutes read yet though.
http://www.guru3d.com/articles_pages/asus_radeon_r9_290_directcuii_oc_review,1.html
First impression: seems to fare better then the bigger brother. Only did a 2 minutes read yet though.
It must be a different revision because compared to Guru3d's R290X review, those temps are remarkably lower, for the VRM. Its now around 72C compared to 89C. I am interested in knowing what they did for this variant because its using pretty much the same power as its bigger bro.
