Discussion Apple Silicon SoC thread

[Eug]

M1
5 nm
Unified memory architecture - LP-DDR4
16 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 12 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache
(Apple claims the 4 high-effiency cores alone perform like a dual-core Intel MacBook Air)

8-core iGPU (but there is a 7-core variant, likely with one inactive core)
128 execution units
Up to 24576 concurrent threads
2.6 Teraflops
82 Gigatexels/s
41 gigapixels/s

16-core neural engine
Secure Enclave
USB 4

Products:
$999 ($899 edu) 13" MacBook Air (fanless) - 18 hour video playback battery life
$699 Mac mini (with fan)
$1299 ($1199 edu) 13" MacBook Pro (with fan) - 20 hour video playback battery life

Memory options 8 GB and 16 GB. No 32 GB option (unless you go Intel).

It should be noted that the M1 chip in these three Macs is the same (aside from GPU core number). Basically, Apple is taking the same approach which these chips as they do the iPhones and iPads. Just one SKU (excluding the X variants), which is the same across all iDevices (aside from maybe slight clock speed differences occasionally).

EDIT:



M1 Pro 8-core CPU (6+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 16-core GPU
M1 Max 10-core CPU (8+2), 24-core GPU
M1 Max 10-core CPU (8+2), 32-core GPU

M1 Pro and M1 Max discussion here:

Page 78 - Discussion - Apple Silicon SoC thread

Page 78 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

forums.anandtech.com

M1 Ultra discussion here:

Page 109 - Discussion - Apple Silicon SoC thread

Page 109 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

forums.anandtech.com

M2 discussion here:

Page 127 - Discussion - Apple Silicon SoC thread

Page 127 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

forums.anandtech.com

Second Generation 5 nm
Unified memory architecture - LPDDR5, up to 24 GB and 100 GB/s
20 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 16 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache

10-core iGPU (but there is an 8-core variant)
3.6 Teraflops

16-core neural engine
Secure Enclave
USB 4

Hardware acceleration for 8K h.264, h.264, ProRes

M3 Family discussion here:

Page 215 - Discussion - Apple Silicon SoC thread

Page 215 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

forums.anandtech.com

M4 Family discussion here:

Page 263 - Discussion - Apple Silicon SoC thread

Page 263 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

forums.anandtech.com

M5 Family discussion here:

Page 431 - Discussion - Apple Silicon SoC thread

Page 431 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

forums.anandtech.com



[fkoehler]

Can you take this Off-Topic waste of time somewhere else?



[poke01]

Iphones have ridiculously/unnecessary strong CPUs that are never really used. This is reality)

That’s because they share their cpu cores with mac. With the prices of iPhones I expect the best CPU so it can last longer.



[poke01]

Can you take this Off-Topic waste of time somewhere else?

Agree. Make a new thread in the phone sub forum



[jdubs03]

Interesting clue:

New M5 Chips Spotted in iOS 26.3 Beta

The iOS 26.3 release candidate includes references to a pair of unreleased chips that are in the M5 family, according to information found by Nicolás Alvarez and shared with MacRumors. The iOS 26.3 RC mentions two unreleased SoCs, T6051 and T6052, with associated H17C and H17D platform names...

www.macrumors.com

Would be very interesting to not see a M5 Pro in the MBP.



[DAPUNISHER]

Can you take this Off-Topic waste of time somewhere else?

This.

We have both private messaging and ignore features. Use them if you really want to dig in because someone is wrong on the internet, or gets under your skin.



[poke01]

The problem is even I ignore, other people will reply to the off-topic post and bloat up the thread.

Best thing is to stay on topic. Please only post about Apple Sillicon and hardware, software



[poke01]

Interesting clue:

New M5 Chips Spotted in iOS 26.3 Beta

The iOS 26.3 release candidate includes references to a pair of unreleased chips that are in the M5 family, according to information found by Nicolás Alvarez and shared with MacRumors. The iOS 26.3 RC mentions two unreleased SoCs, T6051 and T6052, with associated H17C and H17D platform names...

www.macrumors.com

Would be very interesting to not see a M5 Pro in the MBP.

This is likely for the Studio. I doubt the Pro SKU is going away.



[DAPUNISHER]

The problem is even I ignore, other people will reply to the off-topic post and bloat up the thread.

Let me know, and I will delete the posts causing issues.

Best thing is to stay on topic. Please only post about Apple Sillicon and hardware, software

Agreed. But some compare and contrast is to be expected. Report anything you think goes beyond innocuous.



[jdubs03]

This is likely for the Studio. I doubt the Pro SKU is going away.

I’m skeptical about that as well. But it is curious that the identifier for the M5 Pro is missing.



[coercitiv]

Nobody is encoding videos with a phone, nobody is running a NAS with a mobile phone. Nobody is seriously programming through a mobile phone, and definitely nobody is running multiple monitors and multi-tasking on a phone.

What percentage of the world population owns a NAS, does programming or uses multiple monitors? For most people around the world the smartphone is probably the first computing device and the only one they own, and even in developed countries a large number of people use phones for computing int heir daily lives.

Phones are mainly SMS/Phones, Email clients, Cameras, and a mobile video player. Its not like you get desktop quality youtube videos on a phone without jumping through some unofficial hoops. You can argue thats the only thing people need computers for

Yes, the majority of people dictate what the common denominator for personal computing is, even if you and me agree a true computing experience is much much more than that.

Keep in mind the sole purpose of my post was to counter the original claim:

If so why don't you use your phone as computer?

Why doesn't almost anyone at all?

Lately @fastandfurious6 likes to make hyperbolic and unfounded generalized claims about things and people, then retreats to a contextualized safe position that is borderline moving the goal post.

The original claim was "use phone as computer", it's as broad as it gets. For the average Joe the smartphone is a computerphone.



[coercitiv]

Best thing is to stay on topic. Please only post about Apple Sillicon and hardware, software

My apologies, I fell for it too.



[MS_AT]

The more interesting thing would be will Apple even consider creating dockable Iphones that support proper desktop UI. I mean majority of the people in this thread seem to agree that for majority of users, Iphone computing power is sufficient. The only problem I see, is that doing home accounting etc on 5 inch screen is tedious without a mouse. Android at least seems to try to go towards that direction but for Apple it seems it could undercut sales of cheapest macbook airs/mac minis.

I am still of the opinion that flagship smartphones compute power gets wasted without a dockable option. As smartphone is basically an internet terminal, regardless if you are using a browser or an app that's just a frontend to a server somewhere far away. The heaviest computing is probably done on image processing. So non-flagship phones are usually sufficient for the majority of the market when it comes to computing power.

Just my 2 cents.



[MerryCherry]

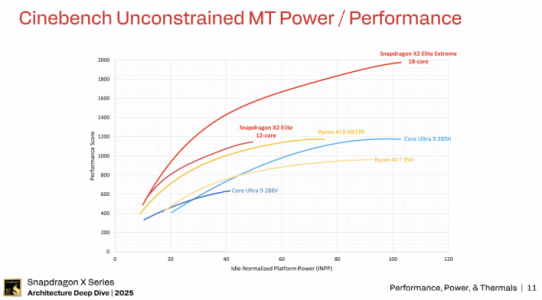

What is the power consumption of the M4 Max in an all-core workload like Cinebench? A Google search is yielding numbers anywhere from 50W to 200W.


I am curious where M4 Max will sit in this graph.



[Covfefe]

What is the power consumption of the M4 Max in an all-core workload like Cinebench? A Google search is yielding numbers anywhere from 50W to 200W.

View attachment 137912
I am curious where M4 Max will sit in this graph.

The M4 Max scored 2015 points in cinebench 2024 in Notebookcheck's testing. Power consumption is 92 watts in the benchmark and 6 watts idle. INNP is 86 watts.



[MerryCherry]

Well, that tracks with the notion that Oryon is roughly a generation behind Apple in efficiency, and why Apple is conspicuously absent from their graphs.



[jdubs03]

Well, that tracks with the notion that Oryon is roughly a generation behind Apple in efficiency, and why Apple is conspicuously absent from their graphs.

Edit: thinking about it a bit more; we’ll probably see similar efficiency to a slight regression as the boost in e-core performance at same power draw probably may not compensate for the increased power draw of the p-cores.



[The Hardcard]

This is likely for the Studio. I doubt the Pro SKU is going away.

Apple has recently aggressively turned toward software and hardware for the desktop AI workstation market. This seems to me a strong possibility that they are making new Studios a top priority. The M5 Max and Ultra coming out in February will capture nearly the entire market.

And scarily, they have massive latitude to set pricing. The M4 Max with 128 GB is currently $3500, they could triple that price and still sell every one with a waiting list. The 512 GB M3 Ultra is $9500. The M5 version could sell with the price quadrupled.
