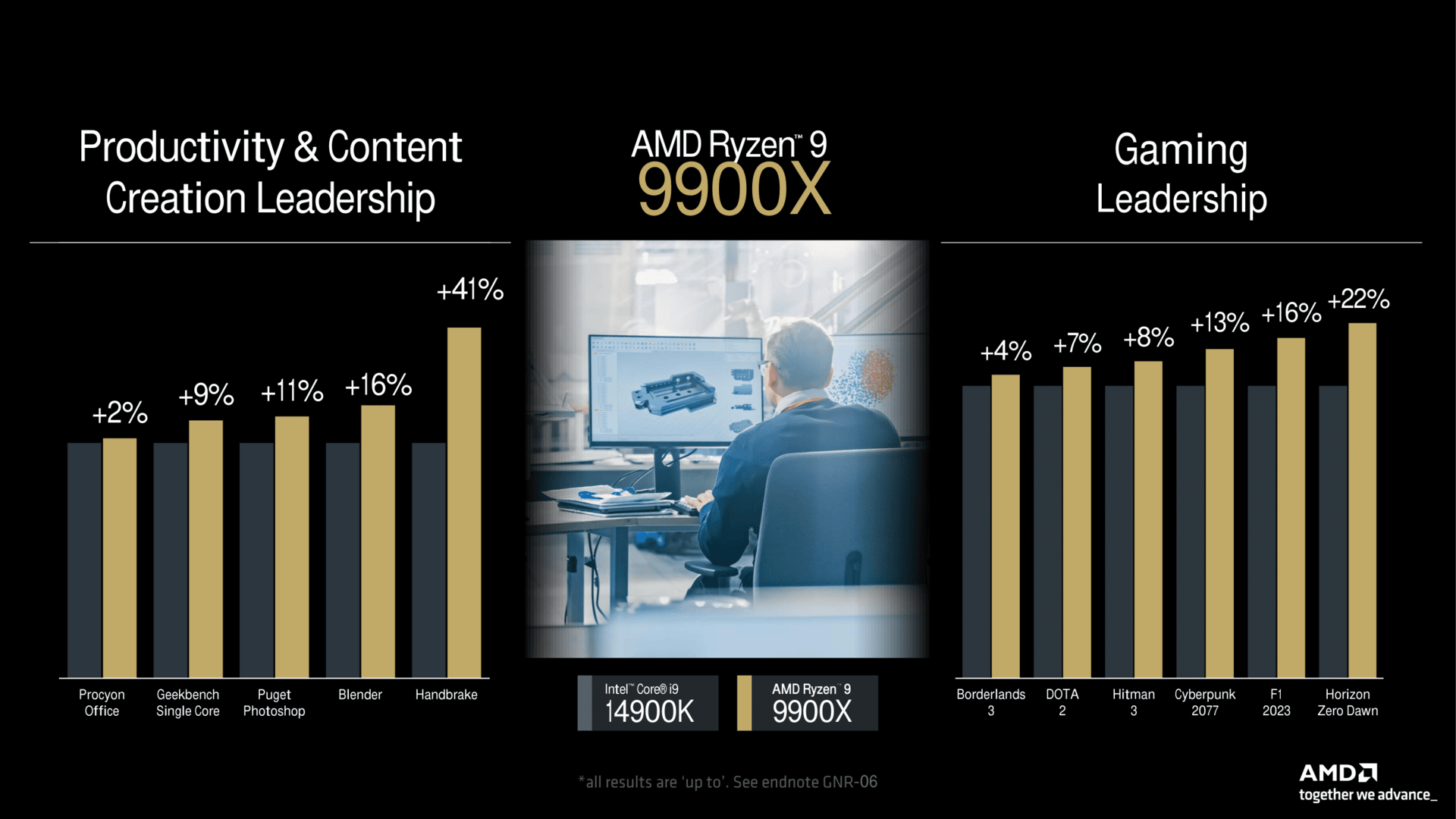

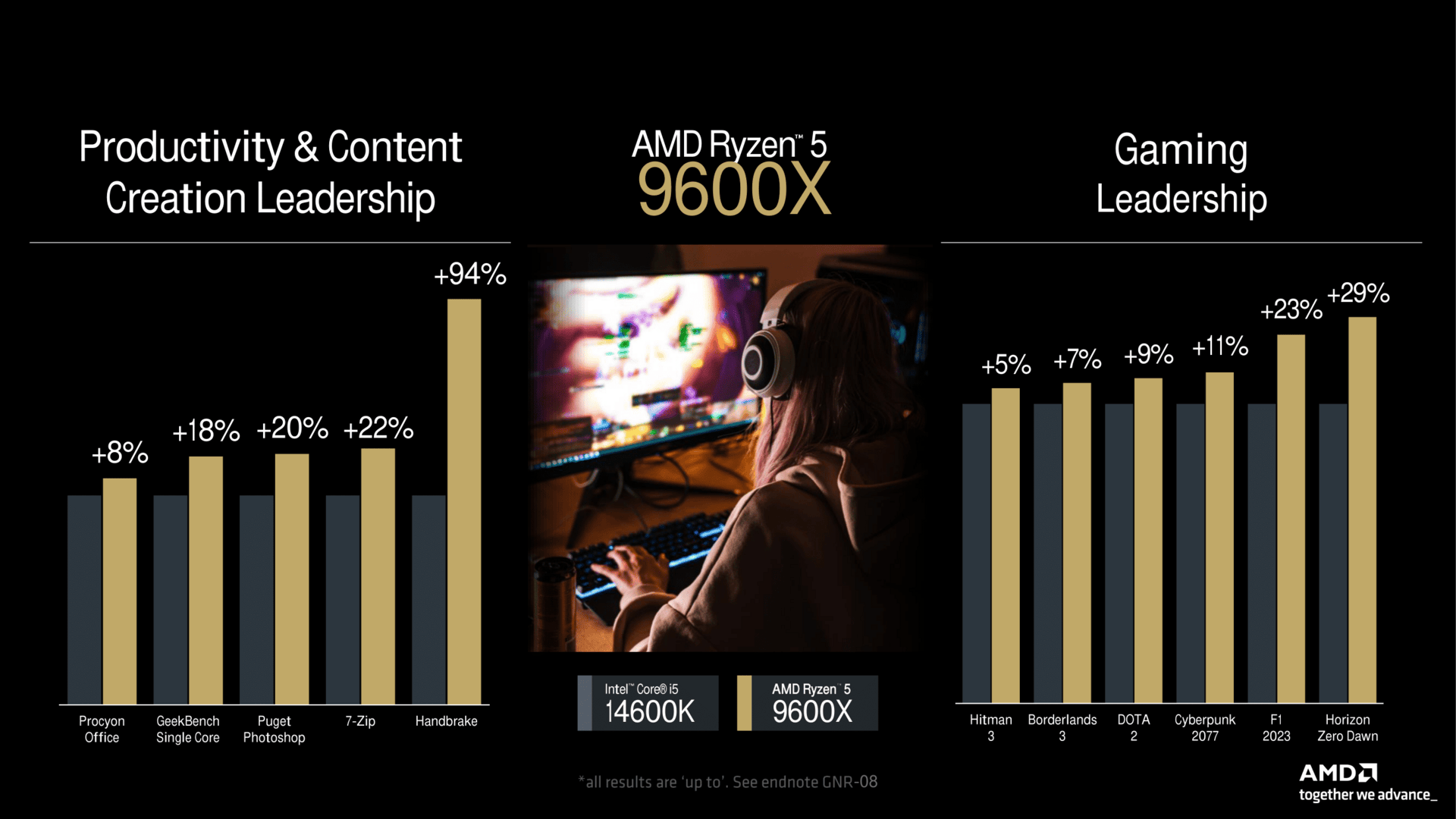

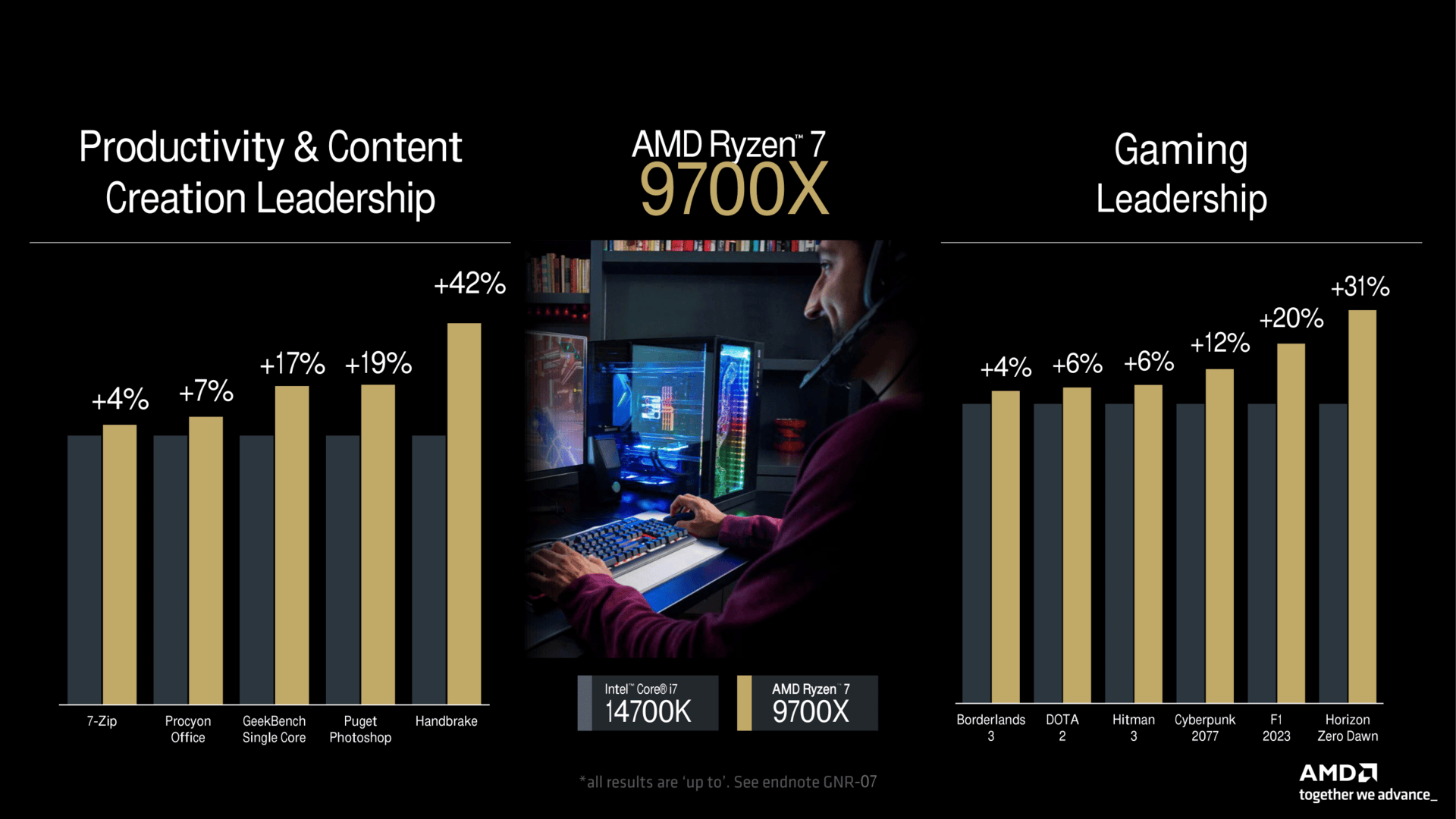

Philste said:
At Computex they claimed ZEN5 trashes 14900K. If these Numbers are right, 14900K will be slightly faster instead
Click to expand...
I am sorry but the 9700x only consumes up to 88 watts. If the 14900k needs >150 watts to beat the 9700x I don’t consider that a win.

Efficiency is king. Also don’t trust whatever Intel or AMD say in their marketing it’s all cherry picked.

  • Like
Reactions: misuspita, Tlh97, Mopetar and 1 other person
Upvote 0 Downvote
SteinFG

SteinFG

Senior member
Dec 29, 2021
695
813
106

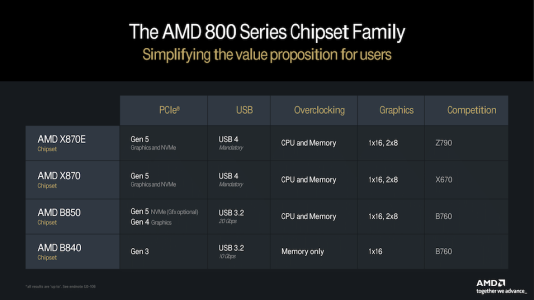

B840 has even worse PCIe support than A620, huh. All intel B760 motherboards I see feature 4.0(or 5.0) x16 GPU slot though, so why did AMD jump back to 3.0 lol

edit: I figured it out, they want to choke out the 1x4 GPU connection on 8500G even more, it's a genious plan. Because connecting a low-end processor to low-end motherboard must be punished

Last edited:
  • Like
Reactions: lightmanek
Upvote 0 Downvote
Hail The Brain Slug

Hail The Brain Slug

Diamond Member
Oct 10, 2005
3,578
2,589
136

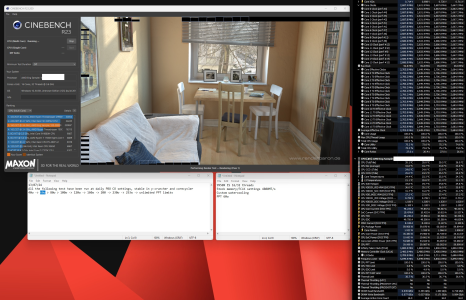

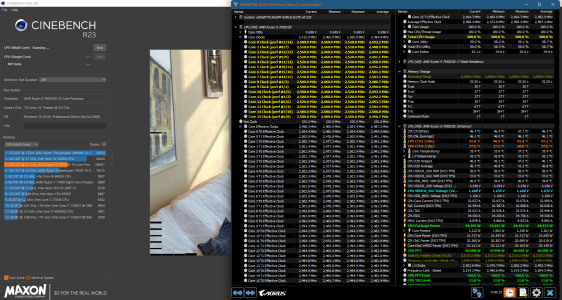

Josh128 said:
I guess my paltry scores at very low power vs Zen 4 and Zen 5 have a lot to do with my 12nm IOD vs the 6nm. I didnt bother with going JDEC speeds, I dont think the power addition would have done much.
Click to expand...
Zen 3 has the same problem- go above JEDEC and IOD gobbles power. You'd probably notice a pretty good uplift.

Upvote 0 Downvote
A

Abwx

Lifer
Apr 2, 2011
11,616
4,474
136
Philste said:
Really? We had 3 Gens of Chiplet Ryzens now and you still don't know how they work? There is no benefit of that extra Cache. Every Gen the difference between 8 Core and 16 Core in Gaming was negligible
Click to expand...
According to Computerbase the 13900K/14900K are 14/16% faster than the 5800X3D at 720p, you think that this advantage increase at 1080p.?.

Or that it will rather decrease to something like 10%.?.

In wich case 12% faster than the 5800X3D would be slightl faster than these Intel chips, btw i added the 13900K in the comparison because it s set at 253W while the 14900K is at unlimited power in their benches.


www.computerbase.de

Intel Core i9-14900KS im Test: Benchmarks in Spielen vs. AMD Ryzen 9 7950X3D und Ryzen 7 7800X3D

Intel Core i9-14900KS im Test: Benchmarks in Spielen vs. AMD Ryzen 9 7950X3D und Ryzen 7 7800X3D / Testsystem und Testmethodik für Spiele
www.computerbase.de www.computerbase.de

  • Like
Reactions: Tlh97 and lightmanek
Upvote 0 Downvote
M

MS_AT

Senior member
Jul 15, 2024
389
845
96
Was there any mention that Strix-Point has narrower SIMD units vs GraniteRidge? I took a brief look at the slides, but nothing there. Would be grateful if someone could point them out. Also if I remember correctly David Huang did not measure 2 cycle FADD latency...

  • Like
Reactions: Tlh97 and yuri69
Upvote 0 Downvote
G

Geddagod

Golden Member
Dec 28, 2021
1,296
1,368
106
Philste said:
At Computex they claimed ZEN5 trashes 14900K. If these Numbers are right, 14900K will be slightly faster instead
Click to expand...
AMD marketing moment
Abwx said:
According to Computerbase the 13900K/14900K are 14/16% faster than the 5800X3D at 720p, you think that this advantage increase at 1080p.?.

Or that it will rather decrease to something like 10%.?.

In wich case 12% faster than the 5800X3D would be slightl faster than these Intel chips, btw i added the 13900K in the comparison because it s set at 253W while the 14900K is at unlimited power in their benches.


www.computerbase.de

Intel Core i9-14900KS im Test: Benchmarks in Spielen vs. AMD Ryzen 9 7950X3D und Ryzen 7 7800X3D

Intel Core i9-14900KS im Test: Benchmarks in Spielen vs. AMD Ryzen 9 7950X3D und Ryzen 7 7800X3D / Testsystem und Testmethodik für Spiele
www.computerbase.de www.computerbase.de
Click to expand...
Techpowerup has the 13900k being 15% faster than the 5800x3d at 1080p.
Either way, doesn't look like Zen 5 will be much, if at all, faster than RPL.

Upvote -1 Downvote
Y

yuri69

Senior member
Jul 16, 2013
586
1,025
136
MS_AT said:
Was there any mention that Strix-Point has narrower SIMD units vs GraniteRidge? I took a brief look at the slides, but nothing there. Would be grateful if someone could point them out. Also if I remember correctly David Huang did not measure 2 cycle FADD latency...
Click to expand...
The "FP slide" doesn't even have an asterisk mentioning the <512b SIMDs. AMD marketing...

Upvote 0 Downvote
B

Bigos

Member
Jun 2, 2019
162
408
136
Isn't the rename stage being separate between INT and FP a new thing? Also, NSQ (the non-scheduling queue) was before the FP schedulers, but now it is before the FP rename. It looks like Zen 5 decouples the FP from INT processing even more, stalling INT less when FP is full... Interesting.

Source: the slides from AT article: https://www.anandtech.com/show/2146...bile-strix-point-with-rdna-35-igpu-xdna-2-npu

  • Like
Reactions: Tlh97, lightmanek, igor_kavinski and 1 other person
Upvote 0 Downvote
A

Abwx

Lifer
Apr 2, 2011
11,616
4,474
136
Geddagod said:
AMD marketing moment

Techpowerup has the 13900k being 15% faster than the 5800x3d at 1080p.
Either way, doesn't look like Zen 5 will be much, if at all, faster than RPL.
Click to expand...
There s dedicated slides for the comparison, think what you want.






www.computerbase.de

Ryzen 9000/AI 300: Details zu Zen 5, RDNA 3.5, Zen 6(c) & Zen 7

Ryzen 9000 kommt am 31. Juli. Schon heute gibt es weitere technische Details zu den Desktop-CPUs und Ryzen AI 300 Strix Point für Notebooks.
www.computerbase.de www.computerbase.de

  • Like
Reactions: Tlh97, lightmanek and igor_kavinski
Upvote 0 Downvote
