What controls Turbo Core in Xeons?

[Methanoid]

• Thanks to dufus and C_payne share their sourse code,if they don't share the sourse code,we will not have E5V3 tubor boost,thanks again!
• I had made most MOD BIOS for in need.
• MOD BIOS TOOLS AND FFS FILES：http://pan.baidu.com/s/1qY0THJQ；
• ASrock X99 mainboard wiht FFS MOD BIOS：http://pan.baidu.com/s/1nvG8Zfr ；
• MSI X99 mainboard wiht FFS MOD BIOS：http://pan.baidu.com/s/1jHHeOvG；
• EVGA X99 mainboard wiht FFS MOD BIOS：http://pan.baidu.com/s/1slJOHDr；
• ASUS X99 mainboard removed Microcode MOD BIOS：http://pan.baidu.com/s/1kVFrs15；
• GIGABYTE X99 mainboard removed Microcode MOD BIOS：http://pan.baidu.com/s/1hsGJrSS；
• GIGABYTE X99 mainboard wiht FFS MOD BIOS：http://pan.baidu.com/s/1i5OOHbn
• GIGABYTE NEED EFIFLASH MOD TOOL to flash the MOD BIOS：http://pan.baidu.com/s/1dEUMqDN

Thanks for posting these.. would you be able to mod the Gigabyte X99P-SLI bios too, please? https://www.gigabyte.com/Motherboard/GA-X99P-SLI-rev-10#support-dl (latest is F24)



[custom90gt]

Since your using throttlestop that should show why with limit reasons.

You're right, I checked the throttling reason and with 18 cores enabled it says that it's throttling due to EDP current and Max Turbo. I wonder if there are any ways around that.



[kjboughton]

Maybe VRM voltage sags a little when dual CPUs are used.

Shouldn't matter as the VRM input is further regulated downstream.
The loadline shouldn't change with C3/C6 disabled/enabled either.
On my system, I have no problem with C6 (non-retention) enabled. C3 is a no-go. Not sure it's supported by the E5 Xeons. Also, there's a difference between core C6 and package C6. Package (retention) C6 on these system seems to be problematic, core not so much.



[kjboughton]

You're right, I checked the throttling reason and with 18 cores enabled it says that it's throttling due to EDP current and Max Turbo. I wonder if there are any ways around that.

A: Increase Core (domain 0) negative dynamic voltage offset

One of my E5-2696 v3 scale as such:
0 mV = 3.2GHz max all-core turbo in heavy workloads (including AVX2)
-50 mV = 3.3GHz " " "
-70 mV = 3.4GHz " " "
-100 mV = 3.5GHz " " "

The other (the better of the two):
0 mV = 3.3GHz max all-core turbo in heavy workloads (including AVX2)
-20 mV = 3.4GHz " " "
-50 mV = 3.5GHz " " "
-90 mV = 3.6GHz " " "

My theory is that on init, the PCU reads the programmed VIDs (not the actual Vcore, but the programmed VIDs), and crosses this with the current (internally measured, I believe, not linked to VIN from the VRM) to calculate power. So, lower VID -> less power usage calculated -> higher allowed multi to consume the available power margin, as controlled by internal ARM PCU.



[kjboughton]

AWESOME!
Could you please publish the source code on Github? It will be easier to fork/modify.

https://github.com/freecableguy/v3x4

-FCG



[xcimo]

I've gone through many pages on this thread, but found no step by step guide as to what to do / set.

Maybe someone could help me a bit

I have a ASUS Z10PE-D16 WS and two Xeon E5-2678 v3 running Windows Server 2016 x64 fully patched.

I've found the following post with a modded Z10PE-D16 bios:

Okay, so I got it running, I'm using v3x2_50_39_vcc
Dual 2683V3 C3&C6 Disabled, Cinebench score 3700, but I had to use High-Powered-Scheme, in balanced the score was "only" 3400, which is still resonable.

Is there a efi file, for better overall performances in balanced mode?

Also, I would like to make my own contribution. I searched the 50 post for all the usable efi and bios files for z10ped16ws that I could find.

I have them hosted here https://skydrev.org/index.php/s/5rvI5pVwddsXLZT
password is anandtech.

Maybe I should clean that folder, so it's more user friendly.

It would be cool, if the original modder of Z10PE-D16 WS made a new modded bios without microcodes from the newest available bios 3407.

It contain BIOS 3307.

Which step do I take from there?

Is there a newer modded bios than 3307 somewhere?

I have read about micro-code, disabling C3 and C6 state in the bios and also about renaming dll in windows (or uninstalling KB..)

Do I need all of that? Or just flash the BIOS with ASUS ez-flash and disable C3/C6 will be enough?

Thanks you!!



[junkim]

• Thanks to dufus and C_payne share their sourse code,if they don't share the sourse code,we will not have E5V3 tubor boost,thanks again!
• I had made most MOD BIOS for in need.
• MOD BIOS TOOLS AND FFS FILES：http://pan.baidu.com/s/1qY0THJQ；
• ASrock X99 mainboard wiht FFS MOD BIOS：http://pan.baidu.com/s/1nvG8Zfr ；
• MSI X99 mainboard wiht FFS MOD BIOS：http://pan.baidu.com/s/1jHHeOvG；
• EVGA X99 mainboard wiht FFS MOD BIOS：http://pan.baidu.com/s/1slJOHDr；
• ASUS X99 mainboard removed Microcode MOD BIOS：http://pan.baidu.com/s/1kVFrs15；
• GIGABYTE X99 mainboard removed Microcode MOD BIOS：http://pan.baidu.com/s/1hsGJrSS；
• GIGABYTE X99 mainboard wiht FFS MOD BIOS：http://pan.baidu.com/s/1i5OOHbn
• GIGABYTE NEED EFIFLASH MOD TOOL to flash the MOD BIOS：http://pan.baidu.com/s/1dEUMqDN

Hallo CANONKONG

Would you please mod the new bios for ASUS X99-E WS/USB 3.1 (Version 3601) just removing MC

http://dlcdnet.asus.com/pub/ASUS/mb/Socket2011-R3/X99-E_WS_USB31/BIOS/X99-E-WS-USB31-ASUS-3601.zip

thanks



[Dufus]

You're right, I checked the throttling reason and with 18 cores enabled it says that it's throttling due to EDP current and Max Turbo. I wonder if there are any ways around that.

What current limit are you running? I only see EDP with AVX2 and then drop just one bin. Unfortunately my chip's top bin is only 30x so might be the reason I'm not seeing what others are. Until I can try with one of those then I'm pretty much stuck.



[MOF]

https://github.com/freecableguy/v3x4

-FCG

Awesome work kjboughton but not all of us a programmer or a software engineer. Can you build "ready to use" drivers for us?

Thank you



[kjboughton]

Awesome work kjboughton but not all of us a programmer or a software engineer. Can you build "ready to use" drivers for us?

Thank you

Go here for pre-built drivers:
https://github.com/freecableguy/v3x4/releases



[Cata40]

Go here for pre-built drivers:
https://github.com/freecableguy/v3x4/releases

How to do, to work these prebuilt drivers? Install in old fashion?
convert to ffs and insert in bios?



[MOF]

Go here for pre-built drivers:
https://github.com/freecableguy/v3x4/releases

Didnt work.



[kjboughton]

Didnt work.

Ok. This is good. I can fix this. This was the first run on a single-CPU system. Stand by...

EDIT: DONE... go grab the newest release candidate (v3x4.efi) from the Release section at the GitHub page and replace existing file.



[MOF]

Ok. This is good. I can fix this. This was the first run on a single-CPU system. Stand by...

EDIT: DONE... go grab the newest release candidate (v3x4.efi) from the Release section at the GitHub page and replace existing file.

It works very well



[Cata40]

Can you tell us how to do it?



[xcimo]

Question: If you flash a BIOS without microcode update. Will windows 10 apply the missing update every time it boot? Otherwise it seem there could be important bugfix missing (other than the bug in xeon v3 that is used here).

I'm just a bit worried about that part.



[Cata40]

Question: If you flash a BIOS without microcode update. Will windows 10 apply the missing update every time it boot? Otherwise it seem there could be important bugfix missing (other than the bug in xeon v3 that is used here).

I'm just a bit worried about that part.

only if you update windows, it will update microcodes.



[xcimo]

only if you update windows, it will update microcodes.

So everytime you patch you need to remove the microcode somehow? Or do they only apply in windows (bugfix the cpu) but will be not overwrite for the cpu max hyper boot on all core?

I should have been more clear, I am wondering if I will be missing important other cpu bugfix (microcode update). I patch windows regularly. In this case it's Windows Server 2016.

Can you elaborate a bit more?



[KW8cSgF53G]

Ok. This is good. I can fix this. This was the first run on a single-CPU system. Stand by...

EDIT: DONE... go grab the newest release candidate (v3x4.efi) from the Release section at the GitHub page and replace existing file.

Could you build a full turbo&downvoltages .efi driver for me please, i really wanna try this!
(I messing its required IDE for a day, and i still getting errors when compiling it...)

Dual (way) cpus, and offset -50mv which apply to both IA, LLC and SA voltage. thanks!
(I knew the potenial risk of system unstable!)

I am now using C_Payne's .asm full turbo&downvoltages .efi driver,
but i want to lower the temperature more on idle status or full loading!
(He's now got IA and LLC downvoltage working)

(Sorry for my bad English.)



[Cata40]

So everytime you patch you need to remove the microcode somehow? Or do they only apply in windows (bugfix the cpu) but will be not overwrite for the cpu max hyper boot on all core?

I should have been more clear, I am wondering if I will be missing important other cpu bugfix (microcode update). I patch windows regularly. In this case it's Windows Server 2016.

Can you elaborate a bit more?

there is nothing to elaborate on
only if you update to windows will reappear
otherwise no



[kjboughton]

The requirement for programming to be successful is that NO MICROCODE PATCH BE LOADED at time of programming (during boot). As Windows is booting, it will auto-load Haswell-E/EP microcode patch revision 0x36. Personally, I prefer 0x1F for a number of reason which I won't go into right now. It is possible to defeat the Windows auto-load feature and load whatever you want, or nothing at all. MAJOR updates(i.e. new major build releases, RS1, RS2, etc.) would require you to re-apply the work-around to prevent Windows for auto-loading microcode. MINOR updates (hot fixes, security patches, etc.) will not require the re-application of the workaround. The workaround takes about 10 seconds and a re-boot to apply. Again, microcode update present, no microcode update present... Windows works either way. Just make sure there is no microcode patch loaded at POST (requires you to remove the microcode built into the BIOS).



[Cata40]

The requirement for programming to be successful is that NO MICROCODE PATCH BE LOADED at time of programming (during boot). As Windows is booting, it will auto-load Haswell-E/EP microcode patch revision 0x36. Personally, I prefer 0x1F for a number of reason which I won't go into right now. It is possible to defeat the Windows auto-load feature and load whatever you want, or nothing at all. MAJOR updates(i.e. new major build releases, RS1, RS2, etc.) would require you to re-apply the work-around to prevent Windows for auto-loading microcode. MINOR updates (hot fixes, security patches, etc.) will not require the re-application of the workaround. The workaround takes about 10 seconds and a re-boot to apply. Again, microcode update present, no microcode update present... Windows works either way. Just make sure there is no microcode patch loaded at POST (requires you to remove the microcode built into the BIOS).

can you explain how to do to apply new drivers efi in windows or bios, the new method?
If the microcode is deleted in bios with modded bios, it is possibility to load at boot, again?



[MOF]

?
Same as before.

You can install any efi driver with efi shell and "bcfg driver add ......" command.
Also you can install any microcode with VMWare Microcode Updater



[Cata40]

?
Same as before.

You can install any efi driver with efi shell and "bcfg driver add ......" command.
Also you can install any microcode with VMWare Microcode Updater

Are you referring to the new kjboughton driver?
So, from what I understand, it can not be inserted into bios so far, right?
Edit: sorry for my inattention

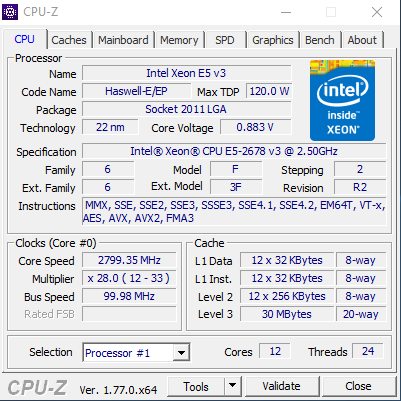

with new efi driver of kjboughton i have:
with microcode i have 27, 28 or 29 all core
whithout microcode 31 max 32 at all core



[MOF]

Do not rush. First compiled version of v3x4 is a not much different other efi drivers at this time. Thats mean you cant get better result.

Inserting the driver into bios is must be a last thing to do. If everything works perfect an you get good results then you may inject efi driver to your bios.
