[Techspot] Then and Now: A decade of Intel CPUs compared, from Conroe to Haswell

[dmens]

Indeed, fortunately OEMs are given models that are actualy black boxes

Yeah, it's called a datasheet. LOL.



[Abwx]

Yeah, it's called a datasheet. LOL.

That s not a datasheet, this is a file that is a mathematical modelisisation of the CPU dynamical behaviour, the file is used directly by the simulator.

A datasheet is this :

http://www.irf.com/product-info/datasheets/data/irf240.pdf

And the Spice model of this transistor is :

.MODEL IRFP240 NMOS LEVEL=3 VTO=3.76 KP=20.79U RD=75.29M + RS=20.68M IS=2.9P CBD=1.933N + CGSO=1.457N CGDO=317.1P

One can eventualy extract those parameters from the datasheet with the help of Matlab....

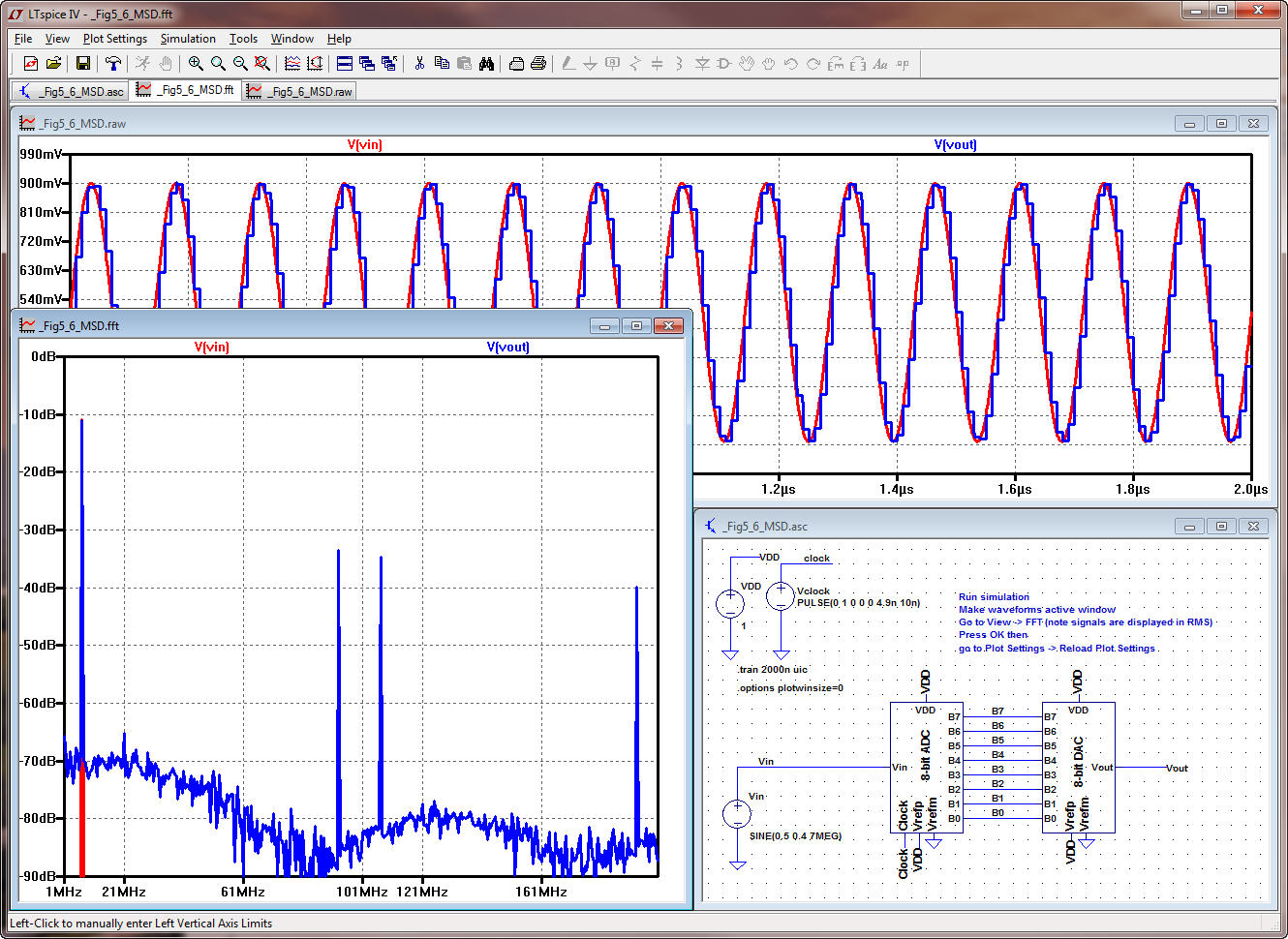

Exemple of simulation with LTSpice, in this case this is an ADC driving a DAC (Analog to Digital Converter and Digital to Analog converter) :

We can see the sine input signal in red (injected in the ADC) , the output (from the DAC) signal in blue.

On the left is the Fourier transform of the output signal, wich tell us about its spectral distribution.



[ShintaiDK]

I see FX desperation again. Same old story.



[Abwx]

I see FX desperation again. Same old story.

How self describing, you re really inspired today, the ice in the irony cake is the "Same old story"...



[dmens]

That s not a datasheet, this is a file that is a mathematical modelisisation of the CPU dynamical behaviour

Someone took the datasheet and made a model from it? Woah.



[skipsneeky2]

C2D really has held up pretty well for general purpose usage.I got this spare rig i am posting with that has a E5200,a 9500gt, 6gb of ram and a ssd and it seems to be more then enough for 1080p youtube/netflix and browsing.:thumbsup:Imagine what cheap a $20 E8600 or $35 Q9450 upgrade could do.

Benchmarks don't surprise me at all,C2D is 9 years old.
