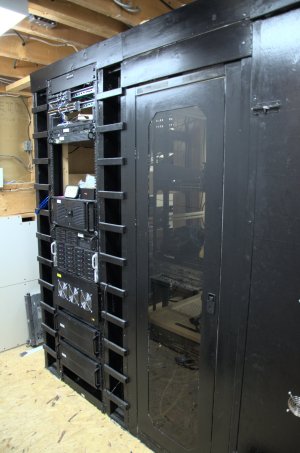

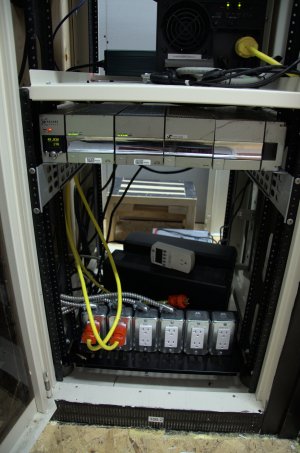

Rack power feeds done. I had 2 feeds already but they were in a weird location, so redid all that so it's more accessible. The inverters will be going just below the rectifier and the feeds used to be off to the side outside the rack which made them hard to reach.

I suppose having 80 amps of available power when my whole rack pulls 800 watts is a little much, but room for expansion! :p

The 2 plugs on the right are not connected, I just figured I may as well fill a whole 19" width since I'm using a couple Us anyway. If ever I decide to run 240v I'll probably just run it to those and change the plugs out.









I have not really updated any of this stuff in probably close to a decade, eventually I'll get to it. I do want to build a Proxmox cluster.

Last edited:
  • Like
Reactions: bigboxes

bigboxes

Lifer
Apr 6, 2002
39,072
12,023
146
Rack power feeds done. I had 2 feeds already but they were in a weird location, so redid all that so it's more accessible. The inverters will be going just below the rectifier and the feeds used to be off to the side outside the rack which made them hard to reach.

I suppose having 80 amps of available power when my whole rack pulls 800 watts is a little much, but room for expansion! :p

The 2 plugs on the right are not connected, I just figured I may as well fill a whole 19" width since I'm using a couple Us anyway. If ever I decide to run 240v I'll probably just run it to those and change the plugs out.


View attachment 97310



View attachment 97311



View attachment 97312

I have not really updated any of this stuff in probably close to a decade, eventually I'll get to it. I do want to build a Proxmox cluster.
IT'S ALIVE!

  • Like
Reactions: Red Squirrel

bigboxes

Lifer
Apr 6, 2002
39,072
12,023
146
Pepperoni, Italian sausage, and shredded fresh mozzarella. Fresh grated parmesan on top!
