Anandtech Member Case Gallery!

Discussion in 'Cases & Cooling' started by aigomorla, Mar 23, 2008.

  1. k3vb0t

    k3vb0t Junior Member

    Joined:
    Mar 20, 2011
    Messages:
    23
    Likes Received:
    0
    re: Heavenrider

    That looks awesome and evil at the same time

  2. OVerLoRDI

    OVerLoRDI Diamond Member

    Joined:
    Jan 22, 2006
    Messages:
    5,471
    Likes Received:
    1
    Glad to see a bit of life being breathed back into this Case Gallery. I got my Caselabs M8 on the way!

  3. The_Golden_Man

    The_Golden_Man Senior member

    Joined:
    Apr 7, 2012
    Messages:
    816
    Likes Received:
    0
    Specs in Signature. I have a 120mm, red LED fan (700 - 800rpm) in the lower fanmounting of my CM Storm Scout sidedoor, blowing directly at my two ASUS GTX 670 Direct CU II cards. I also have two red Cold catodes mounted in my sidedoor (Hidden and not visible from the outside).

    | Asus P8P67 PRO 3.0 | i7 2600K@4.4GHz | Corsair Vengeance 1600 9-9-9-24@4x4GB | 2x ASUS GTX 670 Direct CU II SLI |
    | Corsair TX 750W | Intel X-25 160GB Gen.2 SSD for OS, 2x256GB Crucial M4 SSD's Raid 0 for games and WD Green 1TB for storage
    | Coolermaster Storm Scout | ASUS VK266H |






    [​IMG]

    [​IMG]

    [​IMG]

    #328 The_Golden_Man, Jun 25, 2012
    Last edited: Jun 26, 2012
  4. dfanatic86

    dfanatic86 Member

    Joined:
    Jul 2, 2012
    Messages:
    91
    Likes Received:
    0
    this hella clean! +1

  5. d3fu5i0n

    d3fu5i0n Senior member

    Joined:
    Feb 15, 2011
    Messages:
    305
    Likes Received:
    0
    Here is mine.

    I suppose it's okay-ish. [I've since cleaned up the cables at the top, for the front I/O panel, a little bit].

    [​IMG]

  6. d3fu5i0n

    d3fu5i0n Senior member

    Joined:
    Feb 15, 2011
    Messages:
    305
    Likes Received:
    0
    Is it Win. 8 that is making it evil?

    #331 d3fu5i0n, Jul 14, 2012
    Last edited: Jul 14, 2012
  7. Red Squirrel

    Red Squirrel Lifer

    Joined:
    May 24, 2003
    Messages:
    36,918
    Likes Received:
    632
    Nice cases!

    Mine is kinda lacking in the cable management dept. I seem to always have the worse luck where everything "just fits" so it leaves little to no room to do anything. It's also a bit more of a mess as I'm in the middle of troubleshooting a video issue so it's missing a video card. I had stuff tie wrapped nicely at one point.

    [​IMG]

    [​IMG]

    And my current desk setup:

    [​IMG]

    Don't mind the mess.


    For some reason this PC seems to accumulate dust much faster than my last one. I need to start working on my new desk so I can have room to put it on top, but it's been too hot out to do anything, especially given the garage gets even hotter.

  8. PCTC2

    PCTC2 Diamond Member

    Joined:
    Feb 18, 2007
    Messages:
    3,865
    Likes Received:
    1
    Here's 5 of my rigs (the ones that have had cable management. haha)

    Workstation:
    Core i7 920, eVGA X58 FTW3, 12GB Corsair XMS3, eVGA GTX 670
    OCZ Vertex 4 256GB, OCZ Synapse 128GB, 2x Seagate Barracuda 2TB 7200RPM SATA III
    Upgraded the Corsair 800D to USB 3.0 and SATA 6Gbps backplane.

    (DEAD PICTURE LINKS)

    Linux Box:
    Core2Quad Q9400, Gigabyte EP45-UD3P, 4GB DDR2, eVGA 8800GTS 512
    Antec 900 has all 120mm fans filtered... still need to filter the 200mm top fan.

    (DEAD PICTURE LINKS)

    Gaming System:
    Core i5 2400, Asus P8H77-M PRO, 8GB DDR3, XFX HD 5870
    120GB Corsair Force3, 120GB PNY XLR8
    Silverstone PS07, Seasonic X650

    (DEAD PICTURE LINKS)

    Windows Box
    Core i7 860, eVGA P55 Micro, 8GB Corsair Dominator, eVGA GTX 260 Core216 Superclocked
    Intel X25-M 160GB, Corsair HX520, NZXT Source 210
    Corsair A70, Thermalright TRAD2-GTX

    (DEAD PICTURE LINKS)

    Storage Server
    Celeron E3300, Zotac G43ITX, 4GB DDR2
    5x Western Digital WD15EARS 1.5TB Green, Microcenter G2 64GB SSD Cache Drive, 4GB USB OS Drive
    Lian Li PC-Q25B, FSP 400W SFX PSU

    (DEAD PICTURE LINKS)
    (The second picture has my networked printer, gateway server (E3200,4GB,40GB Intel X25-V), and USB display for network usage)

    #333 PCTC2, Jul 30, 2012
    Last edited: Jun 6, 2013
  9. Krynj

    Krynj Platinum Member

    Joined:
    Jun 21, 2006
    Messages:
    2,816
    Likes Received:
    1
    Just moved all my stuff out of my Antec Lanboy Air into a Corsair Obsidian 800D. I shouldn't have ever bothered with that case in the first place. Too dusty. Too small. Kept things nice and cool, but I got sick of it.

    Loving this 800D. Still need to get some 120mm fans pushing air out the top though. Ordering those this week. I've seen plenty of pictures, but I simply cannot believe how clean these things look with minimal cable management effort. 5 HDDs and one SSD packed inside this thing, and you can't even tell.

    [​IMG]

    [​IMG]

  10. Blake7787

    Blake7787 Member

    Joined:
    Jul 29, 2012
    Messages:
    39
    Likes Received:
    0
    The insides, just got BitFenix cable extensions.
    [​IMG]

    Cable management in the back. Took about 2.5 hrs to do. Back shuts much better now. No bulge what so ever which I was very excited about.
    [​IMG]


    Case is lit up with white led strips with the side with window on.
    Camera picks the coloring up odd.
    [​IMG]

    NZXT switch 810 white case
    I7 3770k @ 4.5 Ghz (Can stable at 4.8 but Ivy Bridge is so heat sensitive)
    Corsair H100 CPU cooler
    Sp120 & AF120 Corsair fans
    24 GB Corsair Dominator RAM 1600 MHz
    Asus P8Z77-Pro Motherboard
    Gigabyte GTX670 Windforce Ed.
    Rosewill Modular 1k Watt PSU
    LG Blue Ray DVD writer
    Crucial 128GB MLC Sata III SSD
    Western Digital 2TB black edition HDD
    Corsair K90 keyboard
    Corsair M60 mouse
    Razor naga Black mouse
    2x Asus VE228H 21.5 LED monitors


    So let me know what you think. First computer build so might be a bit rough around the edges. Comments and suggestions welcome. I love blowing money on useless aesthetic improvements haha!

  11. Pismo

    Pismo Junior Member

    Joined:
    Jul 31, 2012
    Messages:
    12
    Likes Received:
    0
    New build - H100 Vertical Mount
    Just finished up a new build. Many years since doing this for myself. I will be adding, tweaking and yes modding. Already Case hunting. Thinking of a vertical mb case style. Need to turn this on first, haha.

    - Rosewill BLACKHAWK-ULTRA Super Tower - Semi modded
    - i5-3570K
    - ASUS P8Z77-V PRO LGA 1155
    - Sapphire 7970 Toxic
    - SeaSonic X-SERIES X-1050
    - Corsair Force Series GT 120GB SATA III
    - G.SKILL Trident X Series (2 x 8GB) DDR3 2400
    - Corsair H100 (HDD Cage Mounted)
    - Cougar CF-V12HP 12CM x4 p/p for H100
    - NZXT 14 cm Orange x2 front intake
    - Cougar 14CM rear exhaust
    - Bitfenix Spectre Pro 230mm x2 top exhaust
    - Bitfenix extension cables - must do all the PSU/Case cables myself to make it cleaner.

    Please let me know if I did the image link incorrectly. I have had all the items except the 7970 Toxic in my closet since June. Finally gave up and purchased the Toxic card.

    Sincerely,

    Pismo

    https://plus.google.com/u/0/photos/114633685145672596854/albums/5784126432365840289[/IMG]

  12. karder

    karder Member

    Joined:
    Sep 5, 2012
    Messages:
    41
    Likes Received:
    0
    Damn, How does everyone get such a clean look in their cases? One could almost be fooled and believe there are no cables. My cables almost always show.

  13. TheStu

    TheStu Moderator<br>Mobile Devices & Gadgets
    Moderator

    Joined:
    Sep 15, 2004
    Messages:
    11,794
    Likes Received:
    4
    Patience, tenacity, and a touch of OCD.

  14. Sherlockwing

    Sherlockwing Member

    Joined:
    Aug 11, 2012
    Messages:
    38
    Likes Received:
    0
    Well, On my R4 Cable Management redux:

    First, I tried to route the entire 24 pin ATX behind the back:
    [​IMG]

    Looks good, however due to the Sata and Power cables going to my backpanel SSD I was unable to close the backpanel in this configuration.

    Second, this is my compromise: don't look as good but at least I can close the backpanel and the cable isn't obstructing airflow.

    [​IMG]
    Looks alright? If I didn't remove my HDD cages I would have been able to hide the cables a little better but since I going for max airflow that's less of a priority.

  15. djnsmith7

    djnsmith7 Platinum Member

    Joined:
    Apr 13, 2004
    Messages:
    2,612
    Likes Received:
    1
    Very, very carefully. Took me almost 2 hours to get mine where it is today & it's still doesn't meet my personal "perfect" status.

    I went about 4 different rounds with cable management, and for the most part, came up a bit short 3 out of 4. This was over a period of about 4 years. You have to visualize the end result & you need the right cables & accessories to make that happen. For me, it wasn't until both of those things came together that I was able to produce a finished product that I like.

    Been meaning to post up pics, but just been too damn busy lately.

  16. balane

    balane Senior member

    Joined:
    Dec 15, 2006
    Messages:
    666
    Likes Received:
    0
    Here's my two towers. Specs are in the sig.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  17. Soulkeeper

    Soulkeeper Diamond Member

    Joined:
    Nov 23, 2001
    Messages:
    6,262
    Likes Received:
    0
    I just modified my antec 300.
    Sorry, I didn't take pictures of the early fabricating or before pics :(
    welding, grinding, cutting, bondo, etc. were all involved.
    The hard drives now come out the side instead of towards the mb.
    I fabricated a new front, new paint, and easily removeable dust filter

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    #342 Soulkeeper, Oct 22, 2012
    Last edited: Oct 22, 2012
  18. PerfectCr

    PerfectCr Member

    Joined:
    Sep 3, 2006
    Messages:
    196
    Likes Received:
    0
    I thought I would throw a few pics into this thread. I just replaced my Antec Nine Hundred with a Define R4 w/Window in Arctic White. Looks great, very classy AND quiet. Rig is in my sig. This was my first "modern" case with real cable management. What a pleasure it was to build and it looks very clean. Very happy with this one! :D


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]

  19. kleinkinstein

    kleinkinstein Senior member

    Joined:
    Aug 16, 2012
    Messages:
    823
    Likes Received:
    0
    Machine le'Monochrome

    [​IMG]

  20. OVerLoRDI

    OVerLoRDI Diamond Member

    Joined:
    Jan 22, 2006
    Messages:
    5,471
    Likes Received:
    1
    Super clean!

  21. F4lkon

    F4lkon Junior Member

    Joined:
    Dec 19, 2012
    Messages:
    3
    Likes Received:
    0

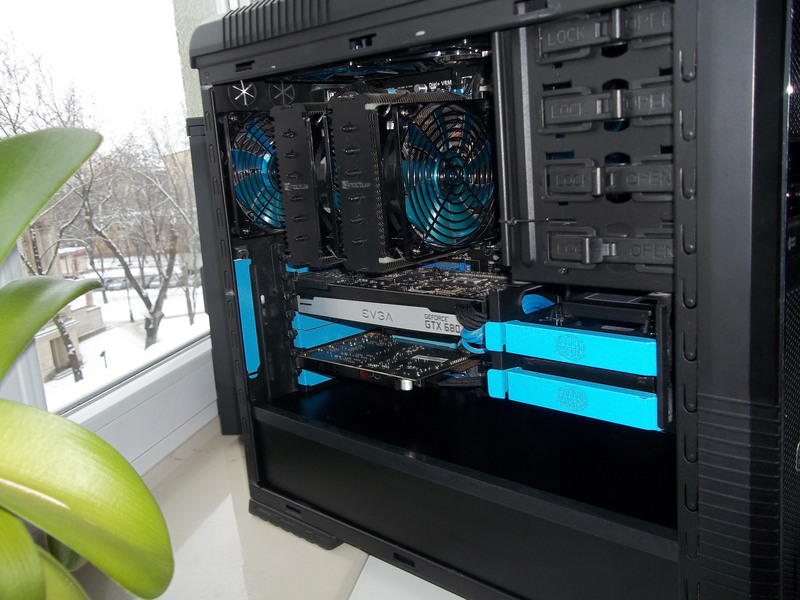

    I'm kinda new here, and just wanted to say hi and I'll show U my rig :)
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  22. OVerLoRDI

    OVerLoRDI Diamond Member

    Joined:
    Jan 22, 2006
    Messages:
    5,471
    Likes Received:
    1
    Very clean F4lkon. I love the blue color scheme.

  23. F4lkon

    F4lkon Junior Member

    Joined:
    Dec 19, 2012
    Messages:
    3
    Likes Received:
    0
    THX ;), BTW, I will be in January 2013 in San Francisco, we can meet :)

  24. lawlz

    lawlz Member

    Joined:
    Sep 12, 2007
    Messages:
    60
    Likes Received:
    0
    Nice and simple, love it!

  25. gerard.canada

    gerard.canada Junior Member

    Joined:
    Dec 25, 2012
    Messages:
    1
    Likes Received:
    0

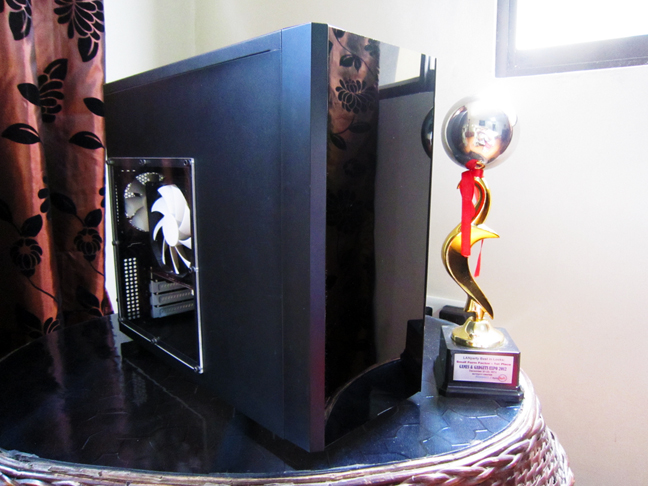

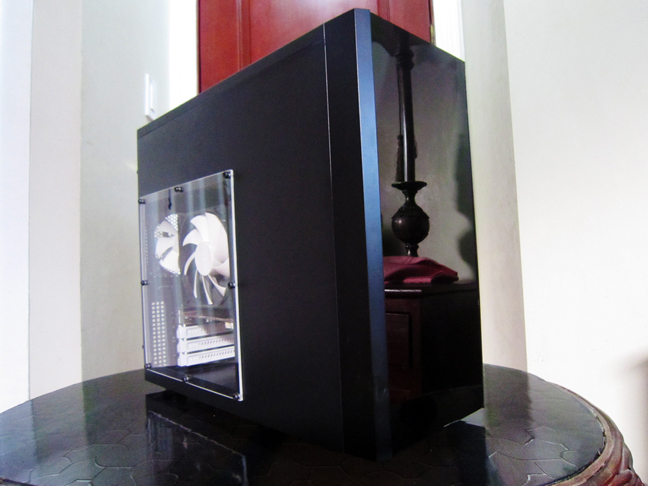

    My Fractal Core 1000

    1st Place Best in Looks "SFF Category" - Games and Gadgets Expo 2012 (Davao City - Philippines)

    (sorry for the phone cam)
    [​IMG]

    (sorry for the phone cam)
    [​IMG]

    [​IMG]

    [​IMG]
