What PCIe add in cards can boot a NVMe M.2 SSD?

Discussion in 'Memory and Storage' started by cbn, Feb 5, 2017.

  1. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
    What PCIe add in cards can boot a NVMe M.2 SSD? (assuming the PC has the necessary BIOS, etc)

  2. Loading...

    Similar Threads - PCIe cards boot Forum Date
    What are bandwidth and throughput limitations, if any, on PCIE x4 1-NVMe/2-AHCI M.2 expansion card? Memory and Storage Jan 19, 2017
    Will installing a PCIe SATA III card improve SSD performance? Memory and Storage Jan 5, 2017
    What expansion card M.2 to PCIe Memory and Storage Jun 6, 2016
    SSD and PCIE card? Memory and Storage Mar 10, 2015
    Can I put a mini-PCIe card in a mSATA port? Memory and Storage Jun 14, 2012

  3. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
  4. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
  5. UsandThem

    UsandThem Super Moderator
    Super Moderator

    Joined:
    May 4, 2000
    Messages:
    7,451
    Likes Received:
    476
    cbn likes this.
  6. BonzaiDuck

    BonzaiDuck Lifer

    Joined:
    Jun 30, 2004
    Messages:
    12,637
    Likes Received:
    273
    The fact that you can find multi-NVMe-M.2 PCIE cards like these -- appears to be x8 -- gives one pause. I like to finalize my computer builds. And I can always set aside some part for which I paid less than $30 to replace with something like that. A device like that would mean a complete shift in my storage strategy, although I'd still do SSD-caching for my slow SATA devices. For instance, if you could RAID the drives on that device -- I assume that's what it's primarily intended for -- then cache to RAM, you could double your RAM size, pull the switch on StarTrek WARP drive, and disappear into the black hole of your virtual reali-titty.

  7. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
  8. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
  9. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
    It is actually a PCIe x16 device that can raid all four drives.....but I found out it cannot boot with all the drives in RAID:

    http://www.tomsitpro.com/articles/hp-reveals-turboz-quad-pro,1-3022.html

    To use as a boot device...... one of the drives must not be in RAID, so a person (as an example) could have 1 M.2 NVMe as boot and 3 M.2 NVMe in RAID 0.

  10. Insert_Nickname

    Insert_Nickname Diamond Member

    Joined:
    May 6, 2012
    Messages:
    3,006
    Likes Received:
    145
    That is not the question. An add-in adaptor card has zero to do with being able to boot from a device. That is entirely down to UEFI* support, and any OROM present on the device you're trying to boot.

    An adaptor will not magically allow you to boot an NVMe SSD on a system without NVMe support in UEFI, and any PCIe-to-M.2 adaptor will allow you to boot on a system with NVMe support. It is simply a passive electrical adaptor.

    *No legacy BIOS to my knowledge is able to boot from an NVMe device.

    Valantar and msroadkill612 like this.
  11. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135

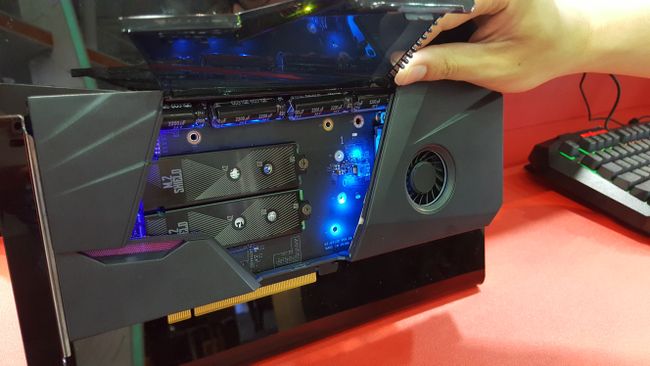

    Dell also makes a quad M.2 adapter card (with fan):

    https://www.servethehome.com/the-dell-4x-m-2-pcie-x16-version-of-the-hp-z-turbo-quad-pro/

    [​IMG]

    However, notice the info at the bottom of the article:


  12. BonzaiDuck

    BonzaiDuck Lifer

    Joined:
    Jun 30, 2004
    Messages:
    12,637
    Likes Received:
    273
    Maybe it's too early in the game. These are devices from OEMs, maybe limited in their applicability, but promising for what isn't yet on the market.

    Even so. Looking at the benchmarks in the review (north of 5,000 MB/s sequential read), maybe you get four times the single NVMe storage space, and only about 60% faster than a single 960 Pro NVMe M.2/PCIEx4. That's good, but only "so" good if you see this as an optimization constrained by money, slightly more complexity, and just simple practical need.

    Suppose you get something like this in RAID0 of 4x 1TB 960 Pros, or between 2 a 4x 2TB 960 Pros? If you can run a spinner through SSD-cache and RAM-cache, you'd have spent less than $100.

    I can see how a single M.2 boot with 3x RAID0 might work: you could mount the RAID0 in a folder of the M.2 boot drive.

    I suppose we should keep an eye on cards like these, even so.

  13. VirtualLarry

    VirtualLarry Super Moderator
    Super Moderator

    Joined:
    Aug 25, 2001
    Messages:
    38,881
    Likes Received:
    2,134
    That sort of answers a question of mine, whether I would be able to install an NVMe M.2 SSD into my DeskMini PCs, and install Win10 in non-UEFI boot mode. Guess not. So I should stick my AHCI M.2 SSDs in there instead, and then I could potentially legacy boot off of one.

  14. Insert_Nickname

    Insert_Nickname Diamond Member

    Joined:
    May 6, 2012
    Messages:
    3,006
    Likes Received:
    145
    Don't rightly know about that. I was talking about real legacy BIOS, not the BIOS interpreter in UEFI. I would assume you'd be able to (legacy) boot from anything the BIOS can see, but you might run into driver issues with NVMe.

    I haven't tried, but could you post back if you can get it to work? That would be useful knowledge. :)

  15. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
  16. MongGrel

    MongGrel Lifer

    Joined:
    Dec 3, 2013
    Messages:
    38,755
    Likes Received:
    3,047
    Startech actually makes some pretty nice adapters IMHO, have a couple in my main rig for even using an old PCI soundcard on a MOBO that has all PCIE slots.

    https://www.amazon.com/gp/product/B0024CV3SA/ref=oh_aui_detailpage_o09_s00?ie=UTF8&psc=1

    You can do some interesting things with a lot of their items, if you're careful and make sure you get what you need.

    They make pretty good adapters for backwards compatabilty, you just have to know what you are looking for a lot of the time.

    Vantec is pretty decent also, bought one of these long ago for a Sata3 adapter for a couple SSD's for the OS.

    https://www.amazon.com/Vantec-4-Cha...1486457022&sr=8-1&keywords=Vantec+Sata+3+PCIe

    Perhaps they might have something you are looking for.

    #15 MongGrel, Feb 7, 2017
    Last edited: Feb 7, 2017
  17. rchunter

    rchunter Senior member

    Joined:
    Feb 26, 2015
    Messages:
    632
    Likes Received:
    19
    Asus Hyper m.2 x4

    jkauff likes this.
  18. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
  19. iamgenius

    iamgenius Senior member

    Joined:
    Jun 6, 2008
    Messages:
    466
    Likes Received:
    8
    From what I know startech and like brands will not get you the full speed of your ssd if it is a top one. It is like the issue with the marvell controller on some mobos. Only good branded controllers like from LSI will get you to full speed. Just wanted to point this out.

  20. knightcrusader

    knightcrusader Junior Member

    Joined:
    May 16, 2017
    Messages:
    2
    Likes Received:
    0
    This is a delayed reply, but since I stumbled on this thread from Google, I wanted to sign up and add something to what you said in case other people find this too.

    You are correct that you need a compatible UEFI or Option ROM for a legacy BIOS to be able to boot from an NVMe card. I went through this adding an NVMe card to my HP Z800-based workstation build. It uses dual Xeon LGA1366 chips and only has a legacy BIOS, SATA II, and PCI Express 2.0, so no new features for me.... just raw electric-sucking power.

    However, I did find a card that will boot on my system - the Kingston HyperX Predator w/ HHHL Adapter (SHPM2280P2H/240G). It uses an Option ROM as my legacy BIOS will show it in my list of disk drives to select from.

    The only thing I am not sure about is if the M.2 card itself has the legacy OROM, or if its in the adapter card. I am tempted to get another card and try it in the adapter and see what happens. If I do, I will report back.

  21. Insert_Nickname

    Insert_Nickname Diamond Member

    Joined:
    May 6, 2012
    Messages:
    3,006
    Likes Received:
    145
    You're welcome. I'm actually very familiar with the HyperX PCIe, having used one in my Z77 system for a few years. It is a pretty decent drive, if NVMe support isn't available. But therein lies the catch. It's "only" an AHCI drive, which means you'll lose out on some of the new features of NVMe, and a bit of performance.

    BTW it's the M.2 drive that contains the OROM, not the adaptor card. The OROM itself simply works by presenting the drive to the BIOS as an additional bootable SATA controller, with a single connected drive. You can check this out with HWiNFO f.x.

    VirtualLarry likes this.
  22. knightcrusader

    knightcrusader Junior Member

    Joined:
    May 16, 2017
    Messages:
    2
    Likes Received:
    0
    Ah good to know. Thanks for the update.

  23. Smoblikat

    Smoblikat Diamond Member

    Joined:
    Nov 19, 2011
    Messages:
    5,123
    Likes Received:
    84
    I have had extremely good success modifying the BIOS on many LGA1155 boards with several different chipsets on them. Im pretty sure anything with a native UEFI (From AMI) has M.2/NVMe support, without much effort.

  24. Valantar

    Valantar Golden Member

    Joined:
    Aug 26, 2014
    Messages:
    1,716
    Likes Received:
    436
    I see several people bringing up single PCIe slot-to-multiple m.2 drive adapters here, yet (as was mentioned above) lane splitting/bifurcation is AFAIK not supported on pretty much any motherboard outside of the server and enterprise markets. As such, it wouldn't matter what the adapter was or whether the slot was x4 or x8, as only the drive connected to the first four lanes of the slot would have any chance of working (unless the adapter had an on-board switch, which a $40 device won't have). Then again, it might not work at all due to IRQ conflicts and other issues stemming from attempting to connect two x4 devices to eight lanes grouped together.

  25. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
    #24 cbn, Jul 17, 2017
    Last edited: Jul 17, 2017
  26. cbn

    cbn Lifer

    Joined:
    Mar 27, 2009
    Messages:
    11,809
    Likes Received:
    135
    Highpoint SSD7100:

    http://www.tomshardware.com/news/highpoint-ssd7100-ssd7101-vroc-ssd,35004.html

    [​IMG]

    And some interesting info on Intel's vROC I found in the above article:

    Intel vROC mentioned further in the following Article:

    http://www.pcworld.com/article/3199...le-crazy-raid-configurations-for-a-price.html

    [​IMG]

    Add a second card (with 4 NVMe M.2 SSDs) and now the system would be able to boot eight total NVMe SSDs.

    Unfortunately the article mentions multiple catches:
