How is the traditional landline phone system linked to the internet?

chrstrbrts

Senior member
Aug 12, 2014
522
3
81
Hello,

How is the "old school" landline phone system connected with the internet and cell networks?

For example, the other day I sent Google my landline phone number at home to receive a verification code for one of its services.

My phone rang 1 second later and an automated voice gave me the numerical code.

How is Google's system tied into the local phone network?

Thanks.


sdifox

No Lifer
Sep 30, 2005
86,787
10,223
126
landlines are all digital now, so it just gets routed. So google sends a rest service call with the message and it gets relayed to your landline.


chrstrbrts

Senior member
Aug 12, 2014
522
3
81
What is the networking hardware like at that level?

The only networking hardware I've seen is the usual low-level stuff: PCIe NIC cards and the routers & modems supplied by ISP.

But what type of networking equipment do Google and the phone companies use?


sdifox

No Lifer
Sep 30, 2005
86,787
10,223
126
What is the networking hardware like at that level?

The only networking hardware I've seen is the usual low-level stuff: PCIe NIC cards and the routers & modems supplied by ISP.

But what type of networking equipment do Google and the phone companies use?

I'll see if I can tag in someone that works in actual noc.


JackMDS

Elite Member
Super Moderator
Oct 25, 1999
29,227
305
126
There is huge varsity of Hardware for what you call "land-line phone number".

However these days the term Land-line is rather confusing.

Many people who get the service from combined Internet, Phone, with or without TV are not even aware that their ""land line"" is actually VOIP.

So, depending on what technically (not verbally) the nature of the connection is, there is Hardware that design to connect the Telephone to the Global phone Network.

Just two types out of hundreds of variations.

https://www.thetelecomspot.com/viking-electronics-viking-two-way-line-emulator.html?origin=product-ads&gclid=EAIaIQobChMIo-vZmv7V2gIV1IqzCh011wrhEAQYFSABEgKoDPD_BwE

https://www.getapp.com/p/sem/call-center-software?camp=adw_search&utm_content=g&utm_source=google&utm_medium=cpc&t=Call Center Software Solutions With Advanced Features&gclid=EAIaIQobChMI0tupv__V2gIVWIezCh2_Bg1sEAMYAiAAEgLeF_D_BwE


:cool:


Red Squirrel

No Lifer
May 24, 2003
61,692
9,405
126
www.uovalor.com
I work at a telco NOC, and while I do work with telephony DMS switches (1U, 10, 100 and 200) I'm not super familiar with the routing but basically land line switches such as DMS100 interface with the phone network using CCS7 and other standard protocols, I'm not super familiar with the specifics but essentially local calls take place within the switch (ex: within a certain group of NNXes which is first 3 numbers of a phone number after area code) while long distance needs a toll switch such as DMS200. There is a central database somewhere (usually within each major telco I believe) that tracks how to route certain numbers for NNX and NPA(area code). I would imagine services like google voice use the same protocols and as far as the PSTN network is concerned it's just another telco/switch. Within the google network itself, then it might be IP based and might use it's own protocol, but as long as the phone network knows how to route it the rest does not matter too much. The google network has to know how to route out as well. I believe this is mostly what CCS7 does. Cells use it too.

For a typical land line you actually have a dedicated copper pair straight to the central office. In the DMS there are line drawers with cards, 1 card per customer. When you get phone service there is actually a physical connection done at the CO to assign your house's cable pair to the card that is programmed with your number I've done this myself though it's not my main job. Typically when a tech needs me to do it if he's up in a pole or what not. So the dial tone you hear actually originates from the central office. In a big city there will be several COs, a lot of them may look like a house and you probably would not even know it's one unless someone told you. In my city we have maybe about 10 of them, some are the size of a house, some are a tiny hut in middle of nowhere. They are fed by the main CO which then connects to the other cities.

Now days a lot of land line service is different in that the dial tone actually comes from a box in your own home. If you have fibre to the home or telephony over cable typically there will be a box that your phones plug into. Though don't think much changes as far as how routing is done.

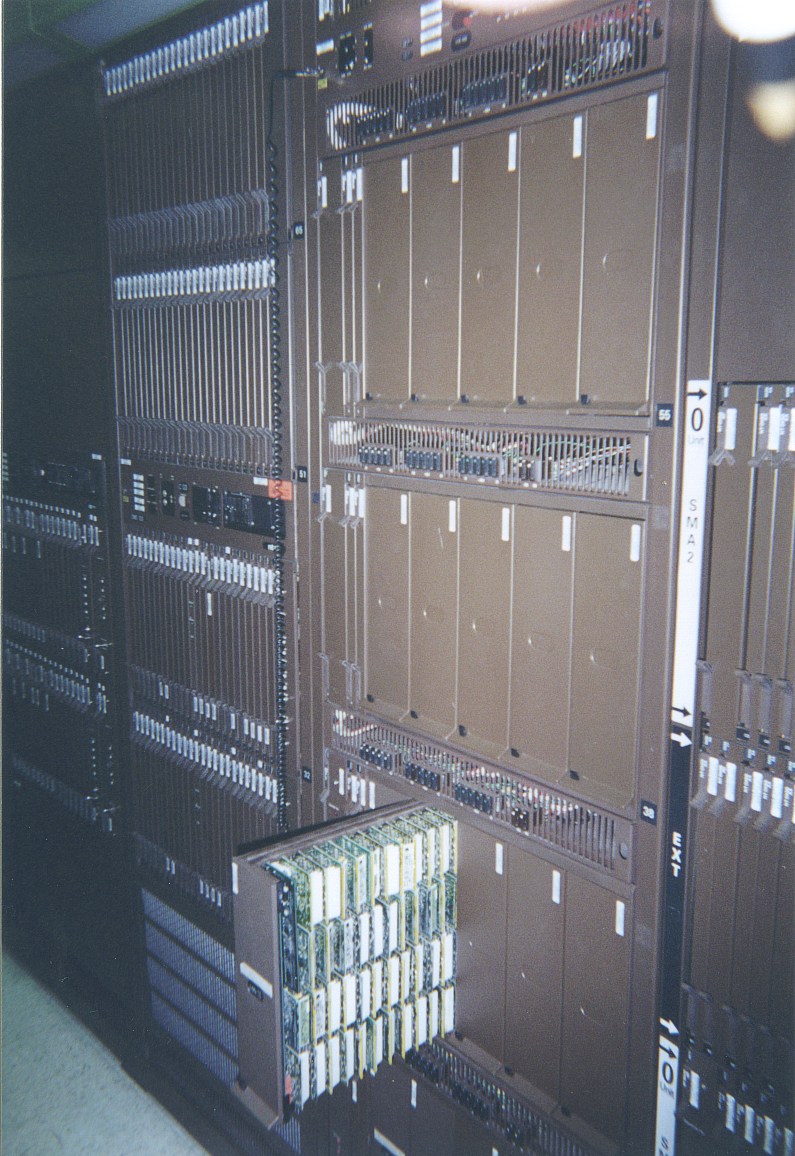

As far as the actual hardware this is what a DMS100 looks like:



That particular section is the line drawer. There's lot of other perephials that go with it too. Ours has 5ish rows of equipment.

This is old school stuff by today's standards but it's super reliable and still used. Our particular switch was installed in the 70's and has an uptime longer than I've been alive. Everything is super redundant.
