Discussion Apple Silicon SoC thread

Page 342 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
Eug

Eug

Lifer
M1
5 nm
Unified memory architecture - LP-DDR4
16 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 12 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache
(Apple claims the 4 high-effiency cores alone perform like a dual-core Intel MacBook Air)

8-core iGPU (but there is a 7-core variant, likely with one inactive core)
128 execution units
Up to 24576 concurrent threads
2.6 Teraflops
82 Gigatexels/s
41 gigapixels/s

16-core neural engine
Secure Enclave
USB 4

Products:
$999 ($899 edu) 13" MacBook Air (fanless) - 18 hour video playback battery life
$699 Mac mini (with fan)
$1299 ($1199 edu) 13" MacBook Pro (with fan) - 20 hour video playback battery life

Memory options 8 GB and 16 GB. No 32 GB option (unless you go Intel).

It should be noted that the M1 chip in these three Macs is the same (aside from GPU core number). Basically, Apple is taking the same approach which these chips as they do the iPhones and iPads. Just one SKU (excluding the X variants), which is the same across all iDevices (aside from maybe slight clock speed differences occasionally).

EDIT:


M1 Pro 8-core CPU (6+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 16-core GPU
M1 Max 10-core CPU (8+2), 24-core GPU
M1 Max 10-core CPU (8+2), 32-core GPU

M1 Pro and M1 Max discussion here:

Discussion - Apple Silicon SoC thread

Page 78 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
forums.anandtech.com

M1 Ultra discussion here:

Discussion - Apple Silicon SoC thread

Page 109 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
forums.anandtech.com

M2 discussion here:

Discussion - Apple Silicon SoC thread

Page 127 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
forums.anandtech.com

Second Generation 5 nm
Unified memory architecture - LPDDR5, up to 24 GB and 100 GB/s
20 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 16 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache

10-core iGPU (but there is an 8-core variant)
3.6 Teraflops

16-core neural engine
Secure Enclave
USB 4

Hardware acceleration for 8K h.264, h.264, ProRes

M3 Family discussion here:

Discussion - Apple Silicon SoC thread

Page 215 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
forums.anandtech.com

M4 Family discussion here:

Discussion - Apple Silicon SoC thread

Page 263 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
forums.anandtech.com

M5 Family discussion here:

Page 431 - Discussion - Apple Silicon SoC thread

Page 431 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.
forums.anandtech.com forums.anandtech.com

Last edited:
The Hardcard said:
With approximate napkin math given the an e core is about 1/3 the performance of a P core, giving the M4 about 6 P core power. 2 more P cores would be about 1250, therabouts top HX 370, X Elite range. M4 Max? Fuggedaboudit.
Click to expand...
I think that M4 Max will get +2 E-core. Together with architectural enhancements, it can give +20-30% improvement. This will easily outperform the M2 Ultra.

gdansk said:
Yes, it's so good there's no reason to make stuff up. And yet... he did.
Click to expand...
I should clarify, consumes 1/3 of the power to reach a similar score. HX 370 full max is like 80W+ (forget exactly off the top of my head).

And I agree, no need to embellish.

mvprod123 said:
X Elite was released late. It should have been released earlier, instead of holding numerous events with hasty and false promises to ‘get ahead of the industry’.
Click to expand...
Well, I hope they live up to whatever promises they intend to make next year. It’d be weird to do what they did for v1 twice.

Eug said:
www.macrumors.com

Leaked M4 MacBook Pro Appears for Sale on Russian Classifieds Site

In a continuation of the latest unprecedented leak, Apple's yet-to-be-announced M4 MacBook Pro has reportedly surfaced on Avito, a popular Russian classified ads website. The development follows recent videos from Russian YouTube channels showcasing what appears to be the unreleased laptop...
www.macrumors.com www.macrumors.com

It seems multiple M4 MacBook Pro 16/512 GB units were available, listed at ~US$7500 each until the listing was removed by the site.
Click to expand...

Damn, smuggling Apple products into Russia is apparently a really lucrative gig!

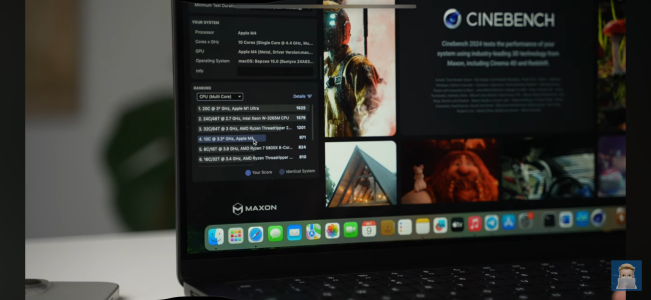

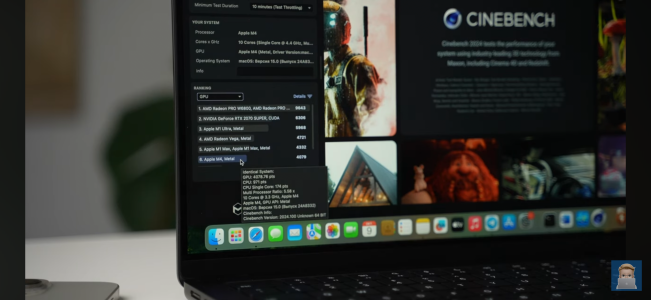

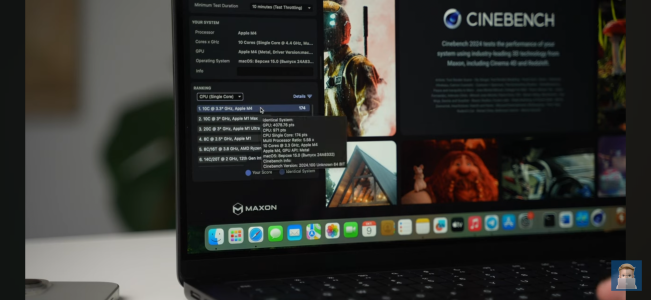

poke01 said:
There is a whole review of it lol
...

This never happened before to Apple. Previously only to Google Pixels
Click to expand...
I don't want to derail the thread or enter any political discussion, but this is to be expected: Russia is China's new best friend, and previously China and Google had issues over Google store. Given that these devices are built in China, I'm not surprised there are leaks to countries where companies have very little control, and I expect more in the future. There's no judgement on my side about this, just my thoughts. I like to read such leaked previews, even though I always wait for more official reviews before drawing any conclusion and making any decision.

mvprod123 said:
I know. I wonder how the M4 Ultra will potentially outperform the new Zen 5 and ArrowLake CPUs.
Click to expand...
I honestly wouldn't care about the CPU in an Ultra. I would like to see how it will handle LLMs. It will have at least 256GB of VRAM, big enough for some very large LLM models.
