M1
5 nm
Unified memory architecture - LP-DDR4
16 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 12 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache
(Apple claims the 4 high-effiency cores alone perform like a dual-core Intel MacBook Air)

8-core iGPU (but there is a 7-core variant, likely with one inactive core)
128 execution units
Up to 24576 concurrent threads
2.6 Teraflops
82 Gigatexels/s
41 gigapixels/s

16-core neural engine
Secure Enclave
USB 4

Products:
$999 ($899 edu) 13" MacBook Air (fanless) - 18 hour video playback battery life
$699 Mac mini (with fan)
$1299 ($1199 edu) 13" MacBook Pro (with fan) - 20 hour video playback battery life

Memory options 8 GB and 16 GB. No 32 GB option (unless you go Intel).

It should be noted that the M1 chip in these three Macs is the same (aside from GPU core number). Basically, Apple is taking the same approach which these chips as they do the iPhones and iPads. Just one SKU (excluding the X variants), which is the same across all iDevices (aside from maybe slight clock speed differences occasionally).

EDIT:


M1 Pro 8-core CPU (6+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 16-core GPU
M1 Max 10-core CPU (8+2), 24-core GPU
M1 Max 10-core CPU (8+2), 32-core GPU

M1 Pro and M1 Max discussion here:


M1 Ultra discussion here:


M2 discussion here:


Second Generation 5 nm
Unified memory architecture - LPDDR5, up to 24 GB and 100 GB/s
20 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 16 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache

10-core iGPU (but there is an 8-core variant)
3.6 Teraflops

16-core neural engine
Secure Enclave
USB 4

Hardware acceleration for 8K h.264, h.264, ProRes

M3 Family discussion here:


M4 Family discussion here:


Last edited:

Nothingness

Platinum Member
Jul 3, 2013
2,497
894
136
No, I didn’t say it was impossible, I think it’s unlikely based on the notable recent trends, talent loss.
They indeed lost some talented people, but I guess they also attracted some new ones (they have attractive salaries and retention plans). Of course they likely lost time, and it remains to be seen how long it will take them to recover from the loss.


FlameTail

Platinum Member
Dec 15, 2021
2,356
1,276
106
Do you guys think the Apple M5 will exceed 200 mm²?

M1 = N5. = 118 mm²
M2 = N5P = 151 mm²
M3 = N3B. = 146 mm²
M4 = N3E. (?) = 165-175 mm² (?)
M5 = N3P (?) = 200-210 mm² (?)

If it is on N3P and not N2, I think it certainly will.


FlameTail

Platinum Member
Dec 15, 2021
2,356
1,276
106

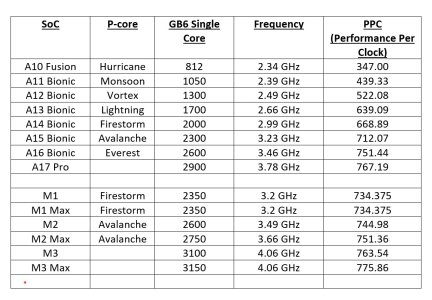

Also the CPU. From M1->M3 generation, the CPU has stuck to a 4P+4E configuration.

I have a feeling that M4 or M5, will upgrade that to 6P+4E or 4P+6E.


Doug S

Platinum Member
Feb 8, 2020
2,321
3,682
136
Also the CPU. From M1->M3 generation, the CPU has stuck to a 4P+4E configuration.

I have a feeling that M4 or M5, will upgrade that to 6P+4E or 4P+6E.

Why? Base models are base models. Apple doesn't offer hundreds of SKUs like Intel/AMD, so they want to maintain reasonable separation between each step in their lineup. It is more likely Apple will devote any additional area to a larger NPU or GPU.

There is already plenty of CPU power in the base Apple Silicon CPUs, the only reason to have more is for pointless pissing contests like Cinebench. If they bump that up too not only do they make their chip larger/more expensive, they have to bump up Pro and by extension Max to maintain useful separation between the product families.


Doug S

Platinum Member
Feb 8, 2020
2,321
3,682
136
Maybe we will see more P cores in the base modell when Apple changes the P cluster size from 6 to 8 P cores on N2.

I think the driver of cluster size is more likely to be L2 cache contention. It probably doesn't have much to do with transistor density aside from an ability to make L2 larger if the process allows smaller SRAM cells - though that's a balancing act since a larger cache (and higher clock rate) implies higher latency.


Henry swagger

Senior member
Feb 9, 2022
389
246
86

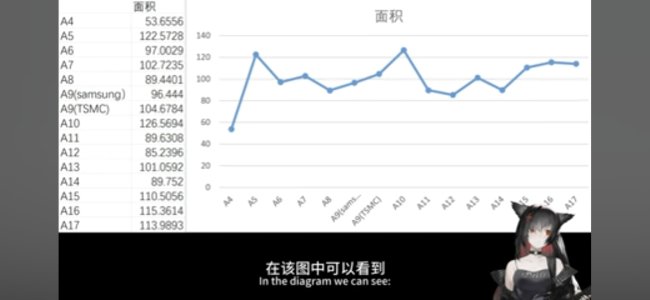

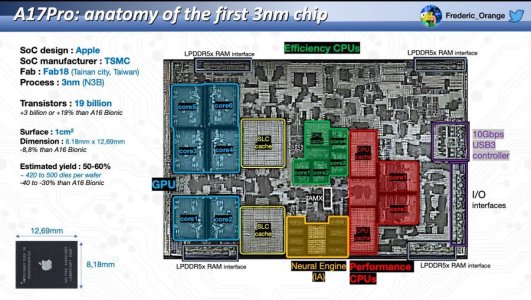

I found this Chinese analysis of the A17 Pro, which is pretty dang impressive. In the video, he analyses the die area and was able to directly measure the density of the parts of the chip via electron microscope.
Beautiful scientific breakdown.. i.m sure tsmc will make him take down the video. Exposing all they secrets lol


SiliconFly

Golden Member
Mar 10, 2023
1,063
549
96
Beautiful scientific breakdown.. i.m sure tsmc will make him take down the video. Exposing all they secrets lol
Not necessary for TSMC to take it down. Apple A17 Pro density was already known. This video revises it down by just 5%. No biggie. Also, the estimated (theoretical) peak density of TSMC N3 has already been estimated long back (~200), which tracks well with this. So, nothing to worry.


Henry swagger

Senior member
Feb 9, 2022
389
246
86
Not necessary for TSMC to take it down. Apple A17 Pro density was already known. This video revises it down by just 5%. No biggie. Also, the estimated (theoretical) peak density of TSMC N3 has already been estimated long back (~200), which tracks well with this. So, nothing to worry.
Still companies want to save face if they lied about density values


FlameTail

Platinum Member
Dec 15, 2021
2,356
1,276
106
I think the driver of cluster size is more likely to be L2 cache contention. It probably doesn't have much to do with transistor density aside from an ability to make L2 larger if the process allows smaller SRAM cells - though that's a balancing act since a larger cache (and higher clock rate) implies higher latency.
There are 2 ways to increase L2 size:

(1) Increasing the amount of L2 within a cluster, while keeping core count per cluster constant
+ L2 per core, is increased
+ Improves ST performance
+ Improves MT performance
- Increases die size

(2) Increasing the amount of L2, by increasing the core count per cluster, by the same factor
- L2 per core, is constant.
+ Improves ST performance
- MT performance is unchanged/regresses
+ Same die area


Doug S

Platinum Member
Feb 8, 2020
2,321
3,682
136
@Doug S

You said N3B doesn't have FinFlex?

I am pretty sure TSMC claimed at one point that N3B did not include Finflex, but assuming that guy's analysis is correct it is used on A17P. I was confused though by his tables always showing N3E, not N3B, despite looking at A17P.

So I guess one of two things happened. Either my recall is incorrect and N3B always included FinFlex, or Apple got a slightly modified version of N3B. Apple is TSMC's largest customer and works closely with them on process development, and the official "start of mass production" for N3B was months in advance of when Apple's first wafers would be run. They are slotting BSPDN into N2 six months after its start of mass production, so it is at least possible the same was true with FinFlex and N3B for Apple.

I'll note the same gap between start of mass production and start of mass production for Apple's wafers also exists with N3E, so the possibility exists some elements of N3P could find their way into A18/M4.


FlameTail

Platinum Member
Dec 15, 2021
2,356
1,276
106
I am pretty sure TSMC claimed at one point that N3B did not include Finflex, but assuming that guy's analysis is correct it is used on A17P. I was confused though by his tables always showing N3E, not N3B, despite looking at A17P.
He said that he was too lazy to change it from N3E to N3B, in the comments section of the video.
