Discussion Apple Silicon SoC thread

Page 231 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

Eug

Lifer
Mar 11, 2000
23,564
984
126
M1
5 nm
Unified memory architecture - LP-DDR4
16 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 12 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache
(Apple claims the 4 high-effiency cores alone perform like a dual-core Intel MacBook Air)

8-core iGPU (but there is a 7-core variant, likely with one inactive core)
128 execution units
Up to 24576 concurrent threads
2.6 Teraflops
82 Gigatexels/s
41 gigapixels/s

16-core neural engine
Secure Enclave
USB 4

Products:
$999 ($899 edu) 13" MacBook Air (fanless) - 18 hour video playback battery life
$699 Mac mini (with fan)
$1299 ($1199 edu) 13" MacBook Pro (with fan) - 20 hour video playback battery life

Memory options 8 GB and 16 GB. No 32 GB option (unless you go Intel).

It should be noted that the M1 chip in these three Macs is the same (aside from GPU core number). Basically, Apple is taking the same approach which these chips as they do the iPhones and iPads. Just one SKU (excluding the X variants), which is the same across all iDevices (aside from maybe slight clock speed differences occasionally).

EDIT:


M1 Pro 8-core CPU (6+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 16-core GPU
M1 Max 10-core CPU (8+2), 24-core GPU
M1 Max 10-core CPU (8+2), 32-core GPU

M1 Pro and M1 Max discussion here:


M1 Ultra discussion here:


M2 discussion here:


Second Generation 5 nm
Unified memory architecture - LPDDR5, up to 24 GB and 100 GB/s
20 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 16 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache

10-core iGPU (but there is an 8-core variant)
3.6 Teraflops

16-core neural engine
Secure Enclave
USB 4

Hardware acceleration for 8K h.264, h.264, ProRes

M3 Family discussion here:


Last edited:
Solution
The reason Macs don’t have them is because Qualcomm charges Apple by the SKU entry price or whatever. It’d be insanely expensive and it’s too niche.

SteinFG

Senior member
Dec 29, 2021
386
445
106
So this is a question in general about display engines, not just the ones in Apple Silicon.

Say for example: a chip has four display engines that each support a 4K external monitor. So can all four of the engines combine together to support an 8K display (since 8K is four times 4K) ?
No combining. It should just support 8K from the start, no need for wacky stuff.


SteinFG

Senior member
Dec 29, 2021
386
445
106

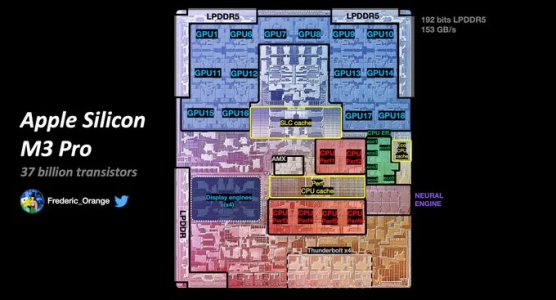

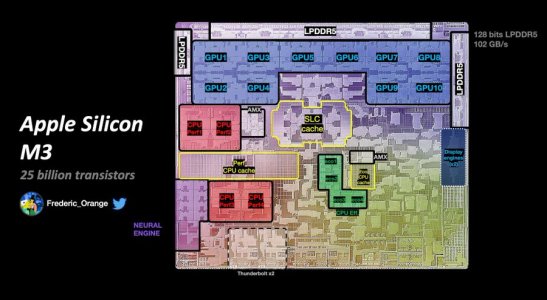

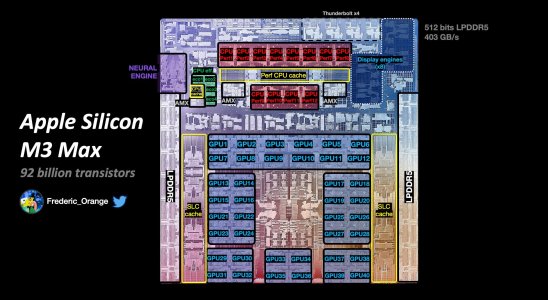

It looks like four, but each of the four are mirror image layouts, so it does look very much like it could be eight.

In my (admittedly highly amateur) experience of examining die photos, that sort of mirroring is common for pairing I/O blocks. I'm sure there's a reason why they are so often laid out like that, but I don't know what that reason is (probably something you have to be an EE to fully understand like parasitic capacitance)
- Display engine is not I/O.
- It's mirrored because it's easy


Nothingness

Platinum Member
Jul 3, 2013
2,353
699
136
It looks like four, but each of the four are mirror image layouts, so it does look very much like it could be eight.

In my (admittedly highly amateur) experience of examining die photos, that sort of mirroring is common for pairing I/O blocks. I'm sure there's a reason why they are so often laid out like that, but I don't know what that reason is (probably something you have to be an EE to fully understand like parasitic capacitance)
I considered that option but dismissed it because between the two fully visible supposed pairs there's logic that looks similar and is not symmetric. And this doesn't look like an artifact, because both visible blocks look the same. But I'm certainly not an expert even not an amateur, so I'm probable wrong :)

EDIT: This claims 4 display engines as I guessed:

  • Like
Reactions: Tlh97 and Mopetar

FlameTail

Golden Member
Dec 15, 2021
1,644
835
106
Hold on,

What about the internal display? The screen of the Macbook itself?

I considered that option but dismissed it because between the two fully visible supposed pairs there's logic that looks similar and is not symmetric. And this doesn't look like an artifact, because both visible blocks look the same. But I'm certainly not an expert even not an amateur, so I'm probable wrong :)

EDIT: This claims 4 display engines as I guessed:
4 Engines for 4 external monitors. What about the internal display?


SteinFG

Senior member
Dec 29, 2021
386
445
106
Hold on,

What about the internal display? The screen of the Macbook itself?


4 Engines for 4 external monitors. What about the internal display?

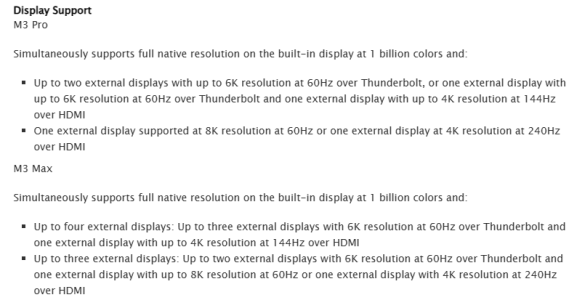

From apple's page
M3 Pro: Three external displays at most. [So M3 Pro has 4 display engines].
M3 Max: Seven external displays at most. [So M3 max has 8 display engines]
Their wording is weird, so I'm not sure exactly what they mean, but this is my interpretation. Maybe I'm completely wrong.


edit:
M3: One external display at most. [So M3 has at least 2 display engines].
M3 Pro: Two external displays at most. [So M3 Pro has at least 3 display engines].
M3 Max: Four external displays at most. [So M3 max has at least 5 display engines]

Last edited:
  • Like
Reactions: Nothingness

FlameTail

Golden Member
Dec 15, 2021
1,644
835
106
View attachment 90199
From apple's page
M3 Pro: Three external displays at most. [So M3 Pro has 4 display engines].
M3 Max: Seven external displays at most. [So M3 max has 8 display engines]
Their wording is weird, so I'm not sure exactly what they mean, but this is my interpretation. Maybe I'm completely wrong.


edit:
M3: One external display at most. [So M3 has at least 2 display engines].
M3 Pro: Two external displays at most. [So M3 Pro has at least 3 display engines].
M3 Max: Four external displays at most. [So M3 max has at least 5 display engines

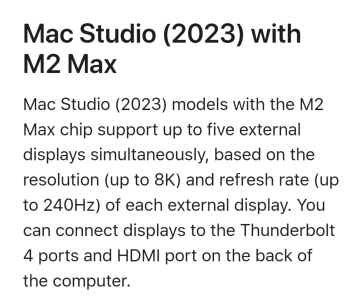

I am now supremely confused;

F922zLDWoAAkr4t (1).jpegF922zLDWYAA4X20.jpegF922zLFWEAA5iaO.jpeg


Nothingness

Platinum Member
Jul 3, 2013
2,353
699
136
View attachment 90199
From apple's page
M3 Pro: Three external displays at most. [So M3 Pro has 4 display engines].
M3 Max: Seven external displays at most. [So M3 max has 8 display engines]
Their wording is weird, so I'm not sure exactly what they mean, but this is my interpretation. Maybe I'm completely wrong.


edit:
M3: One external display at most. [So M3 has at least 2 display engines].
M3 Pro: Two external displays at most. [So M3 Pro has at least 3 display engines].
M3 Max: Four external displays at most. [So M3 max has at least 5 display engines]
Nice find, thanks :)
For the record, the link: https://support.apple.com/kb/SP898?locale=en_US


FlameTail

Golden Member
Dec 15, 2021
1,644
835
106
View attachment 90199
From apple's page
M3 Pro: Three external displays at most. [So M3 Pro has 4 display engines].
M3 Max: Seven external displays at most. [So M3 max has 8 display engines]
Their wording is weird, so I'm not sure exactly what they mean, but this is my interpretation. Maybe I'm completely wrong.


edit:
M3: One external display at most. [So M3 has at least 2 display engines].
M3 Pro: Two external displays at most. [So M3 Pro has at least 3 display engines].
M3 Max: Four external displays at most. [So M3 max has at least 5 display engines]
Oh we are such dummies.

The extra display engines are for defect redundancy!

As the chips become larger, the defects increase exponentially.

Apple added extra display engines so that they can still sell the chip if upto 3 engines are defected.

We know they don't bin display engines. Ie: both the full CPU/GPU version and the cut down CPU/GPU version have the same display support. So the only way for them to skirt around defects is this.

M3: 2 engines - all used

M3 Pro: 4 engines - 3 used, 1 for defects

M3 Max: 8 engines - 5 used, 3 for defects.
