Zen 2 APUs/"Renoir" discussion thread

Page 36 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

Insert_Nickname

Diamond Member
May 6, 2012
4,870
1,562
136
Hm, probably only 1WGP/2CU RDNA2 iGPU for Mendocino APU.
No public access to that tweet. If that's the case I'm expecting the same iGPU block to be used on the Raphael IOD as well.
Seems a bit stringy, but OK for a non-gaming focused device. So long as the full media engine is there it is fine for an Atom competitor.

I does seem a likely reuse of Raphaels IGP. Or perhaps the other way round. Same process after all.

Because there's a bunch of stuff they decided not to scale down. Display and media engines, that sort of thing.
IO doesn't scale well? It is still a SOC.
Probably can't scale. I/O, display engine, media engine and such will be the same size whether you have 128 or 512 shader processors. You could see it back with Caicos. It was barely larger then Cedar despite having twice the shaders onboard. (59 vs 67mm2 80 vs 160SP)


maddie

Diamond Member
Jul 18, 2010
4,443
4,078
136
Seems a bit stringy, but OK for a non-gaming focused device. So long as the full media engine is there it is fine for an Atom competitor.

I does seem a likely reuse of Raphaels IGP. Or perhaps the other way round. Same process after all.




Probably can't scale. I/O, display engine, media engine and such will be the same size whether you have 128 or 512 shader processors. You could see it back with Caicos. It was barely larger then Cedar despite having twice the shaders onboard. (59 vs 67mm2 80 vs 160SP)
Always use the fixed overhead analogy for non-tech people. Works rather well.


jpiniero

Lifer
Oct 1, 2010
12,858
4,143
136
It also depends of what we understand for "single/dual channel" it would be better to talk of how many bits instead. With 2 CUs it is likely to be 64 bits "dual channel". Also, it may be 8GB/32bit. 16GB/64 bits.

This looks like AMD answer to ADL-N
Sounds like the package is 64-bit.


VirtualLarry

No Lifer
Aug 25, 2001
54,955
9,013
126
RDNA2 is not the big breakthrough in the iGPU space many people had hoped for. With this low amount of shaders I doubt it can beat even the slowest Tigerlake Celeron when it comes to graphics.
This is not their performance / gaming APU product.

Any IGP at all, is welcome on Zen4 CPUs, for ordinary desktop tasks. It will make it much easier for system integrators to sell Zen4 for business, if they don't have to include a dGPU.


uzzi38

Platinum Member
Oct 16, 2019
2,391
5,025
116
RDNA2 is not the big breakthrough in the iGPU space many people had hoped for. With this low amount of shaders I doubt it can beat even the slowest Tigerlake Celeron when it comes to graphics.
I love how you try and take every opportunity to talk down the entirety of RDNA2, even when it has absolutely nothing to do with what the "issue" here actually is. It makes for a great laugh every time.

  • Like
Reactions: Tlh97 and Kaluan

mikk

Diamond Member
May 15, 2012
3,716
1,583
136
This is not their performance / gaming APU product.

Any IGP at all, is welcome on Zen4 CPUs, for ordinary desktop tasks. It will make it much easier for system integrators to sell Zen4 for business, if they don't have to include a dGPU.
Even if it isn't their performance APU it doesn't mean they should sell the slowest possible crap. There is no excuse when even the cheapest Celeron Tigerlake have a faster graphics with 3x the amount of shaders. After all the hype from you this is what we get from RDNA2, no it's not the big breakthrough for low power devices you expected from this architecture.


uzzi38

Platinum Member
Oct 16, 2019
2,391
5,025
116
Even if it isn't their performance APU it doesn't mean they should sell the slowest possible crap. There is no excuse when even the cheapest Celeron Tigerlake have a faster graphics with 3x the amount of shaders. After all the hype from you this is what we get from RDNA2, no it's not the big breakthrough for low power devices you expected from this architecture.
Imagine unironically thinking that gaming performance matters for this portion of the market.

You know what matters here? That a system is responsive for day to day tasks, and has excellent battery life. Having slightly less rubbish (but still rubbish) graphics capabilities is frankly meaningless.


jpiniero

Lifer
Oct 1, 2010
12,858
4,143
136
Even if it isn't their performance APU it doesn't mean they should sell the slowest possible crap. There is no excuse when even the cheapest Celeron Tigerlake have a faster graphics with 3x the amount of shaders. After all the hype from you this is what we get from RDNA2, no it's not the big breakthrough for low power devices you expected from this architecture.
Core Celeron is so rare that it's not worth discussing. Even the Core Pentium is extremely hard to find. So the competitor is really the Atoms and the i3 115G4. If it ends up being fanless, mostly the Atoms.

Imagine unironically thinking that gaming performance matters for this portion of the market.
Exactly

  • Like
Reactions: Tlh97 and Kaluan

Panino Manino

Senior member
Jan 28, 2017
695
872
136

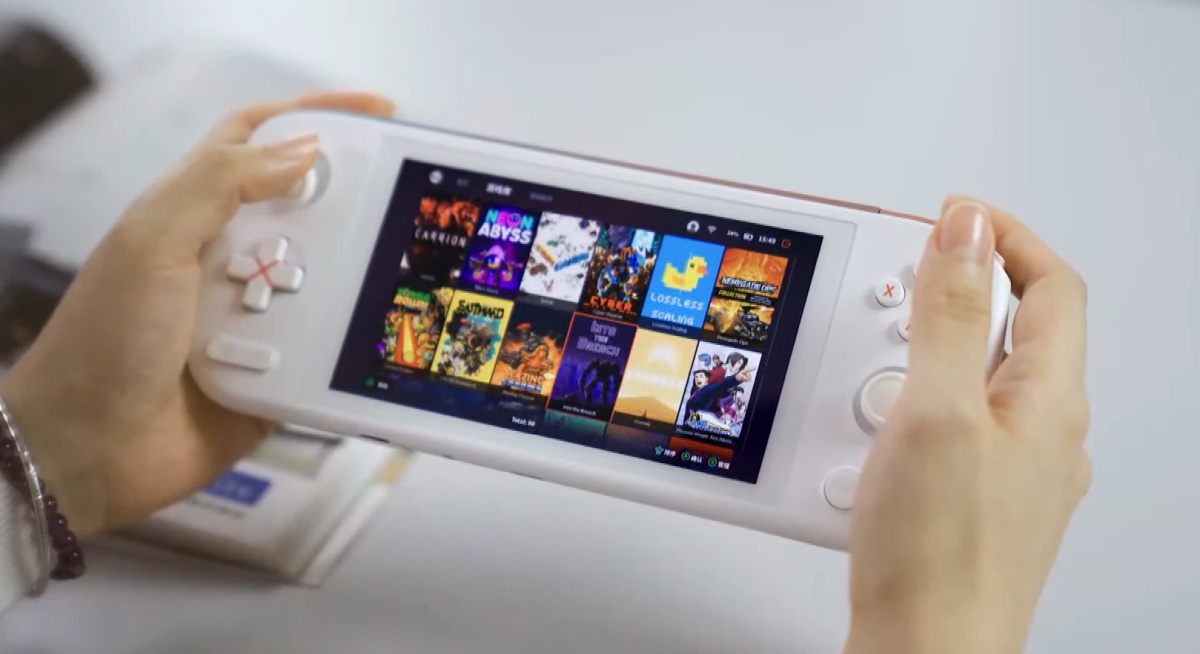

Looks like those who want to focus on Mendocino's (lack of?) gameplayability can do so on AYA's upcoming Neo Air Plus:
On a Chromebook people are missing the point, but yes, on a "gaming portable" it makes more sense. But it can also be justified if it's to play older and simpler games in low resolution, and emulation.


moinmoin

Diamond Member
Jun 1, 2017
4,192
6,279
136
  • Like
Reactions: lightmanek

gdansk

Golden Member
Feb 8, 2011
1,303
1,282
136
48 EU @ 800MHz on the Pentium 8500 is about 600gflops.
2 CU @ 1600MHz on Mendocino (van Gogh like clocks) would be about 400gflops. That would actually be less GFLOPs than the 4 Zen 2 cores in van Gogh.


But maybe AMD used 2 CU clocked high compared to van Gogh (2.4GHz?) to match their competition. Or maybe they don't care about matching their competition.


dark zero

Platinum Member
Jun 2, 2015
2,623
120
106
Something is off.
Only 2 CU?
Also, that Quad Core mentioned has HT?
Some questions that needs to be ansewred soon.


NostaSeronx

Diamond Member
Sep 18, 2011
3,571
1,118
136
I hope AMD doesn't contra-revenue this thing.

Geode LX -> Bobcat -> Jaguar -> Excavator, the general curve of buyers enthusiasm for such machines pretty much died off. After the abymasl miscalculation of EDU RV2/Dali/Pollock led to majority if not all contracts to move to Jasper Lake or Qualcomm's EDU.

There is Alder Lake-N(B-line Atom) and Meteor Lake-N(A-line Atom) for future Intel, there is ARMv9+SVE2 for future Qualcomm, there is supposed to be a viable RISC-V Laptop Proof of Concept that is to be sold from someone.

AMD still doesn't get low-cost/low-end.

GlobalFoundries for example is about to do thee announcement by end of the year:
12FDX w/ +50% perf over 22FDX.
3DIC Logic-on-Logic, RF-on-Logic, Misc-on-logic, etc.

If you are going to do something new at least be progressive and not regressive. Cut-down Zen2/RDNA2 processors come on...


Last edited:

NostaSeronx

Diamond Member
Sep 18, 2011
3,571
1,118
136
can you elaborate on that?
AMD's Raven2 turned out more expensive than Stoney/Carrizo-L.
Raven2/Dali => ~$70 for full part on FP5
Pollock is a severe harvest => ~$50 for that part on FT5.
Single-channel 1600 MHz DDR4/Very slow iGPU/CPU, etc

At the time of each of those launches, price+shipping => Carrizo-L/Stoney was ~$30 and had the backing of 70+k wafer per month at Dresden.

107 mm2 Carrizo-L <-- High volume Fab1
125 mm2 Stoney <-- High volume Fab1
150 mm2 RV2/DAL/POL <-- Low volume Fab8, AMD capped it to 200,000 processors a month. Where STN/CZL didn't have such caps.

So EDU contracts for CZL/STN were capable of expansion, while RV2/DAL/POL weren't capable of expansion.

Pay more, get less products to offset increased price => Cancelling EDU Windows/Chromebook for all Raven2/Dali/Pollock products. With majority(if not all) of the products going for Intel or Qualcomm instead.

The outright halting of GF28A killed off the EDU contracts, thus ending AMD's venture into low-cost education, till this product. Which I suspect given all the dies at 7nm/6nm might also have capped supply.

Last edited:
  • Like
Reactions: Zepp

LightningZ71

Golden Member
Mar 10, 2017
1,538
1,766
136
That's just... bad. I get that it's a minimum cost product, and that the target market is just going for the cheapest thing available, but, with just 2CUs equivalent, it's going to be next to useless for anything at all that requires any sort of video acceleration. At the very lowest levels of education, yes, it's just showing essentially youtube videos and 2D animations, but, these things also target the high school market where kids are seeing graphic design classes (one of my kids just finished a year in one) with various programs that can take advantage of an iGPU. Their low end atom based celerons were painful to use. Even with just half of Van Gogh at reasonable clocks, it would have been... something. I'm just disappointed with how cost reduced this is.

I get it. It's cheap. It didn't have to be THIS bad though.

  • Like
Reactions: gdansk

moinmoin

Diamond Member
Jun 1, 2017
4,192
6,279
136
Just a reminder that Mendocino is the successor to Pollock, which itself is Raven2/Dali with one memory channel disabled.

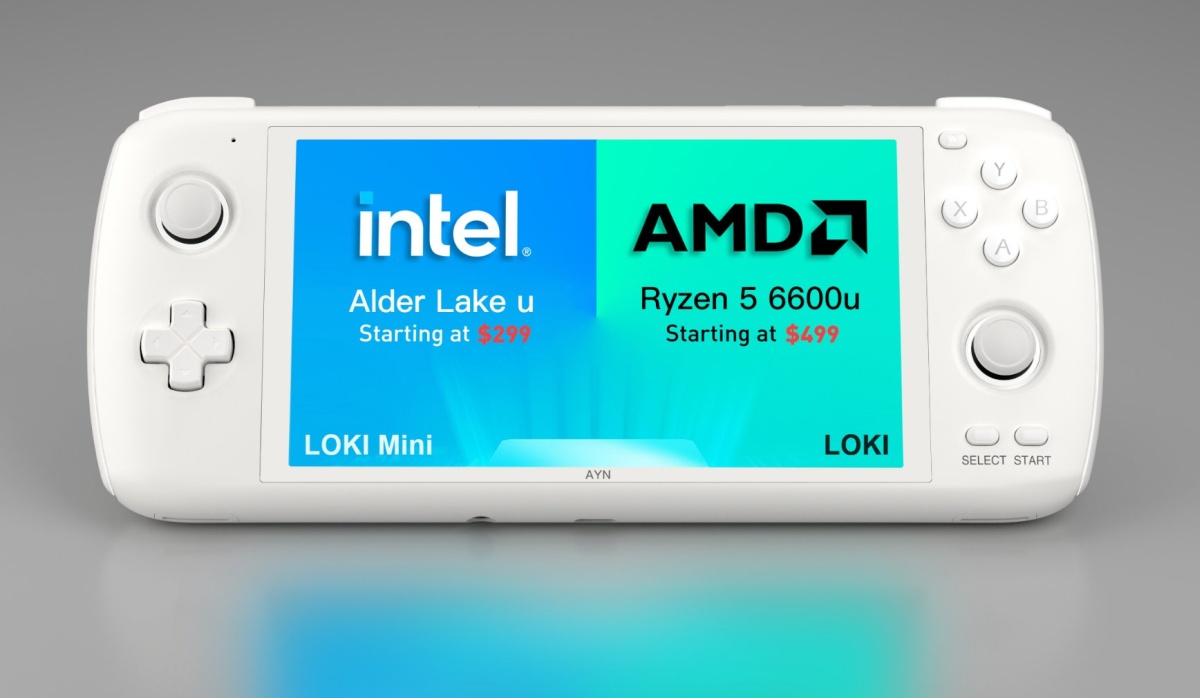

So it's going from 2 Zen+ cores and 3 Vega CUs to 4 Zen 2 cores and 2 RDNA2 CUs, both with one memory channel. So it's supposed to be bottom of the barrel stuff. On the CPU side it's still a clear upgrade. On the media side AV1 is supported so fully up to date with any iGPU AMD currently offers. Whether the GPU side is stagnating we'll see once it's out (personally hope somebody does an extensive direct Intel/AMD comparison using AYN's Loki Mini).

  • Like
Reactions: Tlh97 and Zepp

Shivansps

Diamond Member
Sep 11, 2013
3,657
1,331
136
This has "Kabini" written all over it. The CPU is Zen2, but it is crippled, the memory will be crippled for sure as these systems will probably run 8GB 32bit lpddr5. The iGPU is not only 2CU, it also says "128kb on die cache" so probably it dosent have L2 either.

Ehm, this is better than ADL-N in what way exactly? I get this is probably the Raven2 replacement intended to target ATOMs but come on AMD, you were supposed to destroy them not join them!


LightningZ71

Golden Member
Mar 10, 2017
1,538
1,766
136
I suspect that the CPU performance will fall somewhere between quad and octacore Goldmont ADL-N. I just don't know about the GPU side. I don't think it's a step backwards from 3CU Vega at modest clocks. 64 bit LPDDR5 that's in the 5XXX range should give you more performance in every way than the old straight DDR4 single channel implementations of the previous generation. It's just... meh. I'd rather look for Intel i3-1115g4 laptops instead at this point. They move for $275 at retail and can go down to below $250 in bulk for passable systems. The G4 config has non-trivial graphics performance, dual core 6MB L3 Tiger Lake is going to be just as usable as a Zen2 4MB L3 quad in MOST (but certainly not all), and, save for AV1, Intel's media block is probably better. This had better be a staggeringly cheap product...
