Wouldn't 980 Ti SLI be bottlenecked by PCIE 3.0 x8 on 115x?

Magic Carpet

Diamond Member
Oct 2, 2011
3,477
233
106


I know the regular 980 was, at least in this game. And 980 Ti is even more powerful. So what happens when you game with two of these in SLI on a mainstream 115x system with limited pci-e b/w (8 lanes for each card)? Surprised nobody has come up with a comparable test yet. Discuss!

Hint: suing Intel isn't an option :)

Last edited:

RussianSensation

Elite Member
Sep 5, 2003
19,458
765
126


I know the regular 980 was, at least in this game. And 980 Ti is even more powerful. So what happens when you game with two of these in SLI on a mainstream 115x system with limited pci-e b/w (8 lanes for each card)? Surprised nobody has come up with a comparable test yet. Discuss!

Hint: suing Intel isn't an option :)

Intel? Intel provides sufficient lanes on their X99 motherboards or even Z170. The bottlenecking will be almost non-existent.





If you have 980Ti SLI, and you are running 1080P/1200P, you will be CPU limited MUCH more than PCIe limited. If you are running 1440P/4K, you will be GPU limited MUCH more than PCIe limited.

Usually when people switch platforms from an older gen i5/i7, they start assuming they were PCIe bottlenecked when the huge performance boost they are seeing is coming from a higher IPC and much faster CPU architecture, not PCIe lanes. Overall, 3-4% isn't a bottleneck. If you want to get math picky, an upgrade from i7 4790K to 6700K OC would provide a greater boost in minimum fps than moving from PCIe 2.0 x8/x8 SLI to 3.0 x16/x16. Micro-stuttering, SLI/scaling profiles, and enough CPU speed at lower resolutions or enough GPU horsepower at higher resolutions is the big factor.

Last edited:

Techhog

Platinum Member
Sep 11, 2013
2,834
2
26
Ryse is the exception that proves the rule. It stands out specifically because no other game is bottlenecked like that.


moonbogg

Lifer
Jan 8, 2011
10,637
3,095
136
I actually tested this (sort of) when I realized my board was running at PCI x8 3.0 speeds. I fixed it to run at x16 and retested some stuff and...and...I don't even remember what happened. Nothing basically. Or maybe something happened, but I would have to go back and look. It wasn't a big deal whatever it was.
Actually my 3D mark score went up but I forgot by how much. Oh hell this post was lame. Sorry.

Last edited:

RussianSensation

Elite Member
Sep 5, 2003
19,458
765
126

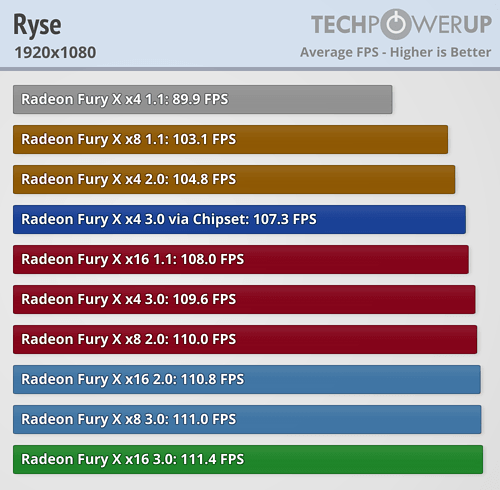

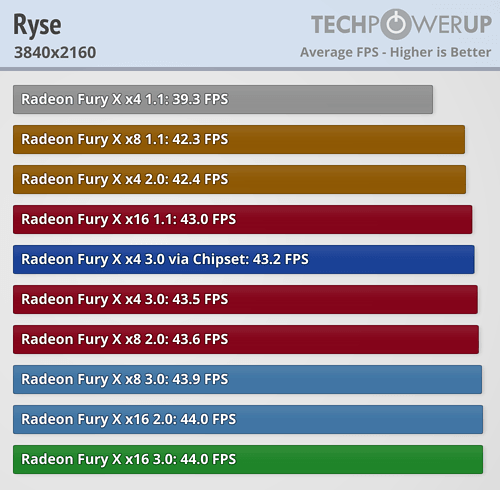

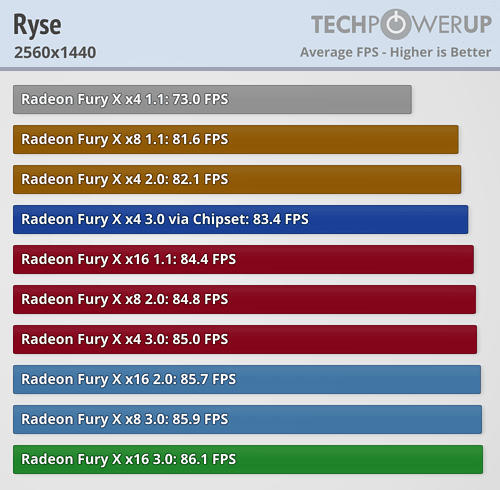

Ryse is the exception that proves the rule. It stands out specifically because no other game is bottlenecked like that.

Maybe in his previous testing it was a motherboard/chipset driver issue. Ryse doesn't change anything.





At least on the Fury X, Ryse is CPU and heavily GPU limited, not PCIe 2.0 x8/x8 limited. Another possibility that I will admit I didn't consider earlier in this thread is that NV's Maxwell 980/980Ti could be more PCIe limited in some games that AMD's Fiji products do not suffer from. Overall, I would say the primary upgrade from PCIe 2.0 x8/x8 platforms is the faster CPU architecture, support for NVMe M.2 PCIe drives, and the option of going 6-8 (or possibly 10 cores) with X99.

Last edited:

Magic Carpet

Diamond Member
Oct 2, 2011
3,477
233
106
Appreciate all the replies, thanks. Yeah, it looks like we aren't there yet. TPU is planning to do a similar test with Maxwell SKUs in SLI, pretty soon. Will have more information.


RussianSensation

Elite Member
Sep 5, 2003
19,458
765
126
Appreciate all the replies, thanks. Yeah, it looks like we aren't there yet. TPU is planning to do a similar test with Maxwell SKUs in SLI, pretty soon. Will have more information.

:thumbsup: Ya that would be very helpful because it's possible that Fury X and 980Ti may respond differently to PCIe bandwidth bottlenecks. Having said that, are you really considering going 980Ti SLI at this point? I would have imagined that a single 980Ti OC is plenty fast for 1440P and below unless you are on a 100-144hz 1440P screen?
