Where do I get a RDRAM compatible power supply?

markjs

Senior member
Sep 4, 2000
926
29
91
I have a friend I built a machine for a LOOOONG time ago and it is RDRAM based. It has a weird connector on it I have no idea what it's called or where to get a replacement one but it is a situation where he has no money and neither do I but I really want to help the guy out as cheaply as possible. This is the connector:



Thanks in advance!


markjs

Senior member
Sep 4, 2000
926
29
91
Well this is a 20 pin ATX board but it has that thing and it was connected to the motherboard. I assumed it was a necessary connector for the power hungry memory?


PottedMeat

Lifer
Apr 17, 2002
12,363
475
126
got any info on the existing power supply? make & model? and the motherboard make & model too?


BoomerD

No Lifer
Feb 26, 2006
65,711
14,107
146
IIRC, that's a aux. power connector, ATX 12V v.1...long since replaced by the 2X2 and 2X4 connectors.




The current rating of the main Molex connector is 6A per pin. In early 2000's, some motherboards with 3.3V >18A and 5V >24A (mainly dual CPU AMD systems) used an auxiliary 6-pin power cable. It was removed from ATX12V spec v2.0 in 2003 because extra pins were added to the main connector.


I'll be very surprised if you find a current PSU with that connector. You MIGHT have some luck asking for help over at Jonnyguru.com...who knows...one of the PSU gods over there might have one collecting dust in a closet...


Wangstang

Member
Oct 30, 2005
190
0
0
I ordered two of these today for a pair of legacy builds:
http://www.cwc-group.com/20atxpoextca.html

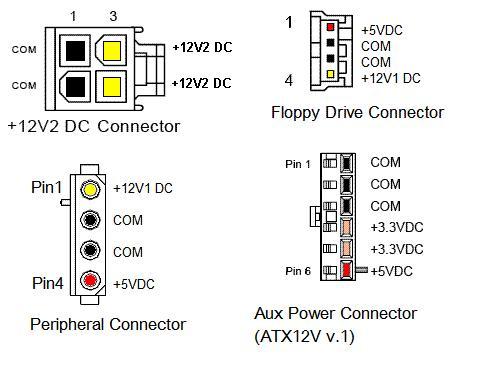

In theory, you could pull the old 6 plug connector from the old power supply, then plug the +5vdc and one of the +3.3vdc from the spare 4 pins on a more modern 24 pin main connector. Tap one other +3.3vdc line or send both to the extra 3.3 from the 24 pin and then tap you three common grounds into the various ground pins. Diagram is here
