I think that I worded my earlier post, badly.

In many senses, I know a lot about inductors, sorry.

I meant that more complicated concepts, such as talking about the changes in hysteresis of the permeability of a coil between different core materials vs temperate, and magnetic strengths, and saturating the core. Does indeed confuse me. (I may have got the terminology wrong here, as it partly confuses me).

But I'm fine with basic Inductor Physics.

Saturating a core of an inductor is easy to understand.

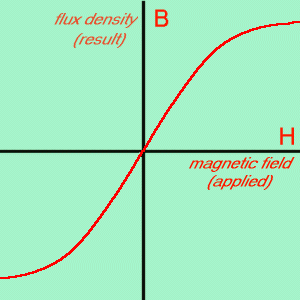

Please look up the BH curve.

In essence, it is like filling a bucket of water. As long as the bucket is not full, you can keep adding water. But when the bucket is full, the bucket will spill over. With inductors with cores, you can fill the core with magnetic flux, you do that by letting a current flow through the inductor. As long as the core is not saturated, the current will continue to rise just (looks like a ramp) and be opposed by the inductor + core combination. As soon as the core of the inductor is saturated, meaning it is storing all the magnetic flux it can handle, there is nothing to oppose the change in current anymore. The inductor now turns into a simple wire letting a current flow determined by the ohmic resistance of the wire.
It is because these magnetic domains in the core oppose the magnetic field change. When all these domains in the core are aligned with the magnetic field created by the current flowing through the inductor, the core is filled. Saturated, so to say.
