show off your home network racks/closets

[DarkManX]

i havent seen a network rack/closet photo thread on here yet, so post pics of ur setup.



[Goosemaster]

My home setup doesn't deserve pics.


wgrt54GS using hyperwrt 2.1b1 @63mW
2 wireless USB clients (1 using speedbooster wusb54gs and one using just a regular wusb54g)
1 ethernet client (me)



[vshah]

whoops Double post



[vshah]

http://www.4ner.net/stuff/network.JPG



[YOyoYOhowsDAjello]

Originally posted by: vshah

http://www.4ner.net/stuff/network.JPG

lol, looks pretty much like ours.

Router upstairs connected to two desktop computers, one wire runs down our laundry chute to a switch down on the first floor where three other computers connect to it.



[sleuth bandit]

It cosists of a cable modem and a router.



[dartworth]

Originally posted by: vshah

http://www.4ner.net/stuff/network.JPG

MY EYES.............AAAAAAAAAAAAAAHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH



[DarkManX]

no one here has any kind of structured wiring setup?



[swtethan]

mines worse, if youw ant pics, yeah.. jus ask



[kyparrish]

I'd love to see some pics of this. One of my future projects is to have a closet full of crunchers, and access them via Remote Desktop.



[DarkManX]

yea im gettin ready to wire my new house, so im trying to figure out what kinda setup to make



[swtethan]

use the master bedroom's closet place a huge vent hole in the celing with a fan



[Engineer]

This used to be it (when I was running SETI very heavily). 17 PC's networked together. VNC controlled!

And yes, this was at home.

Electricity bill was about $100 per month extra because of the PC's alone!



[mchammer]

Originally posted by: YOyoYOhowsDAjello

Originally posted by: vshah

http://www.4ner.net/stuff/network.JPG

lol, looks pretty much like ours.

Router upstairs connected to two desktop computers, one wire runs down our laundry chute to a switch down on the first floor where three other computers connect to it.

:thumbsup: Wired>*



[suse920]

Originally posted by: Engineer
This used to be it (when I was running SETI very heavily). 17 PC's networked together. VNC controlled!

And yes, this was at home.

Electricity bill was about $100 per month extra because of the PC's alone!

thats pretty cool



[YOyoYOhowsDAjello]

Originally posted by: mchammer

Originally posted by: YOyoYOhowsDAjello

Originally posted by: vshah

http://www.4ner.net/stuff/network.JPG

lol, looks pretty much like ours.

Router upstairs connected to two desktop computers, one wire runs down our laundry chute to a switch down on the first floor where three other computers connect to it.

:thumbsup: Wired>*

Yeah, we have a wireless g router and some USB adapters that I got for $8 each piece during the summer because we didn't know what the situation would be. Once we saw the laundry chute method would work, everything is real wires



[everman]

I guess nobody here has a nice rack.



[Hav0k99]

Originally posted by: everman
I guess nobody here has a nice rack.

I'm sure there are some here that have a nice rack



[jadinolf]

Originally posted by: vshah

http://www.4ner.net/stuff/network.JPG

Wonderful!



[sharkeeper]

oops wrong thread!



[Trygve]

These are a little dated, because I've upgraded some of the equipment since taking these pictures, but

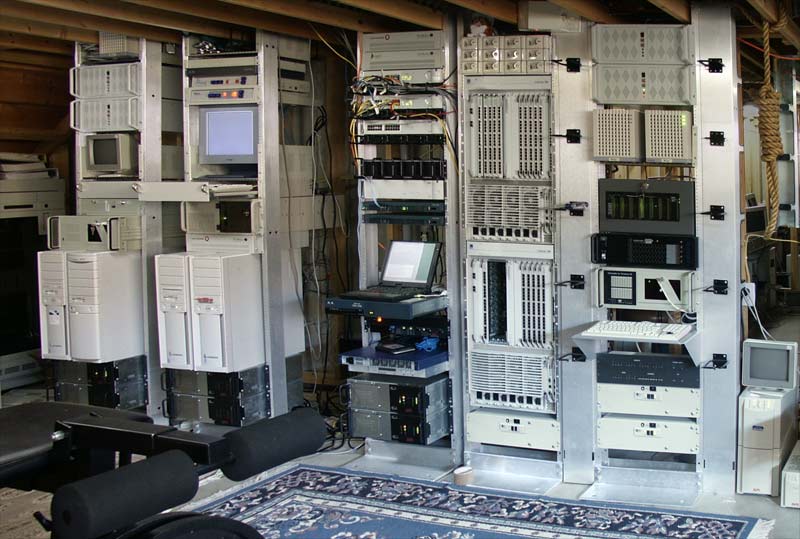

here is one of the three walls of racks; it has the main switches and routers for the "external" network, the news servers, mail servers, and web servers.

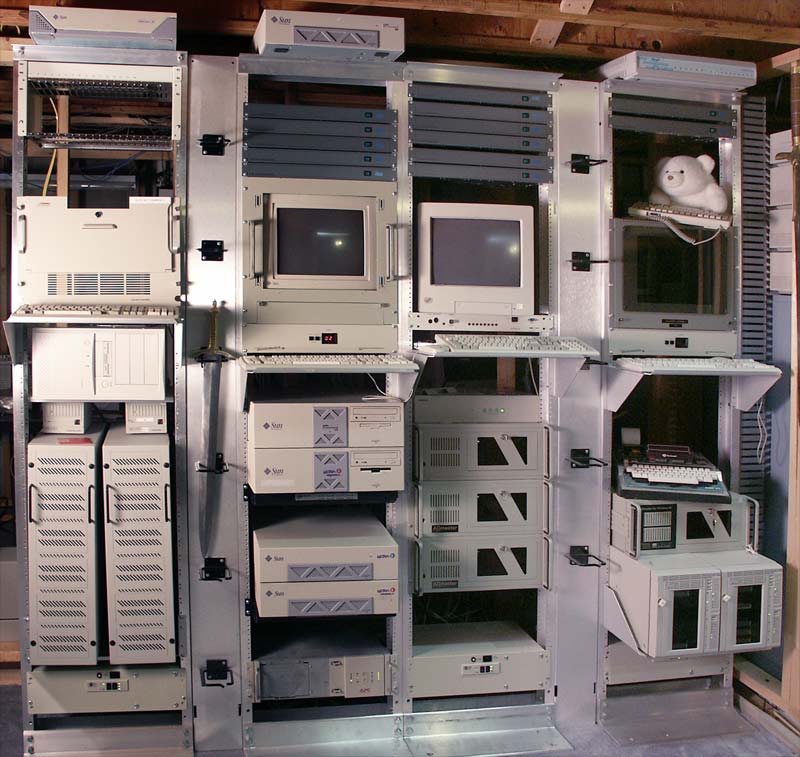

And here is the wall with the user login machines, the NFS server, the "backup" server running the DLT libraries, and two of the DNS machines.

This picture is about five years old, so I've replaced a lot of the machines in these racks since.



[suse920]

Originally posted by: Trygve
These are a little dated, because I've upgraded some of the equipment since taking these pictures, but
here is one of the three walls of racks; it has the main switches and routers for the "external" network, the news servers, mail servers, and web servers.
And here is the wall with the user login machines, the NFS server, the "backup" server running the DLT libraries, and two of the DNS machines.

This picture is about five years old, so I've replaced a lot of the machines in these racks since.

the first two bring me to the sitemap, the third looks cool :thumbsup:

EDIT: now they work



[nsafreak]

Jeezus why am I not surprised that Trygve has a small NOC in his house? Here's mine, nothing special just a DNS/SMB/Jinzora box along with a local mirror box.



[Trygve]

Originally posted by: suse920

Originally posted by: Trygve
These are a little dated, because I've upgraded some of the equipment since taking these pictures, but
here is one of the three walls of racks; it has the main switches and routers for the "external" network, the news servers, mail servers, and web servers.
And here is the wall with the user login machines, the NFS server, the "backup" server running the DLT libraries, and two of the DNS machines.

This picture is about five years old, so I've replaced a lot of the machines in these racks since.

the first two bring me to the sitemap, the third looks cool :thumbsup:

Ooops! I guess I needed to upload those pictures *onto* the servers.



[bamacre]

Internet coming in through Zexel cable modem/router via time warner work@home BC connection wired to linksys router. Gaming PC, HTPC, and file server all networked. Total HD space = 1.1 TB's, (820GB in file server - duron 900mhz win2k)

It's not much, but I am pround of it.
