P6X58D Premium - RealTemp Drops Overclock CPU Ratio to 24 from 25 when activated?

[sparkuss]

Hello All,

Decided to overclock my I7-960 to start playing Skyrim and I'm getting a weird behavior when trying to use RealTemp to monitor stress testing.

I can get straight into 4Ghz Win7 Ultimate no problems and CPUZ shows good overclock at 160x25. All good.

But as soon as I activate RealTemp, CPUZ shows the ratio dropped to 24 and the overclock drops back to 3.8Ghz.

I already ran some Prime 95 on the initial 3.8Ghz and it was OK temperatures wise before I tried to move up to 4Ghz.

Hoping for any clues on this behavior. Is this a known glitch on either RealTemp or the P6X58D Premium? Or RealTemp in conjunction with CPUZ. It's like RealTemp is hitting the MB to read and corrupting/changing that ratio from BIOS.

Here's all the Specs if needed:

Ai Overclock Tuner.....................[Manual]
CPU Ratio Setting......................[25.0]
Intel(r) SpeedStep(tm) Tech............[Disabled]
Xtreme Phase Full Power Mode...........[Enabled]
BCLK Frequency.........................[160]
PCIE Frequency.........................[100]
DRAM Frequency.........................[DDR3-1604MHz]
UCLK Frequency.........................[3207MHz]
QPI Link Data Rate.....................[Auto]

CPU Voltage Control....................[Manual]
CPU Voltage............................[1.21250]
CPU PLL Voltage........................[1.80]
QPI/DRAM Core Voltage..................[1.20625]
IOH Voltage............................[1.14]
IOH PCIE Voltage.......................[1.50]
ICH Voltage............................[1.20]
ICH PCIE Voltage.......................[1.50]
DRAM Bus Voltage.......................[1.60]
DRAM DATA REF Voltage on CHA...........[Auto]
DRAM CTRL REF Voltage on CHA...........[Auto]
DRAM DATA REF Voltage on CHB...........[Auto]
DRAM CTRL REF Voltage on CHB...........[Auto]
DRAM DATA REF Voltage on CHC...........[Auto]
DRAM CTRL REF Voltage on CHC...........[Auto]

Load-Line Calibration..................[Enabled]
CPU Differential Amplitude.............[800mV]
CPU Clock Skew.........................[Delay 300ps]
CPU Spread Spectrum....................[Disabled]
IOH Clock Skew.........................[Auto]
PCIE Spread Spectrum...................[Disabled]

C1E Support............................[Disabled]
Hardware Prefetcher....................[Enabled]
Adjacent Cache Line Prefetch...........[Enabled]
Intel(r) Virtualization Tech...........[Disabled]
CPU TM Function........................[Enabled]
Execute Disable Bit....................[Enabled]
Intel(r) HT Technology.................[Disabled]
Active Processor Cores.................[All]
A20M...................................[Disabled]
Intel(r) SpeedStep(tm) Tech............[Disabled]
Intel(r) C-STATE Tech..................[Disabled]

Plug and Play O/S........................[NO]



DRAM Timing 1st All Auto 7-8-7-24-5-128-13-8-24-0

Here's the initial CPUZ at Win7 Boot

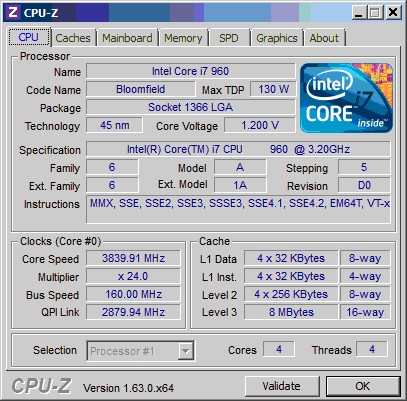

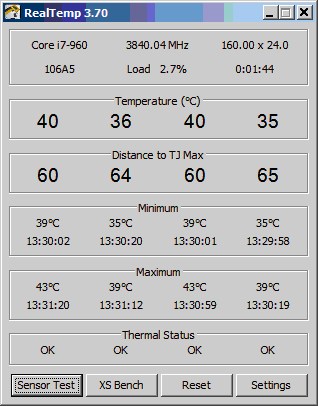

Here's CPUZ and RealTemp as soon as I activate RealTemp in WIN7:



[sparkuss]

Got an answer from RealTemp.

There is a switch in it for Disable Turbo. That will allow Realtemp to turn it off and that forces my downclock.
