NZXT Phantom 820

Jun 29, 2012
87
0
0

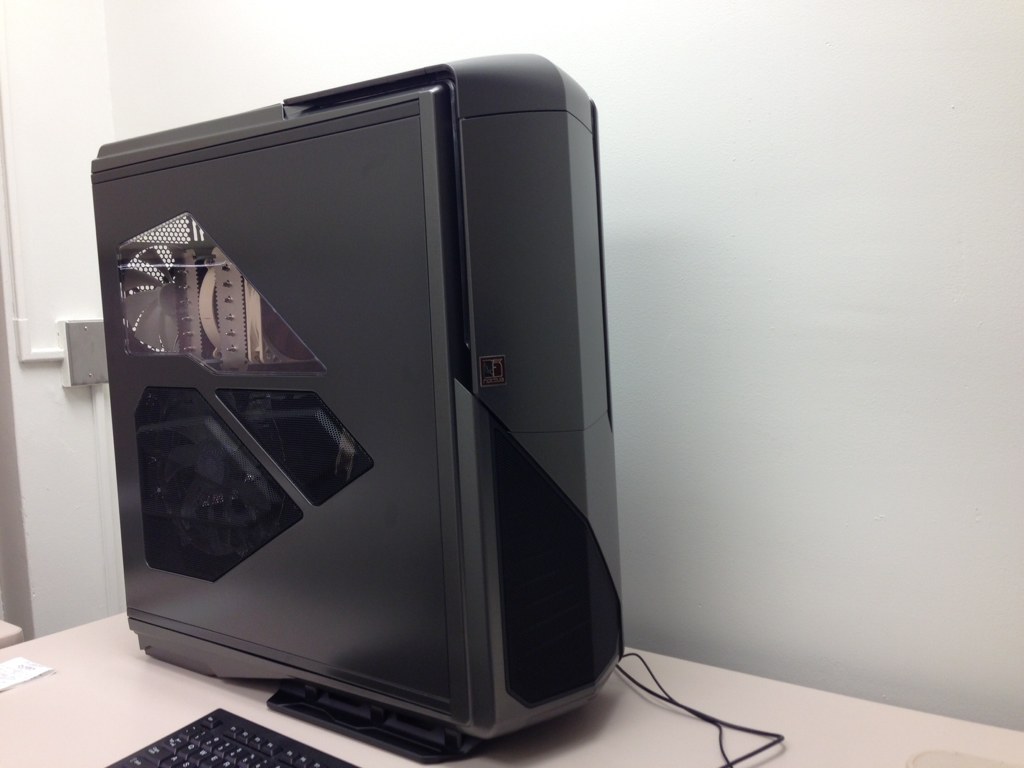

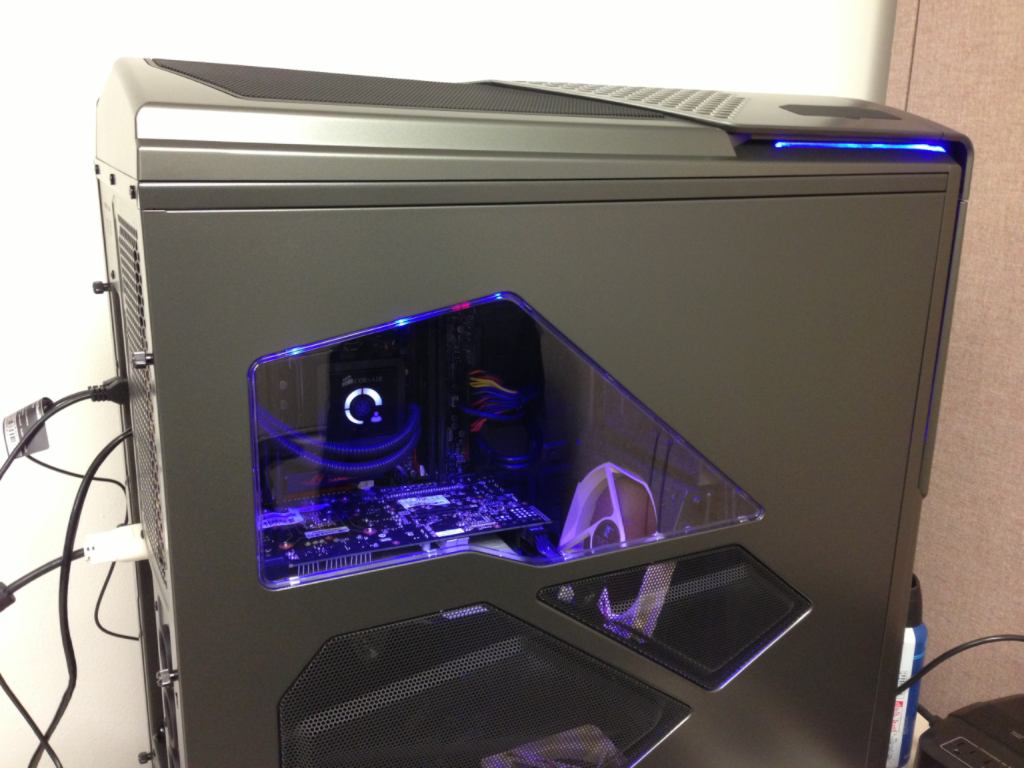

Just a quick pic of the new NZXT Phantom 820. The best case I've had the pleasure to work in...







N4g4rok

Senior member
Sep 21, 2011
285
0
0

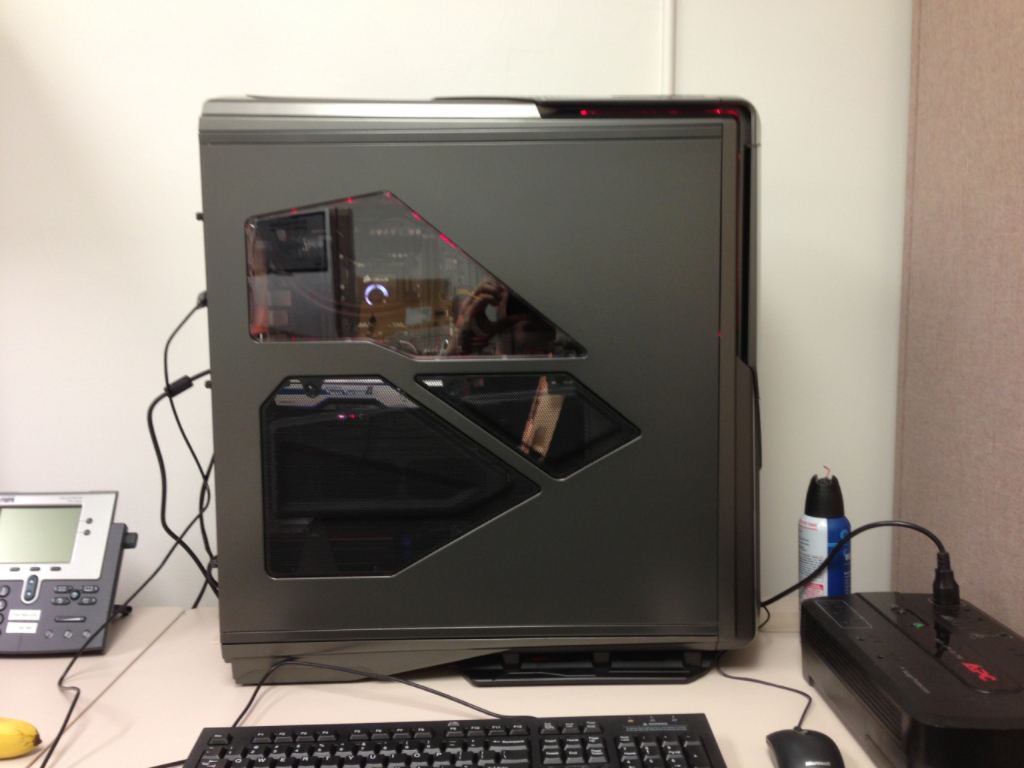

I've got the same UPS unit. I did not realize that case was quite that large. How wide is it?

Jun 29, 2012
87
0
0
It's at work at the moment, but its at lease 12" wide, if not more. Also, I swapped the H100 for a NH-D14. At 4.2 on my 3930k at 1.285 vcore my temps dropped by 6 degrees.


Last edited:

N4g4rok

Senior member
Sep 21, 2011
285
0
0
I'm guessing that's a push/pull setup going on with the air cooler.

I didn't expect the NH-D14 to work better, but if that's the case, i probably won't use the H100 like i had originally planned.


lindasuny

Banned
Feb 28, 2013
17
0
0
The Phantom 820 is engineered to chill even the most demanding systems, equipped with triple 200mm and a 140mm fans. Maximize the potential by mounting up to nine fans to achieve unrivalled airflow in your chassis. Push the envelope and utilize liquid cooling systems that feature a push-pull configuration with top 280/360mm and bottom 240/280mm radiators up to 60mm thickness for unmatched performance.
Powerful!!

Jun 29, 2012
87
0
0
I'm guessing that's a push/pull setup going on with the air cooler.

I didn't expect the NH-D14 to work better, but if that's the case, i probably won't use the H100 like i had originally planned.

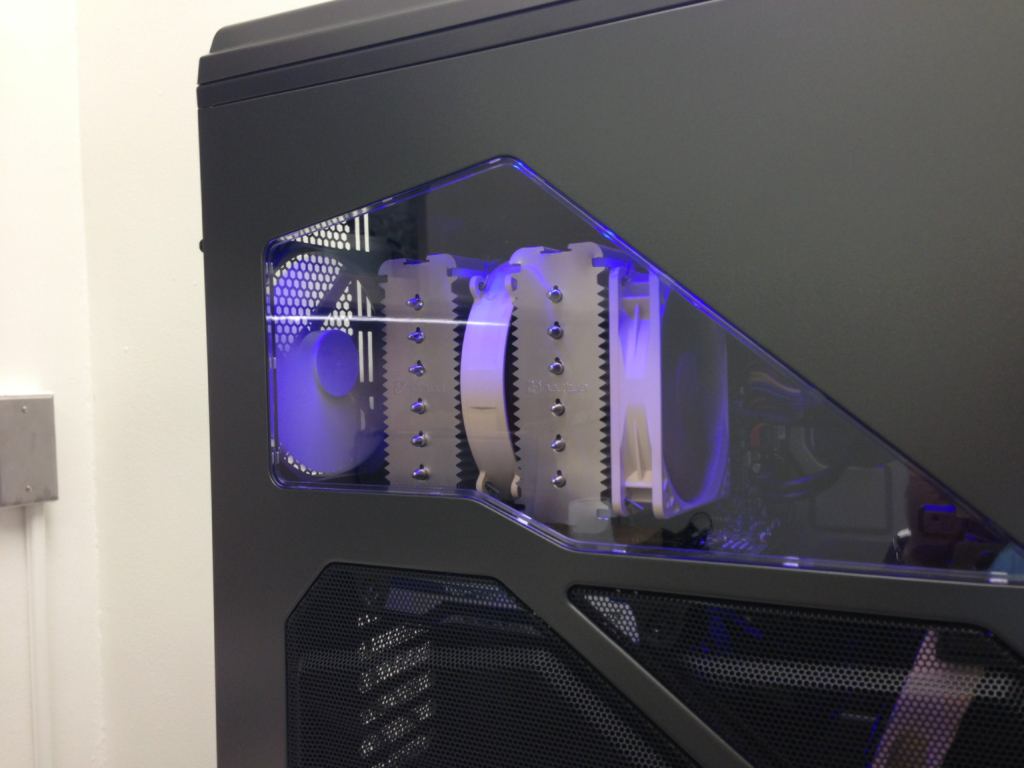

Correct. Push/Pull towards the back of the case with a 140mm fan exhausting. I have 2 200mm up top exhausting, 1 200mm front intake, 2 120mm Noctuas at the bottom of the case as intake, 1 120mm internal on the swing arm pointed at the GPU/CPU area, and lastly a CoolerMaster 200mm Megaflow on the side panel... It's an awesome setup. I'm running my 3930k at 4.2 and it doesn't hit 70c running Intel Burn at Maximum. I have a GTX 670(soon to be Titan) with an Accelero Twin Turbo cooler, that doesn't break 62c and its overclocked as well. Took some more shots today...
