Name that FM Antenna connector

Discussion in 'Audio/Video & Home Theater' started by Googer, Jan 31, 2013.

  1. Googer

    Googer Lifer

    Joined:
    Nov 11, 2004
    Messages:
    12,552
    Likes Received:
    1
    75 Ohm Unbalanced. It is not the screw type connector. The Owners Manual Lists a special adapter which is no longer available from Yamaha which allows you to connect a threaded screw type coax cable.

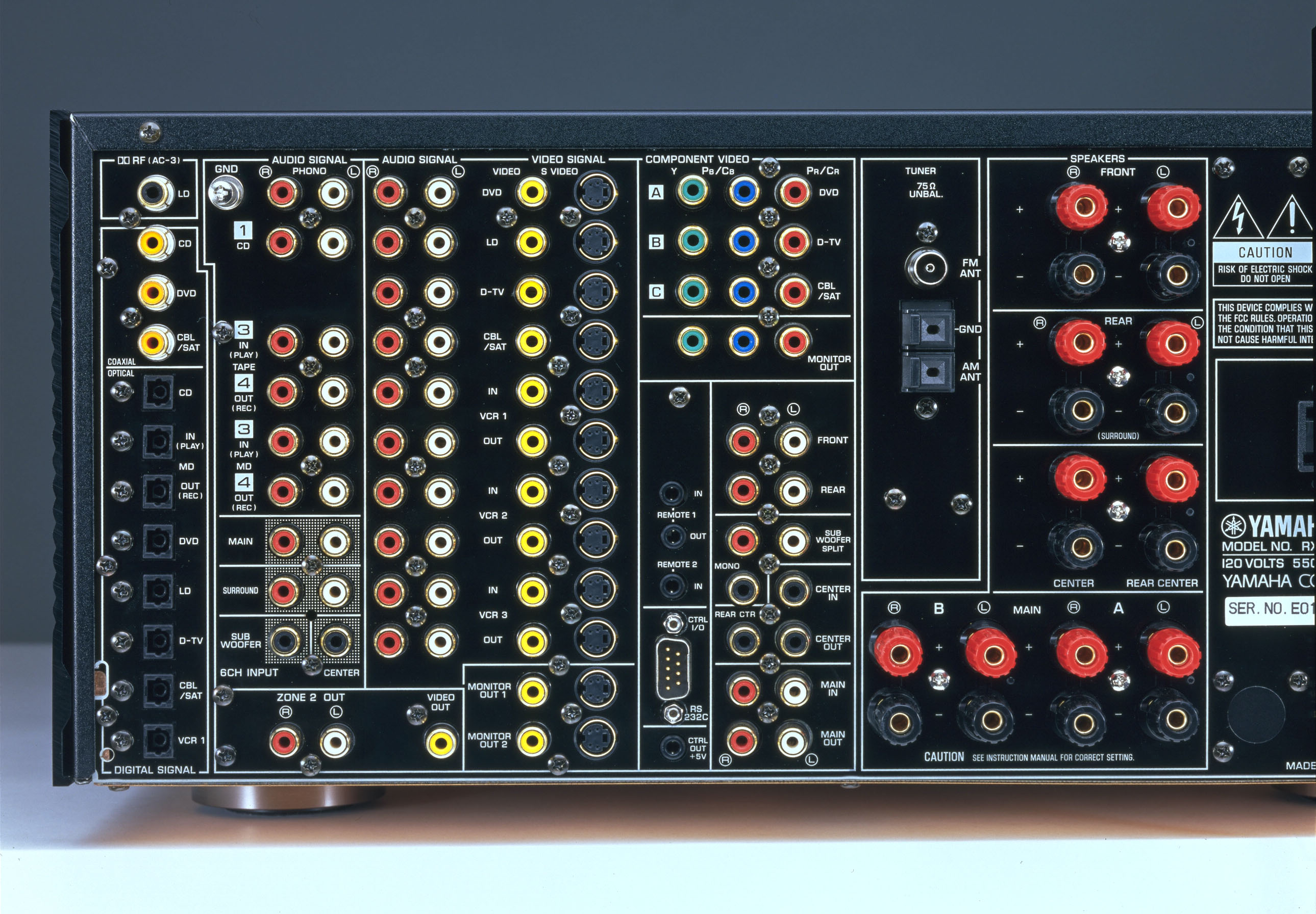

    This is a non threaded 75Ω Antenna Connection, what is it called?

    "TUNER" "75Ω UNBAL" "FM ANT"
    [​IMG]

  2. Loading...

    Similar Threads - Antenna connector Forum Date
    Do I need an LTE filter on an antenna? Audio/Video & Home Theater Sep 30, 2016
    Do those flat digital antennas that supposedly require no adjusting work?ork Audio/Video & Home Theater Jan 5, 2016
    Antenna and DVR? Audio/Video & Home Theater Sep 23, 2015
    OTA antenna info Audio/Video & Home Theater Jul 2, 2015
    problems with Switch and Swivel connector Audio/Video & Home Theater Dec 15, 2013

  3. wirednuts

    wirednuts Diamond Member

    Joined:
    Jan 26, 2007
    Messages:
    7,121
    Likes Received:
    1
    appears to be a bnc connector. readily available everywhere. or just stick the wires in the hole

  4. Soundmanred

    Soundmanred Lifer

    Joined:
    Oct 26, 2006
    Messages:
    10,784
    Likes Received:
    2
    I used to have a bunch of these from receivers I'd purchased. I never used the radio section.
    God only knows where they are now...
    [​IMG]

    #3 Soundmanred, Jan 31, 2013
    Last edited: Jan 31, 2013
  5. Googer

    Googer Lifer

    Joined:
    Nov 11, 2004
    Messages:
    12,552
    Likes Received:
    1

    It's not a bnc or bayonet connector. I have some of those on my Integra.


    I don't think that is it.

  6. Fardringle

    Fardringle Diamond Member

    Joined:
    Oct 23, 2000
    Messages:
    8,107
    Likes Received:
    28
    #5 Fardringle, Feb 1, 2013
    Last edited: Feb 1, 2013
