My Custom Naughty Gtx 680 back plate by Dwood

[hokies83]

Still in the works just got pics of a sample today..

General Idea..

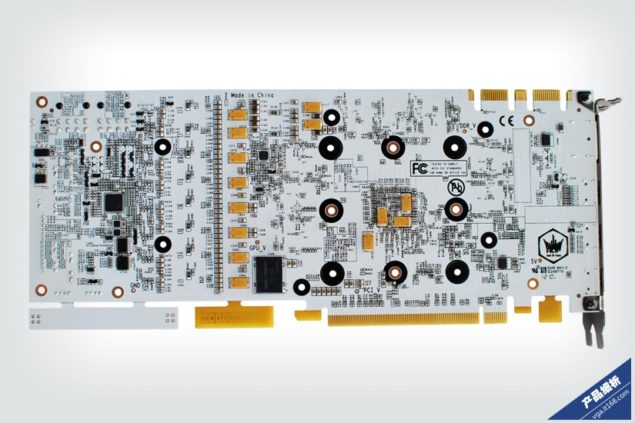

My Pcb is white..

Doing a black back plate to allow the girls to show up white thru the back plate.

Heres a Sample

More to come.



[Zap]

Reverse silhouette. Nice! Also, oriented properly for our viewing pleasure through a case window (assuming notch is for SLI fingers).



[IlllI]

are you a trucker by any chance?



[hokies83]

are you a trucker by any chance?

No.. Just wanted something alot Diff then others..

And something i think would interest people when i go to re sale.



[RussianSensation]

The only thing is if you put the card in, the girls will be upside down in the case. Also the girl standing up, it looks like her face might be hitting those 2 black voltage regulators on the top right of the card, near the metal bracket?



[OVerLoRDI]

Cool idea. Who makes a white pcb 680?



[hokies83]

Cool idea. Who makes a white pcb 680?

Galaxy SoC Hall of fame.



[hokies83]

The only thing is if you put the card in, the girls will be upside down in the case. Also the girl standing up, it looks like her face might be hitting those 2 black voltage regulators on the top right of the card, near the metal bracket?

Nope and they will be facing towards ud.. see the ALI cut outs.

Guess ill do with anything else when i get around to installing it.



[D3v1L.]

hello .. I have a galaxy gtx 660 3g you, I have not been able to find a backplate for this card, I want to make my own backplate.
one can work with the dimensions (measurements), the pcb (prited circuit board), to do a good job, thank you for your cooperation,

would perform work accurately and well done. Thank you.

if any hace acad, sw, etc, file thax a lot



[yottabit]

How is the backplate being fabricated?

Obviously you have a big advantage starting off with a white PCB, which can handle more current than any other color PCB.



[D3v1L.]
