My 3070 / 2060 Super / 1050TI comparison (26 games)

BFG10K

Lifer
Aug 14, 2000
21,784
735
126
Introduction

I picked up a 3070 as an upgrade over my 2060 Super. I was going to skip this generation but I got a really good offer for my old GPU, so I bit the bullet.

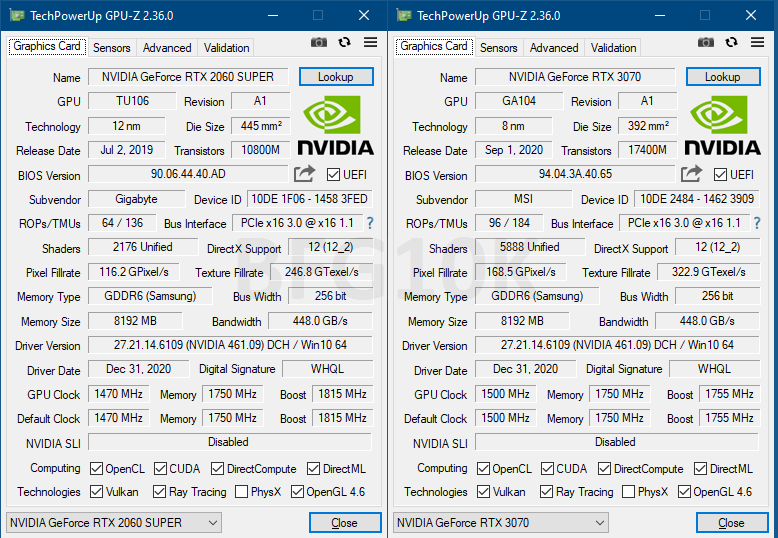

The Cards

https://www.gigabyte.com/Graphics-Card/GV-N206SGAMING-OC-8GC#kf
https://www.msi.com/Graphics-Card/GeForce-RTX-3070-VENTUS-2X-OC

3070 pushes 45% more pixels and 31% more texels but has identical memory.
3070 is 2 x 8pin while 2060S is 6pin + 8pin. 3070 is much shorter with 2 fans vs 3, but it’s 2.5 slots.
3070’s idle clock is 210MHz vs 2060S’ 320MHz.
Both cards’ fans stop at low load but the 3070 takes a lot longer to do so. Load fan noise is higher on the 3070 with more RPM and higher pitch.


Setup

9600KF, 32GB DDR4-2666, Asus B3650M-K, 2TB Samsung 970 EVO Plus, EVGA Supernova G3 Gold 550W.
Win10-64-Oct20, 461.09, 1440p, 16xAF, assorted per-game anti-aliasing.
Average framerate was captured from the lowest performing part of each game. These are more like sustained minimums though not exactly 1% low, and other parts of the games generally run much faster.

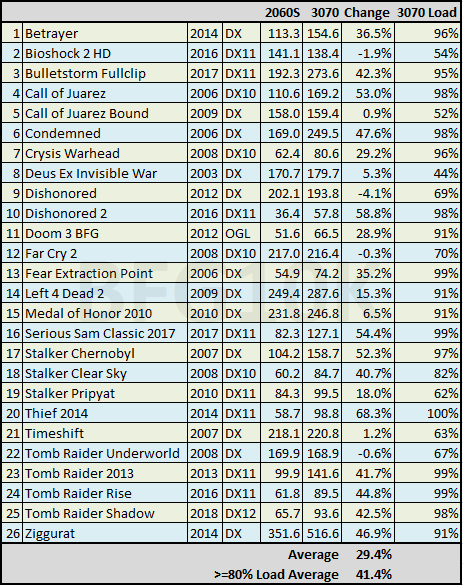

Results


Commentary

Many tested scenarios clearly underutilize the 3070 but it’s still important to check a range of legacy titles to make sure there isn’t a catastrophic regression lurking somewhere. More on this later.
#7 can it run Crysis? Yes! I expect I’ll be able to increase 2xTrSS to 4xTrSS and still stay above 60FPS, finally making this a solved problem for me on the 3070.
#8 is 18 years old and despite all odds I still got a slight improvement.
#10 is where I needed performance the most and it far exceeded my expectation, as I thought I’d get about 45FPS.
Memory bandwidth generally doesn’t seem to hamper the 3070 much except maybe #14 & #15, where there’s a high GPU load but not much uplift.
#20 provided the biggest performance gain from the 3070, seven years old at that. Maybe those “hyperthreading” Ampere shaders really like this game.
#26 is surprising. The Unity engine seems to scale really well and blast out high framerates in this game.


Classic Gaming Corner

Some constantly talk about RTX/DLSS but the reality is vastly more gamers have legacy libraries that indefinitely age. There’s an expectation of worry-free compatibility on modern hardware, especially at these exorbitant prices. If an overpriced GPU can’t run the games I want to play, it’s utterly useless.

This is nVidia’s real strength. Their drivers are consistently superb even for ancient games.

Here are some screenshots of 21 year old titles that I regularly replay, running on the 3070 with the latest version of Windows, in 2021. And despite the archaic APIs being used, the driver correctly forces 16xAF and 4xMSAA, producing beautifully stable and clean image quality.

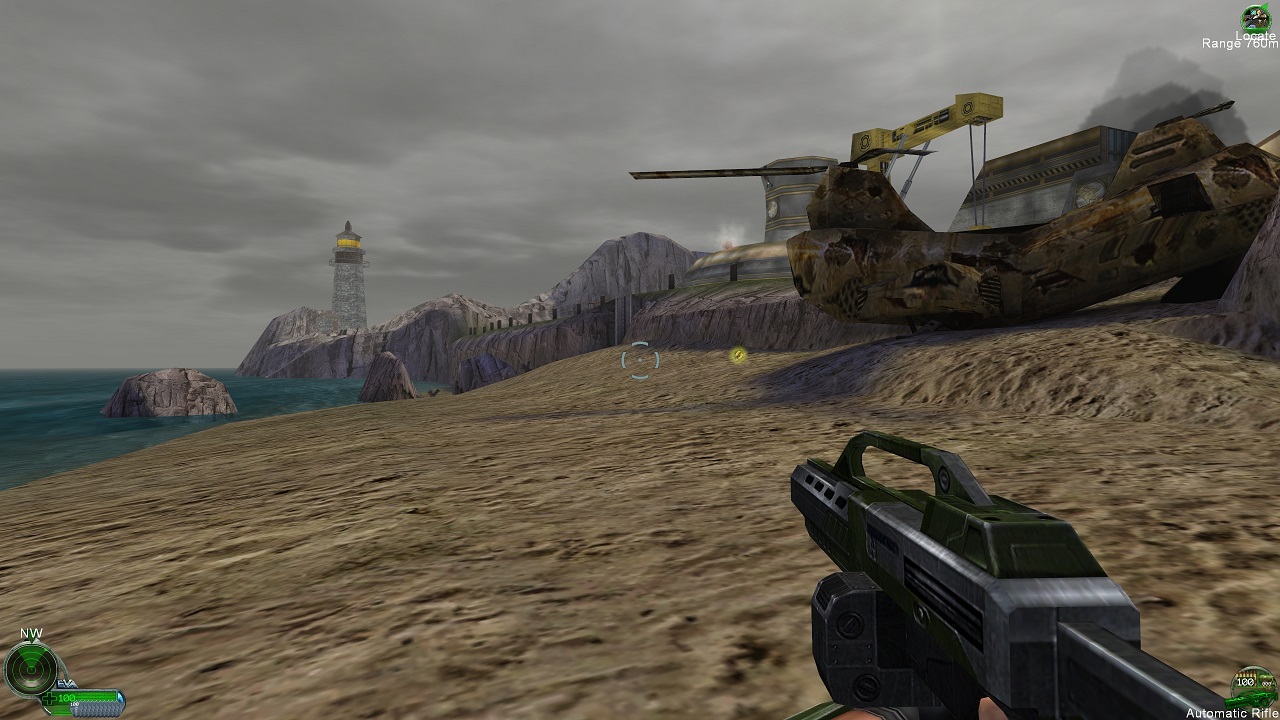

Command & Conquer Renegade, 2001, DirectX 8

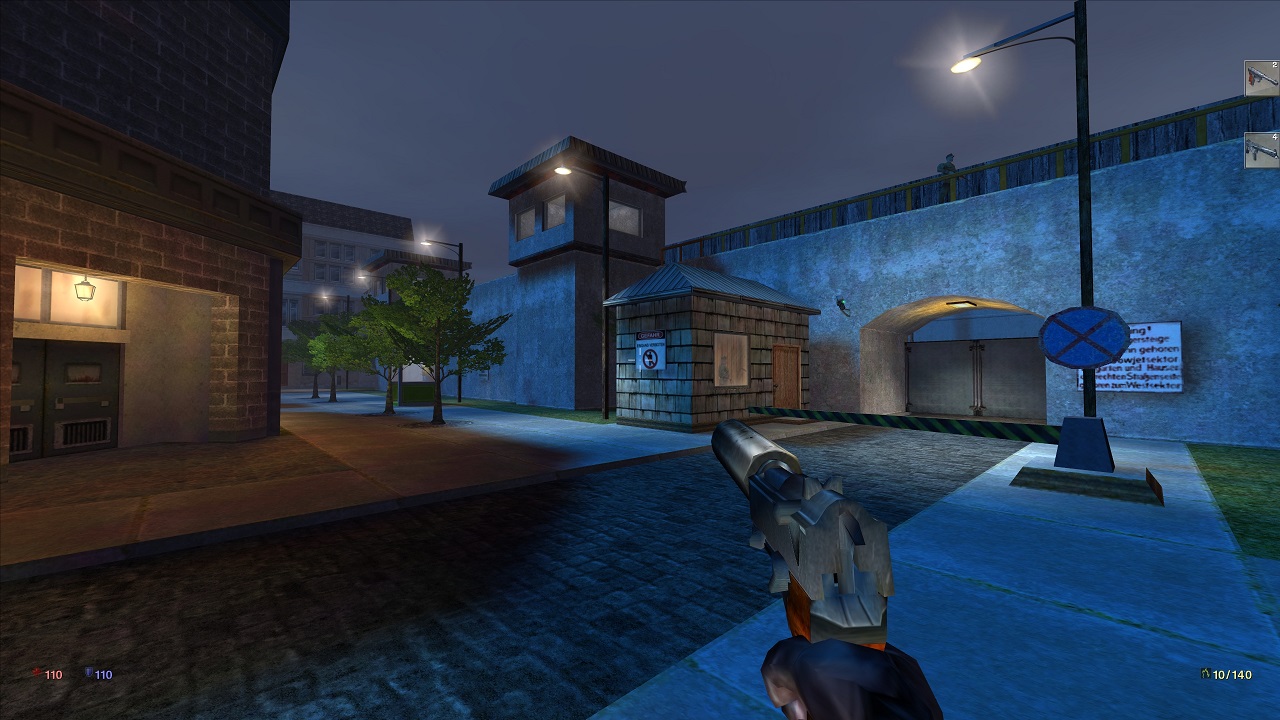

No One Lives Forever, 2000, DirectX 7

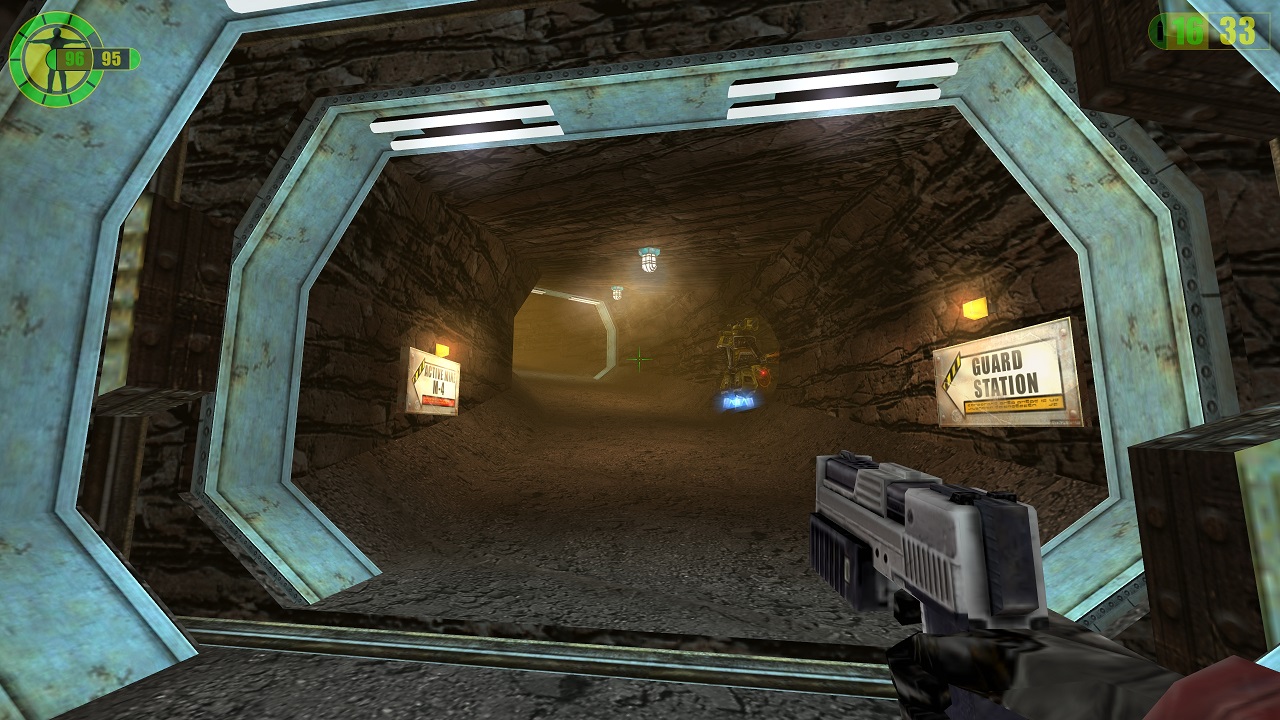

Red Faction, 2001, DirectX 8

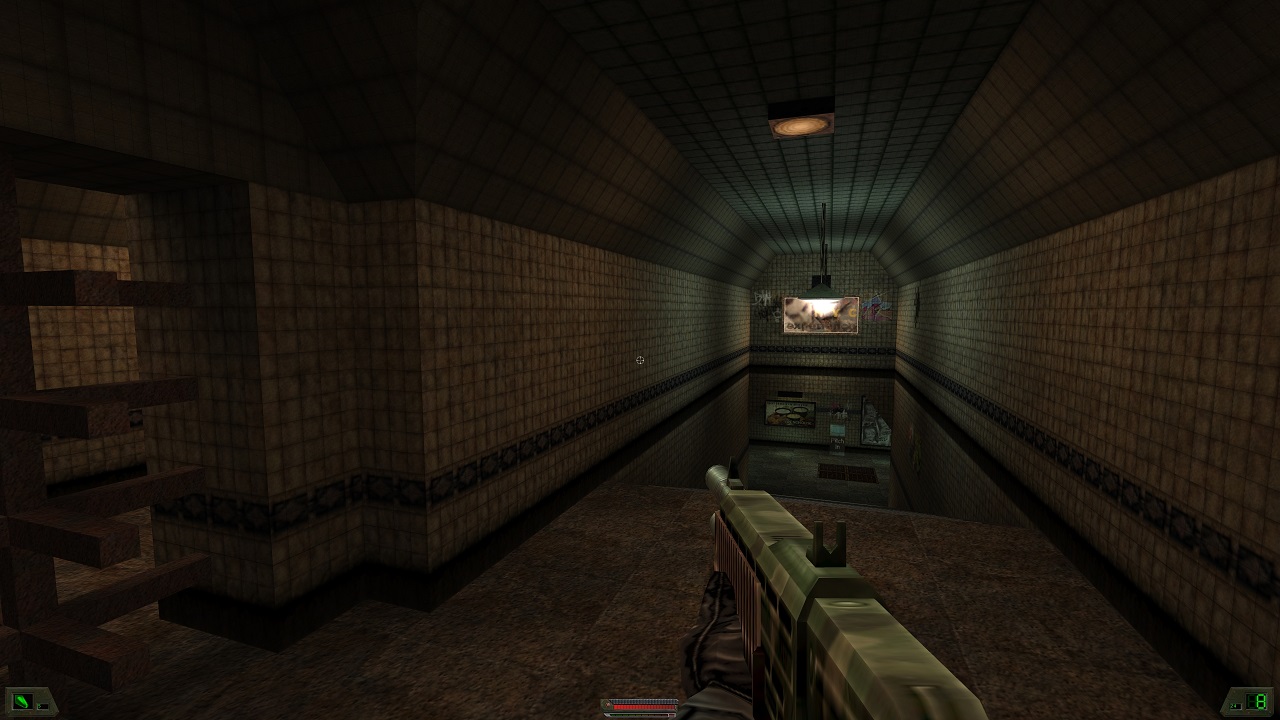

Soldier of Fortune, 2000, classic OpenGL

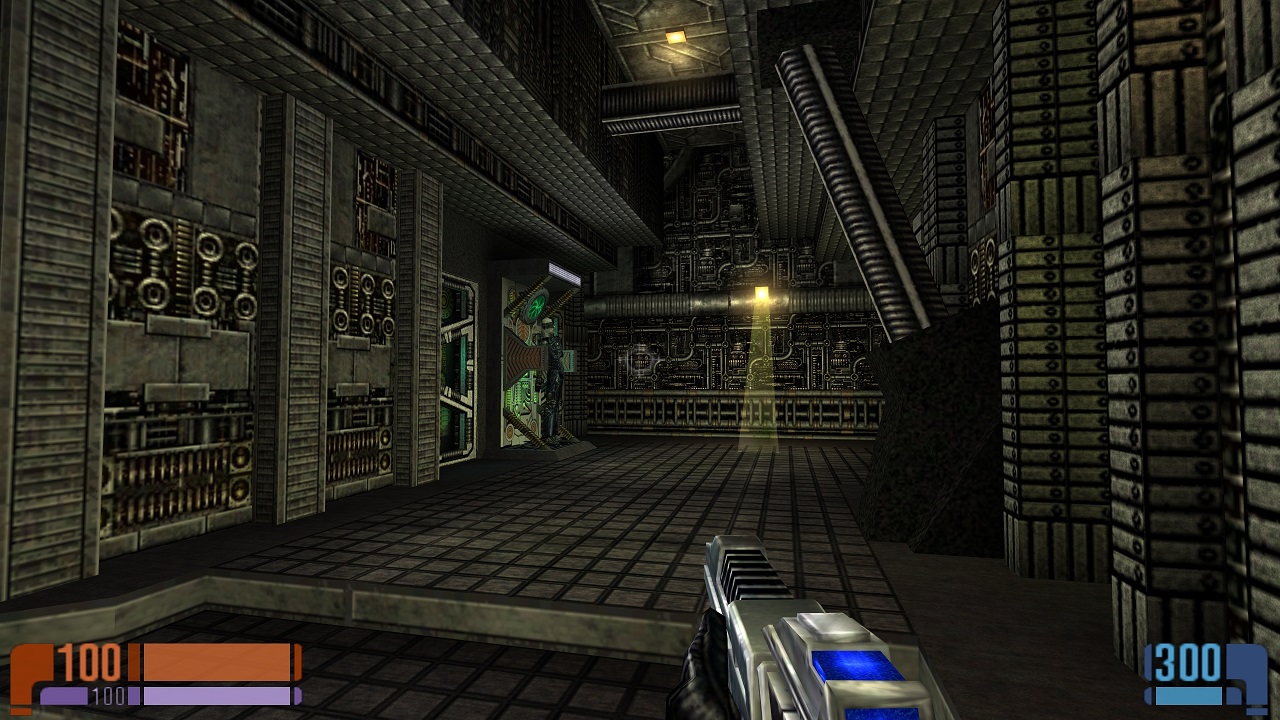

Star Trek Elite Force, 2000, classic OpenGL

Verdict

+41% faster overall than the 2060 Super where it counts.
+Outstanding drivers especially for old games.

-Noisy and hot when at high GPU load in newer games.
-Too expensive.
-I had 8GB VRAM back in 2016. I still have 8GB VRAM in 2021.


Update 1

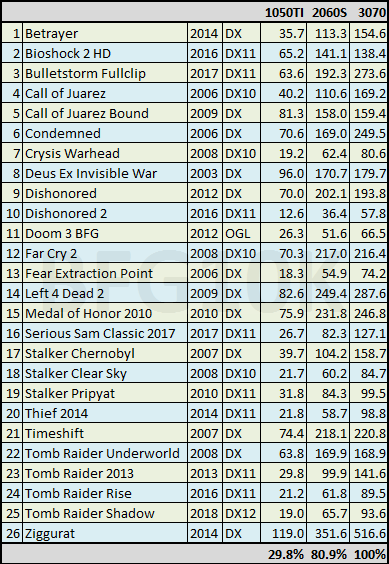

I sold the 3070 as I wasn't happy with gaming on a noisy furnace. I have a 1050TI on temporary loan while I figure out what to do next. In the meantime I had some fun benchmarking it:

The 1050TI is a potato but it manages 1440p + AA + 60FPS in a few of those games. And it's always dead silent so it's extremely pleasant to game on when it delivers enough performance.

Last edited:

Achilles97

Senior member
May 10, 2000
385
8
81
Wow awesome. I appreciate the detailed post. I have a 9600K and a 1080 and was wondering how an upgraded GPU would perform with my system. I'm just interested in adding decent RT performance at 1440p. I will probably snag a 3060TI if I can get one for MSRP soon, if not I will wait on the 3060 release next month to see how that performs.


Stuka87

Diamond Member
Dec 10, 2010
5,322
1,091
136
Great job, thats such a huge amount of work to test all that games. Its interesting to see some older games run worse on the 3070, although still plenty fast enough to not really matter.

  • Like
Reactions: DAPUNISHER

Mopetar

Diamond Member
Jan 31, 2011
5,400
1,982
136
Great job, thats such a huge amount of work to test all that games. Its interesting to see some older games run worse on the 3070, although still plenty fast enough to not really matter.
Outside of the results for Dishonored (#9) anything that runs worse is likely within the margin of error for the GPU not making any difference. You'd probably need a much deeper dive into what the specific cause is, but it really doesn't matter too much in a general sense. Additional test runs for both Dishonored and probably Bioshock 2 since that's marginal would help identify if there really is a regression or if the results are perhaps an anomaly.

Some of those screenshots are making me feel awfully nostalgic though.


BFG10K

Lifer
Aug 14, 2000
21,784
735
126
Its interesting to see some older games run worse on the 3070, although still plenty fast enough to not really matter.
Performance changes within 2% are generally benchmarking noise and margin of error.

But check the "3070 load" column. A low number probably means a CPU/engine/driver/API bottleneck. 1440p + FXAA isn't very demanding for those two Unreal 3 engine games.

Or it could simply be that the tremendous complexity of all this interconnected software means some things simply won't scale exactly how you expect.

Anything that looked like an outlier was retested the next day after a cold boot and the results were the same. I also confirmed sustained boosting as high as 1920MHz on the 3070.

The three games with framerate caps (Doom 3 BFG & Dishonored 2 @ 120 FPS, L4D2 @ 300 FPS) were never hit during any of the testing.

  • Like
Reactions: Stuka87 and Mopetar

BFG10K

Lifer
Aug 14, 2000
21,784
735
126
OP updated.

I sold the 3070 as I wasn't happy with gaming on a noisy hairdryer furnace. Nasty, and I'm not doing it again.

I have a 1050TI on temporary loan while I figure out what to do next. Wow, the silence is golden. No matter the load it barely rises above the system's very quiet noise floor, and I have to really strain to even hear it.

Also after years of using high TDP cards there's something really strange about seeing PCIe connectors hanging in open space, unconnected, as the card gets everything it needs from the slot.

I'm done with high TDP cards. The new self-imposed limit is 180W or less, and I may even decide to lower this limit.

  • Like
Reactions: Magic Carpet

CP5670

Diamond Member
Jun 24, 2004
4,710
164
106
Thanks for doing this. I have a big library of old games and mods too and make sure any card I buy works with them. I just played NOLF 1/2 and Renegade for the first time a few months ago on a 1080ti. I have found that forcing MSAA is inconsistent though and often doesn't work in DX7/8 games, even in cases where I remember it working years ago.

  • Like
Reactions: DAPUNISHER

Tup3x

Senior member
Dec 31, 2016
495
361
136
Used to play C&C Renegade a lot online. Never finished the single player campaign though.


I went with GAMING X TRIO instead of Ventus 3X because the cooler looked really poor (it's worse on RTX 3060 Ti compared to RTX 3070). TRIO is overkill even when the power limit is 250W. It's essentially silent under full load.


Mopetar

Diamond Member
Jan 31, 2011
5,400
1,982
136
OP updated.

I sold the 3070 as I wasn't happy with gaming on a noisy hairdryer furnace. Nasty, and I'm not doing it again.
Aren't so of the AIB models a lot better? I guess that I also game with a headset on which does dampen noise from fans a fair bit.

If you're running a lot of older titles a 3070 doesn't make much sense anyway since it's over kill.


CP5670

Diamond Member
Jun 24, 2004
4,710
164
106
Some of us play mainly new games but revisit old ones too, and want them to work without glitches. But yeah, another AIB model might be better. Many of the higher end coolers are very quiet even for cards using 400W or more.


BFG10K

Lifer
Aug 14, 2000
21,784
735
126
Aren't so of the AIB models a lot better?
If they cost $10 I'd be happy to play a bit of Russian roulette, but not at these prices.

I guess that I also game with a headset on which does dampen noise from fans a fair bit.
This thing was easily audible over a reasonable game volume when using headphones. It was also belching out a tremendous amount of heat onto the CPU and raising room temperature compared to the 2060S.

If you're running a lot of older titles a 3070 doesn't make much sense anyway since it's over kill.
True, but I'd still like some extra performance in the newer AAA titles, like going from high to ultra for some settings in the Tomb Raider games.

Last edited:

Tup3x

Senior member
Dec 31, 2016
495
361
136
Are you sure that your air intake is at adequate level? My Phanteks P600s has no trouble handling the 250W heat that this overclocked RTX 3060 Ti dumps inside the case. If I keep the front panel blocked, then CPU temperatures will a lot (as much as 10c higher average in Control). GPU is about the same with 100-200 higher fan RPM so still whisper quiet but CPU takes the hit. In my case (lol) I use three intake fans and one exhaust. Top is covered.

I don't think that I'd want 400W monster inside my case though. 300W would be probably about the max - higher than that would start to dump too much heat in my room.
