Modified Power Supply issue

zimmi

Junior Member
Nov 9, 2010
2
0
0
Hello all,

i have a computer whose PSU (Power Supply Unit) was broken. I could have easily replaced it by anyother new PSU but the original PSU had a pretty unique 14 pin connector for the Motherboard instead of the usual 20 or 24 pin.


I googled the 14 pin configuration and luckily found the pin config. I had a spare 20 pin PSU, now all i had to do was to rearrange the pins so that each pin gets the correct voltage. i did that and now when i turn the computer on the power LED blinks ON and OFF (twice in like one second), the LED on the motherboard also blink the same way, like its turning everything on and off periodically. nothing comes on the monitor.


Please suggest a solution because otherwise i will have to abandon the whole CPU which will be a waste Sad



Other technical information is provided below:


14pin PSU pin config:

http://pinouts.ru/Power/compaq_power_14p_pinout.shtml



20 pin PSU config "Dell HP-145SNF":


- i had to modify the following things: the pins 3 and 6 (FAN OFF and FAN CMD) of the 14 pin PSU didnt make any sense to me so i gave nothing on them, they are disconnected. what to do with them?


- as only 3V was available in the new PSU so i had to give 3V where 3.3V were required.


- the unused pins of the 20 pin PSU were properly insulated from eachother.


- the power ratings of the new PSU is 152W and the old PSU was 125W. so its well over than what is required, the voltage was equal of both the PSUs but the current of the new PSU was more, so it should suffice.

- The fan Spins pretty good until the CPU is on standby, but as soon as i push my CPU power button, the blinking starts and the fan also keeps on switching on and off. dont know what signal to give at the pin 3 and pin 6. Please help.


PottedMeat

Lifer
Apr 17, 2002
12,363
475
126
Just a stab in the dark but...

- as only 3V was available in the new PSU so i had to give 3V where 3.3V were required.

0.3V / 3.3V * 100% = 9.09%

ATX Spec specifies +/-5% on the 3.3V line, so the range is: +3.135 V to +3.465 V


Aluma

Junior Member
Nov 12, 2010
2
0
0
the previous response is pretty much the answer, but fwiw:

when i built one for my car computer years ago, i made something similar
all that i needed to do was provide a 3.3v_stdby and invert the sig_on line

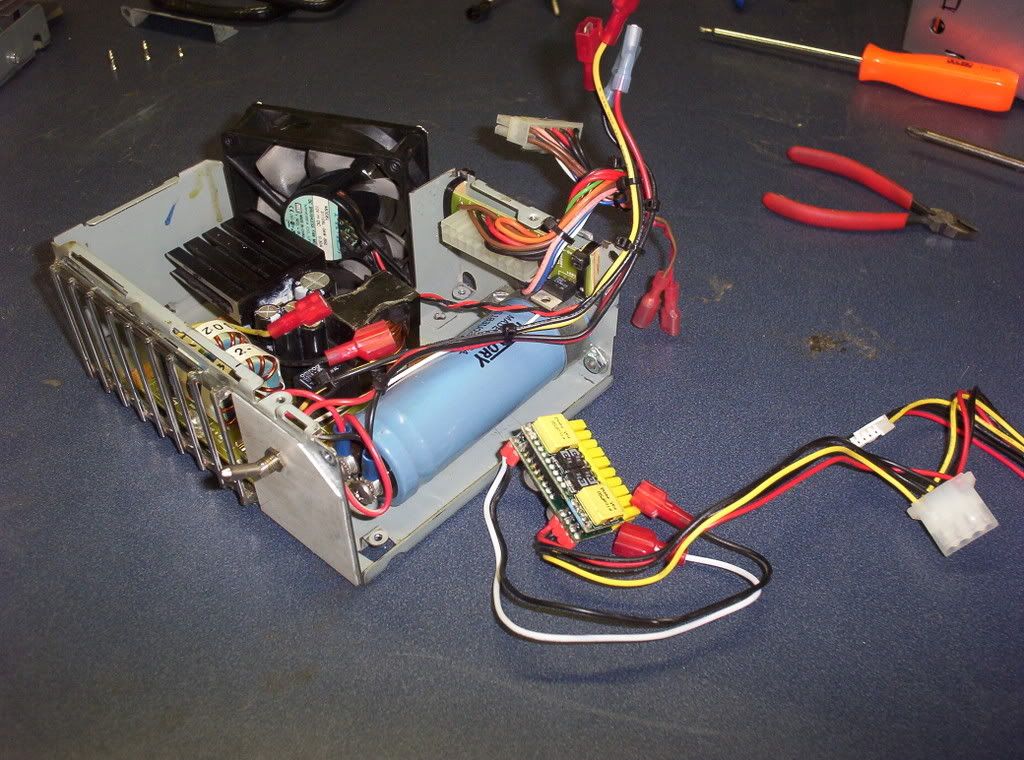

since i was using a picopsu, i couldn't have used a board like the above (no wire harness to splice), so i just made a cradle for the atx20 connector like so:



at which point, the 14 pin harness is wired to the cradle board according to the pinout.
http://i211.photobucket.com/albums/bb264/alumasqrl/computers/00008.jpg
if i recall correctly though, compaq used more than one 14 pin configuration, so wire positions may not match what's online. you'll have to verify that and use a bit of discretion there. also make sure your psu can source enough on its 5v_stby line to supply the sum of the currents to the 5v_stby and 3.3v_stby lines. most new supplies have no problems though.

cheers

Last edited:

Aluma

Junior Member
Nov 12, 2010
2
0
0
btw,
the values i used produced an actual 3.3v_stby, not a 3.0v_stby
this worked for the board i used, as its standby supply was actually 3.3v

you could try verifying that for your board/psu
the psu might actually list output voltages. i don't recall if mine did.
otherwise, you can just change the resistors according to the pdf for an LM1084 (or just change R3 to 187ohm)


Modelworks

Lifer
Feb 22, 2007
16,240
7
76
The board is looking for a signal from the power supply fan that the fan is turning and working. It doesn't get it , it powers off. Try a 10K resistor between Fan CMD and +5V or FAN OFF and +5V . One of those is supposed to be for determining the fan status and the other is a sink line for the fan power, it uses a negative power control setup for the fans , usually -5V.
