Question Is this sweet spot for Ryzen 5700X

Mir96TA

Golden Member
Oct 21, 2002
1,949
37
91
I was trying to play with Ryzen 5700X PBO setting
I would like to know, Am I at sweet spot ?
PPT=130 TDC=82 EDC=138
Curve Optimizer is Negative 30

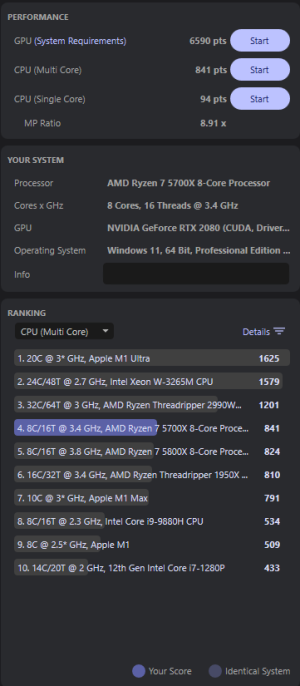

I am using CINEBench R23


Thanks in advance

  • Like
Reactions: lightmanek

Shmee

Memory and Storage, Graphics Cards
Super Moderator
Sep 13, 2008
6,438
1,695
136
I can't say for sure, but that is a nice memory OC you seem to have going there. What memory are you using and what VDIMM are you applying?

As for the PBO tuning with the curve optimizer, a -30 offset seems very optimistic. I believe I am running -9 all core on my 5950X, though I believe my scalar is 2X. What are you using to test for stability? (Hint: you can use the p95 with corecycler, to test each core boosting for stability)


Mir96TA

Golden Member
Oct 21, 2002
1,949
37
91
I didn't realize I was really O.C. the memory.
I thought I was running at stock.
This Ryzen can go upto 3600 Memory Frequency but memory I have it is good for 3200 only
Dram Voltage (VDIMM) is coming from XMP profile, I think Asus call them DOCP!


Mir96TA

Golden Member
Oct 21, 2002
1,949
37
91
I have not used to validate the stability.
I often use enterprise Machine, for example Windows's Server, Firewall management software. That cause heavy memory usage 90 to 95 % of the memory (26 GB to 30 GB).
I can not Offord instability.
My workload is my validation


Mir96TA

Golden Member
Oct 21, 2002
1,949
37
91

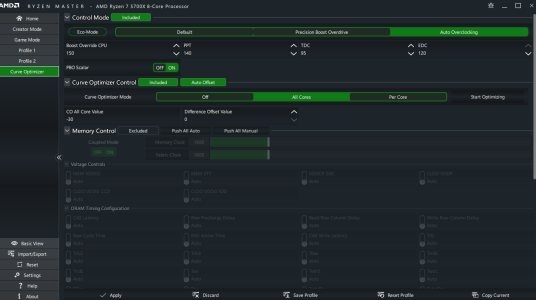

Here is my fine-tuned one.
PPT=140W TDC=90A EDC=150A
All Core have - 30
Scaler is 10 X
200 Mhz
All Core are as a cure optimizer Negative 30
Here is a Cine


I didn't O.C. I need 100 % stable and able to runs weeks non-Stop. :D
I am not sure, if I can further optimize ?
Any input is greatly appericated


Shmee

Memory and Storage, Graphics Cards
Super Moderator
Sep 13, 2008
6,438
1,695
136
You realize that tweaking with pbo2 can cause instability? It is basically a form of OC, especially with the +200 MHz. That is why you need to stress test


Mir96TA

Golden Member
Oct 21, 2002
1,949
37
91
You realize that tweaking with pbo2 can cause instability? It is basically a form of OC, especially with the +200 MHz. That is why you need to stress test
No I didn't know.
I thought me running memory nearly to full gives enough sress
I guess I can P90 ?


Shmee

Memory and Storage, Graphics Cards
Super Moderator
Sep 13, 2008
6,438
1,695
136
Yeah, you can run P95, or try core cycler, that can test individual cores and tell you which core fails, if any.

  • Like
Reactions: igor_kavinski

Mir96TA

Golden Member
Oct 21, 2002
1,949
37
91
I ran it, when I came back System reboot it, with UEFI screen CPU error, Temperature.
haaa aaaa
I guess I need better cooling :rolleyes:


Shmee

Memory and Storage, Graphics Cards
Super Moderator
Sep 13, 2008
6,438
1,695
136
More likely your tweaks aren't stable. The CPU should throttle as it gets too hot, but you are basically undervolting to the max, so I am not surprised it crashed. I suppose if your temps are high though, that doesn't help either. What cooler do you have? And when checking the event viewer, are there any WHEA errors?


Mir96TA

Golden Member
Oct 21, 2002
1,949
37
91
Well I have set Limit on UEFI 90C which is also TjMAX for my CPU.
So MB rebooted and stop at UEFI screen witch CPU Temp error.
Cooler I have is Corsair H55 Quiet
I am going to check WHEA errors.


Shmee

Memory and Storage, Graphics Cards
Super Moderator
Sep 13, 2008
6,438
1,695
136
Only error I saw was Kernal-Power 41
You could try setting a temperature limit a bit lower, like 85C or 82C or something. This should help keep the core temps from getting out of control during stress testing, gaming and any rendering work.
