how to power a phone/tablet from a light switch?

Toggle sidebar Toggle sidebar
luv2liv

luv2liv

Diamond Member
Dec 27, 2001
3,500
94
91
i have an old phone that i would like to mount near a normal light house switch.
https://imgur.com/s5RY36N
i know i will probably need something like this gang box https://www.amazon.com/CARLON-THOMAS-BETTS-B225R-UPC-GANG/dp/B001DPXC2Y/
and i will 3d print some wall plate to make it look nice and clean like https://www.amazon.com/Legrand-Seymour-TP262W-Master-Decorator/dp/B0001M6FRO/
now, what do i need to charge the phone? how to tap into the existing power line while still have the light switch function as normal?

pcgeek11

pcgeek11

Lifer
Jun 12, 2005
22,103
4,889
136

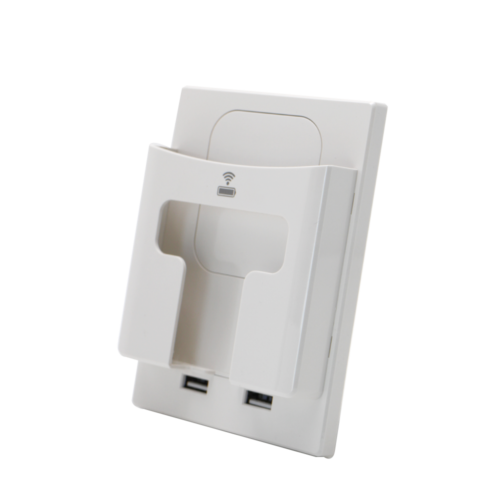

Get one of these and install it into a double gang box with the switch. Then wire it to the hot and neutral wires of the switch in parallel.

It can do wireless charging or charge via one of the USB Ports.

www.ebay.com

White Wall Mounted Wireless Charger Wall Mounted Wireless Charger Dual USB QI 654070259228 | eBay

Find many great new & used options and get the best deals for White Wall Mounted Wireless Charger Wall Mounted Wireless Charger Dual USB QI at the best online prices at eBay! Free shipping for many products!
www.ebay.com

  • Like
Reactions: killster1
S

SamirD

Golden Member
Jun 12, 2019
1,489
276
126
www.huntsvillecarscene.com
pcgeek11 said:
Get one of these and install it into a double gang box with the switch. Then wire it to the hot and neutral wires of the switch in parallel.

It can do wireless charging or charge via one of the USB Ports.

www.ebay.com

White Wall Mounted Wireless Charger Wall Mounted Wireless Charger Dual USB QI 654070259228 | eBay

Find many great new & used options and get the best deals for White Wall Mounted Wireless Charger Wall Mounted Wireless Charger Dual USB QI at the best online prices at eBay! Free shipping for many products!
www.ebay.com
Click to expand...
This would definitely be the solution, but I would find a domestic company to buy it from so it's not junk and a fire hazard without recourse.

The other option would be to get a triple gang and put an outlet next to the switch that has usb ports and then hardwire the usb behind the plate.

luv2liv

luv2liv

Diamond Member
Dec 27, 2001
3,500
94
91
pcgeek11 said:
Get one of these and install it into a double gang box with the switch. Then wire it to the hot and neutral wires of the switch in parallel.

It can do wireless charging or charge via one of the USB Ports.
Click to expand...
this is very interesting. i didnt know such a thing exists! for me a little too bulky. i need something more flushed into the wall.
i think this can work https://www.amazon.com/gp/product/B07SGQ6XXR/ . looking at the photos, i only see a label with "AC input." does it matter where my hot/neutral go to?

S

SamirD

Golden Member
Jun 12, 2019
1,489
276
126
www.huntsvillecarscene.com
luv2liv said:
this is very interesting. i didnt know such a thing exists! for me a little too bulky. i need something more flushed into the wall.
i think this can work https://www.amazon.com/gp/product/B07SGQ6XXR/ . looking at the photos, i only see a label with "AC input." does it matter where my hot/neutral go to?
Click to expand...
I definitely wouldn't stick that in the wall unshielded like that. :eek: Remember, if you create a fire hazard doing this and burn your house down your insurance will probably deny your claim if they find out this was the cause.

sdifox

sdifox

No Lifer
Sep 30, 2005
98,836
17,310
126

Then just fashion a bracket for your old note with charge cable. You'll want to allow airflow behind the phone since constant ac power will make the phone warmer.

Or add a regular socket next to light switch. Mount phone to wall and just plug in a charger and charge the mounted phone at night. Lion battery doesn't really like to be charged at all times.

Last edited:
S

SamirD

Golden Member
Jun 12, 2019
1,489
276
126
www.huntsvillecarscene.com
sdifox said:

Then just fashion a bracket for your old note with charge cable. You'll want to allow airflow behind the phone since constany ac power will make the phone warmer.

Or add a regular socket next to light switch. Mount phone to wall and just plug in a charger and charge the mounted phone at night. Lion battery doesn't really like to be charged at all times.
Click to expand...
This is kind of what I was thinking of except going with a 3x gang putting this as an outlet next to the switch and then connecting directly to the solder pads on the usb sockets behind the wall plate and running it to the phone. Then it would all look seamless. You could even use a silicone plug on the usb you're using to make sure it doesn't get used for anything else.

  • Like
Reactions: pcgeek11
shortylickens

shortylickens

No Lifer
Jul 15, 2003
80,287
17,080
136
pcgeek11 said:
Lots of options...
Click to expand...
oh yeah. I bought one of these

GREENCYCLE High Speed USB Charger Wall Outlet, 15-Amp Duplex Receptacle, 2 USB Charging Ports 4.2A and 2 Electrical AC Outlets, with Power-saving Auto Nightlight Sensor and Wall Plates (White, 1 Pack) - - Amazon.com

GREENCYCLE High Speed USB Charger Wall Outlet, 15-Amp Duplex Receptacle, 2 USB Charging Ports 4.2A and 2 Electrical AC Outlets, with Power-saving Auto Nightlight Sensor and Wall Plates (White, 1 Pack) - - Amazon.com
www.amazon.com
A while back and put it in the outlet right next to the front door.
Combined with a cheap plastic holder it could work well.




  • Like
Reactions: mxnerd and SamirD
luv2liv

luv2liv

Diamond Member
Dec 27, 2001
3,500
94
91
sdifox said:
Err you stil need access to the buttons on the side.
Click to expand...

i wont need buttons. to turn on the phone, just press the home button. it will auto turn off. it's intended to see cameras in the house and control HomeAssistant as needed.

sdifox

sdifox

No Lifer
Sep 30, 2005
98,836
17,310
126
luv2liv said:
i wont need buttons. to turn on the phone, just press the home button. it will auto turn off. it's intended to see cameras in the house and control HomeAssistant as needed.
Click to expand...

The Leviton I linked is your best bet.

S

Spacehead

Lifer
Jun 2, 2002
13,067
9,858
136
luv2liv said:
i was hoping to find something so my phone will be flushed, nothing sticking out
Click to expand...
You said you were going to 3D print a cover. Could you 3D print something that will allow you to recess the phone into the wall?
Just remember what sdifox said about not having the phone perma-charging & air flow behind the phone.

JEDIYoda

JEDIYoda

Lifer
Jul 13, 2005
33,986
3,320
126
SamirD said:
This would definitely be the solution, but I would find a domestic company to buy it from so it's not junk and a fire hazard without recourse.

The other option would be to get a triple gang and put an outlet next to the switch that has usb ports and then hardwire the usb behind the plate.
Click to expand...
if the thing burns your house down you still have noo recourse! The company won`t pay for a new house......

Red Squirrel

Red Squirrel

No Lifer
May 24, 2003
69,734
13,351
126
www.betteroff.ca
Depends how the switch is wired. You're going to need a hot and neutral. If power feeds the switch, then the fixture, you're in luck. But if the power feeds the fixture, then goes to the switch, you won't have a neutral. You can cheat and use the ground but that's not a good idea.

A clean way to do it might be to replace the box with a double gang then install an outlet that has built in USB next to the switch then mount the phone then make a short USB cable. The outlet would be powered all the time and switch would work as normal for whatever it's switching.

I would not buy electrical stuff off Amazon though some of that stuff is built to a frightening standard. You are buying direct from China and not from a reputable retailer that will have a bit more scruntiny over what it sells because they don't want to burn people's houses down and be held liable.

sdifox

sdifox

No Lifer
Sep 30, 2005
98,836
17,310
126
Red Squirrel said:
Depends how the switch is wired. You're going to need a hot and neutral. If power feeds the switch, then the fixture, you're in luck. But if the power feeds the fixture, then goes to the switch, you won't have a neutral. You can cheat and use the ground but that's not a good idea.

A clean way to do it might be to replace the box with a double gang then install an outlet that has built in USB next to the switch then mount the phone then make a short USB cable. The outlet would be powered all the time and switch would work as normal for whatever it's switching.

I would not buy electrical stuff off Amazon though some of that stuff is built to a frightening standard. You are buying direct from China and not from a reputable retailer that will have a bit more scruntiny over what it sells because they don't want to burn people's houses down and be held liable.
Click to expand...

you know you can buy Leviton stuff on Amazon right?


example

Leviton 2620 30 Amp, 250 Volt, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, V-0-MAX (Black) : Amazon.ca: Tools & Home Improvement

Leviton 2620 30 Amp, 250 Volt, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, V-0-MAX (Black) : Amazon.ca: Tools & Home Improvement
www.amazon.ca

Leviton T5632-W 15-Amp USB Charger/Tamper Resistant Duplex Receptacle, White, Wall Outlets - Amazon Canada

Leviton T5632-W 15-Amp USB Charger/Tamper Resistant Duplex Receptacle, White in Wall Outlets.
www.amazon.ca

luv2liv

luv2liv

Diamond Member
Dec 27, 2001
3,500
94
91
seeing how keeping it charged can be problematic, i will keep it simple for now lol
