Question How to fit full length 16X Nvidia T-600 into a 4X Slot ?

Page 2 - Seeking answers? Join the AnandTech community: where nearly half-a-million members share solutions and discuss the latest tech.

dan99t

Member
Nov 29, 2011
108
4
81
Hi,
I am buying a New Dell workstation 3660 . Dell will install two Nvidia T-600 graphics cards which will run 8 monitors.

I have 12 Monitors ( 1920x1200 Resolution )

Now there is only one 4X slot left where another 16X card will not fit which can run 4 leftover monitors.

Is there a way to run 3rd full length 16X graphics card Nvidia T-600 which will run 4 more monitors ?

This workstation does have latest USB 3.2 Type C ports & two Display Ports.

Can I use a 4X to 16X Riser card & place 3rd graphics card there ? Would the bandwidth be enough from 4X slot ?

Has anyone tried anything that works ?

Any other ideas ?

Thank You


dan99t

Member
Nov 29, 2011
108
4
81
I have no idea why he picked a Dell workstation 3660. There are many wrong reasons for doing so and a few good reasons as well. Unless he actually has one of those good reasons, I would suggest cancelling that order and getting something more fit for purpose.

You are so right.

The good reasons for 3660 are :

It allows me to have 3 x 512GB NVMe on Motherboard, one for OS & 2 for back Ups & data.
It allows me to have 3 X 4 TB Sata 5400m rpm for data.

My problem is how to drive 4 more Monitors.

3660 has 2 Display ports & 3 USB 3.2 Type C ports.

So the question is, can I use them for last 4 monitors & if yes, how ?


Aapje

Golden Member
Mar 21, 2022
1,506
2,060
106
The good reasons for 3660 are :

It allows me to have 3 x 512GB NVMe on Motherboard, one for OS & 2 for back Ups & data.
It allows me to have 3 X 4 TB Sata 5400m rpm for data.

That's not actually a very good reason to choose it over a custom build, since you can get something like a ASUS ROG Strix Z590-F Gaming WIFI with 4 M2 slots and 6 SATA connectors, plus 3 full length PCIe slots with good spacing.

Your choice is a machine that fits your demand for storage, but fails at providing room for the video cards you need. My suggestion offers both.


PingSpike

Lifer
Feb 25, 2004
21,747
579
126
You can conceivably make this work provided the spacing issues can be resolved with your card selection, but switching to a big case would make your life a lot easier.


Insert_Nickname

Diamond Member
May 6, 2012
4,971
1,692
136
It allows me to have 3 x 512GB NVMe on Motherboard, one for OS & 2 for back Ups & data.
It allows me to have 3 X 4 TB Sata 5400m rpm for data.

Backups? I'd really look into an external solution for that, because if your PSU fries one M.2 drive, the rest are probably toast as well. If they're accessible to the OS, you're not protected against malware/ransomware or accidental deletion either.

You can get an external SSD, or an external case and DIY it. The external SSDs on the market are more then fast enough for backups.

If all you need is 4 more monitors then one of the ASUS GT 710/730 PCIe x1 cards would suffice (have to run GeForce drivers for all cards) as they both have 4x HDMI 1.4a ports on them.

You're right. I'd forgotten about those.


dan99t

Member
Nov 29, 2011
108
4
81
Under the Features Section there is a blowout shot of the system and you can see 3x PCIe slots, white at the bottom which is open ended (1 slot width), the 16x in the middle (2 slot width) and another 4x but closed above that (1 slot width). The side on shot covering cooling a little lower down shows the top 4x slot as closed, hence a riser for that slot.
Please excuse my ignorance but which blowout are you talking? In the link you provided, I searched & searched but I do not see those 3 slots.
Can you kindly post that blowout & mark with arrows showing 3 slots please ?


dan99t

Member
Nov 29, 2011
108
4
81
An alternative would be to use a displayport MST hub if the objective is to have enough ports to drive the displays.
This system has latest ports.
Rear :
Two Display ports 1.4 ( HBR2 )
Two USB 3.2 Type -C ports Gen 2( 10 Gbps )
Two USB 3.2 Gen 2.
Front :
One USB 3.2 Type-C Gen 2
One USB 3.2 Type-C Gen 2x2 ( 20 Gbps )

Can you use any of those to Drive 4 Monitors?
I do need to Run different applications or News Videos OR surf websites on each of them.

Any ideas ?


dan99t

Member
Nov 29, 2011
108
4
81
I have no idea why he picked a Dell workstation 3660. There are many wrong reasons for doing so and a few good reasons as well. Unless he actually has one of those good reasons, I would suggest cancelling that order and getting something more fit for purpose.
I have many good reasons so this should clarify all your concerns.
(1) I am no hardware expert so if anything goes wrong I just call Dell & they are at my place next day with parts. I have been with them for 10 years. So peace of mind the major factor.
(2) I have been using their age old T-7500 workstation for 10 years & in 2012 I chose their T-7500 which had two X16 Full length, one X16 wired as 8 & one X16 wired as 4.
I bought & ( this should make you laugh ) 3 AMD FirePro 2460 512 MB cards which has no fan & but had 4 MiniDP Ports each & I am still running 12 Monitors while I am writing this to you.
(3) Now I need a new one & Choices are two :
(A) Age old Dell 5820 workstation which has two X16 , one X16 wired as 8 & one X16 wired as 4. That will be more than enough to drive 12 monitors with Nvidia T-600.
Downside to that is, it uses old Xeon CPUs, has USB 2 & USB 3.1 ports & Choice of Max two M.2 NVMe. All with Premium Prices.
(B) Dell 3660 workstation is their newest (2022) has latest CPUs i-9 12th generation. 3 M.2 NVMe. 3, 3.5 inch HDDs for storage, Latest ports like 2 DPs, 4 USB 3.2 Type-C Gen 2, Two USB 3.2 Gen 1. Only drawback is GPU slots. One x16, Gen5, One X4 Gen4 & one X4 Gen3
Dell is willing to factory install Two Nvidia T-600. So obviously they are putting one card in X4 slot. So why not one more with you guys expertise & all those latest slots ? I am sure some of you will find a way.
Oh, it is smaller & Cheaper.
I am using the system for Running stock market applications but no games at all.
Feel free if you need more info.


sdifox

No Lifer
Sep 30, 2005
96,905
16,171
126
When the vendor doesn't sell what you need, it is time to switch vendor.

Video card with six ports

So you just need to find a computer with 2 16x slots.


Also, there is nothing wrong with your firepro cards. If they are still working, just clean them up (blow the dust away) and keep using them. You just need a video card, not like you are gaming.


You can also try dual hdmi/dp type c hubs, hook two of those up and you get four more video output.

Last edited:
  • Like
Reactions: lakedude

zebrax2

Senior member
Nov 18, 2007
972
62
91
Assuming the other 8 displays are driven by dGPUs

https://www.amazon.com/dp/B091397B2V?psc=1

You can use that on one of the displayports available in the motherboard (powered by iGPU) and then you'll have enough ports to drive the remaining 4 display. According to Intel the i7-12700 iGPU can support up to 4 displays and that every iGPU from Intel core 4th gen and above should support MST and daisychains of up to 3 display.
Which Intel® Core™ Processors and/or Intel® HD Graphics Controllers Support Multi-Stream Transport (MST)?
Intel Ark Intel® Core™ i7-12700 Processor

Last edited:

dan99t

Member
Nov 29, 2011
108
4
81

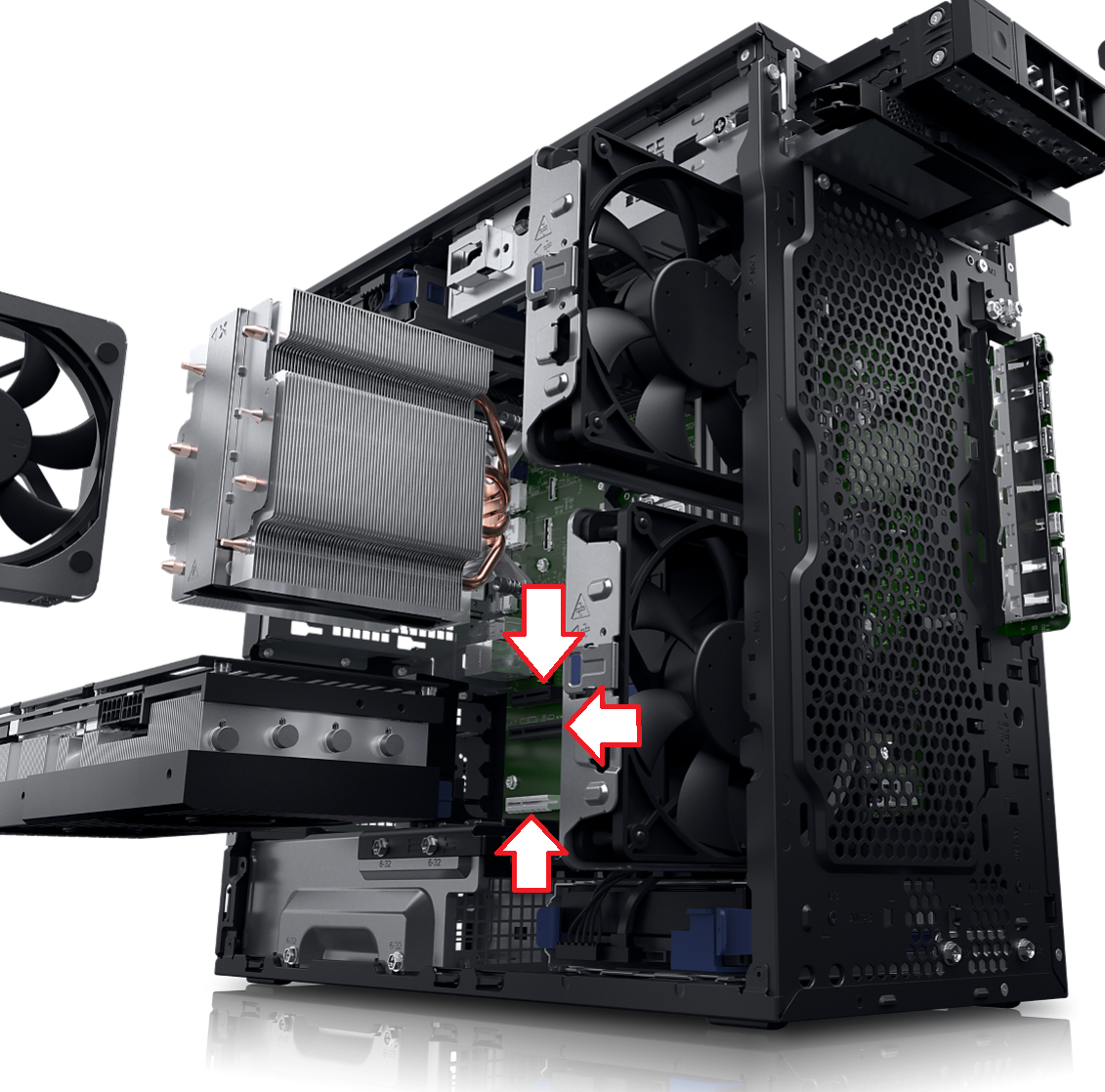

ibb.co

Thank You. Really appreciate it. This takes a Real expert to notice in what they have posted is a jungle.


dan99t

Member
Nov 29, 2011
108
4
81
You can also try dual hdmi/dp type c hubs, hook two of those up and you get four more video output.
Can you please put a link where I can see them. I am confused because there are two DP ports in 3660 & two USB 3.2 Type C. Won't they run 4 more monitors ?


sdifox

No Lifer
Sep 30, 2005
96,905
16,171
126
Can you please put a link where I can see them. I am confused because there are two DP ports in 3660 & two USB 3.2 Type C. Won't they run 4 more monitors ?

yeah you can just try that first.

example, not recommendation



this is the mb pix from the manual I linked earlier, it's got very few usable PCIE slots





dell website is absolutely garbage. I could not configure a machine properly in Firefox... the special offer pane blocks all the other options other than the cpu choice for a dell tower

Last edited:
  • Like
Reactions: dan99t

Leeea

Diamond Member
Apr 3, 2020
3,777
5,540
136
Hi,
I am buying a New Dell workstation 3660 . Dell will install two Nvidia T-600 graphics cards which will run 8 monitors.

I have 12 Monitors ( 1920x1200 Resolution )

Now there is only one 4X slot left where another 16X card will not fit which can run 4 leftover monitors.

Is there a way to run 3rd full length 16X graphics card Nvidia T-600 which will run 4 more monitors ?
Yes

This workstation does have latest USB 3.2 Type C ports & two Display Ports.

Can I use a 4X to 16X Riser card & place 3rd graphics card there ? Would the bandwidth be enough from 4X slot ?
Yes, and yes

Has anyone tried anything that works ?
Yes

Any other ideas ?

Thank You
This is a poor choice of system to start with. The above system may not have BIOS compatibility for this.


I have done this. Depending on your application it will work. I used risers for mining, and the cards worked just fine. I found video cards will work with x4, or x1 just peachy.

It can be done from any PCIe port, including PCI WiFi risers and NVMe slots.


Now, as far as performance is concerned, I would think PCIe 4.0 x4 is the bare minimum for gaming. That would be PCIe 3.0 x8.


Your biggest problem is going to be DELL. You need support for features like "Above 4G decoding" that dell may not have bothered with.

last note:
if you do not care about performance, and just want extra monitors just get a USB monitor. The frame rate is not exactly high, but the picture quality can be just as good in non-moving scenes. Not the monitors that run display port over USB C, but actual USB monitors that show up as a USB device.

Last edited:
  • Like
Reactions: dan99t

dan99t

Member
Nov 29, 2011
108
4
81
You can use that on one of the displayports available in the motherboard (powered by iGPU) and then you'll have enough ports to drive the remaining 4 display. According to Intel the i7-12700 iGPU can support up to 4 displays and that every iGPU from Intel core 4th gen and above should support MST and daisychains of up to 3 display.
Good solution excepy my monitors don't have DPs. They all have DVI & VGA ports only. My other 8 Cards Nvidia comes with mini DP to DVI Connectors so that works well. I need to find something that will run 4 monitors with DVI or VGA ( 1920x1200 )


dan99t

Member
Nov 29, 2011
108
4
81
dell website is absolutely garbage. I could not configure a machine properly in Firefox... the special offer pane blocks all the other options other than the cpu choice for a dell tower

This is the best image I have seen so far. Correct me but two black slots on either side of 16 are 4x ? One seems open ended. The question is if the space between 16X & other close ended one is enough to insert one more Nvidia T-600 ?


sdifox

No Lifer
Sep 30, 2005
96,905
16,171
126
Last edited:

dan99t

Member
Nov 29, 2011
108
4
81
This is a poor choice of system to start with. The above system may not have BIOS compatibility for this

They are giving two Nvidia T-600 factory installed. So wouldn't a third card work as well on 3rd PCIe 4x Gen 3 ?

I don't do gaming. Just stock market charts. All my 12 monitors have DVI & VGA ports only. Currently they all are running fine for last 10 years with age old ATI FirePro 2468 512 MB Cards.

Being not techy on hardware I chose Dell because of support & Full warranty on everything. If those 3 ,M.2 NVMe or Motherboard fry, they will replace it. So trying to make it work with you guys help which I have found very useful & I am grateful.

Just need a solution to run 4 monitors using either Nvidia T-600 & 4X Slot OR two DP 1.4 OR three USB 3.2 Type-C.


sdifox

No Lifer
Sep 30, 2005
96,905
16,171
126
They are giving two Nvidia T-600 factory installed. So wouldn't a third card work as well on 3rd PCIe 4x Gen 3 ?

I don't do gaming. Just stock market charts. All my 12 monitors have DVI & VGA ports only. Currently they all are running fine for last 10 years with age old ATI FirePro 2468 512 MB Cards.

Being not techy on hardware I chose Dell because of support & Full warranty on everything. If those 3 ,M.2 NVMe or Motherboard fry, they will replace it. So trying to make it work with you guys help which I have found very useful & I am grateful.

Just need a solution to run 4 monitors using either Nvidia T-600 & 4X Slot OR two DP 1.4 OR three USB 3.2 Type-C.


You are not going to be able to add a third card. Not enough space due to first one being blocked by the wifi module connection.

Dell is not the only company that offer service contracts. And I don't see any towers they offer that has the expansion slots you need.

Last edited:

sdifox

No Lifer
Sep 30, 2005
96,905
16,171
126

Aapje

Golden Member
Mar 21, 2022
1,506
2,060
106
Good solution except my monitors don't have DPs. They all have DVI & VGA ports only. My other 8 Cards Nvidia comes with mini DP to DVI Connectors so that works well. I need to find something that will run 4 monitors with DVI or VGA ( 1920x1200 )

You are a bit hard to shop for, since you keep adding new requirements, although this particular requirement isn't too bad. You can just get HDMI to DVI and DP to DVI adapters and cables for quite cheap on Amazon.

Being not techy on hardware I chose Dell because of support & Full warranty on everything. If those 3 ,M.2 NVMe or Motherboard fry, they will replace it.

Do you actually still have onsite support on your current system then? Because they seem to offer a maximum of 5 years of onsite support, so didn't you run out of support 5 years ago? You seem to be the kind of person that gets a good setup and then just want to keep it the same as long as possible, until you are forced to upgrade. Do you want to be forced to upgrade after 5 years or go without support? Keep in mind that Dell uses a lot of custom components, so you can't just go to another support supplier (unless they somehow have access to Dell components).

There are also companies that specialize in local onsite support for small businesses. Have you looked at those? Then you can probably get support for 10 years or longer.

I don't do gaming. Just stock market charts.

Well, I looked a bit at what other bankers do and they seem to build custom machines that are designed for this use case, not try to shoehorn a Dell workstation into a role it is not designed for, or ready for.

I would still suggest getting a nice case and a motherboard with good spacing. Then put three Quadro T600's in there or something better. Get support from a local computer company and go trade those stocks.

  • Like
Reactions: dan99t
