Help! HP m8300f motherboard pin connector wiring

[ranasing]

I am trying to help a friend who has a m8300f. He needed to replace his motherboard and started taking his old motherboard out. However, he took out the old motherboard without documenting where each pin connector went. I can figure out the easy one like power, SATA, etc. But the USB, audio, etc. are more difficult. Does anyone have any suggestions on where I can help him find this for the original Nettle2 mobo? Thanks!



[Harvey]

Here's HP's spec page for Pavilion Media Center m8300f. It uses this motherboard:

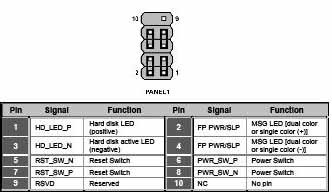

The connectors you mentioned (SATA, USB, audio, etc.) are unique and annotated on the drawing. You'll need this wiring diagram for the front panel connectors.

Sorry it's so small. It's the only one I could find in a hurry.



[ranasing]

Thanks a lot!! This helps tremendously!



[Harvey]

YW
