Question Go With Alder Lake for Cool & Quiet ECC RAM Supporting Processor?

[chane]

When Arrow Lake desktop processors arrived I thought that their base power draw would be lower than that of my last pc's CPU.

Intel® Xeon® W-1370 Processor (16M Cache, up to 5.10 GHz) Product Specifications

Intel® Xeon® W-1370 Processor (16M Cache, up to 5.10 GHz) quick reference guide including specifications, features, pricing, compatibility, design documentation, ordering codes, spec codes and more.

ark.intel.com

Instead the base TDP is 125 W

Arrow Lake (microprocessor) - Wikipedia

en.wikipedia.org

Apparently, the trend is for more efficient processors but with higher TDPs.

I do zero gaming and would not be doing more than 720p video editing, if ever. Mostly might be using AI-assisted audio restoration software, like this or better.

https://www.izotope.com/en/products/rx.html?srsltid=AfmBOoqts4g4O8kJxUHdZtSeCOxsSSvp_CnQhew6uS89sw6Y8ZH5jKmI

Thus, for my next pc build around Q2 2025, stick with this?

Intel® Core™ i5-12600 Processor (18M Cache, up to 4.80 GHz) Product Specifications

Intel® Core™ i5-12600 Processor (18M Cache, up to 4.80 GHz) quick reference guide including specifications, features, pricing, compatibility, design documentation, ordering codes, spec codes and more.

ark.intel.com



[Markfw]

I would say a 9950x with the TDP set to 125 watt would make you happier than that 12600



[gdansk]

I have 12600Ks in two different W680 boards. You can set the power limits in the BIOS. Buy whichever Alder Lake is cheapest and set the power limit as you please.

Conversely I also have Ryzen 7900 in a cheap ASRock B650 board. At 88W load it makes a joke of Alder Lake. But Alder Lake can have lower idle. Total cost was less by avoiding the the exorbitant W680 prices. It runs ECC UDIMMs with error checking in Linux and the supported DDR5 speed is higher. I haven't tested Windows. But I understand the uncertainty confuses you and some other people.



[chane]

I'm not a system builder and effortless Windows 10 and ECC RAM support are a must, and from processors with base TPDs well below 125w. After all this time, why do users still have to jump through hoops to get AMD processors to make ECC RAM fully functional, assuming they're lucky enough to find ECC RAM compatible motherboards? https://www.reddit.com/r/AMDHelp/comments/1f4ilpl/ryzen_9_9950x_ecc_post_issue/?rdt=64613 There's no excuse for this. Those AMD bums should have fixed this gens ago.



[gdansk]

The only other advice I can give: pick your memory carefully. W680 boards only officially run 2 DIMM per channel configurations at 4000 (1R) or 3600 (2R). At those speeds it might be worse than DDR4.



[Shmee]

One thing to consider, is that if you plan on running Windows 10 like many of us as we can't stand going to Windows 11, know that CPUs with hybrid core designs don't run as well with the Windows 10 task scheduler generally. So if buying Alder lake, you may want to consider a chip without the E cores, or you could disable them if that is your preference.

I see you are looking at the i5 12600, but I believe an i5 12400 might be a good chip for you, as it also has 6 P cores, but should be cheaper than the 12600. Alternatively, you could get an i7 12700 and disable the E cores.

As for ECC support, I don't know a whole lot about it on the latest consumer platforms. I understand it is a mixed bag depending on motherboard. That said, what is your setup now? One thing to consider for ECC support, is to build an older system based on compatible X99 board, Broadwell EP Xeon (available very cheap), and cheap ECC DDR4 RDIMMs. I recently did this with my server, now it has 256GB of ECC RAM on the Asus X99 Deluxe. Though I am using a Haswell EP Xeon.



[chane]

One thing to consider, is that if you plan on running Windows 10 like many of us as we can't stand going to Windows 11, know that CPUs with hybrid core designs don't run as well with the Windows 10 task scheduler generally. So if buying Alder lake, you may want to consider a chip without the E cores, or you could disable them if that is your preference.

I see you are looking at the i5 12600, but I believe an i5 12400 might be a good chip for you, as it also has 6 P cores, but should be cheaper than the 12600. Alternatively, you could get an i7 12700 and disable the E cores.

As for ECC support,

Thanks for this valuable feedback! I will pass it on to my builder when plan my next desktop ~ Q2. I don't plan on installing Windows 11 either on my current or the next build if I can avoid it. The one Steiger Dynamics built for me Aug. 2022:

W480M VISION W (rev. 1.0) Key Features | Motherboard - GIGABYTE Global

Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable™ motherboards bring together a unique blend of features and technologies that offer users the absolute ...

www.gigabyte.com

Intel® Xeon® W-1370 Processor (16M Cache, up to 5.10 GHz) - Product Specifications | Intel

Intel® Xeon® W-1370 Processor (16M Cache, up to 5.10 GHz) quick reference with specifications, features, and technologies.

www.intel.com

Nvidia GeForce GTX 1660 Super Review: Ti-Like Performance for Less

Nvidia’s new Super card soars close to the performance of the GTX 1660 Ti.

www.tomshardware.com

https://www.silverstonetek.com/en/product/info/computer-chassis/GD05/

Best Fan Control Software for Windows

Take a look a the best Fan Control Software for Windows. Control your fans based on all temperatures, like CPU, GPU, Mainboard, AIO liquid and external temperature sources.

www.argusmonitor.com

16x Internal Blu-Ray Rewriter Super Multi Blue - WH16NS40

Discover the 16x Internal Blu-Ray Rewriter Super Multi Blue that features Serial ATA Interface and M-DISC Support. Find reviews, specs, and more for WH16NS40.

www.lg.com

And Steiger added some very low noise fans.

Very nice HTPC!



[zir_blazer]

I see you are looking at the i5 12600, but I believe an i5 12400 might be a good chip for you, as it also has 6 P cores, but should be cheaper than the 12600. Alternatively, you could get an i7 12700 and disable the E cores.

This is actually very bad advice. Intel made ECC a mostly mainstream feature on Alder Lake/Raptor Lake but on models xx500 or higher, like 12500. The 12400 does NOT support ECC.
Note that 12500 and 12600 are almost identical and you could save money there because the difference seems to be some slighty higher MHzs.



[Markfw]

This is actually very bad advice. Intel made ECC a mostly mainstream feature on Alder Lake/Raptor Lake but on models xx500 or higher, like 12500. The 12400 does NOT support ECC.
Note that 12500 and 12600 are almost identical and you could save money there because the difference seems to be some slighty higher MHzs.

also, why are you only looking at alderlake ? or raptor lake ? Zen 4/5 support it (although compatibility has been an issue) and Genoa also has some cheap CPUs.

And why the need for ECC anyway ?



[Shmee]

This is actually very bad advice. Intel made ECC a mostly mainstream feature on Alder Lake/Raptor Lake but on models xx500 or higher, like 12500. The 12400 does NOT support ECC.
Note that 12500 and 12600 are almost identical and you could save money there because the difference seems to be some slighty higher MHzs.

Interesting, good catch. So yeah, for ECC go 12500 probably, or 12700. There have been some good deals on the 12700 lately, and 8 cores or more is nice to have. Remember you can disable E cores if desired. Pity Intel does an artificial cutoff for ECC in the middle of the i5 line, even I didn't know lol.



[Markfw]

Interesting, good catch. So yeah, for ECC go 12500 probably, or 12700. There have been some good deals on the 12700 lately, and 8 cores or more is nice to have. Remember you can disable E cores if desired. Pity Intel does an artificial cutoff for ECC in the middle of the i5 line, even I didn't know lol.

OK, with all the "undependability" with the Raptor lake series , matching that with ECC to me just does not make sense. I don't get it.



[Shmee]

Hey Mark, we are talking about 12th gen, which is Alder Lake.



[Markfw]

Hey Mark, we are talking about 12th gen, which is Alder Lake.

why not

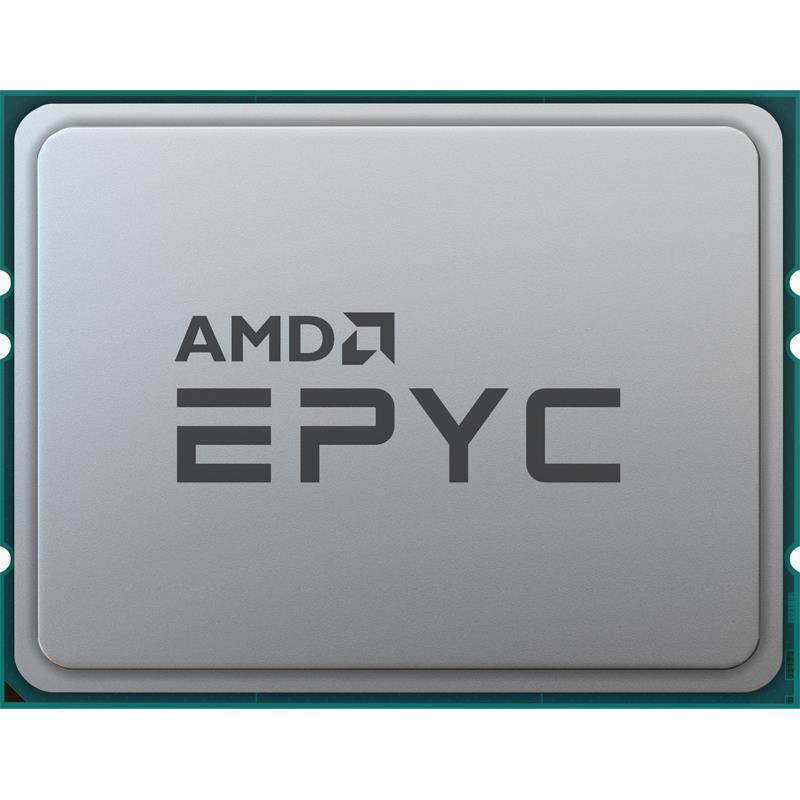

AMD 100-000001479 EPYC 4344P 3.80GHz 8-Core UP Processor - Raphael

AMD EPYC 4344P Processor With Clock Speed of 3.80GHz, Features 8-Core With 16 Threads, CPU Socket: AM5, 32MB L3 Cache, Performance At 65W, For UP systems only, 4004 Series, OEM, Tray

www.wiredzone.com

Its 8 core and uses less power. and is faster I think. and $282 and in stock, so cheaper.

and $275 motherboard

https://www.neweggbusiness.com/product/product.aspx?item=9b-13-140-100



[Shmee]

why not

AMD 100-000001479 EPYC 4344P 3.80GHz 8-Core UP Processor - Raphael

AMD EPYC 4344P Processor With Clock Speed of 3.80GHz, Features 8-Core With 16 Threads, CPU Socket: AM5, 32MB L3 Cache, Performance At 65W, For UP systems only, 4004 Series, OEM, Tray

www.wiredzone.com

Its 8 core and uses less power. and is faster I think. and $282 and in stock, so cheaper.

and $275 motherboard

https://www.neweggbusiness.com/product/product.aspx?item=9b-13-140-100

Not a bad option, but what about a compatible board supporting ECC RAM? How much does that cost?



[Markfw]

Not a bad option, but what about a compatible board supporting ECC RAM?

see my edit. $275. I mean if he wants ECC and dependability, EPYC is server grade and totally reliable and server quality.



[Markfw]

And I found all of that googling in 5 seconds.



[chane]

I mean if he wants ECC and dependability, EPYC is server grade and totally reliable and server quality.

Perhaps yes, if my builder confirms ECC functionality with those parts. But if my budget allowed for parts twice the price, are there ECC supporting AMD processors and boards that are faster but just as efficient?



[burninatortech4]

Not a bad option, but what about a compatible board supporting ECC RAM? How much does that cost?

You can also get this with AM4 (used CPU and RAM, new Motherboard). There's no need to go EPYC to get ECC, necessarily.

Ryzen 3 PRO 5350GE $100 eBay
Asrock B550M Riptide (ECC Support) $90 Amazon
32GB (16x2) DDR4 ECC-UDIMM (Nemix) $50 eBay



[hemedans]

You can also get this with AM4 (used CPU and RAM, new Motherboard). There's no need to go EPYC to get ECC, necessarily.

Ryzen 3 PRO 5350GE $100 eBay
Asrock B550M Riptide (ECC Support) $90 Amazon
32GB (16x2) DDR4 ECC-UDIMM (Nemix) $50 eBay

If used is an option there is intel CC150 (i9 9900 without turbo), it doesn't use much power and I heared it can use ECC ram even with normal board.



[igor_kavinski]

If used is an option there is intel CC150 (i9 9900 without turbo), it doesn't use much power and I heared it can use ECC ram even with normal board.

There's a video on it now:
