ECS Modmen Case Mod Entry Fire & Ice

[jj_Sky5000]

Well I had a little time between Lan parties and Builds ( still waiting for one to come back) I decide to give it a go in the ECS Modmen competition, http://www.ecsmodmen.com/ I had this concept before in 2009 and after a few complete ice mods I was ready to attempt to build it. The build will be called Fire & Ice, making the case from liquid resin and trying to use a least amount of metal possible with a waterfall reservoir.

I purchased the ECS model P67H2-A2 Deluxe

I like to thank my sponsors for supporting my projects over the years.

A have a long way to go and a short time frame, Do you think i can make it?



[jj_Sky5000]

First thing is getting my layout on The board that i will be using for my mold and double checking measurements.

adding 2 by 4 and attaching them with screws from the back

getting a 3d visual in my mind ,

Side view of the side panel

Molds are ready

Am I making cookies or a case mod you decide

Ready to Pour

make sure you add you Mold release

Sorry for the blur i was probley dizzy from the fumes
Mixing the resin with the catalyst

I let it set over the next 24 hours

Ok need to keep pushing on this if i am going to get done

Vote every day till the end for your favorite
http://www.ecsmodmen.com/



[jj_Sky5000]

After letting the resin harded for about 2days here is the end result

One cool side panel

all cleaned up

getting a good idea on attaching the fans

front panel fan placement

rounting the front & side panels for Plex glass Insert

Side panel sanding from 50 , 150, 400 , 1000 grit.

More plexi has arrived to finish my newest feature to the case.



[jj_Sky5000]

Dont forget to go and vote!!!! 2 1/2 days left. http://www.ecsmodmen.com/ I am pushing hard to finish it.
Adding the case fans!!!

I wanted to do something different and cut them out myself instead of using the large hole cutter.

trusting old craftmans scroll saw

Setting the blade through the pre drill holes

A little etching action

testing the LEPA fans

and the other side again cutting out the fan holes

Thanks again for taking a look.



[NatePo717]

That's looking pretty cool! Can't wait to see what it looks like when it's all finished. Good luck with the contest!



[WiseUp216]

Nice!!



[fredlove]

Thanks. Great creative.



[jj_Sky5000]

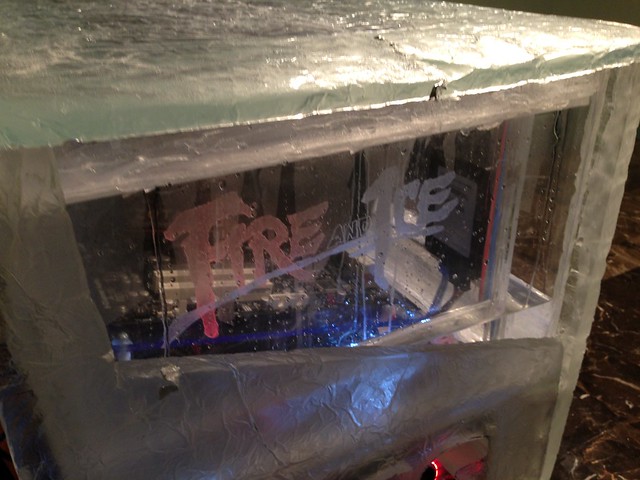

More ecthing work. If you like the build , Dont forget to vote , Voting ends 3/5
(Spolier alert) http://www.ecsmodmen.com/entries/5123j26QWE95

Can any body quess why i did the wording on 2 different sheets?

every body need a little fire dragon

Start my second very time consuming project with the plexi & weld on #4

Probley a day between each pic

this is all cut by a table saw and sandpaper , no lazer here

a little water test for my first ever Custom reservoir

thank you for subbing and following along 5
voting page (Spolier alert) http://www.ecsmodmen.com/entries/5123j26QWE95



[jj_Sky5000]

voting page (Spolier alert) http://www.ecsmodmen.com/entries/5123j26QWE95
Started working on the Floating tier for the MB. Thank you old trusting Intel for making a perfect template for Drilling holes for Standoffs

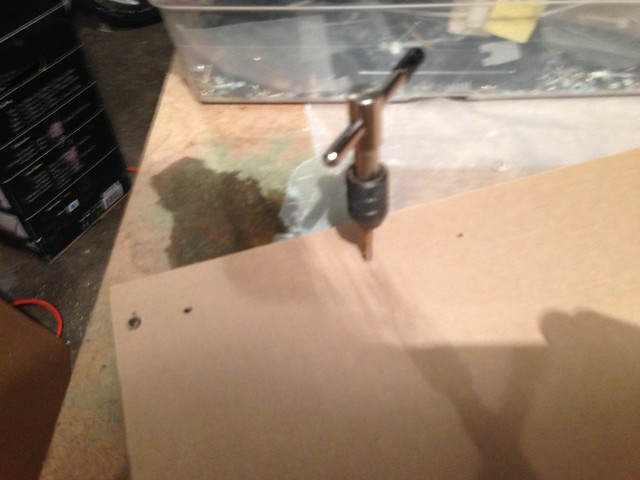

TAP, TAp, TAp

Found some arcylic Rods and wanted to incoportae them into the Build

Getting a idea on how its going to look

A last minute decision to make my own case feet

Mounted to the base

I am going to leave you with a teaser Pic



[jj_Sky5000]

Small update,
using a small bit of clear epoxy to secure the sides to each other and base.

adding a hinge back panel

Installing hardware

water testing

Preview update coming later tonight.



[jj_Sky5000]

Preview update
16 hours left in the voting for the ecs Modmen comptetion , Please go vote!!!!
http://www.ecsmodmen.com/entries/5123j26QWE95

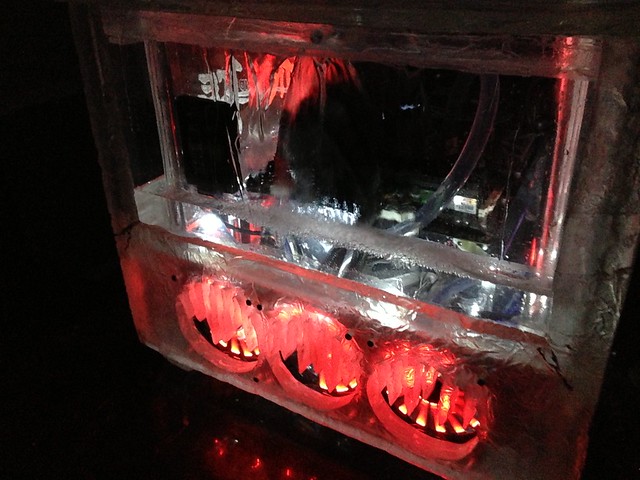

Here is a little preview of Fire and Ice

http://youtu.be/_gG69oMNptY

A big thank you to all the sponsors involved in the project, Intel, LEPA, ADATA & Seasonic, & ecs for hosting a amaizing contest.
More to come, !!! sleeving and better lighting !!!



[Face2Face]

Great Job!! Looks fantastic!!



[jj_Sky5000]

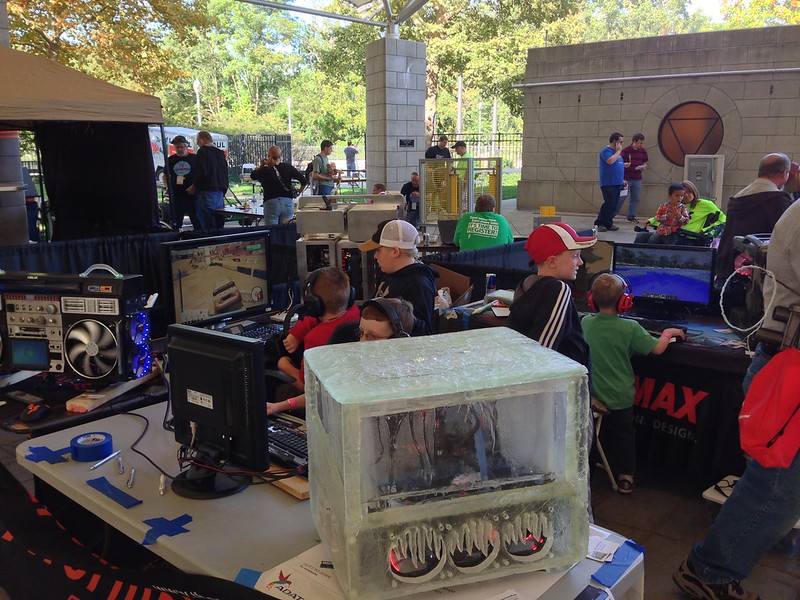

It was a long a Fun Summer, Lot of exciting stuff for ICE Mod. I took it to Quakecon & a few Midwest Lans. Had over 5 interviews Quakecon and a ton of pics taken and in a article on CNN.
Adata Up their Game again and sent Some amazing memory. they are also making the memory with a Black PCB board
http://www.newegg.com/Product/Produc...82E16820211752

Here are just a few of the pictures of the ram and the adventures

Thank you for looking another update soon
