Core 2 Duo processor only showing 1 CPU in Task Manager

[bhaney]

All,

Got a new laptop at work. It's a Dell D620 with an Intel T7200 Core 2 Duo processor. The BIOS shows it's a dual core and that dual core is enabled. I downloaded the Intel Processor ID program, and that shows two CPUs, both running at 2.0 GHz with 4 MB of L2 cache. Everything looks like it's working, but in Task Manager, the performance tab only shows 1 CPU. Shouldn't it show two? under View |CPU History the only option is "One CPU per graph". This is XP Pro SP2, by the way.

Device manager shows
Processors
Intel(R) Core(TM)2 CPU T7200 @ 2.00 GHz
Intel(R) Core(TM)2 CPU T7200 @ 2.00 GHz

Any ideas? It's my first experience with this processor and I want to make sure it's running to its full potential.

Thanks,
-Brett.



[DrKrFfXx]

The task manager let you select if you want only one graphic for the whole cpu usage, or if you want one graphic for each thread or core.

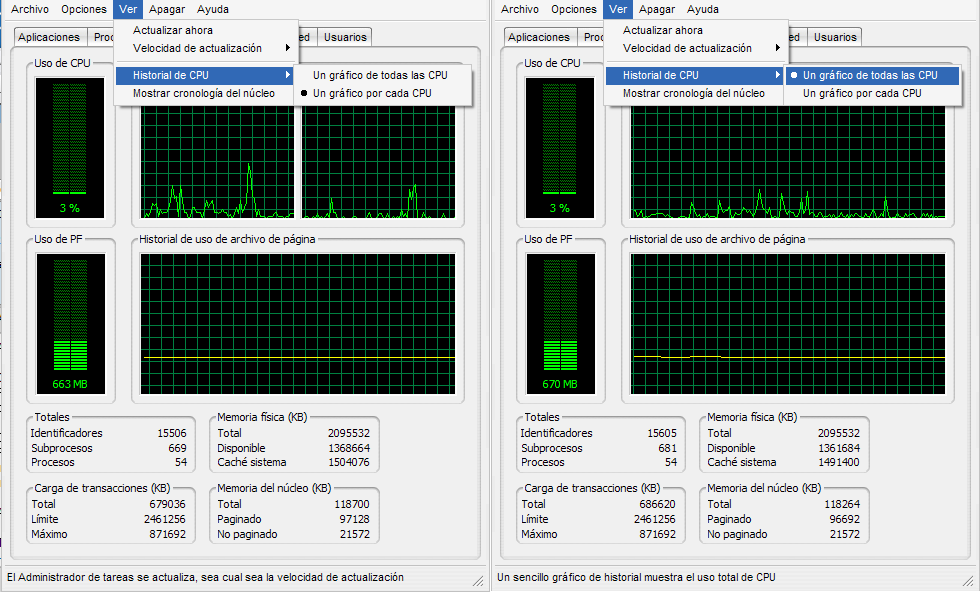

Task Manager


I know it's in spanish but, you get the idea.



[bhaney]

Originally posted by: DrKrFfXx
The task manager let you select if you want only one graphic for the whole cpu usage, or if you want one graphic for each thread or core.

Hi,

Thanks for the reply, however, I already looked into that (see my first post):

under View |CPU History the only option is "One CPU per graph".

Wonder why I only have open option in there?

-Brett.



[bhaney]

FIXED IT! I followed http://mindfulmusings.net/weblog/2004/1...threading-after-upgrading-motherboard/]these instructions for enabling hyperthreading[/url] and it worked! I now have two CPUs in task manager.



[smopoim86]

Where do you find the boot.ini file to edit.



[bhaney]

It's in the root of the boot drive, in my case "C:\". However by default it's read-only and hidden, so you need to make sure Explorer is set to show those files, and remove the read-only attribute before trying to edit it.

-Brett.



[Regs]

Originally posted by: smopoim86
Where do you find the boot.ini file to edit.

If you have XP, you can find it under Control Panel -> System -> Advanced -> Startup and Recovery ->



[smopoim86]

Ok, thanks. I ended up reinstalling windows anyway. Changed my raid5 to raid0 (80ms to 145mbs).

I was actually concerned that i had killed a core on my processor because i have removed the ihs on an e6400, but now all is well. I just need a storm waterblock so i can go ihsless properly
