Question Connecting an HDMI Monitor to an LVDS Motherboard

[luizcrf]

Hello, my Dell Optiplex 3030 A20 All in One computer display has broken and I need a new display.
The problem is that a new display is very expensive, and for this reason, I'm thinking of buying a monitor with an hdmi input to replace it.
The problem is that my motherboard does not have hdmi video output.

I would like to know if there is any adapter that makes it possible to connect the Lvds video output of my
motherboard into an hdmi monitor.

In this case, it would be a Lvds Out to Hdmi in adapter

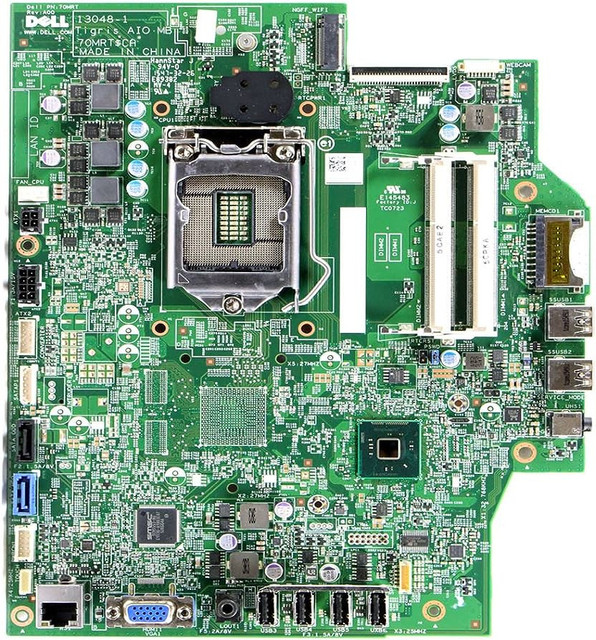

My motherboard model: 0DFRDV

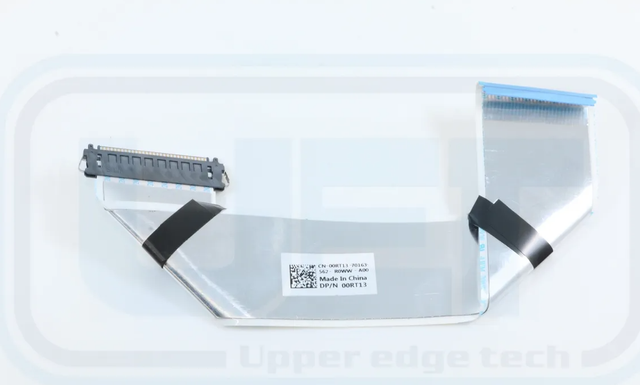

lvds cable model:cn-00Rt13 70163

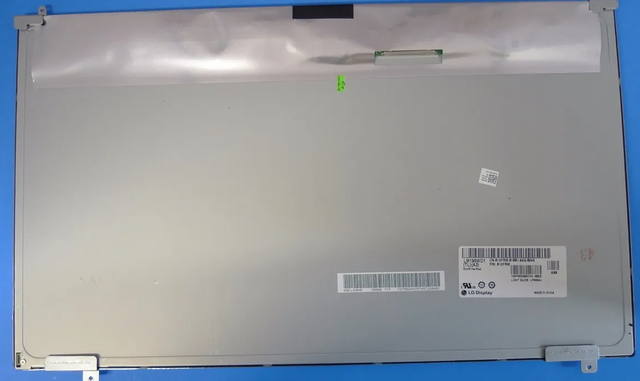

Broken screen display model: lm195wd1 tla2



[Tech Junky]

There's a whole system on ebay for $50. Get that and scavenge the parts you need.



[luizcrf]

Existe um sistema completo no eBay por US$ 50. Pegue isso e procure as peças que você precisa.

Hello friend, I found several Lvds to Hdmi systems on ebay and aliexpress. I sent questions to the sellers, but I didn't find any adapter that works with my cable model (cn-00Rt13 70163)



[Tech Junky]

It's more trouble than it's worth trying to convert lvds to HDMI. In actuality what you would want to do is convert to EDP to allow more panel options. The problem lies in the signalling and bandwidth for lvds.

If you just want to find a panel look at panelook.com and see if there's anything in production with the same number of pins. That's how I reverse engineer things to upgrade my laptops to 4k panels. Most recent one had to switch the pin pitch to make things work for a specific panel. The adapter was $3 from CN and fits between the cable and panel.



[XJDHDR]

Is that VGA socket on the motherboard working? If so, there are VGA - HDMI converters available, and this would probably be the easiest route.

Otherwise, I only managed to find the following for LVDM -> HDMI conversion:

https://www.aliexpress.com/item/32855989953.html

Server Busy

https://www.ti.com/lit/an/slla559/slla559.pdf?ts=1695430626566



[Tech Junky]

@luizcrf apparently I missed switching to an external monitor part of this.

Just get a USB docking station that has HDMI outputs. They're cheap and easy.
.
Pluggable makes a few of them and you just plug things together and install the drivers for meow video features.
