M1
5 nm
Unified memory architecture - LP-DDR4
16 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 12 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache
(Apple claims the 4 high-effiency cores alone perform like a dual-core Intel MacBook Air)

8-core iGPU (but there is a 7-core variant, likely with one inactive core)
128 execution units
Up to 24576 concurrent threads
2.6 Teraflops
82 Gigatexels/s
41 gigapixels/s

16-core neural engine
Secure Enclave
USB 4

Products:
$999 ($899 edu) 13" MacBook Air (fanless) - 18 hour video playback battery life
$699 Mac mini (with fan)
$1299 ($1199 edu) 13" MacBook Pro (with fan) - 20 hour video playback battery life

Memory options 8 GB and 16 GB. No 32 GB option (unless you go Intel).

It should be noted that the M1 chip in these three Macs is the same (aside from GPU core number). Basically, Apple is taking the same approach which these chips as they do the iPhones and iPads. Just one SKU (excluding the X variants), which is the same across all iDevices (aside from maybe slight clock speed differences occasionally).

EDIT:


M1 Pro 8-core CPU (6+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 14-core GPU
M1 Pro 10-core CPU (8+2), 16-core GPU
M1 Max 10-core CPU (8+2), 24-core GPU
M1 Max 10-core CPU (8+2), 32-core GPU

M1 Pro and M1 Max discussion here:


M1 Ultra discussion here:


M2 discussion here:


Second Generation 5 nm
Unified memory architecture - LPDDR5, up to 24 GB and 100 GB/s
20 billion transistors

8-core CPU

4 high-performance cores
192 KB instruction cache
128 KB data cache
Shared 16 MB L2 cache

4 high-efficiency cores
128 KB instruction cache
64 KB data cache
Shared 4 MB L2 cache

10-core iGPU (but there is an 8-core variant)
3.6 Teraflops

16-core neural engine
Secure Enclave
USB 4

Hardware acceleration for 8K h.264, h.264, ProRes

M3 Family discussion here:


M4 Family discussion here:


Last edited:

mikegg

Golden Member
Jan 30, 2010
1,815
445
136
I think that's an outmoded way of looking at things. Back when chip architects were designing a "CPU", having two or three teams leapfrogging each other and when one finishes the 2024 design starting on 2026 or 2027 made sense. That's no longer true today when a chip design includes two different CPU core types, a GPU, an NPU, an ISP, and all the "uncore" like SLC/LPDDR5, USB and so forth.

I would guess they are organized along those lines, so perhaps you have one team doing CPU (or maybe even one doing P core and one doing E core) and another perhaps doing GPU/NPU/ISP, and another doing the uncore/everything else. There would be a team doing the overall A SoC and M SoC designs but they're working at a higher level integrating everything into a whole, and because they're working at a higher level they could work on multiple generations at once without leapfrogging required.
One team cannot be designing 2-3 generations of CPU at the same time. Hence, I said “some kind of system”.

An Apple exec said they plan chips about 4 years in advance. Some team has to be working on the chip set to release in 2028 right now.

Last edited:

Eug

Lifer
Mar 11, 2000
23,729
1,263
126
This time a more reputable analysis and supply chain Pu is saying Apple is building M2 Ultrs and later M4 (M4 Ultra probably) servers for AI
Interesting:

1. M2 Ultra
2. Servers - For use themselves, or for retail/institutional sale?
3. "supply chain Pu" :D

Last edited:

Eug

Lifer
Mar 11, 2000
23,729
1,263
126
I think the AI Server is for themselves, instead of using other companies CPUs/GPUs why not use your own.
I had read that Apple uses Linux for its iCloud backend.

And when Steve Jobs was running Pixar, the render farms were also Linux (on Xeons). I'm not sure about now, but I'm thinking it is still Linux.


poke01

Golden Member
Mar 8, 2022
1,299
1,464
106
I had read that Apple uses Linux for its iCloud backend.

And when Steve Jobs was running Pixar, the render farms were also Linux. I'm not sure about now, but I'm thinking it is still Linux.
Linux I think so too. It’s simple and easy to configure. It’s open source, so no fees.


oak8292

Member
Sep 14, 2016
87
69
91
That would be odd. x86 servers are likely cheaper and they have at least 8 datacenter locations globally and have invested some $XXB in them.
The margins for X86 CPUs and GPUs are fairly clear with both AMD and Nvidia using wafers from TSMC and reporting on gross margins. Intel’s transistor costs have just be broken out into a foundry line item to clarify their costs. Apple is buying enough wafers to get preferred status either at TSMC or Intel. Apple has CPU, GPU and NPU designs with their own software stack. They can license ARM cores for servers just like AWS or Nvidia if they don’t feel their own core is adequate. I wouldn’t second guess them. They know the economics and they have some advantages.

With Google, Microsoft, AWS and now rumors of Apple all designing and building ARM server processors it seems that X86 IP is over priced.


Eug

Lifer
Mar 11, 2000
23,729
1,263
126
The margins for X86 CPUs and GPUs are fairly clear with both AMD and Nvidia using wafers from TSMC and reporting on gross margins. Intel’s transistor costs have just be broken out into a foundry line item to clarify their costs. Apple is buying enough wafers to get preferred status either at TSMC or Intel. Apple has CPU, GPU and NPU designs with their own software stack. They can license ARM cores for servers just like AWS or Nvidia if they don’t feel their own core is adequate. I wouldn’t second guess them. They know the economics and they have some advantages.

With Google, Microsoft, AWS and now rumors of Apple all designing and building ARM server processors it seems that X86 IP is over priced.
It's not really about second-guessing Apple, but about second guessing the analyst Jeff Pu. Do you believe his rumour?

  • Like
Reactions: Ajay

poke01

Golden Member
Mar 8, 2022
1,299
1,464
106
It's not really about second-guessing Apple, but about second guessing the analyst Jeff Pu. Do you believe his rumour?
Jeff is much more accurate than Kuo. In fact, he reported the iPhone 17 slim model screen size before Ross Young did. So he has some merit.


Eug

Lifer
Mar 11, 2000
23,729
1,263
126
Jeff is much more accurate than Kuo. In fact, he reported the iPhone 17 slim model screen size before Ross Young did. So he has some merit.
Jeff Pu isn't more accurate than Kuo, at least historically speaking. He actually has a pretty poor track record. Maybe he's better in recent months than he was in the past, I'm not sure, but in previous years he was worse than the much criticized DigiTimes.

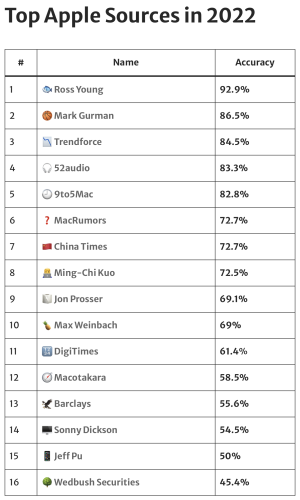

Screenshot 2024-05-06 at 9.48.07 PM.png

  • Like
Reactions: Mopetar

oak8292

Member
Sep 14, 2016
87
69
91
It's not really about second-guessing Apple, but about second guessing the analyst Jeff Pu. Do you believe his rumour?
Not really. I think it is a good educated guess but I am not big on rumors. Apple has the need and a cost advantage so it makes sense that Apple would roll their own. Will it be by 2025, who knows? Educated guessing.


Doug S

Platinum Member
Feb 8, 2020
2,458
4,006
136

This time a more reputable analysis and supply chain Pu is saying Apple is building M2 Ultrs and later M4 (M4 Ultra probably) servers for AI

I still don't buy it. I saw other reports that Apple was building custom chips for their AI servers. That I could believe. It makes zero sense to install a bunch of Apple Silicon chips just to use the tiny corner that's labeled 'NPU', or the slightly larger piece that's labeled 'GPU', and waste a bunch of space on excess CPU cores, USB/TB controllers, display controllers and the like. They'd built chips that all AI compute with a little corner with a few CPU cores for management tasks. They'd drop the LPDDR5 and use HBM. To sum up, if they were going to do this they would do it right, not half ass it by trying to leverage one of their existing chips.


Doug S

Platinum Member
Feb 8, 2020
2,458
4,006
136
Regarding the Gurman article on using M4, I wonder if his source was the iPadOS 14.5 betas containing indications of iPad 16,x and the T8132. That information was apparently around for a while before Gurman's article, so maybe he doesn't have any actual sources for this beyond that. Others might have put the same 2+2 together, but he's more widely published so he'll get the "credit" if we see M4 iPads unveiled tomorrow.

Are they going to ding his 86.5% "prediction accuracy" when it turns out his 18 month cadence thing was bs? Or will they give him credit, since he was kinda/sorta right based on M1->M2 and M2->M3, if you squint a bit and count the months in the way most favorable to that conclusion?


Eug

Lifer
Mar 11, 2000
23,729
1,263
126
Regarding the Gurman article on using M4, I wonder if his source was the iPadOS 14.5 betas containing indications of iPad 16,x and the T8132. That information was apparently around for a while before Gurman's article, so maybe he doesn't have any actual sources for this beyond that. Others might have put the same 2+2 together, but he's more widely published so he'll get the "credit" if we see M4 iPads unveiled tomorrow.

Are they going to ding his 86.5% "prediction accuracy" when it turns out his 18 month cadence thing was bs? Or will they give him credit, since he was kinda/sorta right based on M1->M2 and M2->M3, if you squint a bit and count the months in the way most favorable to that conclusion?
I discussed this earlier in the thread, but yes it would seem that Gurman has recently been reading the same forums and has joined the M4 prediction bandwagon based on that. From his newsletter, it doesn’t sound like he has any additional info on this.


IEC

Elite Member
Super Moderator
Jun 10, 2004
14,352
5,003
136
Watching live stream now. They just finished on the Air segment:

iPad Air with M2 chips, base model now 128GB storage up to 1TB at high end
iPad Air 11" $599
iPad Air 13" $799

iPad Pro segment next.


IEC

Elite Member
Super Moderator
Jun 10, 2004
14,352
5,003
136
iPad Pro in 11" and 13", silver and space black only

11" Pro = 5.3mm thin, 0.98lb
13" Pro = 5.1mm thin, 1.28lb

Display:
OLED for first time
Uses TWO panels to have enough brightness for 1000 nits, tandem OLED, peak 1600 nits

  • Like
Reactions: Orfosaurio

IEC

Elite Member
Super Moderator
Jun 10, 2004
14,352
5,003
136
iPad Pro will use new M4 chip

2nd gen 3nm tech
New display engine, 10-120Hz variable refresh
4 performance cores, 6 efficiency (up to 50% faster than M2 in the previous iPad Pro claimed)
10-core GPU, mesh shading, ray tracing (claimed 4x performance vs M2)
M4 delivers same performance as M2 at 1/2 the power
