Aigomorla's EVA Build.

[aigomorla]

Possibly last build from me this year..
So im gonna end it with a big bang..

Hardware:
Intel CPU. <Sorry cant say anymore but its one of these guys>
http://i125.photobucket.com/al...p73/aigomorla/Joke.jpg

ASUS P6T-Deluxe.
http://i125.photobucket.com/al...aigomorla/DSC00483.jpg

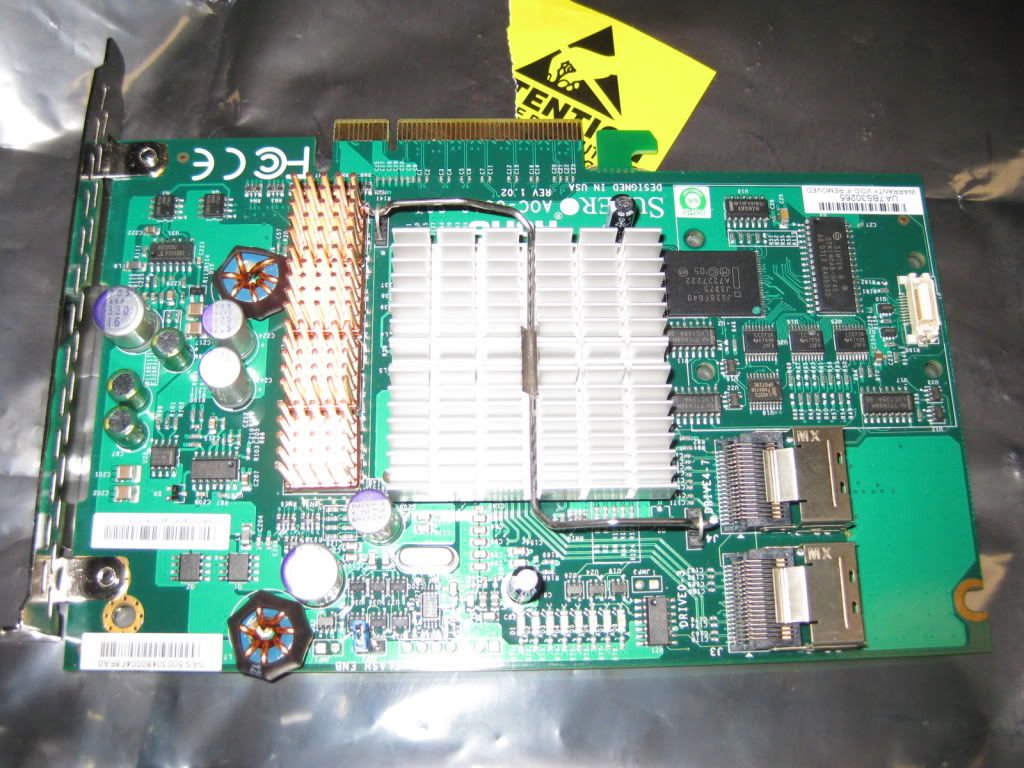

Supermicro AOC-USAS-S8IR SAS Controller
http://i125.photobucket.com/al...aigomorla/IMG_0147.jpg

PowerColor HD4870X2 (ROFL remember this problem when they first came out?)
http://i125.photobucket.com/al...aigomorla/IMG_1157.jpg

3 x 2 gb Corsiar DDR3 PC1333
(pictures to come)

Raptor Orgy on SAS controller. (i lost one )
http://i125.photobucket.com/al...aigomorla/IMG_1145.jpg

Dual Gateway 2485W
http://i125.photobucket.com/al...aigomorla/IMG_0829.jpg

H2O
Loop 1:

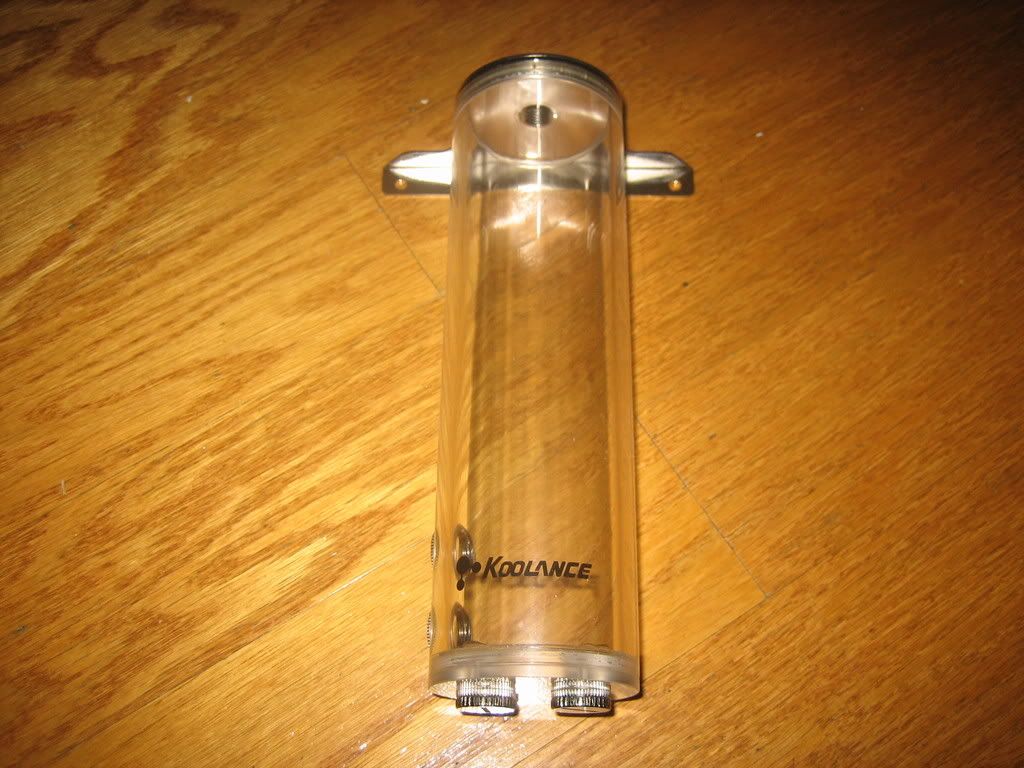

Koolance 200mm Res
http://i125.photobucket.com/al...aigomorla/IMG_1117.jpg

Koolance 350
http://i125.photobucket.com/al...aigomorla/IMG_0136.jpg

Dual DDC-2 Package
http://i125.photobucket.com/al...aigomorla/IMG_0126.jpg

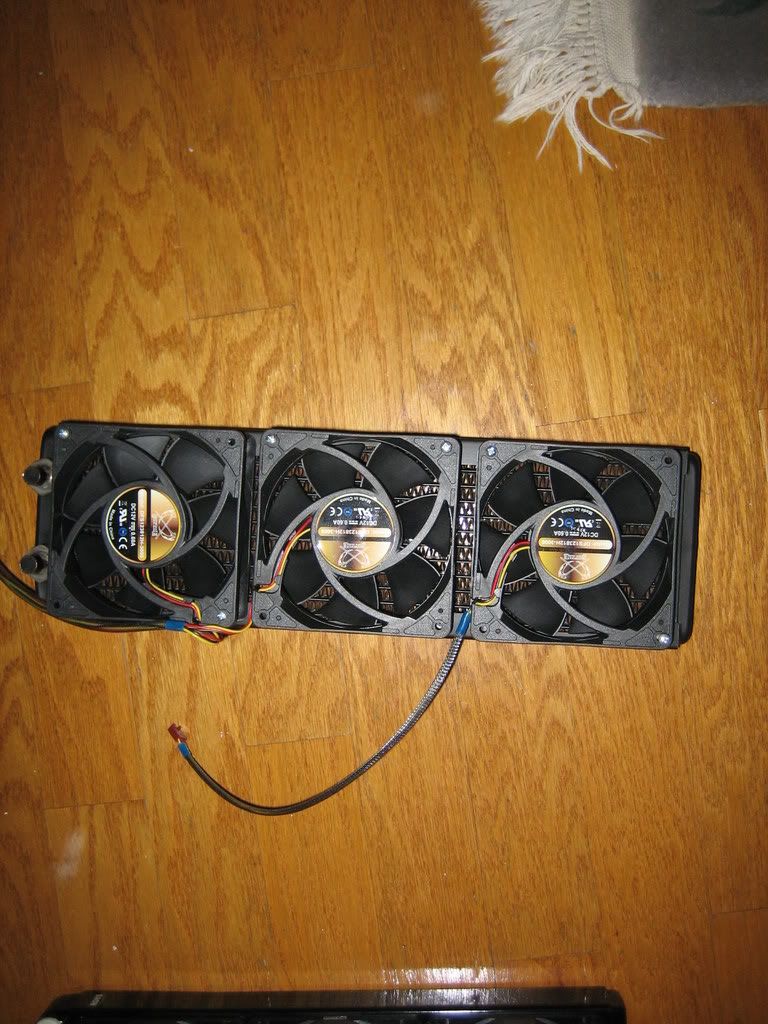

PA120.3 (gonna change the fans to san aces)
http://i125.photobucket.com/al...aigomorla/IMG_0938.jpg
Loop Order: Res -> Pump -> 350 -> PA120.3 -> res

Loop 2:
PA160
(pictures to come)

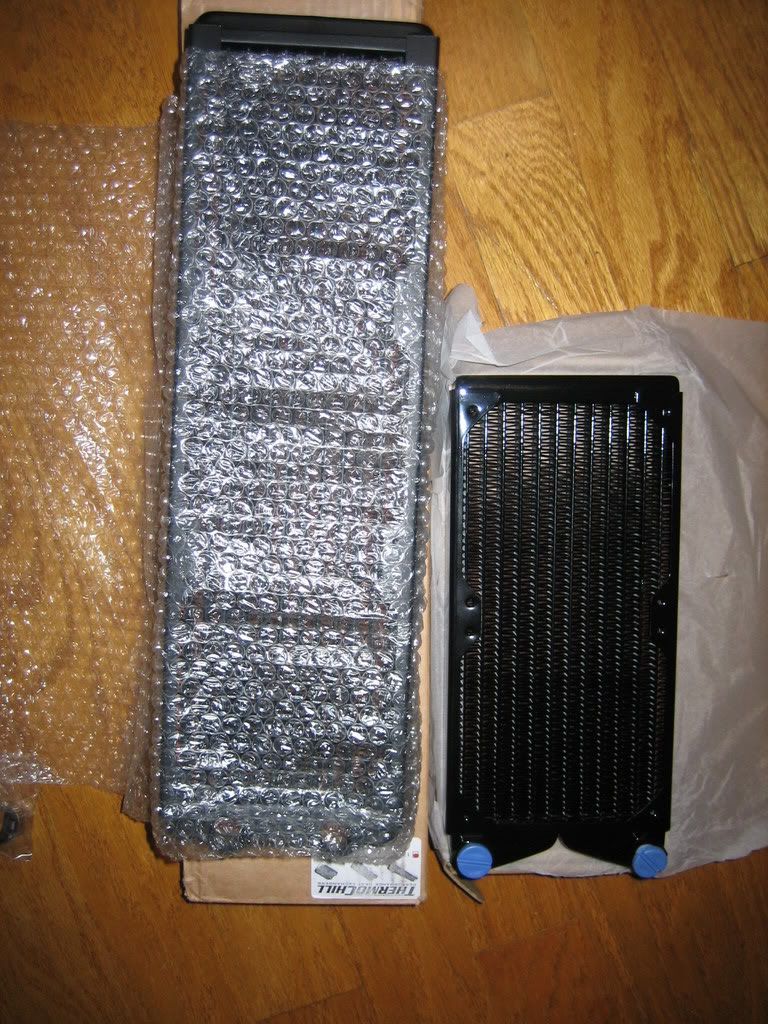

MCR220
http://i125.photobucket.com/al...aigomorla/IMG_0672.jpg

EK-ResTop DDC 3.2 (however i replaced the tube with a 250 version :ROTF: )
http://i125.photobucket.com/al...aigomorla/IMG_0830.jpg

XSPC Top DDC 3.2
(pictures to come)

DD HD4870X2
http://i125.photobucket.com/al...aigomorla/IMG_0008.jpg

My Custom Mosfet and NB block.
http://i125.photobucket.com/al...aigomorla/IMG_0141.jpg

havent fully decided on loop order yet... :\


Oh and its all going inside a Powered Black U2 (i know BORING) :
http://i125.photobucket.com/al...aigomorla/IMG_0691.jpg

And yes, there will be a lot of bitspower and koolance fitting pron. :rofl:



Ammendment:
Yesterday i spent 7 hours taking apart sakura and cleaning.
Today i will start assembly of EVA.

I wasnt going to bring it here because its a bit too xtreme, however i dont think you guys would forgive me if i kept it a secret...



[Gillbot]

I want to see less posting and more building.



[MarcVenice]

Die. In. Hell.

/jealous

Want pics of final build plz. And what's with the CPU's, is it something we don't know about ? Mainstream lga1366 cpu's or something ? Dualcores ?



[WoodButcher]

Interesting, if that Koolance 350 is any indication my suspicions were correct, no impingement but simply flood the entire surface.



[Quiksilver]

Originally posted by: MarcVenice
Want pics of final build plz. And what's with the CPU's, is it something we don't know about ? Mainstream lga1366 cpu's or something ? Dualcores ?

Gainestown.



[Old Hippie]

Man, That's gonna be fun to put together and great to play with! :thumbsup:



[MarcVenice]

Ah, gainestown are the xeon equivalents of the 920's, 940's and 965's ? Do they run in current x58 mobo's ( i guess they do since aigo plans on doing it ) ?



[PCTC2]

Goddamnit Aigo. Not again.

I'm finally building another rig, with a new i7, and you have to go up and show me up. I don't need to be one up'd. Pass a little wealth down a hundred miles south please.

But nice build. /jealous +1



[aigomorla]

had install nighmares.

loop 2 was giving me hell... and i had to ditch the second DDC cuz i ran out of room.

stupid sas cables all over the place... and same with power...

i need a larger case.. :


about 75% done you guys...

WB the 350 is an injector block.

Yes, gainestown cpu's will work on a X58.
Gotta love 2 x QPI later on... :T

i am posting from ASUS Splash as we speak right now...
I am having issues with my SAS controller... :\

I am right now currently dumbfounded on my cpu.

My sponsors original "i dont know" answer... was the correct answer b4 his "oh i got update"... (it couldnt be more off)

But i'll have to get back to you on the cpu later..



[WoodButcher]

Originally posted by: aigomorla

WB the 350 is an injector block.

I was just reading about it over at XS, No nozzles and a fairly large orifice, more flow is better.



[Rabbits]

Build it and show some smexy pics. Solid build.



[TidusZ]

I had a compaq presario that was pretty extreme, also like this, probably too extreme for anandtech. Which is why I never brought you guys up to speed. I would of had to black out most of the specs anyway.



[aigomorla]

Originally posted by: WoodButcher

Originally posted by: aigomorla

WB the 350 is an injector block.

I was just reading about it over at XS, No nozzles and a fairly large orifice, more flow is better.

http://i125.photobucket.com/al...aigomorla/IMG_0143.jpg

well the nozzle is that clear plate...



[aigomorla]

well i finished the looping...

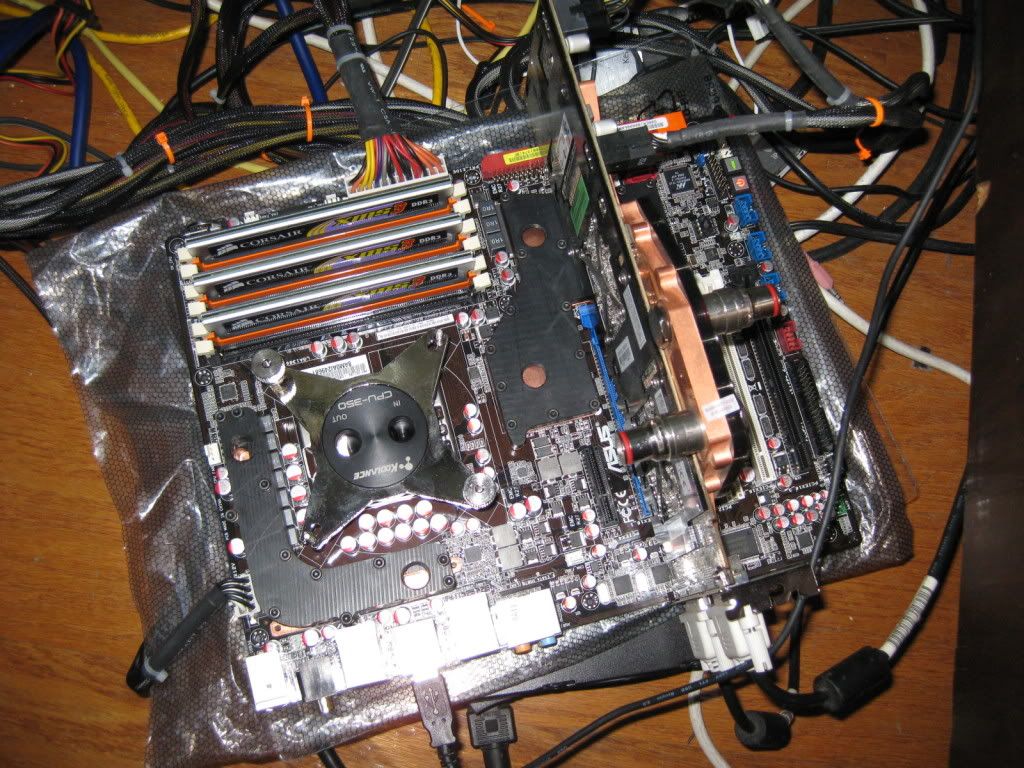

Here i was live firing for post..
http://i125.photobucket.com/al...aigomorla/IMG_0150.jpg

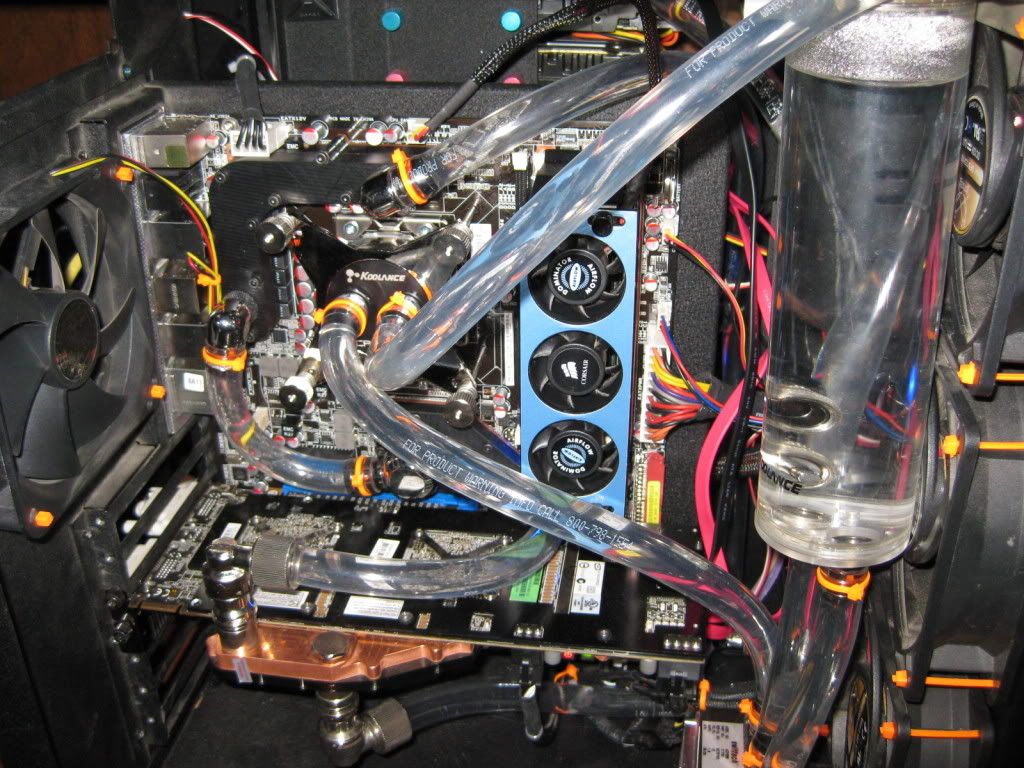

Here is the final Side shot.. i still need to do a LOT of work on the wiring tho...
http://i125.photobucket.com/al...aigomorla/IMG_0152.jpg

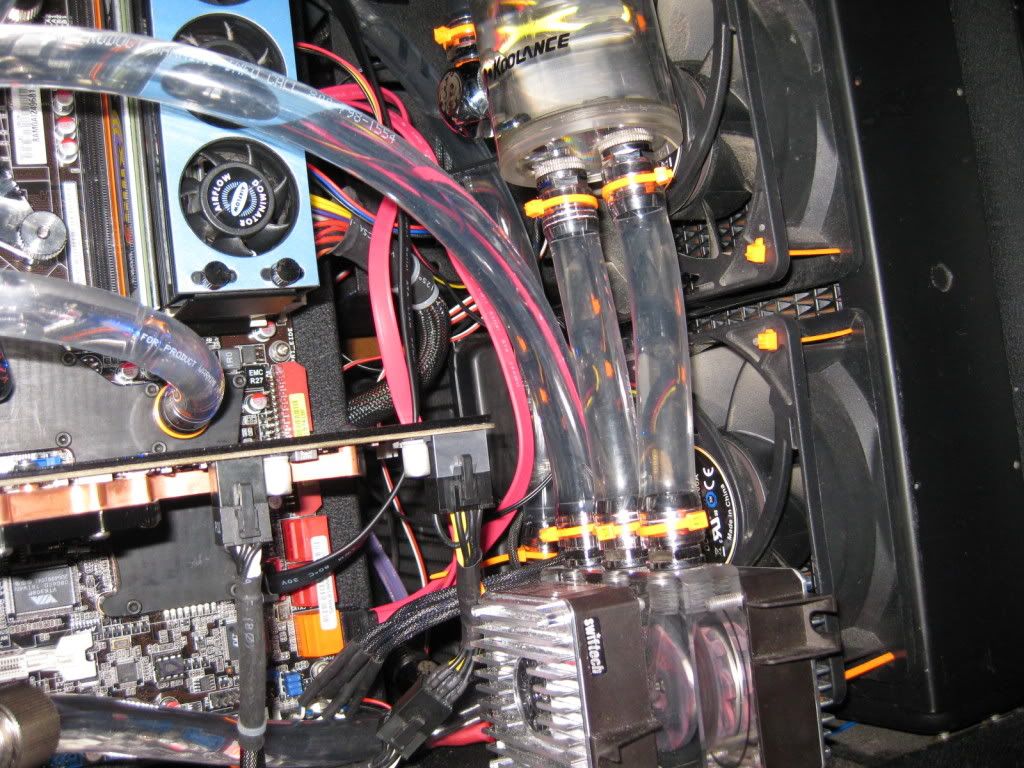

My Pump Delivery package:
http://i125.photobucket.com/al...aigomorla/IMG_0156.jpg

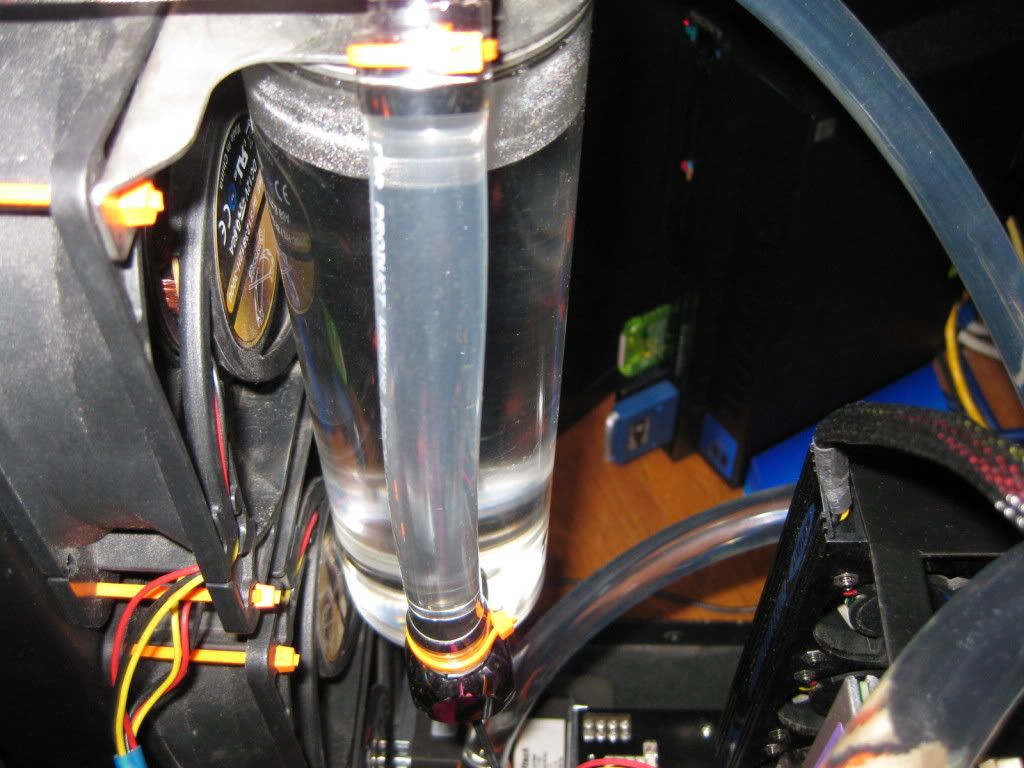

Here is the inlet from the rad to the res:
http://i125.photobucket.com/al...aigomorla/IMG_0155.jpg

http://i125.photobucket.com/al...aigomorla/IMG_0154.jpg


I cant give you guys more then this right now... If you ask why, look at where it says gainestown instead of bloomfield..
http://i125.photobucket.com/al...3/aigomorla/Update.jpg


My SAS controller up and died... So i need to get a new one...
And massive cable management is needed, will probably do that next weekend as i swap blocks and try out a EK supreme..

Still need to tweek OC... :\



[MarcVenice]

Why is the core speed blanked out, isn't that just 23x160 ? Or did you manage to adjust the multiplier anyways ?



[aigomorla]

Originally posted by: MarcVenice
Why is the core speed blanked out, isn't that just 23x160 ? Or did you manage to adjust the multiplier anyways ?

http://i125.photobucket.com/al...73/aigomorla/Final.jpg

unedited..


i have a bclk wall on these chips, which is why im moving them to a tyan dp board, and getting a replacement 965 in soon.



[Nemesis 1]

Should be a nice Rig. I do have a Question for ya. I see ya spend a lot of time at XS water cooling section. Propabably the most Hyped water cooling forum in the world when it comes to Trueth.

My question is why the TC rad. Expensive and old tech. Copper Vs. Brass Tubes.

I know you seen the Thread of the recently preview of a new RAD@ XS forums. 8 cooling fins per inch on the tubes Nice thick cores. I won't say name as I have had On test bench. So I am not allowed. But that thread of the said preview for this rad was removed . The company that built the Rad. Had nothing to do with the preview being pulled. SO why was it pulled. A question you and all others should ask at said forum . I have but get ignored. Wait till ya see the performance of this rad. It just can't get any better . Unless one were to use silver tubes and fins. Were not talking feser here either.

Your choice of CPU blocks was perfect. How many LPS do you figure is running threw that block with your settup. On our test system the 350 block is really really good at about 7.5 lpm or 2gpm of flow threw the block. I was able to lower IC7 temps @ 4.2. 4.4 turbo. 4c. That doesn't seem like alot. But it took to below 60c on load . I am way happy with this block. But its still not the best. I can change flow threw 6 loops from zero flow all the way to 8gpm threw 1-6 loops. using a single pump threw Total pump @ 3" rise is 12 gpm. So we have perfect flow control threw all loops a hugh + . . No I will not say what pump we use. We use our own rads. Unless the customer ops for cheaper feser rads 3x 3 120s 15mm spacing . My own personnel gamers uses feser. Funny the only choice we give is rads. WE do plan on moving away from the feser and our own rads. As I can't beat the performance of the new rads . per fin area. SO thats that. This new rad is that good. We take pressure readings @ FLOW CONTROL UNIT FOR BOTH inlet and out let. Each return loop has its own temp guage so we have complete control over flow temps and pressure loss.



[aigomorla]

well,

i use TC becuase it was ment to fit on that case.

I have a fesser rads.. this monster for example..

http://i125.photobucket.com/al...aigomorla/IMG_0114.jpg

What rad are you talking about that got pulled from XS? The Monster?

about my cpu block, i believe my pumps are probably raited at 12-13PSI, i dont really care about flow in the cpu loop, impact blocks are more pressure dependant then flow depenant.

And flow and pressure are contrast of each other..



[BTRY B 529th FA BN]

Nice!



[Infrnl]

looking good Aigo



[aigomorla]

yeah this project is completed almost..

im just waiting on my second HD4870X2 to throw on my rig, and finish block testing, so i can give eva a real gamer cpu.



[Gillbot]

Originally posted by: aigomorla
yeah this project is completed almost..

im just waiting on my second HD4870X2 to throw on my rig, and finish block testing, so i can give eva a real gamer cpu.

Waiting to add to your ATI failure rate?
