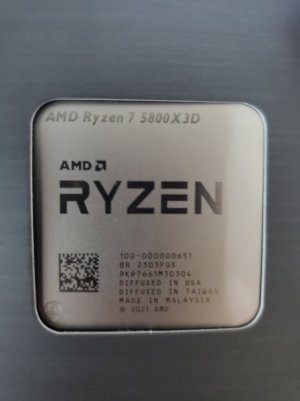

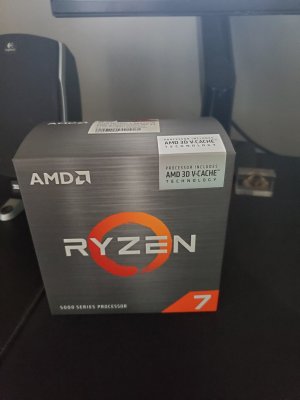

So I just got an 5800X3D and I was a little shocked at how hot and throttley it was and theres no PBO settings for the X3d chip (at least not on my MB, I know a few new BIOS revisions are coming out with it).

Anywhoo theres a simple little program a guy wrote that helps massivly with all core clock speeds on this cpu.

github.com

How-to-undervolt-AMD-RYZEN-5800X3D-Guide-with-PBO2-Tuner/README.md at main · PrimeO7/How-to-undervolt-AMD-RYZEN-5800X3D-Guide-with-PBO2-Tuner

Get the Most out of your 5800X3D using PBO Curve Optimizer! - PrimeO7/How-to-undervolt-AMD-RYZEN-5800X3D-Guide-with-PBO2-Tuner
github.com github.com

This dropped my temps and let me hit the boost ceiling for all cores and single cores! Its well worth a go if your MB doesnt yet hae PBO2 support.

This for testing....

github.com

Releases · sp00n/corecycler

Script to test single core stability, e.g. for PBO & Curve Optimizer on AMD Ryzen or overclocking/undervolting on Intel processors - sp00n/corecycler
github.com github.com

  • Like
  • Wow
Reactions: DAPUNISHER, lightmanek, Elfear and 2 others
Sort by date Sort by votes
WelshBloke

WelshBloke

Lifer
Jan 12, 2005
32,412
10,535
136
Makaveli said:
Which board and bios version are you on?
Click to expand...
Running an Asus x470 prime pro with bios 6063.

Is this not working for you? I found a massive difference. I'm running a -30 offset right now but it seems stable at -50, but there were no massive gains after -30. (Maybe a little drop in temp but I didn't have time to test it at those values)

  • Like
Reactions: igor_kavinski
Upvote 0 Downvote
WelshBloke

WelshBloke

Lifer
Jan 12, 2005
32,412
10,535
136
I didn't really see any drop in temperature until I got to -30. My CPU just used all the headroom it had and boosted until it hit 90c under full load.
So up to -25 it stayed at 90c but boosted higher and longer, then when I hit -30 it stopped boosting higher and started dropping temps.
Which is (as I understand it) exactly what PBO2 is supposed to do but it was fun to see it happen so explicitly. I'm looking forward to having enough time to test the higher PBO2 levels. Core cycler is stable overnight at -30 so I'll be happy with that anyway.

  • Like
Reactions: igor_kavinski
Upvote 0 Downvote
PJVol

PJVol

Senior member
May 25, 2020
849
825
136
WelshBloke said:
So I just got an 5800X3D and I was a little shocked at how hot and throttley it was and theres no PBO settings for the X3d chip (at least not on my MB, I know a few new BIOS revisions are coming out with it).
Anywhoo theres a simple little program a guy wrote that helps massivly with all core clock speeds on this cpu.
Click to expand...
Yeah, I was curious what was behind that weird decision to not expose at least curve adjusting in BIOS initially for the X3D parts. Anyway glad it helps.

  • Like
Reactions: WelshBloke
Upvote 0 Downvote
M

Motostu

Senior member
Oct 5, 2020
566
588
136

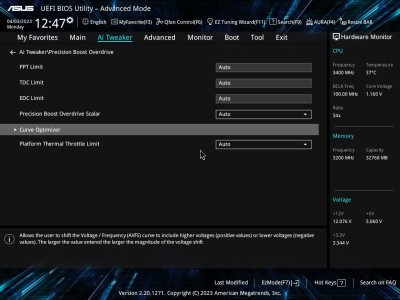

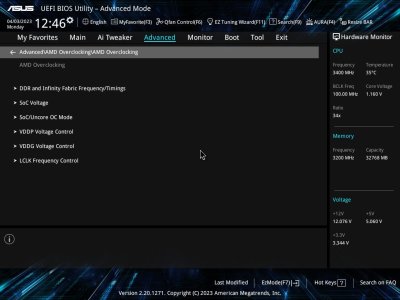

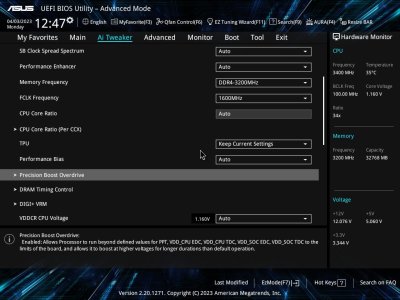

Yep, the latest Asus BIOS for their X570 boards (and some other brands) lets you set CO offsets. I used the PBO2 tuner in Windows to find my stable per-core offsets, then set them in the BIOS. No issues, and it's nice not having to have a script set them every time Windows starts.

  • Like
Reactions: igor_kavinski
Upvote 0 Downvote
Makaveli

Makaveli

Diamond Member
Feb 8, 2002
4,915
1,503
136
Motostu said:
Yep, the latest Asus BIOS for their X570 boards (and some other brands) lets you set CO offsets. I used the PBO2 tuner in Windows to find my stable per-core offsets, then set them in the BIOS. No issues, and it's nice not having to have a script set them every time Windows starts.
Click to expand...
true but is WelshBloke seeing this other menu in his x470 bios is the question.

Right now i've set -20 per core but haven't had time to do per core tuning like I did on my 5800X.

Upvote 0 Downvote
