Old 09-29-2011, 10:21 AM   #1
Idontcare
Administrator
Elite Member

Idontcare's Avatar

Join Date: Oct 1999
Location: 台北市
Posts: 20,513
Default Overclocking CPU/GPU/Memory Stability Testing Guidelines

This thread is a work in progress. The OP will be updated/amended to reflect information as made available by thread contributors.



LinX (Intel burntest) is superior to Prime95 small FFT for determining CPU core logic stability.
  • Must run with the IBT thread count set equal to the physical core count of the CPU.
  • HT slows it down and reduces the ability to determine stability. Set to 4 threads on a 2600K.
  • Set memory to "All".
  • Stability Criterion: Must pass 5 cycles minimum, passing 20 cycles is preferred (considered gold standard)
Prime95 large FFT is superior to LinX for determining L3$/IMC stability.
  • Must use large FFT, blend is insufficient. <- reports indicate this is false for AMD stability tests, see post #4
  • HT is ok for this test.
  • Stability Criterion: Must pass 2 hours minimum, passing 12 hours is preferred (considered gold standard)
HCI memtest is superior to LinX, Prime (large or small), and memtest86+ for determining memory stability.
  • Launch one instance per thread supported by CPU (8 instances of HCI memtest for 2600K)
  • Set each HCI instance to use an appropriate fraction of the memory...16GB on a 2600K means each HCI instance (there will be 8 instances) are to use 2048 MB.
  • Stability Criterion: Must pass 200% coverage minimum, passing 1000% coverage is preferred (considered gold standard)
OCCT GPU test w/error checking enabled is superior to Kombustor for determining GPU stability. (updated link to OCCT 4.0.0, thanks NoobyDoo!)
  • Error checking MUST be enabled by the user (check the box), otherwise you are leaving it up to your eyes to detect visual artifacts which renders the test entirely subjective.
  • Stability Criterion: Must pass 20 minutes minimum, passing 1 hour is preferred (considered gold standard)

Last edited by Idontcare; 10-30-2011 at 02:19 PM.
Idontcare is offline   Reply With Quote
Old 09-29-2011, 10:46 AM   #2
Avalon
Diamond Member

Avalon's Avatar

Join Date: Jul 2001
Posts: 7,346
Default

Quote:
Originally Posted by Idontcare View Post
LinX (Intel burntest) is superior to Prime95 small FFT for determining CPU core logic stability.
  • Must run with the IBT thread count set equal to the physical core count of the CPU.
  • HT slows it down and reduces the ability to determine stability. Set to 4 threads on a 2600K.
  • Set memory to "All".
  • Stability Criterion: Must pass 5 cycles minimum, passing 20 cycles is preferred (considered gold standard)
Prime95 large FFT is superior to LinX for determining L3$/IMC stability.
  • Must use large FFT, blend is insufficient.
  • HT is ok for this test.
  • Stability Criterion: Must pass 2 hours minimum, passing 12 hours is preferred (considered gold standard)
HCI memtest is superior to LinX, Prime (large or small), and memtest86+ for determining memory stability.
  • Launch one instance per thread supported by CPU (8 instances of HCI memtest for 2600K)
  • Set each HCI instance to use an appropriate fraction of the memory...16GB on a 2600K means each HCI instance (there will be 8 instances) are to use 2048 MB.
  • Stability Criterion: Must pass 200% coverage minimum, passing 1000% coverage is preferred (considered gold standard)
OCCT GPU test w/error checking enabled is superior to Kombustor for determining GPU stability.
  • Error checking MUST be enabled by the user (check the box), otherwise you are leaving it up to your eyes to detect visual artifacts which renders the test entirely subjective.
  • Stability Criterion: Must pass 20 minutes minimum, passing 1 hour is preferred (considered gold standard)
I kind of feel that should be a sticky. Was unaware of HCI. Thanks!
__________________
On a mission to be the first to drink 500 unique beers at World of Beer UCF. Check out my progress and read tons of reviews at www.beeruken.com

Progress: 500/500 as of 10/18/12

Completed the 500 beer challenge!!!
Avalon is offline   Reply With Quote
Old 09-29-2011, 11:22 AM   #3
ThatsABigOne
Diamond Member

ThatsABigOne's Avatar

Join Date: Nov 2010
Location: Minsk, Belarus or Utah, USA
Posts: 4,116
Default

Quote:
Originally Posted by Idontcare View Post
LinX (Intel burntest) is superior to Prime95 small FFT for determining CPU core logic stability.
  • Must run with the IBT thread count set equal to the physical core count of the CPU.
  • HT slows it down and reduces the ability to determine stability. Set to 4 threads on a 2600K.
  • Set memory to "All".
  • Stability Criterion: Must pass 5 cycles minimum, passing 20 cycles is preferred (considered gold standard)
Prime95 large FFT is superior to LinX for determining L3$/IMC stability.
  • Must use large FFT, blend is insufficient.
  • HT is ok for this test.
  • Stability Criterion: Must pass 2 hours minimum, passing 12 hours is preferred (considered gold standard)
HCI memtest is superior to LinX, Prime (large or small), and memtest86+ for determining memory stability.
  • Launch one instance per thread supported by CPU (8 instances of HCI memtest for 2600K)
  • Set each HCI instance to use an appropriate fraction of the memory...16GB on a 2600K means each HCI instance (there will be 8 instances) are to use 2048 MB.
  • Stability Criterion: Must pass 200% coverage minimum, passing 1000% coverage is preferred (considered gold standard)
OCCT GPU test w/error checking enabled is superior to Kombustor for determining GPU stability.
  • Error checking MUST be enabled by the user (check the box), otherwise you are leaving it up to your eyes to detect visual artifacts which renders the test entirely subjective.
  • Stability Criterion: Must pass 20 minutes minimum, passing 1 hour is preferred (considered gold standard)
This should be a sticky! I did not know about those 2 stress testers!
ThatsABigOne is online now   Reply With Quote
Old 09-29-2011, 12:24 PM   #4
sangyup81
Golden Member

Join Date: Feb 2005
Posts: 1,082
Default

Quote:
Originally Posted by Idontcare View Post
LinX (Intel burntest) is superior to Prime95 small FFT for determining CPU core logic stability.
  • Must run with the IBT thread count set equal to the physical core count of the CPU.
  • HT slows it down and reduces the ability to determine stability. Set to 4 threads on a 2600K.
  • Set memory to "All".
  • Stability Criterion: Must pass 5 cycles minimum, passing 20 cycles is preferred (considered gold standard)
Prime95 large FFT is superior to LinX for determining L3$/IMC stability.
  • Must use large FFT, blend is insufficient.
  • HT is ok for this test.
  • Stability Criterion: Must pass 2 hours minimum, passing 12 hours is preferred (considered gold standard)
HCI memtest is superior to LinX, Prime (large or small), and memtest86+ for determining memory stability.
  • Launch one instance per thread supported by CPU (8 instances of HCI memtest for 2600K)
  • Set each HCI instance to use an appropriate fraction of the memory...16GB on a 2600K means each HCI instance (there will be 8 instances) are to use 2048 MB.
  • Stability Criterion: Must pass 200% coverage minimum, passing 1000% coverage is preferred (considered gold standard)
OCCT GPU test w/error checking enabled is superior to Kombustor for determining GPU stability.
  • Error checking MUST be enabled by the user (check the box), otherwise you are leaving it up to your eyes to detect visual artifacts which renders the test entirely subjective.
  • Stability Criterion: Must pass 20 minutes minimum, passing 1 hour is preferred (considered gold standard)
Like others have said, sticky please!

About the Prime95 Large FFT, I've gotten crashes on my Phenom II on Blend that I haven't gotten on Large FFT. This required me to run it 24 hours with crashes happening on the 20th hour a lot of times. These crashes were fixed by increasing increasing CPU or CPU-NB volts or downing the CPU or CPU-NB clock speeds.
sangyup81 is offline   Reply With Quote
Old 09-29-2011, 12:36 PM   #5
Idontcare
Administrator
Elite Member

Idontcare's Avatar

Join Date: Oct 1999
Location: 台北市
Posts: 20,513
Default

Quote:
Originally Posted by sangyup81 View Post
Like others have said, sticky please!

About the Prime95 Large FFT, I've gotten crashes on my Phenom II on Blend that I haven't gotten on Large FFT. This required me to run it 24 hours with crashes happening on the 20th hour a lot of times. These crashes were fixed by increasing increasing CPU or CPU-NB volts or downing the CPU or CPU-NB clock speeds.
Noted in the OP.

Typically, issues that "blend" would capture will also be more readily detected with HCI memtest as the difference between blend and large FFT is the memory usage itself.

It would be nice if we could get confirmation of blend being superior to large FFT on Intel platforms as well...then we could just wholesale adopt the "use blend" proposal an drop the "use large FFT" recommendation entirely.

Anyone have anecdotal evidence to support such a proposal?
Idontcare is offline   Reply With Quote
Old 09-29-2011, 02:15 PM   #6
daddylongs
Member

daddylongs's Avatar

Join Date: Sep 2011
Location: oregon
Posts: 33
Default

Thanks for putting all this amazingly helpful info in one place!

Do you have thoughts on Real Temp vs. Core Temp 1.0?

My next steps are to see how low I can get my CPU Voltage at 45x100. Currently I am stable at 1.30v. Do you have suggestions on what increments I should be lowering at? .05v?

Asus P8P67 Deluxe -- SB 2600k -- Mugen 3 (SCMG-3000) -- DDR3-2000 (Gskill Trident 2x2GB)
Antec 300, with 2x extra Scythe 120mm 900rpm front fans. -- OCZ Vertex3 240GB -- evga GTX 470 superclocked
daddylongs is offline   Reply With Quote
Old 09-29-2011, 06:03 PM   #7
thegimp03
Diamond Member

thegimp03's Avatar

Join Date: Jul 2004
Posts: 7,397
Default

Thanks for the information. I was unaware of those programs outside of Prime95 and memtest86+, but don't really consider myself in-the-know on these things anyways as I only build a system maybe once every 3-5 years.
thegimp03 is offline   Reply With Quote
Old 09-29-2011, 06:07 PM   #8
Idontcare
Administrator
Elite Member

Idontcare's Avatar

Join Date: Oct 1999
Location: 台北市
Posts: 20,513
Default

Quote:
Originally Posted by daddylongs View Post
Do you have thoughts on Real Temp vs. Core Temp 1.0?
I use both.

Real Temp has some nice feature but it only works with the Intel CPU's as I understand it.

Core Temp has nice temperature logging features. Real temp will also log temps but it appends each session's worth of data into one big mega-file whereas Core Temp will save log files by timestamp of the session's start which is nice for the purpose of going back to lookup the results of bench sessions.

Quote:
Originally Posted by daddylongs View Post
My next steps are to see how low I can get my CPU Voltage at 45x100. Currently I am stable at 1.30v. Do you have suggestions on what increments I should be lowering at? .05v?
My mobo lets me change Vcc in 0.005 volt increments, which is what I use.

But I iterate with more of a "rapid find" approach by dropping launching a session of LinX, let the CPU get good and warm at my target GHz, and then using AI Suite I start dropping the Vcc in 0.005 increments. Let it stable, wait maybe 30 seconds, then drop again, wait 30s, drop again. All while LinX is running in the background.

Eventually LinX will either halt from a computation error or the system will BSOD, then I move up a couple notches and start a longer LinX run (5 cycles) without monkeying around with Vcc while it is running. If it errors then I bump up again.

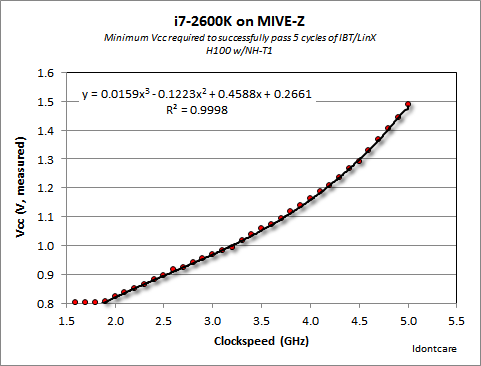

For the most part, with my 2600K, in the 4GHz range for every 0.1GHz increase (or decrease) in speed I have to move the voltage by 0.02 Volts (more or less).

Idontcare is offline   Reply With Quote
Old 09-29-2011, 06:11 PM   #9
Shmee
Moderator
Memory and Storage
Video Cards and Graphics

Shmee's Avatar

Join Date: Sep 2008
Location: Cali
Posts: 2,226
Default

any good stress tester for testing multiple GPUS at once with SLI/xfire?
__________________
Anandtech Moderator
4930k @ 4.2 GHz under corsair H100i
R9 290 crossfire 2x Sapphire Tri X | Seasonic 1250 Gold
16GB Corsair Vengeance on Gigabyte X79-UP4
HP ZR30W | Haf X | Logitech G110 + G500
Seagate 600 + Crucial M4 + WD black 1TB
Shmee is offline   Reply With Quote
Old 09-29-2011, 07:23 PM   #10
Idontcare
Administrator
Elite Member

Idontcare's Avatar

Join Date: Oct 1999
Location: 台北市
Posts: 20,513
Default

Quote:
Originally Posted by Shmee View Post
any good stress tester for testing multiple GPUS at once with SLI/xfire?
Good question, I'm actually quite ignorant of OC'ing in the >1 video-card space but I am glad you brought it up because I aim to SLI my GTX460's and I was assuming OCCT was SLI-aware.

I take it that OCCT is not SLI-aware?
Idontcare is offline   Reply With Quote
Old 09-29-2011, 07:40 PM   #11
daddylongs
Member

daddylongs's Avatar

Join Date: Sep 2011
Location: oregon
Posts: 33
Default

Quote:
Originally Posted by Idontcare View Post
I use both.

Real Temp has some nice feature but it only works with the Intel CPU's as I understand it.

Core Temp has nice temperature logging features. Real temp will also log temps but it appends each session's worth of data into one big mega-file whereas Core Temp will save log files by timestamp of the session's start which is nice for the purpose of going back to lookup the results of bench sessions.



My mobo lets me change Vcc in 0.005 volt increments, which is what I use.

But I iterate with more of a "rapid find" approach by dropping launching a session of LinX, let the CPU get good and warm at my target GHz, and then using AI Suite I start dropping the Vcc in 0.005 increments. Let it stable, wait maybe 30 seconds, then drop again, wait 30s, drop again. All while LinX is running in the background.

Eventually LinX will either halt from a computation error or the system will BSOD, then I move up a couple notches and start a longer LinX run (5 cycles) without monkeying around with Vcc while it is running. If it errors then I bump up again.

For the most part, with my 2600K, in the 4GHz range for every 0.1GHz increase (or decrease) in speed I have to move the voltage by 0.02 Volts (more or less).

Awesome! I will do this after I install the new cooler. I'll make a public google doc and we can all add our data, and we can see a line for each persons CPU. I am curious about how mine lines up against others here, and also how wide the standard deviation is.

Do you know, in your rapid method, for each time you lower the Vcc, do you know if the temperature affects AI Suite's CPU speed that it settles on? I am trying to figure out what differences in CPU cooling/temperature would have on that chart you showed. Have you noticed anything here?


EDIT:
Also, I am considering SLI GTX470's very soon. May depend on BF3 scaling. I am curious about your ruminations on that topic too.
daddylongs is offline   Reply With Quote
Old 09-29-2011, 08:39 PM   #12
AdamK47
Lifer

Join Date: Oct 1999
Posts: 10,844
Default

If you have a Fermi GPU and really want to test stability of your GPU, run Folding@Home projects 7620 and 7621. I can run OCCT all day long with 3-way SLI and get 100% stability at 850MHz on all three GTX 580s. Run three 7620/7621 projects and the GPUs will be 94+ C. I've even had the protection circuitry tripped on my Corsair AX1200 power supply when running these. If instability is detected, Folding@Home will report it and stop the execution. OCCT runs the GPUs at 5 degrees cooler or less with 500RPM to 1000RPM less fan speed and will never report instability for me at these clock speeds.

I gave IDontCare instructions to run it, but I think HeDontCare.
__________________
Intel Core i7 5960X - Asus Rampage V Extreme - 16GB Corsair Vengeance LPX DDR4 - Four Nvidia GTX 980s in 4-Way SLI - 256GB Samsung 850 Pro SSD - Five 1TB Samsung 840 EVO SSDs in 5TB RAID-0 - 6TB Seagate 7200RPM HDD - Pioneer BDR-206 BD-RW - Corsair Obsidian 750D case - Thermaltake Water 3.0 Ultimate cooler - Corsair AX1500i power supply - Razer BlackWidow Ultimate keyboard - CST LaserTRAC 2545W trackball - BenQ BL3200PT monitor - Shure SRH1440 headphones - Windows 8.1 Pro x64
AdamK47 is online now   Reply With Quote
Old 09-29-2011, 08:41 PM   #13
AdamK47
Lifer

Join Date: Oct 1999
Posts: 10,844
Default

Quote:
Originally Posted by Idontcare View Post
Good question, I'm actually quite ignorant of OC'ing in the >1 video-card space but I am glad you brought it up because I aim to SLI my GTX460's and I was assuming OCCT was SLI-aware.

I take it that OCCT is not SLI-aware?
OCCT does. It runs the GPU test as crysis.exe. That way it uses the Crysis SLI profile when running the test.

Edit: Or the Crysis Crossfire profile.
__________________
Intel Core i7 5960X - Asus Rampage V Extreme - 16GB Corsair Vengeance LPX DDR4 - Four Nvidia GTX 980s in 4-Way SLI - 256GB Samsung 850 Pro SSD - Five 1TB Samsung 840 EVO SSDs in 5TB RAID-0 - 6TB Seagate 7200RPM HDD - Pioneer BDR-206 BD-RW - Corsair Obsidian 750D case - Thermaltake Water 3.0 Ultimate cooler - Corsair AX1500i power supply - Razer BlackWidow Ultimate keyboard - CST LaserTRAC 2545W trackball - BenQ BL3200PT monitor - Shure SRH1440 headphones - Windows 8.1 Pro x64

Last edited by AdamK47; 09-29-2011 at 08:55 PM.
AdamK47 is online now   Reply With Quote
Old 09-29-2011, 08:54 PM   #14
AdamK47
Lifer

Join Date: Oct 1999
Posts: 10,844
Default

Quote:
Originally Posted by Idontcare View Post
This thread is a work in progress. The OP will be updated/amended to reflect information as made available by thread contributors.


LinX (Intel burntest) is superior to Prime95 small FFT for determining CPU core logic stability.
  • Must run with the IBT thread count set equal to the physical core count of the CPU.
  • HT slows it down and reduces the ability to determine stability. Set to 4 threads on a 2600K.
  • Set memory to "All".
  • Stability Criterion: Must pass 5 cycles minimum, passing 20 cycles is preferred (considered gold standard)
Prime95 large FFT is superior to LinX for determining L3$/IMC stability.
  • Must use large FFT, blend is insufficient. <- reports indicate this is false for AMD stability tests, see post #4
  • HT is ok for this test.
  • Stability Criterion: Must pass 2 hours minimum, passing 12 hours is preferred (considered gold standard)
HCI memtest is superior to LinX, Prime (large or small), and memtest86+ for determining memory stability.
  • Launch one instance per thread supported by CPU (8 instances of HCI memtest for 2600K)
  • Set each HCI instance to use an appropriate fraction of the memory...16GB on a 2600K means each HCI instance (there will be 8 instances) are to use 2048 MB.
  • Stability Criterion: Must pass 200% coverage minimum, passing 1000% coverage is preferred (considered gold standard)
OCCT GPU test w/error checking enabled is superior to Kombustor for determining GPU stability.
  • Error checking MUST be enabled by the user (check the box), otherwise you are leaving it up to your eyes to detect visual artifacts which renders the test entirely subjective.
  • Stability Criterion: Must pass 20 minutes minimum, passing 1 hour is preferred (considered gold standard)
Sorry to nitpick, but I find 5 runs of LinX far too low. 20 is even a bit low in my opinion. I've always run LinX on a timed basis. From between 8 and 12 hours. I've had many overclocks fail after 3 to 5 hours. I also run with all logical cores since this generates maximum usage and heat. It allows me to detect errors earlier.

I agree with Prime95 though. Been using it for a decade or more.
__________________
Intel Core i7 5960X - Asus Rampage V Extreme - 16GB Corsair Vengeance LPX DDR4 - Four Nvidia GTX 980s in 4-Way SLI - 256GB Samsung 850 Pro SSD - Five 1TB Samsung 840 EVO SSDs in 5TB RAID-0 - 6TB Seagate 7200RPM HDD - Pioneer BDR-206 BD-RW - Corsair Obsidian 750D case - Thermaltake Water 3.0 Ultimate cooler - Corsair AX1500i power supply - Razer BlackWidow Ultimate keyboard - CST LaserTRAC 2545W trackball - BenQ BL3200PT monitor - Shure SRH1440 headphones - Windows 8.1 Pro x64
AdamK47 is online now   Reply With Quote
Old 09-29-2011, 09:00 PM   #15
Idontcare
Administrator
Elite Member

Idontcare's Avatar

Join Date: Oct 1999
Location: 台北市
Posts: 20,513
Default

Quote:
Originally Posted by daddylongs View Post
Awesome! I will do this after I install the new cooler. I'll make a public google doc and we can all add our data, and we can see a line for each persons CPU. I am curious about how mine lines up against others here, and also how wide the standard deviation is.

Do you know, in your rapid method, for each time you lower the Vcc, do you know if the temperature affects AI Suite's CPU speed that it settles on? I am trying to figure out what differences in CPU cooling/temperature would have on that chart you showed. Have you noticed anything here?


EDIT:
Also, I am considering SLI GTX470's very soon. May depend on BF3 scaling. I am curious about your ruminations on that topic too.


I realized when I saw this graph in your post that I failed to detail the relevant test conditions

I will update the graph, and knowing photobucket the pic will auto-update as well once our browser cache clears out.

In the meantime, what you are looking at there is the minimum Vcc required to fully pass 5 cycles of IBT (roughly 1hour per datum point) for every multiplier between 16x and 50x.

It took me roughly four days to generate the data. I'm still wrapping up the relevant data analyses, but here is some more "data dump" to appease your curiosity

Here's the "peak" core temperature experienced during the 5 runs of IBT:


And here is the peak power-consumption (measured at the wall, includes whole system but not the LCD):

Last edited by Idontcare; 09-30-2011 at 12:47 AM. Reason: fixed graph links
Idontcare is offline   Reply With Quote
Old 09-29-2011, 10:36 PM   #16
gevorg
Diamond Member

gevorg's Avatar

Join Date: Nov 2004
Location: Bay Area
Posts: 4,836
Default

Awesome temperature and power graphs!! I hope Ivy Bridge would make 5GHz as easy as 4GHz in Sandy Bridge.
gevorg is offline   Reply With Quote
Old 09-29-2011, 10:49 PM   #17
lehtv
Diamond Member

lehtv's Avatar

Join Date: Dec 2010
Posts: 9,959
Default

Looks like 4GHz is the sweet spot for MHz/Watt when overclocking. After that it starts to climb noticeably more steeply... If IB is anything like SB, I'll probably OC mine to 4GHz and cool it passively 8)
__________________
System specs
lehtv is offline   Reply With Quote
Old 09-29-2011, 11:47 PM   #18
MrTransistorm
Senior Member

MrTransistorm's Avatar

Join Date: May 2003
Location: Knoxville, TN
Posts: 300
Default

Quote:
Originally Posted by lehtv View Post
Looks like 4GHz is the sweet spot for MHz/Watt when overclocking. After that it starts to climb noticeably more steeply... If IB is anything like SB, I'll probably OC mine to 4GHz and cool it passively 8)
Of course with Sandy Bridge you don't have to disable power-saving features in order to overclock. This means that unless you are actively running CPU intensive tasks (i.e. benchmarking, rendering, transcoding, etc.), the temps are going to be only a little above ambient.

When I was using my Thermalright HR-02, I could shut off the fan for general computer use even though the 2600K was overclocked to 4.7 GHz.

So yes, you can cool it passively, but you might as well have a fan in there anyway. That way you can overclock higher and just turn the fan on when needed.
__________________
Quote:
Originally Posted by Phynaz View Post
Did you know that there are other uses for a PC besides playing games?
i7 2600K@4.5GHz||Gigabyte P67A-UD7-B3||2x4GB SuperTalent DDR3-1600||EVGA GTX580 1.5GB||EK Supreme HF Copper/Acetal||Lian-Li PC-A77A||Seasonic X750||Win7 Pro x64

i7 2600K@4.5GHz||Gigabyte Z77X-UD5H||2x4GB Corsair Vengeance DDR3-1600||Thermalright HR-02||Lian-Li PC-A77F||Seasonic X760||Ubuntu Server 12.04

MBP 15" Matte||2.5 GHz 6MB Penryn||4GB RAM||200GB 7200 HDD||Win7 Pro x64/OS X 10.6.8
MrTransistorm is offline   Reply With Quote
Old 09-30-2011, 12:52 AM   #19
Idontcare
Administrator
Elite Member

Idontcare's Avatar

Join Date: Oct 1999
Location: 台北市
Posts: 20,513
Default

Quote:
Originally Posted by AdamK47 View Post
Sorry to nitpick, but I find 5 runs of LinX far too low. 20 is even a bit low in my opinion. I've always run LinX on a timed basis. From between 8 and 12 hours. I've had many overclocks fail after 3 to 5 hours. I also run with all logical cores since this generates maximum usage and heat. It allows me to detect errors earlier.

I agree with Prime95 though. Been using it for a decade or more.
That's no nitpick. You highlight the reality of statistics and reliability analysis. Accelerated stress testing is all about placement on the Weibull distribution curve and backing out the confidence level from there. Sounds like you prefer to operate farther to the right on the curve, higher confidence intervals, no issue there.

If 5 passes on IBT is to be considered the "bronze standard" and 20 passes the "gold standard" then we'll reserve AdamK47's stress testing thresholds for the "platinum standard" level

Now if we can gain a some manner of consensus that more people really do stress test for 8-12 hrs on LinX then I will happily adjust the thresholds in the OP, the guide is not meant to be written in stone.

Also...regarding your logical core vs physical core statement, there must be something else afoot here because I experience the exact opposite in LinX/IBT


Higher temps with 4 threads, also higher power-consumption at the wall as well as higher gflops.
Idontcare is offline   Reply With Quote
Old 09-30-2011, 01:17 AM   #20
Idontcare
Administrator
Elite Member

Idontcare's Avatar

Join Date: Oct 1999
Location: 台北市
Posts: 20,513
Default

Quote:
Originally Posted by lehtv View Post
Looks like 4GHz is the sweet spot for MHz/Watt when overclocking. After that it starts to climb noticeably more steeply... If IB is anything like SB, I'll probably OC mine to 4GHz and cool it passively 8)
Good eye! The peak is exactly at 4GHz, for my CPU and setup at least

Idontcare is offline   Reply With Quote
Old 09-30-2011, 08:52 AM   #21
NoobyDoo
Senior Member

Join Date: Nov 2006
Posts: 463
Default

since hci memtest is run from windows, a large chunk of memory will not be tested, right ?

if your discrete/on-board gpu uses system memory, that too will not be tested, i think.
NoobyDoo is offline   Reply With Quote
Old 09-30-2011, 10:45 AM   #22
Idontcare
Administrator
Elite Member

Idontcare's Avatar

Join Date: Oct 1999
Location: 台北市
Posts: 20,513
Default

Quote:
Originally Posted by NoobyDoo View Post
since hci memtest is run from windows, a large chunk of memory will not be tested, right ?

if your discrete/on-board gpu uses system memory, that too will not be tested, i think.
I don't really profess to have a technical working understanding of the limitations of HCI memtest so I can't really answer that.

What I can say is that this line of thought is exactly why I avoided using HCI memtest when I made a thread about the preferred memtest program in the Memory & Storage sub-forum.

I too was under the assumption that HCI in a windows environment would be inferior to memtest86+.

Then I had a problem where IBT/LinX would fail (error detected) even when my CPU was at stock. So I ran memtest86+ for >12hrs, some 12 passes, and it had zero errors detected.

Then I ran HCI, didn't even make it through one pass (<100% coverage) and bam, errors galore were detected.

I then downclocked my supposedly stable (per memtest86+) ram and reran HCI - ram came out stable. Then I reran IBT/LinX and it passed as well.

Conclusion - HCI works when memtest doesn't.

One thing about HCI is that you can specify in MB the amount of ram each instance is supposed to allocate. I just manually tell it to allocate all the physical ram. If you watch disk usage in Resource Monitor you can see a bunch of activity at first as the OS swaps out the cached stuff in ram to the disk, then the disk activity dies down while the memory in use goes to 99%.

I'm not saying don't use memtest86+, I love the unattended automated utility of a bootable thumb-drive, but I am saying that I have experienced first-hand that memtest86+ is not as aggressive/reliable of a memory test program as HCI for whatever reason.
Idontcare is offline   Reply With Quote
Old 09-30-2011, 10:49 AM   #23
sangyup81
Golden Member

Join Date: Feb 2005
Posts: 1,082
Default

Quote:
Originally Posted by Idontcare View Post
I don't really profess to have a technical working understanding of the limitations of HCI memtest so I can't really answer that.

What I can say is that this line of thought is exactly why I avoided using HCI memtest when I made a thread about the preferred memtest program in the Memory & Storage sub-forum.

I too was under the assumption that HCI in a windows environment would be inferior to memtest86+.

Then I had a problem where IBT/LinX would fail (error detected) even when my CPU was at stock. So I ran memtest86+ for >12hrs, some 12 passes, and it had zero errors detected.

Then I ran HCI, didn't even make it through one pass (<100% coverage) and bam, errors galore were detected.

I then downclocked my supposedly stable (per memtest86+) ram and reran HCI - ram came out stable. Then I reran IBT/LinX and it passed as well.

Conclusion - HCI works when memtest doesn't.

One thing about HCI is that you can specify in MB the amount of ram each instance is supposed to allocate. I just manually tell it to allocate all the physical ram. If you watch disk usage in Resource Monitor you can see a bunch of activity at first as the OS swaps out the cached stuff in ram to the disk, then the disk activity dies down while the memory in use goes to 99%.

I'm not saying don't use memtest86+, I love the unattended automated utility of a bootable thumb-drive, but I am saying that I have experienced first-hand that memtest86+ is not as aggressive/reliable of a memory test program as HCI for whatever reason.
When you used memtest86+, did you run loops of only Test 5? I seem to get satisfactory results this way. Satisfactory meaning if it passes 5 loops of memtest86+ test 5, Windows never crashes on me with all other things being stable. I'll try to see if I can get errors from HCI that I don't get from memtest86+ one day
sangyup81 is offline   Reply With Quote
Old 09-30-2011, 10:53 AM   #24
MadScientist
Golden Member

MadScientist's Avatar

Join Date: Jul 2001
Location: TN
Posts: 1,874
Default

HCI Memtest

According their manual the best way to run HCI memtest is:
How much RAM to test: To keep the test running smoothly and quickly, you should only test the amount of RAM that is unused, rather than the total amount of RAM in your system - otherwise your computer will spend 90% of the test reading and writing to your hard drive, rather than testing RAM. By default MemTest will check all RAM that is not in use by other applications. If you want more control, you can use the Windows Task Manager to determine how much RAM is free for checking. As a rule of thumb, Win9X uses about 32MB of RAM when nothing is open, and Windows2000/XP uses about 64MB. Vista uses quite a bit more, depending on what features you have enabled. Even though you cannot directly check used RAM, Windows dynamically moves the location of most of its subsystems, so most of your RAM will be checked eventually.

No Windows program can directly check the RAM used by the OS; this is a fundamental limitation of using a modern OS. If you need to check every byte, consider purchasing MemTest Deluxe, which boots off of CD for unfettered access to RAM.
http://hcidesign.com/memtest/manual.html

Their manual also states:
How many instances of MemTest: If you have a multi-core or multiprocessor machine you can make the memory test more effective by running multiple copies of MemTest at the same time. Start at least as many copies of MemTest as you have cores and then divide the amount of RAM to test between them equally.

Even though I have a 4 core CPU I have to run 8 copies, 1825MB each. I get this message if I try to divide my available ram, 14602MB, equally between 4 copies.



LinX/IBT

Some may think this is excessive but I consider 20 runs to be the minumum for stability and 50 runs the gold standard (or you can call it platinum). I've had it BSOD at 24 runs.
__________________
Asrock Z68 Extreme 4, i5-2500K @4.6 Ghz, 1.340V, Lian Li PC-7A Plus, Corsair A70, Corsair Force Series 3 120GB SSD, Samsung Spinpoint HD103SJ 1TB, 16GB Kingston HyperX DDR3 1600 @1.575V,Seasonic M12II 620W PSU, Zotac GeForce GTX 970, Samsung SH-S223B, Win 7 Ultimate 64bit
MadScientist is offline   Reply With Quote
Old 09-30-2011, 10:55 AM   #25
AdamK47
Lifer

Join Date: Oct 1999
Posts: 10,844
Default

Quote:
Originally Posted by Idontcare View Post
That's no nitpick. You highlight the reality of statistics and reliability analysis. Accelerated stress testing is all about placement on the Weibull distribution curve and backing out the confidence level from there. Sounds like you prefer to operate farther to the right on the curve, higher confidence intervals, no issue there.

If 5 passes on IBT is to be considered the "bronze standard" and 20 passes the "gold standard" then we'll reserve AdamK47's stress testing thresholds for the "platinum standard" level

Now if we can gain a some manner of consensus that more people really do stress test for 8-12 hrs on LinX then I will happily adjust the thresholds in the OP, the guide is not meant to be written in stone.

Also...regarding your logical core vs physical core statement, there must be something else afoot here because I experience the exact opposite in LinX/IBT


Higher temps with 4 threads, also higher power-consumption at the wall as well as higher gflops.
Perhaps the Gulftown is different. I have always had higher temperatures with 12 and 11 threads. If you have time, would you mind testing yours with 7 threads?
__________________
Intel Core i7 5960X - Asus Rampage V Extreme - 16GB Corsair Vengeance LPX DDR4 - Four Nvidia GTX 980s in 4-Way SLI - 256GB Samsung 850 Pro SSD - Five 1TB Samsung 840 EVO SSDs in 5TB RAID-0 - 6TB Seagate 7200RPM HDD - Pioneer BDR-206 BD-RW - Corsair Obsidian 750D case - Thermaltake Water 3.0 Ultimate cooler - Corsair AX1500i power supply - Razer BlackWidow Ultimate keyboard - CST LaserTRAC 2545W trackball - BenQ BL3200PT monitor - Shure SRH1440 headphones - Windows 8.1 Pro x64
AdamK47 is online now   Reply With Quote
Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -5. The time now is 12:54 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
